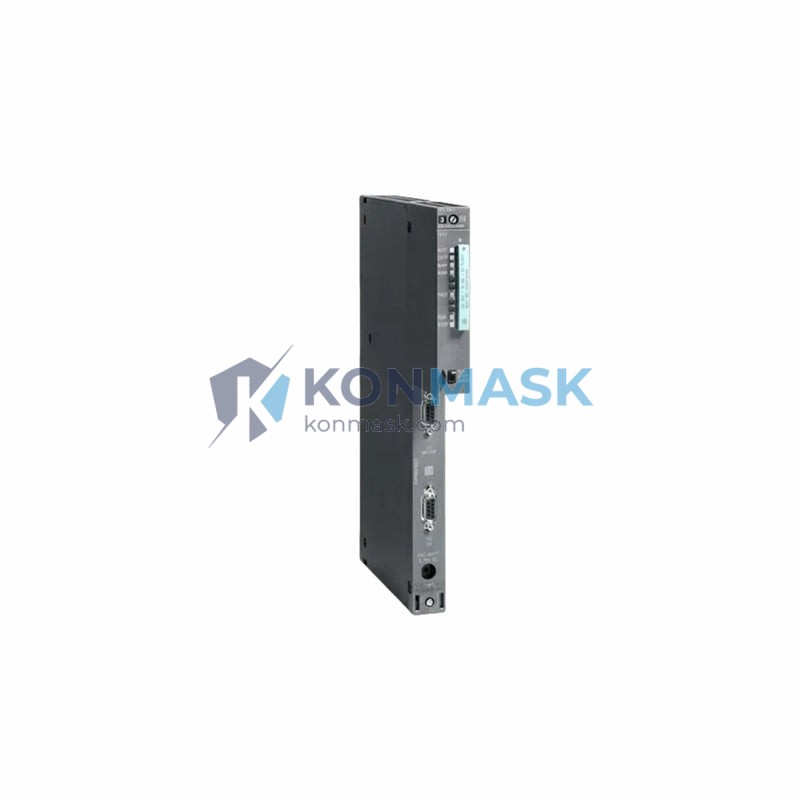

Siemens 6ES7412-1XJ05-0AB0 – CPU 412-1 Central Processing Unit | SIMATIC S7-400 Platform
Engineering Background
The Siemens SIMATIC S7-400 is the flagship programmable logic controller platform engineered for high-availability, large-scale process automation and manufacturing execution systems. Designed to IEC 61131-3 standards, the S7-400 family has been deployed across power generation, petrochemical, automotive, and discrete manufacturing sectors for over two decades. The CPU 412-1 (6ES7412-1XJ05-0AB0) represents the entry-level processing node of the S7-400 rack architecture, delivering deterministic scan-cycle performance with full compatibility across the S7-400 backplane ecosystem.
Product Positioning
The 6ES7412-1XJ05-0AB0 is purpose-built for procurement engineers and system integrators who require a verified, drop-in replacement or expansion CPU for existing SIMATIC S7-400 installations. It supports STEP 7 programming environments and is fully compatible with TIA Portal migration workflows, making it the preferred choice for brownfield modernization projects where continuity of control logic is non-negotiable.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Order Number (MLFB) | 6ES7412-1XJ05-0AB0 |
| Product Family | SIMATIC S7-400 |
| CPU Designation | CPU 412-1 |
| Firmware Version | V5.x (05 release) |
| Work Memory (RAM) | 256 KB (expandable via memory card) |
| Load Memory | Integrated 256 KB RAM + MMC slot |
| Processing Speed (Bit) | 0.1 µs per bit operation |
| Processing Speed (Word) | 0.2 µs per word operation |
| Processing Speed (Float) | 3.0 µs per floating-point operation |
| Max. Digital I/O | 65,536 inputs / 65,536 outputs |
| Max. Analog I/O | 4,096 inputs / 4,096 outputs |
| MPI Interface | 1 × MPI (187.5 kbps – 12 Mbps) |
| PROFIBUS DP | Via CP modules |
| Timers / Counters | 2,048 / 2,048 |
| Data Blocks | Up to 8,191 DBs |
| Supply Voltage | DC 24 V (via PS 407 power supply) |
| Power Consumption | Approx. 1.5 W (CPU only) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 10% – 95% (non-condensing) |
| Protection Class | IP 20 |
| Dimensions (W × H × D) | 25 mm × 290 mm × 219 mm |
| Weight | Approx. 1,250 g |
| Certifications | CE, UL, cULus, ATEX Zone 2 |
| Country of Origin | Germany |
| Programming Software | STEP 7 V5.x / TIA Portal (via migration) |
Proven Application Environments
- Power & Energy: Turbine control, substation automation, and grid protection relay coordination
- Oil & Gas / Petrochemical: Compressor sequencing, pipeline SCADA integration, and emergency shutdown (ESD) systems
- Automotive Manufacturing: Body-in-white welding lines, paint shop conveyors, and press transfer automation
- Water & Wastewater: Pump station control, dosing systems, and SCADA-linked remote I/O
- Pharmaceutical / Food & Beverage: Batch process control compliant with ISA-88 standards
- Discrete Manufacturing: Multi-axis motion coordination via PROFIBUS DP expansion
Engineering Advantages
- Deterministic Cycle Time: Sub-millisecond scan cycles ensure real-time response for time-critical process loops
- Hot-Swap Compatibility: Designed for rack-based hot insertion within redundant S7-400H configurations (with appropriate hardware)
- Scalable Memory: MMC slot supports program and data memory expansion without hardware modification
- Backward Compatibility: Fully compatible with existing S7-400 racks, I/O modules, and STEP 7 project libraries
- Diagnostic Integration: Built-in system diagnostics accessible via STEP 7 HW Config and SIMATIC Manager
- Long Service Life: Siemens S7-400 platform supported through extended lifecycle program (ELP) until 2030+
System Architecture & Signal Flow
The 6ES7412-1XJ05-0AB0 occupies a standard S7-400 rack slot and communicates with I/O modules via the S7-400 backplane bus at up to 48 MB/s. The CPU executes the OB (Organization Block) hierarchy — OB1 for cyclic processing, OB35 for cyclic interrupt, and OB82/86 for diagnostic interrupts — ensuring structured, priority-driven program execution. MPI port enables direct programming device (PG/PC) connection and HMI communication (SIMATIC Panel, WinCC) without additional communication processors. For distributed I/O, PROFIBUS DP master functionality is added via CP 443-5 Extended modules, supporting up to 125 DP slaves per bus segment.
Sourcing & Quality Verification
- Origin Traceability: All units sourced from authorized Siemens distribution channels or verified OEM surplus with full documentation
- Pre-Shipment Inspection: Each CPU undergoes power-on functional test, firmware version verification, and physical inspection (connector integrity, label authenticity, housing condition)
- Counterfeit Mitigation: Serial number cross-referenced against Siemens SIOS (Siemens Industry Online Support) database prior to dispatch
- Packaging: ESD-safe anti-static bag + foam-lined carton; original Siemens packaging preserved where available
- Warranty: 12-month operational warranty against manufacturing defects
Procurement Process
- Confirm Part Number: Verify MLFB 6ES7412-1XJ05-0AB0 matches your existing rack configuration and firmware requirements
- Request Quote: Contact [email protected] for volume pricing, lead time, and availability confirmation
- Submit PO: Purchase order accepted via email; proforma invoice issued within 1 business day
- Inspection & Dispatch: Unit tested, documented, and dispatched within 2–5 business days via DHL Express / FedEx International Priority
- Customs & Compliance: HS Code 8537.10 declared; full commercial invoice and packing list provided for customs clearance
- After-Sales Support: Technical support available via email and phone for installation, commissioning, and STEP 7 configuration queries
Technical FAQ
Q: Is the 6ES7412-1XJ05-0AB0 compatible with TIA Portal?
A: Direct programming requires STEP 7 V5.x. TIA Portal supports migration of existing S7-400 projects but does not natively program the CPU 412-1 without the STEP 7 Professional package.
Q: Can this CPU be used in a redundant (H-system) configuration?
A: No. Redundant S7-400H systems require CPU 41x-H variants (e.g., 6ES7414-4HM14-0AB0). The CPU 412-1 is a standard (non-redundant) CPU.
Q: What memory card is compatible?
A: Siemens SIMATIC Micro Memory Card (MMC) — order numbers 6ES7953-8Lxx0-0AA0 series. Capacity options: 64 KB to 8 MB.
Q: What is the maximum number of S7-400 racks supported?
A: Up to 21 racks (1 central rack + 20 expansion racks) via IM 460/461 interface modules.
Q: Is PROFIBUS DP integrated on this CPU?
A: The CPU 412-1 does not have an integrated PROFIBUS DP interface. DP master/slave functionality requires CP 443-5 Basic or Extended communication processors.
Q: What is the typical lead time for delivery to Asia-Pacific?
A: Standard stock items ship within 2–5 business days. DHL Express transit to most APAC destinations is 3–5 business days.
