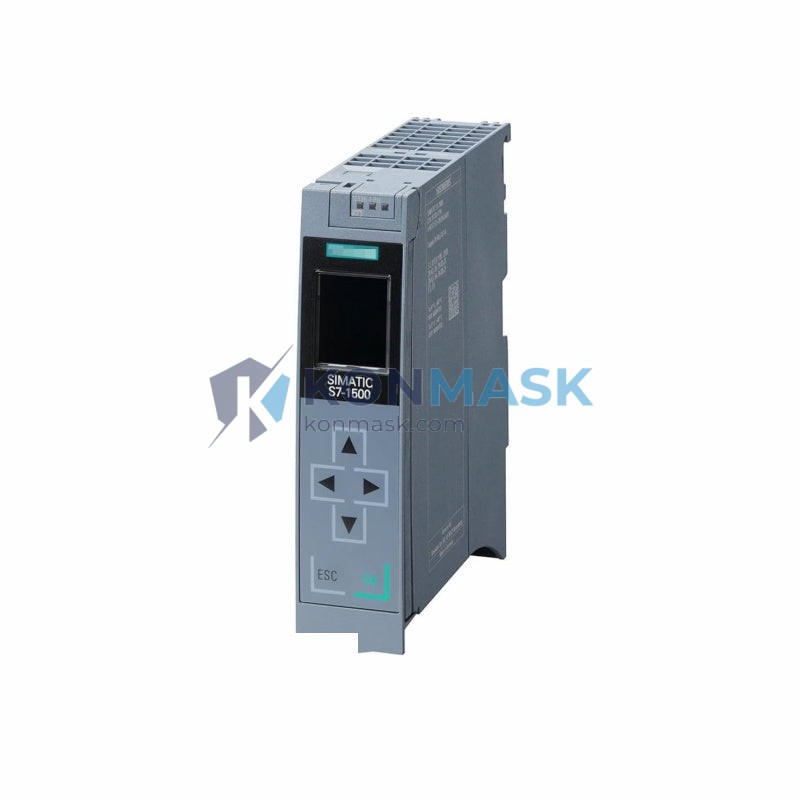

Siemens 6ES7513-1RL00-0AB0 – Redundant CPU for High-Availability Process Control | SIMATIC S7-1500R Platform
Engineering Background
The SIMATIC S7-1500R series is Siemens’ dedicated solution for mission-critical process automation where unplanned downtime carries operational, financial, or safety consequences. The CPU 1513R-1PN (order number 6ES7513-1RL00-0AB0) operates as part of a synchronized redundant CPU pair, delivering bumpless switchover in the event of a primary CPU fault. This R/H (Redundant / High-Availability) architecture is the industry standard in power generation, oil & gas, water treatment, and chemical processing facilities where continuous operation is a contractual and regulatory requirement.
Product Positioning
The 6ES7513-1RL00-0AB0 is the entry-level redundant CPU in the S7-1500R family — the cost-optimized path to high-availability automation without sacrificing the full TIA Portal engineering environment. It is the preferred specification for procurement engineers requiring IEC 62061 / IEC 61511 compliant redundancy, native PROFINET IRT connectivity, and seamless integration into existing Siemens SIMATIC ecosystems. Konmask.com supplies verified units with full traceability documentation for project and audit requirements.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Order Number (MLFB) | 6ES7513-1RL00-0AB0 |
| CPU Designation | CPU 1513R-1PN |
| Product Family | SIMATIC S7-1500R / S7-1500H |
| Work Memory – Code | 300 KB |
| Work Memory – Data | 1.5 MB |
| Load Memory | 2 GB (SIMATIC Memory Card required, e.g. 6ES7954-8LF03-0AA0) |
| Bit Processing Speed | 40 ns / instruction |
| PROFINET Interfaces | 2 × PROFINET IRT (RJ45) |
| Redundancy Sync Interface | Integrated R-sync port (fiber optic via CM module) |
| Max. I/O Modules per Rack | 32 |
| OPC UA Server | Integrated (no additional license) |
| Web Server | Integrated |
| Supply Voltage | 24 V DC |
| Power Consumption | Approx. 4.5 W |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +70 °C |
| Protection Rating | IP20 |
| Dimensions (W × H × D) | 35 mm × 147 mm × 129 mm |
| Weight | Approx. 800 g |
| Certifications | CE, UL, cULus, ATEX Zone 2, IECEx |
| TIA Portal Compatibility | V16 and above |
| Firmware Version | V2.9 and above (V3.0 recommended) |
| Country of Origin | Germany |
Proven Application Environments
- Power Generation & Utilities – Turbine control, boiler management, and grid synchronization systems requiring zero-downtime operation and SIL-rated redundancy.
- Oil & Gas Processing – Pipeline SCADA, compressor control, and wellhead automation with certified redundant architecture.
- Water & Wastewater Treatment – Pump station control and chemical dosing systems with continuous availability mandates.
- Chemical & Petrochemical Plants – Reactor control and batch processing where process interruption causes product loss or safety incidents.
- Automotive Manufacturing – Transfer line control and press automation requiring high OEE targets with deterministic cycle times.
- Data Center Infrastructure – UPS and precision cooling automation with redundant control architecture and remote OPC UA monitoring.
Engineering Advantages
- Bumpless Switchover – Sub-millisecond synchronization between primary and backup CPU ensures zero process disruption during failover events.
- Unified TIA Portal Engineering – Fully programmed and commissioned within TIA Portal V16+; no separate redundancy software license required for standard R-system configuration.
- Integrated OPC UA Server – Native OPC UA enables direct MES/SCADA connectivity without additional gateway hardware, reducing BOM cost and network complexity.
- PROFINET IRT – Isochronous Real-Time PROFINET supports deterministic cycle times down to 250 µs for motion-critical and time-sensitive applications.
- Scalable Redundancy Path – Upgradeable from S7-1500R (rack-based) to S7-1500H (distributed high-availability) architecture using the same CPU hardware investment.
- IEC 62443 Cybersecurity – Supports TLS 1.3, user authentication, and access control lists (ACL) for industrial network security compliance.
System Architecture & Signal Flow
In an S7-1500R redundant system, two CPU 1513R-1PN modules operate in a primary/backup configuration. Both CPUs execute the identical user program synchronously. The R-sync link (via CM 1542-5 or fiber optic coupler) continuously mirrors the process image, data blocks, and active communication states between the two CPUs. Upon detection of a primary CPU fault, the backup assumes full control within one PLC scan cycle — maintaining all I/O states and active PROFINET connections without operator intervention. PROFINET ring topology (MRP) provides complementary network-level redundancy.
Signal Flow: Field Devices → ET 200MP / ET 200SP Distributed I/O → PROFINET IRT → CPU 1513R-1PN (Primary) ↔ R-sync ↔ CPU 1513R-1PN (Backup) → SCADA / MES via OPC UA / PROFINET
Sourcing & Quality Verification
- All units sourced through authorized Siemens distribution channels or verified industrial surplus with full traceability documentation.
- Each module undergoes incoming inspection: visual check, firmware version verification, and functional power-on test prior to shipment.
- Original Siemens packaging, holographic labels, and MLFB barcode verification performed on every unit.
- Certificates of conformity and test reports available upon request for project documentation and audit compliance.
- Konmask.com maintains a strict no-counterfeit policy; all suspect units are quarantined and reported to the manufacturer.
Procurement Process
- Step 1 – Inquiry: Submit your BOM or part number via this product page or email [email protected] with quantity and required delivery date.
- Step 2 – Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 business hours.
- Step 3 – Order Confirmation: Confirm PO; payment via T/T, PayPal, or credit card. Net-30 terms available for qualified accounts.
- Step 4 – Inspection & Dispatch: Unit inspected, packed in anti-static ESD packaging, and dispatched with tracking number and commercial invoice.
- Step 5 – After-Sales Support: 12-month warranty on all stocked units. Technical support available via email and WhatsApp (+0086 19859288691).
Technical FAQ
Q: Can the 6ES7513-1RL00-0AB0 operate as a standalone (non-redundant) CPU?
A: No. The CPU 1513R-1PN is designed exclusively for S7-1500R/H redundant system configurations and requires a paired redundant CPU for operation.
Q: Which SIMATIC Memory Card is required?
A: A SIMATIC Memory Card is mandatory for load memory (e.g., 6ES7954-8LF03-0AA0, 2 GB). The CPU will not operate without it.
Q: Is TIA Portal V15 compatible?
A: No. The S7-1500R system requires TIA Portal V16 or higher. Firmware V2.9+ is required; V3.0 is recommended for full feature support.
Q: What is the maximum R-sync cable length?
A: Using the CM 1542-5 with fiber optic cables, the R-sync link supports distances up to 10 km, enabling geographically separated redundant installations.
Q: Does this CPU support PROFISAFE for functional safety?
A: The standard CPU 1513R-1PN does not support PROFISAFE. For SIL-rated functional safety applications, specify F-CPU variants within the S7-1500 family.
Q: What is the difference between S7-1500R and S7-1500H?
A: S7-1500R uses rack-based redundancy (CPUs in the same or adjacent racks). S7-1500H supports distributed high-availability with CPUs separated by up to 10 km via fiber. The 6ES7513-1RL00-0AB0 hardware supports both configurations.
