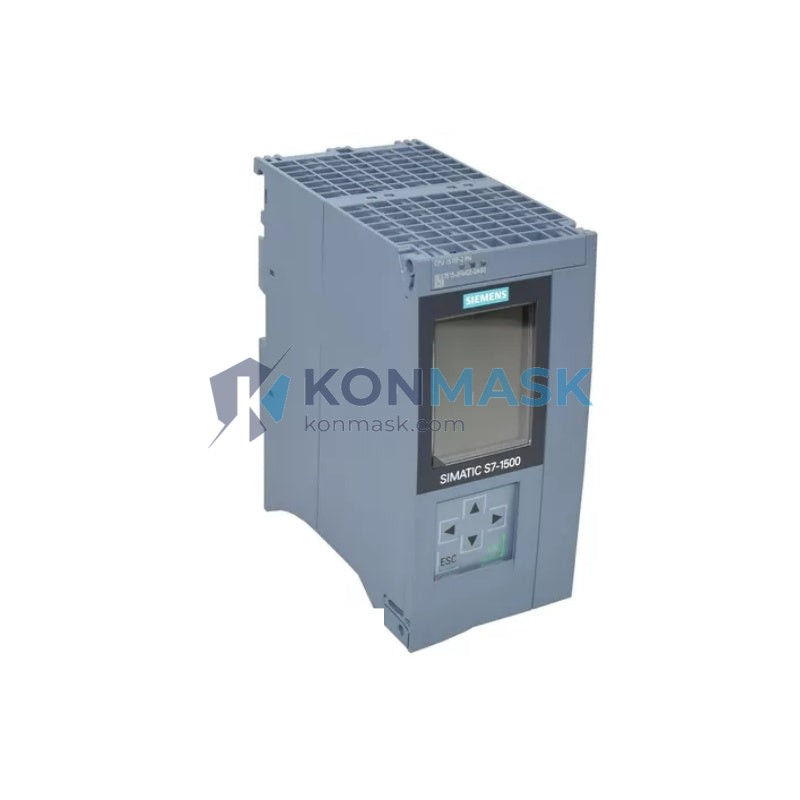

Industrial Safety & Motion Control Solution – SIEMENS 6ES7515-2TN03-0AB0 | SIMATIC S7-1500 Series
Where This Product Is Used
The SIEMENS 6ES7515-2TN03-0AB0 (CPU 1515TF-2 PN) is a high-performance fail-safe central processing unit from the SIMATIC S7-1500 series, engineered for demanding industrial environments where both standard automation and functional safety must coexist on a single controller. Typical deployment scenarios include:
- Automotive Manufacturing Lines – Coordinating multi-axis servo motion and safety interlocks on body-in-white welding and assembly stations.
- Chemical & Petrochemical Plants – SIL 2/3 safety shutdown systems (SIS) integrated with process control loops, replacing standalone safety relays.
- Packaging & Palletizing Machinery – High-speed motion sequencing with integrated safe-stop (STO/SS1/SS2) for operator access zones.
- Water & Wastewater Treatment – Redundant PROFINET communication to remote I/O islands across large plant footprints.
- Intralogistics & Conveyor Systems – Centralized motion coordination for sorters, diverters, and accumulation conveyors with safety door monitoring.
- Power Generation & Utilities – Turbine and generator control with IEC 62061 / ISO 13849 compliant safety functions.
Technical Specifications
| Parameter | Value |
|---|---|
| Order Number (SKU) | 6ES7515-2TN03-0AB0 |
| Product Family | SIMATIC S7-1500 / CPU 1515TF-2 PN |
| CPU Type | Fail-Safe (TF) + Motion Control |
| Work Memory | 3 MB (program) / 20 MB (data) |
| Processing Speed (Bit) | 1 ns |
| PROFINET Interfaces | 2 × PROFINET IO (IRT capable) |
| Safety Integrity Level | SIL 2 (IEC 62061) / PLe Cat. 4 (ISO 13849) |
| Motion Control Axes | Up to 30 axes (technology objects) |
| Integrated Display | Yes (front panel LCD) |
| Supply Voltage | 24 V DC |
| Operating Temperature | 0 °C … +60 °C |
| Dimensions (W×H×D) | 70 × 147 × 129 mm |
| Weight | Approx. 680 g |
| Country of Origin | Germany |
| HS Code | 8537.10 |
Why Engineers Specify This Model
- Unified Safety + Standard Control – Eliminates the need for a separate safety PLC; F-programs run alongside standard OB/FB logic in TIA Portal V17+.
- High-Speed Motion Integration – Native technology objects (TO) for positioning, synchronous, and cam-based motion without add-on modules.
- Dual PROFINET IRT – Isochronous Real-Time communication enables sub-millisecond cycle synchronization across distributed I/O and drives.
- TIA Portal Ecosystem – Seamless engineering with STEP 7 Safety, SINAMICS drive integration, and SCADA connectivity via OPC UA.
- Scalable Safety – F-I/O can be distributed across ET 200SP, ET 200MP, or SINAMICS drives without additional safety gateways.
- Firmware V3.0+ – Supports enhanced cybersecurity features including user authentication and encrypted communication.
Complete System Bill of Materials
A typical S7-1500 TF control cabinet build around the 6ES7515-2TN03-0AB0 includes:
- Power Supply Module – e.g., 6EP1333-4BA00 (PS 60W 24VDC)
- System Power Supply – 6ES7505-0KA00-0AB0 (PS 25W 24VDC)
- Front Connector / Backplane Bus – included with CPU
- Digital I/O Modules – e.g., 6ES7521-1BL00-0AB0 (DI 32×24VDC HF)
- Fail-Safe Digital I/O – e.g., 6ES7526-1BH00-0AB0 (F-DI 8×24VDC)
- PROFINET Switch – e.g., SCALANCE XC208 (6GK5208-0BA00-2AC2)
- SINAMICS S120 Drive System – for coordinated motion axes
- HMI Panel – e.g., SIMATIC TP1200 Comfort (6AV2124-0MC01-0AX0)
Compliance & Industry Standards
- IEC 61131-2 – Programmable Controllers Hardware Requirements
- IEC 62061 – Safety of Machinery, SIL 2 certified
- ISO 13849-1 – Safety-Related Parts of Control Systems, PLe Cat. 4
- IEC 61784-3 – Functional Safety Fieldbuses (PROFIsafe)
- CE Marking – EU Machinery Directive & EMC Directive compliant
- UL Listed – UL 508 Industrial Control Equipment
- ATEX / IECEx – Suitable for Zone 2 / Class I Div 2 with appropriate enclosure
Quality Assurance & Sourcing
Konmask.com sources the SIEMENS 6ES7515-2TN03-0AB0 exclusively through verified authorized distribution channels and factory-direct surplus programs. Every unit undergoes:
- Visual inspection and label authentication against Siemens holographic security features
- Firmware version verification and functional power-on test
- Original factory packaging with intact seals where applicable
- Traceability documentation available upon request (batch/lot records)
All products are covered by Konmask’s 12-month warranty against manufacturing defects.
How to Source This Part
- Add to Cart – Click the purchase button above to place an order directly online.
- Request a Quote – For volume orders (5+ units) or project BOM pricing, email [email protected] with your project details.
- Lead Time – In-stock units ship within 1–3 business days. Ex-stock or factory-order units: 4–8 weeks (confirm at inquiry).
- Export & Customs – We handle export documentation, EAR99 classification, and HS 8537.10 customs declarations for international shipments.
- Technical Pre-Sales Support – Our automation engineers can review your application and confirm compatibility before purchase.
Application-Specific FAQ
Q: Can the 6ES7515-2TN03-0AB0 replace a 6ES7515-2AM03-0AB0 (CPU 1515-2 PN) directly?
A: The TF variant is a superset — it adds fail-safe and motion capabilities. Hardware form factor and PROFINET interfaces are identical, so physical replacement is straightforward. TIA Portal project migration requires adding F-runtime license and safety program blocks.
Q: How many PROFIsafe F-devices can this CPU support?
A: Up to 512 F-I/O addresses are supported, accommodating large safety networks with multiple ET 200SP F-modules and SINAMICS drives with STO.
Q: Is a separate motion control license required?
A: No. Motion control technology objects are included in the CPU firmware. However, advanced functions (e.g., cam synchronization, measuring inputs) may require additional TIA Portal option packages.
Q: What TIA Portal version is required?
A: TIA Portal V17 or higher is required for full feature support including firmware V3.0 cybersecurity enhancements.
Q: Can this CPU communicate with third-party PROFIBUS devices?
A: PROFIBUS DP master/slave communication requires the CP 1542-5 communication processor (6GK7542-5DX00-0XE0) as the CPU 1515TF-2 PN does not have an onboard PROFIBUS port.
