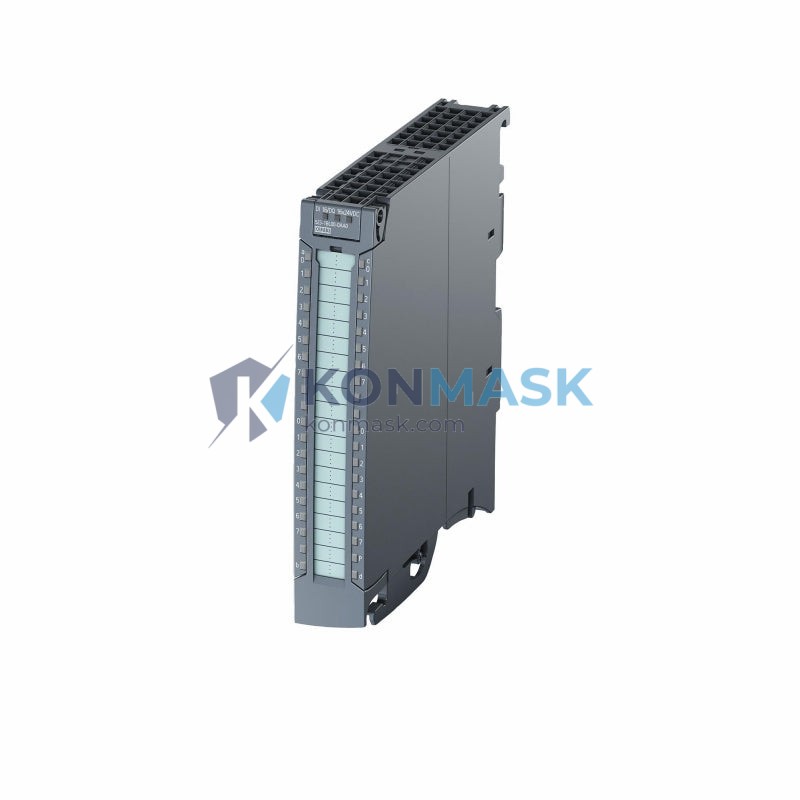

Siemens 6ES7523-1BL00-0AA0 – DI 16×24VDC / DQ 16×24VDC Digital I/O Module | SIMATIC S7-1500
Engineering Background: In high-throughput discrete manufacturing — automotive assembly lines, packaging machinery, conveyor sorting systems — the ability to simultaneously read field sensor states and command actuators without latency is mission-critical. When a digital I/O module fails or lacks sufficient channel density, engineers face forced workarounds: splitting logic across multiple racks, adding external relay boards, or accepting scan-cycle delays that cascade into production stoppages. The Siemens 6ES7523-1BL00-0AA0 eliminates these compromises by combining 16 high-speed digital inputs and 16 digital outputs in a single compact S7-1500 module, delivering deterministic I/O performance within the SIMATIC ecosystem.
Product Positioning: The 6ES7523-1BL00-0AA0 belongs to the SM 523 combined digital I/O family within the SIMATIC S7-1500 platform — Siemens’ flagship PLC series for advanced industrial automation. This module is engineered for applications demanding high channel density, fast input response times, and robust 24 VDC field-level interfacing. Its integration with TIA Portal V13 SP1 and above enables seamless hardware configuration, online diagnostics, and isochronous mode support, making it a preferred choice for motion-coordinated and time-critical control architectures globally.
Complete Technical Specifications
- Order Number (SKU): 6ES7523-1BL00-0AA0
- Series / Platform: SIMATIC S7-1500, SM 523
- Module Type: Combined Digital Input / Digital Output
- Digital Inputs: 16 × 24 VDC (IEC Type 1 / Type 3 sink)
- Digital Outputs: 16 × 24 VDC, transistor (source)
- Input Voltage Range: 20.4 – 28.8 VDC
- Input Current (typical): 4 mA at 24 VDC per channel
- Output Current per Channel: 0.5 A
- Total Output Current per Group: 4 A
- Input Delay (configurable): 0.05 ms – 20 ms
- Isochronous Mode: Supported
- Backplane Bus Interface: SIMATIC S7-1500 system bus
- Supply Voltage (load): 24 VDC
- Power Dissipation (typical): 4.5 W
- Dimensions (W × H × D): 35 × 147 × 129 mm
- Weight: Approx. 360 g
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Degree of Protection: IP20
- Certifications: CE, UL, cULus, ATEX (Zone 2), IECEx
- Configuration Software: TIA Portal V13 SP1 and above
- Firmware Update: Via TIA Portal online function
Proven Application Environments
- Automotive Manufacturing: Body-in-white welding lines, transfer press control, end-of-line test benches requiring simultaneous sensor reading and actuator commanding
- Packaging & Filling Machinery: High-speed labeling, capping, and filling stations where input response time directly impacts throughput
- Conveyor & Sorting Systems: Divert gate control, presence detection, and zone sequencing in distribution centers
- Machine Tool & CNC: Spindle interlock, tool changer sequencing, and safety door monitoring integrated with S7-1500 motion control
- Water & Wastewater Treatment: Pump station control, valve position feedback, and alarm annunciation panels
- Food & Beverage Processing: Hygienic-area compatible installations with IP20 enclosure panels, controlling conveyors and dosing systems
- Building Automation & Infrastructure: HVAC damper control, lighting management, and access control integration via S7-1500 gateway configurations
Engineering Advantages
- High Channel Density: 32 I/O points (16 DI + 16 DQ) in a single 35 mm wide module — reduces rack space and wiring complexity versus discrete modules
- Configurable Input Filter: Input delay adjustable from 0.05 ms to 20 ms per channel group, enabling noise immunity tuning without hardware changes
- Isochronous Mode Support: Synchronizes I/O sampling with the CPU cycle for deterministic motion and process control — critical for servo-coordinated applications
- Integrated Diagnostics: Channel-level fault detection (wire break, short circuit on outputs) reported directly in TIA Portal without additional hardware
- Hot-Swap Capable: Module can be replaced under power in S7-1500 systems with appropriate CPU configuration, minimizing unplanned downtime
- Transistor Outputs: Solid-state switching eliminates contact wear, supports high-cycle applications exceeding millions of operations
- Broad Certification Coverage: CE, UL, ATEX Zone 2 — suitable for global deployment including hazardous-area panel installations
System Architecture & Signal Flow
The 6ES7523-1BL00-0AA0 mounts directly onto the S7-1500 mounting rail and connects to the CPU or interface module via the integrated backplane bus connector — no additional bus cables required. Field wiring connects through a 40-pin front connector (included or ordered separately as 6ES7592-1AM00-0XB0).
Signal Flow (Input Path): Field sensor → 24 VDC input terminal → optical isolation → input filter (configurable delay) → backplane bus → CPU process image
Signal Flow (Output Path): CPU process image → backplane bus → output driver (transistor, source type) → 24 VDC output terminal → field actuator
Compatible CPUs: All SIMATIC S7-1500 CPUs (CPU 1511, 1513, 1515, 1516, 1517, 1518 series) and ET 200MP distributed I/O with IM 155-5 interface modules.
Related Accessories:
- Front connector: 6ES7592-1AM00-0XB0 (40-pin, screw terminals)
- Front connector: 6ES7592-1BM00-0XB0 (40-pin, push-in terminals)
- Labeling strips: 6ES7592-1PM00-0XB0
- Shield connecting element: 6ES7390-6AA00-0AA0
Sourcing & Quality Verification
At Konmask.com, every Siemens 6ES7523-1BL00-0AA0 unit offered is subject to a structured verification process before dispatch:
- Origin Traceability: Units sourced from authorized Siemens distribution channels or verified industrial surplus with full documentation
- Visual & Mechanical Inspection: Housing integrity, connector pin condition, label authenticity, and firmware version verification
- Functional Pre-check: Where applicable, modules are bench-tested for backplane communication and I/O channel response prior to shipment
- Packaging: ESD-safe anti-static bags, foam-lined cartons, and climate-controlled storage to preserve module integrity during transit
- Documentation: CE declaration, test records, and packing list provided with each shipment
Procurement Process
- Submit Inquiry: Email [email protected] with your required quantity, delivery timeline, and destination country
- Quotation: Receive a formal quotation within 1 business day including unit price, lead time, and shipping options
- Order Confirmation: Approve the proforma invoice and confirm payment terms (T/T, L/C, or agreed terms)
- Quality Check & Dispatch: Module inspected, packed, and shipped with tracking number and documentation package
- After-Sales Support: Technical assistance available for installation, TIA Portal configuration, and compatibility queries
Technical FAQ
- Q: Is the 6ES7523-1BL00-0AA0 compatible with S7-300 or S7-400 systems?
- A: No. This module is exclusively designed for the SIMATIC S7-1500 backplane bus and ET 200MP distributed I/O systems. It is not electrically or mechanically compatible with S7-300 or S7-400 racks.
- Q: Can inputs and outputs be used simultaneously without derating?
- A: Yes, provided the total output load per group does not exceed 4 A and ambient temperature remains within the 0–60 °C operating range. No derating is required under standard conditions.
- Q: What TIA Portal version is required for configuration?
- A: TIA Portal V13 SP1 or higher is required. For isochronous mode and advanced diagnostic features, TIA Portal V15 or above is recommended.
- Q: Does this module support PROFINET or PROFIBUS communication directly?
- A: No. The 6ES7523-1BL00-0AA0 communicates via the S7-1500 internal backplane bus. PROFINET/PROFIBUS communication is handled by the CPU or interface module, not the I/O module itself.
- Q: What is the difference between 6ES7523-1BL00-0AA0 and 6ES7522-1BH00-0AB0?
- A: The 6ES7523-1BL00-0AA0 is a combined DI 16/DQ 16 module (32 total I/O points). The 6ES7522-1BH00-0AB0 is a dedicated DQ 16 output-only module. Choose the 523 variant when you need both input and output channels in a single module slot.
- Q: Is a front connector included with the module?
- A: No. The front connector must be ordered separately. Recommended: 6ES7592-1AM00-0XB0 (screw terminals) or 6ES7592-1BM00-0XB0 (push-in terminals).
