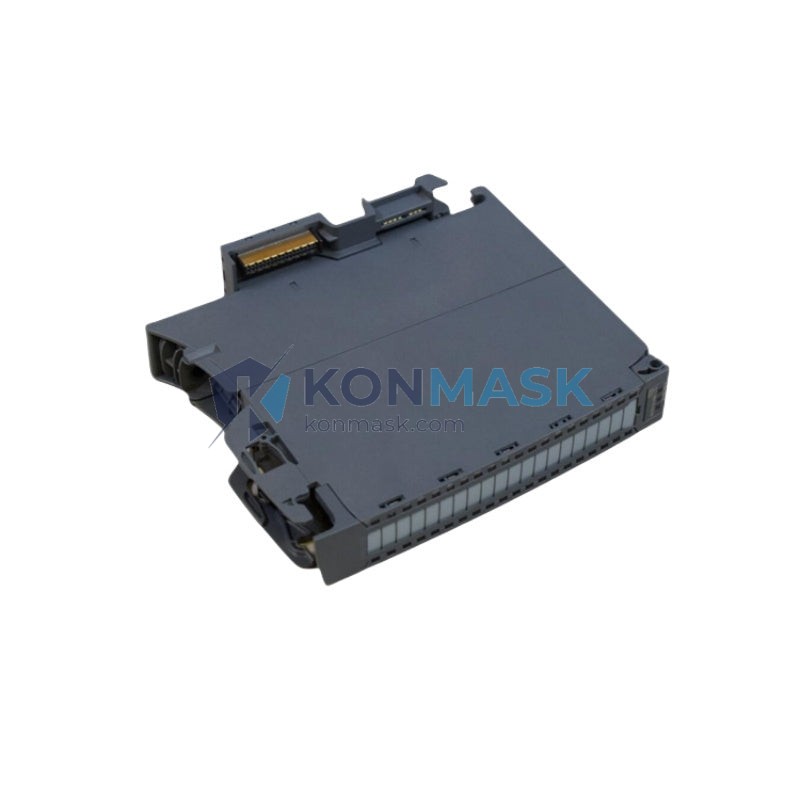

SIEMENS 6ES7521-1BH10-0AA0 – 16-Channel Digital Input Module 24VDC | SIMATIC S7-1500
The SIEMENS 6ES7521-1BH10-0AA0 is the SM 521 digital input module engineered for the SIMATIC S7-1500 automation platform. Designed for demanding industrial environments, this module delivers 16 channels of 24 VDC digital input acquisition with hardware interrupt capability, isochronous mode support, and integrated diagnostics — making it the preferred choice for procurement engineers specifying high-reliability discrete I/O in process, manufacturing, and infrastructure control systems.
Product Positioning: As a core signal acquisition component within the S7-1500 ecosystem, the 6ES7521-1BH10-0AA0 integrates seamlessly with the PROFINET-based backplane bus, enabling deterministic cycle times and full TIA Portal engineering workflow support. It is suitable for both greenfield installations and upgrade projects replacing legacy S7-300/400 I/O racks.
Complete Technical Specifications
- Order Number (MLFB): 6ES7521-1BH10-0AA0
- Module Type: SM 521 — Digital Input Module
- Platform: SIMATIC S7-1500
- Number of Inputs: 16 channels (DI 16×24VDC HF)
- Input Voltage (Rated): 24 VDC
- Input Voltage Range: 20.4 V … 28.8 V DC
- Signal “1” Voltage: 15 V … 30 V
- Signal “0” Voltage: -30 V … 5 V
- Input Current at Signal “1”: Typ. 7.5 mA
- Input Delay (Adjustable): 0.05 ms / 0.1 ms / 0.4 ms / 1.6 ms / 3.2 ms / 12.8 ms
- Hardware Interrupt: Yes (rising/falling edge, per channel configurable)
- Isochronous Mode: Yes
- Diagnostics: Yes — wire break, short circuit, missing supply voltage
- Potential Isolation: Between channels and backplane bus
- Isolation Groups: 2 groups of 8 channels each
- Supply Voltage (L+): 24 VDC (via front connector)
- Current Consumption from Backplane Bus: Typ. 70 mA
- Power Dissipation: Typ. 2.5 W
- Dimensions (W×H×D): 35 mm × 147 mm × 129 mm
- Weight: Approx. 230 g
- Operating Temperature: 0 °C … +60 °C (horizontal), 0 °C … +40 °C (vertical)
- Storage Temperature: -40 °C … +70 °C
- Degree of Protection: IP20
- Certifications: CE, UL, cULus, ATEX Zone 2, IECEx, KC
- HS Code: 8537.10
- Country of Origin: Germany
Proven Application Environments
- Discrete manufacturing lines — machine tool interlocks, conveyor end-of-travel sensors, press safety gates
- Process industries — valve position feedback, pump run/stop status, level switch acquisition
- Building automation & infrastructure — HVAC damper feedback, fire/gas detection panel interfaces
- Water & wastewater treatment — pump station monitoring, flow switch inputs
- Automotive assembly — robot cell safety monitoring, fixture clamp confirmation
- Energy & power distribution — substation auxiliary contact monitoring, breaker status acquisition
Engineering Advantages
- High-Speed Hardware Interrupt: Configurable per-channel edge detection enables sub-millisecond event response without CPU polling overhead.
- Isochronous Mode: Synchronizes input sampling to the PROFINET IRT cycle for motion control and time-critical applications.
- Integrated Diagnostics: Wire-break and short-circuit detection per channel reduces MTTR and supports predictive maintenance strategies.
- Flexible Input Filtering: Six selectable input delay settings (0.05 ms to 12.8 ms) allow optimization between noise immunity and response speed.
- Galvanic Isolation: Two isolated groups of 8 channels protect the CPU from field-side transients and ground loops.
- TIA Portal Native: Full GSD/GSDML integration; no third-party configuration tools required.
- 35 mm Slim Form Factor: High channel density minimizes rack width and cabinet footprint.
System Architecture & Signal Flow
The 6ES7521-1BH10-0AA0 mounts directly onto the S7-1500 mounting rail and connects to the CPU or interface module via the integrated backplane bus connector — no separate bus cable required. Field wiring terminates at the 40-pin front connector (order separately: 6ES7592-1AM00-0XB0 or equivalent). Each of the 16 DI channels is individually configurable in TIA Portal V13 SP1 or later for input filter time, hardware interrupt edge, and diagnostic enable. Signal acquisition is performed in two isolated groups of 8, with the module reporting channel-level diagnostic events to the CPU via the backplane bus for integration into the user program or SCADA alarm system.
Sourcing & Quality Verification
- Stock Status: New original (factory-sealed) and tested surplus available — specify requirement at inquiry.
- Authenticity: All units sourced from authorized distribution channels or verified OEM surplus. Serial number and firmware version provided on request.
- Inspection: Pre-shipment functional check available; certificate of conformance issued upon request.
- Warranty: 12-month replacement warranty against manufacturing defects.
- Lead Time: In-stock units ship within 1–3 business days; ETA confirmed at order placement.
Procurement Process
- Submit RFQ via [email protected] or WhatsApp +0086 19859288691 with quantity and required delivery date.
- Receive quotation with unit price, stock confirmation, and lead time within 4 business hours.
- Issue PO or proforma invoice request — payment via T/T, PayPal, or credit card accepted.
- Shipment via DHL / FedEx / UPS with full tracking; export documentation (commercial invoice, packing list, COO) included.
- Post-delivery technical support available for installation and TIA Portal configuration queries.
Technical FAQ
Q: Is the 6ES7521-1BH10-0AA0 compatible with S7-1500 CPUs running firmware V2.x and V3.x?
A: Yes. The SM 521 module is compatible with all S7-1500 CPU firmware versions from V1.8 onward. TIA Portal V13 SP1 or later is required for full diagnostic and isochronous mode configuration.
Q: Can this module be used in a distributed I/O configuration via ET 200MP?
A: Yes. The 6ES7521-1BH10-0AA0 is mechanically and electrically compatible with the ET 200MP distributed I/O station when used with an IM 155-5 PN interface module.
Q: What front connector is required?
A: The 40-pin push-in front connector 6ES7592-1AM00-0XB0 (or screw-type 6ES7592-1AE00-0XB0) is required and must be ordered separately.
Q: Does the module support HART or analog signal pass-through?
A: No. The SM 521 is a pure digital input module. For analog or HART acquisition, refer to the SM 531/532/534 analog module family.
Q: What is the maximum cable length for field wiring?
A: Siemens specifies a maximum of 1000 m for unshielded cables and 1000 m for shielded cables when using standard 24 VDC sensors. Actual limits depend on cable cross-section and EMC environment.
