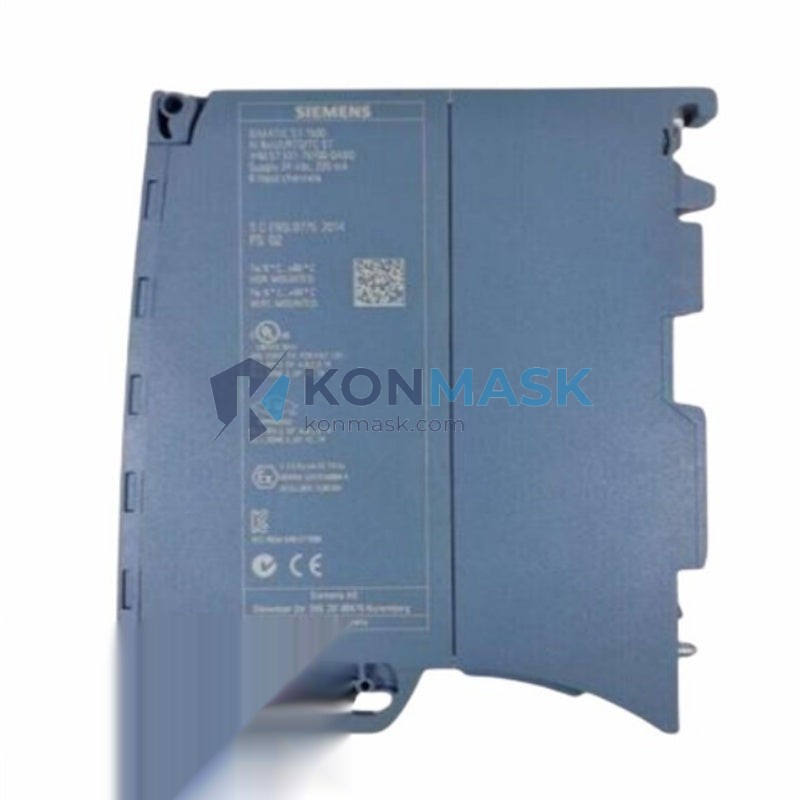

SIEMENS 6ES7531-7KF00-0AB0 – 8-Channel Universal Analog Input Module | SIMATIC S7-1500 Platform
Engineering Background
The SIMATIC S7-1500 series represents Siemens’ flagship PLC platform for high-performance industrial automation. Designed for demanding process and discrete manufacturing environments, the S7-1500 backplane architecture delivers deterministic cycle times, integrated motion control, and enterprise-grade diagnostics. The 6ES7531-7KF00-0AB0 is the standard-tier (ST) 8-channel universal analog input module within this platform, engineered to accept voltage, current, RTD, and thermocouple signals on a per-channel basis without hardware jumpers.
Product Positioning
This module targets process engineers and system integrators who require a single, flexible analog front-end capable of handling mixed sensor types within one slot. Its 16-bit resolution and ±0.1% full-scale accuracy make it suitable for precision measurement loops in chemical, energy, and advanced manufacturing applications. Procurement engineers benefit from a single part number covering the majority of analog input scenarios, reducing spare-parts inventory complexity.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Order Number | 6ES7531-7KF00-0AB0 |
| Module Type | Analog Input (AI) |
| Number of Channels | 8 (universal, configurable per channel) |
| Input Types | Voltage (±10 V, ±5 V, ±2.5 V, 0–10 V, 1–5 V), Current (0–20 mA, 4–20 mA, ±20 mA), RTD (Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, LG-Ni1000, PTC), TC (Type B, C, E, J, K, L, N, R, S, T, U) |
| Resolution | 16 bit (including sign) |
| Accuracy (25 °C) | ±0.1% of full-scale value (basic error limit) |
| Conversion Time per Channel | Min. 1.7 ms (voltage/current); RTD/TC longer depending on integration time |
| Cycle Time (all 8 ch) | Min. 13.6 ms (voltage/current, 50 Hz rejection) |
| Supply Voltage (L+) | 24 V DC (20.4–28.8 V) |
| Current Consumption (L+) | Typ. 70 mA |
| Power Dissipation | Typ. 1.7 W |
| Isolation | Channel-to-backplane bus: galvanically isolated; Channel-to-channel: not isolated |
| Dimensions (W × H × D) | 35 mm × 147 mm × 129 mm |
| Weight | Approx. 230 g |
| Operating Temperature | 0 °C to +60 °C (horizontal mounting); 0 °C to +40 °C (vertical mounting) |
| Storage Temperature | −40 °C to +70 °C |
| Degree of Protection | IP20 |
| Certifications | CE, UL, cULus, ATEX Zone 2, IECEx, KC |
| Firmware | V2.0 or higher (upgradeable via TIA Portal) |
| Backplane Bus Interface | SIMATIC S7-1500 / ET 200MP |
| Front Connector | 40-pin, push-in terminal (order separately: 6ES7592-1AM00-0XB0) |
Proven Application Environments
- Process Industry: Temperature and pressure loop acquisition in chemical reactors, distillation columns, and heat exchangers using TC/RTD inputs.
- Energy & Utilities: Current-loop (4–20 mA) monitoring of flow transmitters, level sensors, and power transducers in water treatment and power generation.
- Automotive Manufacturing: Multi-sensor data acquisition on assembly lines requiring mixed voltage and current inputs within a single module slot.
- Food & Beverage: Hygienic process monitoring with Pt100/Pt1000 RTD sensors for CIP temperature validation.
- Building Automation: HVAC control loops integrating 0–10 V signals from VAV controllers and pressure differential sensors.
- Machine Tool: Spindle load monitoring and servo feedback acquisition in CNC machining centers.
Engineering Advantages
- Universal Channel Configuration: Each of the 8 channels is independently configurable for voltage, current, RTD, or TC — eliminating the need for multiple module types in mixed-signal cabinets.
- 16-Bit Resolution: Provides 65,536 discrete steps across the measurement range, enabling fine-grained PID control and high-accuracy data logging.
- Integrated Diagnostics: Wire-break detection, overflow/underflow alarms, and supply voltage monitoring are reported directly to the TIA Portal engineering station without additional hardware.
- Isochronous Mode Support: Enables time-synchronized sampling across multiple modules for coordinated motion and process control applications.
- Hot-Swap Capability: Modules can be replaced under power (with appropriate system configuration), minimizing unplanned downtime.
- TIA Portal Integration: Full parameter assignment, online diagnostics, and firmware update via STEP 7 V13 SP1 or higher.
System Architecture & Signal Flow
The 6ES7531-7KF00-0AB0 connects to the S7-1500 CPU or ET 200MP interface module via the high-speed backplane bus (up to 400 MB/s). Analog signals enter through the 40-pin front connector, pass through per-channel multiplexing and sigma-delta A/D conversion, and are transferred as 16-bit process values to the CPU image table each scan cycle. The module’s internal microcontroller handles linearization for RTD and TC types, cold-junction compensation (for TC), and diagnostic event generation — offloading these tasks from the CPU.
Shielding connections are made at the front connector shield clamp. For 4-wire RTD measurements, the module sources the excitation current internally, requiring no external transmitter. 2-wire and 3-wire RTD configurations are also supported with automatic lead-resistance compensation.
Sourcing & Quality Verification
- All units supplied by Konmask.com are sourced from authorized Siemens distribution channels or verified secondary-market suppliers with full traceability documentation.
- Each module undergoes incoming inspection including label verification (MLFB cross-check), firmware version confirmation, and functional power-on test prior to shipment.
- Original Siemens packaging, holographic authenticity labels, and CE/UL markings are verified as part of the quality gate.
- Certificate of Conformity and test reports available upon request for critical infrastructure projects.
Procurement Process
- Step 1 — Inquiry: Submit your BOM or part number to support@konmask.com or call +0086 19859288691 for availability and lead time confirmation.
- Step 2 — Quotation: Receive a formal quotation within 1 business day including unit price, quantity available, and estimated delivery.
- Step 3 — Order Confirmation: Place order via the Konmask.com storefront or by purchase order (PO) for approved accounts.
- Step 4 — Shipment: Orders are dispatched via DHL Express, FedEx International Priority, or sea freight for large volumes. Export documentation (commercial invoice, packing list, COO) provided as standard.
- Step 5 — After-Sales: 12-month warranty on all supplied units. Technical support available via email for integration and commissioning queries.
Technical FAQ
- Q: Can I mix voltage and TC channels on the same module simultaneously?
- A: Yes. Each channel is independently configured in TIA Portal. You can assign, for example, channels 1–4 as 4–20 mA current inputs and channels 5–8 as Type K thermocouple inputs within the same module instance.
- Q: Is a separate front connector included?
- A: No. The 40-pin push-in front connector (6ES7592-1AM00-0XB0) must be ordered separately. Please specify when placing your order if you require connectors to be included.
- Q: What TIA Portal version is required?
- A: TIA Portal V13 SP1 or higher. For full feature support including isochronous mode and advanced diagnostics, V15.1 or higher is recommended.
- Q: Is this module compatible with ET 200MP?
- A: Yes. The 6ES7531-7KF00-0AB0 is fully compatible with the ET 200MP distributed I/O system using the IM 155-5 PN interface module.
- Q: What is the cold-junction compensation method for thermocouple inputs?
- A: The module uses an internal temperature sensor at the front connector for automatic cold-junction compensation. External compensation is also supported via a dedicated reference channel.
- Q: Can this module be used in SIL 2 safety applications?
- A: The standard (ST) variant does not carry SIL certification. For functional safety applications, refer to the SIMATIC S7-1500 F-series analog input modules (e.g., 6ES7531-7QD00-0AB0).
