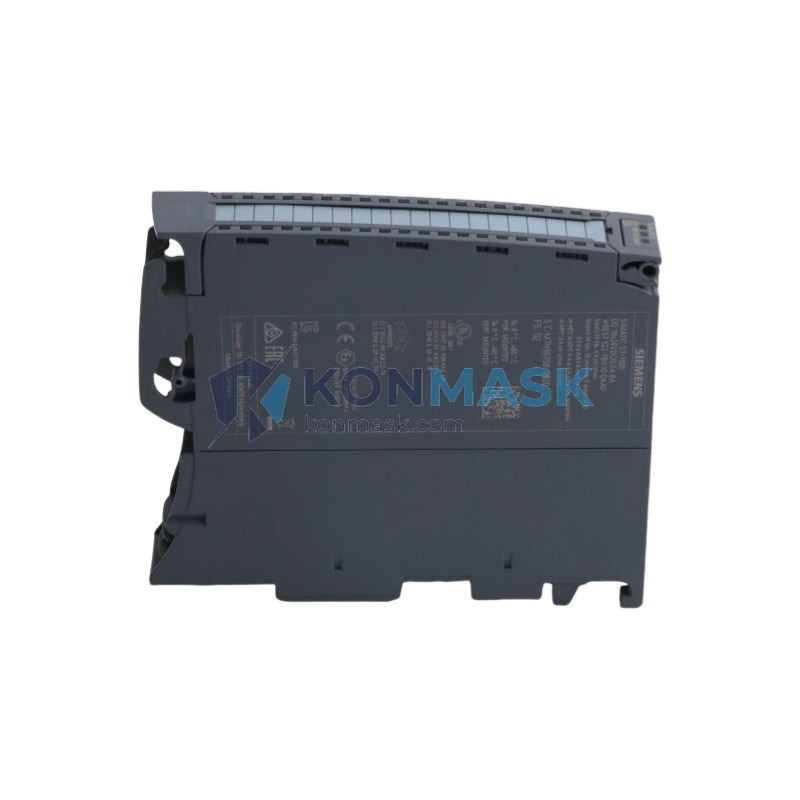

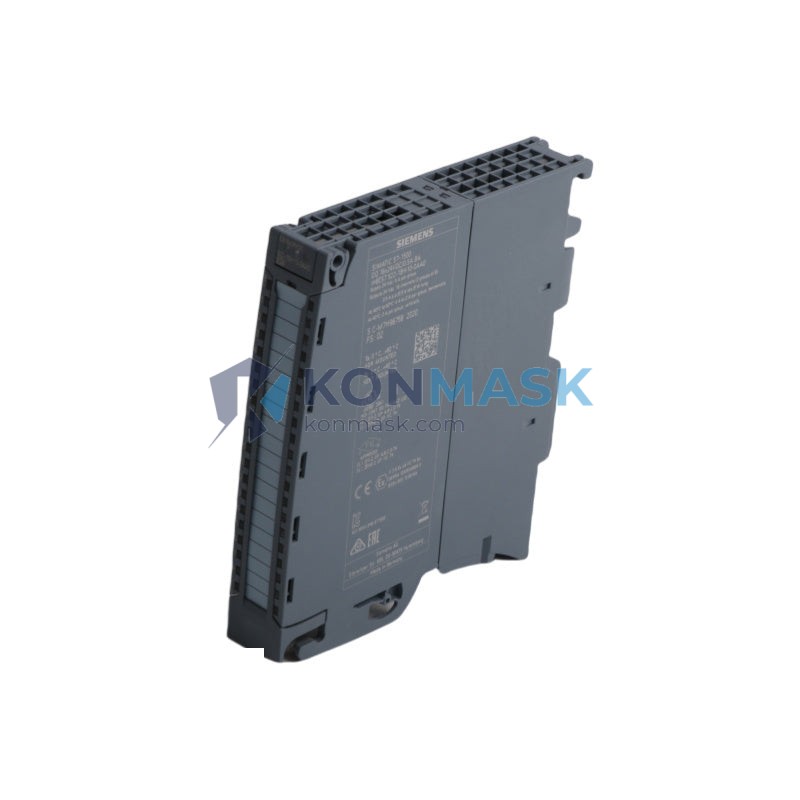

Industrial Automation Solution — SIEMENS 6ES7522-1BH10-0AA0 | SM 522 Series
Where This Product Is Used
The SIEMENS 6ES7522-1BH10-0AA0 SM 522 Digital Output Module is engineered for demanding industrial environments where precise, high-speed digital signal control is critical. Typical deployment scenarios include:
- Discrete Manufacturing Lines — Controlling solenoid valves, contactors, and actuators on automotive assembly and stamping lines.
- Packaging Machinery — Driving conveyor drives, pneumatic cylinders, and reject gates in food, beverage, and pharmaceutical packaging.
- Building Automation & HVAC — Switching fans, pumps, and damper actuators in large commercial building management systems.
- Water & Wastewater Treatment — Activating pump stations, valve banks, and dosing systems in municipal and industrial water facilities.
- Material Handling & Logistics — Coordinating sorters, diverters, and lift tables in warehouse automation and distribution centers.
- Energy & Utilities — Interfacing with switchgear and protection relays in power distribution substations.
Technical Specifications

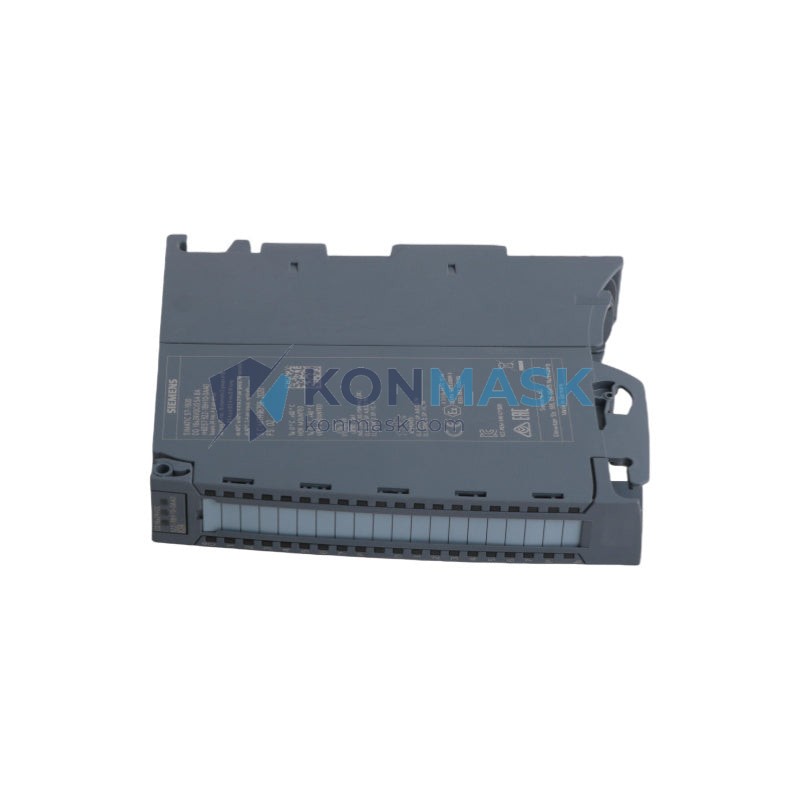

| Parameter | Value |
|---|---|
| Part Number | 6ES7522-1BH10-0AA0 |
| Series | SM 522 — SIMATIC S7-1500 |
| Module Type | Digital Output (DO) |
| Number of Outputs | 16 DO |
| Output Voltage | 24 VDC |
| Output Current per Channel | 0.5 A |
| Total Current per Module | 4 A |
| Output Type | Transistor (source output, P-switching) |
| Isolation | Optocoupler isolated, channel groups of 8 |
| Cycle Time | Configurable via TIA Portal |
| Backplane Bus | SIMATIC S7-1500 local bus |
| Supply Voltage (Load) | 24 VDC (20.4–28.8 V) |
| Dimensions (W×H×D) | 35 mm × 147 mm × 129 mm |
| Weight | approx. 180 g |
| Operating Temperature | 0 °C to +60 °C |
| Protection Class | IP20 |
| Mounting | S7-1500 rail mounting |
Why Engineers Specify This Model
- High Channel Density — 16 transistor outputs in a compact 35 mm width minimizes rack space and wiring complexity.
- Diagnostics & Fault Detection — Integrated channel-level diagnostics (short-circuit, wire break) reduce MTTR and support predictive maintenance strategies.
- TIA Portal Native Integration — Plug-and-play configuration within Siemens TIA Portal V15+; no additional GSD files required.
- Isochronous Mode Support — Enables deterministic, synchronized output switching for motion-critical and high-speed applications.
- Robust Isolation — Optocoupler isolation between field and backplane bus protects the CPU from field-side transients and ground loops.
- Hot-Swap Capable — Module can be replaced under power (with appropriate system configuration), minimizing production downtime.
Complete System Bill of Materials
For a complete SIMATIC S7-1500 digital output station, the following components are typically required alongside the 6ES7522-1BH10-0AA0:
- CPU — e.g., 6ES7511-1AK02-0AB0 (CPU 1511-1 PN) or higher
- Power Supply Module — e.g., 6EP1333-4BA00 (PS 60W 24VDC)
- Mounting Rail — e.g., 6ES7590-1AB60-0AA0 (480 mm rail)
- Front Connector — 6ES7592-1BM00-0XA0 (40-pin push-in front connector)
- Shield Connection Element — 6ES7590-1AE80-0AA0 (optional, for EMC-sensitive installations)
- Labeling Strips — 6ES7592-1AM00-0XA0
Contact [email protected] for complete BOM pricing and availability.
Compliance & Industry Standards
- CE Marking — EU Low Voltage Directive & EMC Directive compliant
- UL Listed — UL 508 (Industrial Control Equipment)
- IEC 61131-2 — Programmable Controllers: Equipment Requirements & Tests
- ATEX / IECEx — Suitable for use in Zone 2 hazardous areas with appropriate enclosure (consult Siemens documentation)
- RoHS Compliant — Restriction of Hazardous Substances Directive 2011/65/EU
- REACH Compliant
Quality Assurance & Sourcing
All SIEMENS modules supplied by Konmask.com are sourced through verified industrial distribution channels. Each unit undergoes the following before dispatch:
- Visual inspection for physical damage, label integrity, and seal authenticity
- Firmware version verification against Siemens product lifecycle records
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator card
- Traceability documentation available on request (batch/lot records)
We do not supply grey-market, refurbished, or counterfeit components. All products carry the original manufacturer warranty where applicable.
How to Source This Part
- Add to Cart — Click the purchase button above to place an order directly online.
- Request a Quote — For volume orders (5+ units) or project BOM pricing, email [email protected] with your quantity and delivery requirements.
- Lead Time — In-stock units ship within 1–3 business days. Ex-stock orders for large quantities: 7–15 business days depending on origin warehouse.
- Export & Customs — We support international shipping with full commercial invoice, packing list, and HS code documentation (HS: 8537.10) for customs clearance.
- Payment — T/T bank transfer, PayPal, and major credit cards accepted. Net-30 terms available for approved accounts.
Application-Specific FAQ
Q: Is the 6ES7522-1BH10-0AA0 compatible with S7-300 or S7-400 racks?
A: No. This module is exclusively designed for the SIMATIC S7-1500 backplane. It is not mechanically or electrically compatible with S7-300/400 systems.
Q: Can this module drive inductive loads such as relay coils directly?
A: Yes, with a suppression diode fitted at the load. The transistor outputs are rated for inductive loads; however, a freewheeling diode is strongly recommended to protect the output transistors from back-EMF.
Q: What TIA Portal version is required for configuration?
A: TIA Portal V15 or later is required. The module is natively supported in the hardware catalog without additional HSP (Hardware Support Package) installation.
Q: Does this module support PROFINET diagnostics?
A: Yes. Channel-level diagnostics (short-circuit, overload, wire break) are reported via the S7-1500 backplane bus and are accessible in TIA Portal and via PROFINET diagnostic tools.
Q: What is the difference between 6ES7522-1BH10-0AA0 and 6ES7522-1BH01-0AB0?
A: The -1BH10-0AA0 is the current production revision with updated firmware and improved diagnostic capabilities. The -1BH01-0AB0 is an earlier revision. Both are functionally equivalent for most applications, but the -1BH10-0AA0 is recommended for new installations.
