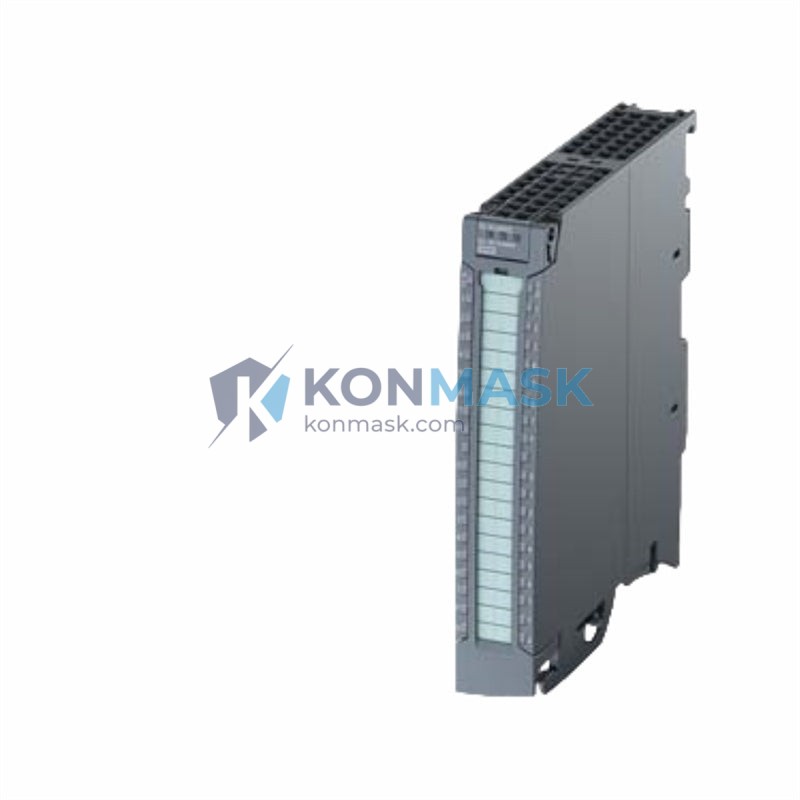

Siemens 6ES7522-1BL01-0AB0 – DQ 32×24VDC/0.5A Digital Output Module | SIMATIC S7-1500
The Siemens 6ES7522-1BL01-0AB0 is a high-density digital output module designed for the SIMATIC S7-1500 programmable logic controller platform. Engineered for demanding industrial automation environments, this module delivers 32 source-type transistor outputs at 24 V DC / 0.5 A per channel, enabling precise, high-speed control of actuators, solenoid valves, indicator lights, and relay coils across process, discrete, and hybrid manufacturing applications.
As a certified Siemens automation distributor, Konmask.com supplies this module with full traceability documentation, supporting procurement engineers who require verified, specification-accurate components for critical control system builds and MRO replenishment.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Order Number (MLFB) | 6ES7522-1BL01-0AB0 |
| Product Family | SIMATIC S7-1500 |
| Module Type | Digital Output Module (DQ) |
| Number of Outputs | 32 channels |
| Output Voltage | 24 V DC |
| Output Current per Channel | 0.5 A |
| Total Current per Module | 4 A (with active backplane bus) |
| Output Type | Source (P-switching, transistor) |
| Short-Circuit Protection | Yes, electronic per group |
| Diagnostic Functions | Wire break, short circuit, missing load voltage |
| Backplane Bus Interface | SIMATIC S7-1500 U-connector |
| Supply Voltage (Load) | 24 V DC (19.2 – 28.8 V) |
| Current Consumption (Backplane Bus) | Max. 80 mA at 5 V DC |
| Power Dissipation | Typ. 4.5 W |
| Output Delay (0→1 / 1→0) | Typ. 0.5 ms / Typ. 0.5 ms |
| Isolation | Optocoupler, channel groups to backplane bus |
| Degree of Protection | IP20 |
| Operating Temperature | 0 °C to +60 °C (horizontal) / 0 °C to +40 °C (vertical) |
| Storage Temperature | −40 °C to +70 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (W × H × D) | 35 mm × 147 mm × 129 mm |
| Weight | Approx. 350 g |
| Certifications | CE, UL, cULus, ATEX Zone 2, IECEx |
| Country of Origin | Germany |
| HS Code | 8537.10 |
Proven Application Environments
- Discrete Manufacturing: Conveyor control, robotic end-effector actuation, pneumatic valve sequencing
- Process Industry: Pump/motor start-stop control, solenoid valve banks in chemical and water treatment plants
- Automotive Assembly: High-cycle press and fixture control requiring fast output response
- Building Automation: HVAC damper actuators, lighting control panels integrated with S7-1500 PLCs
- Energy & Utilities: Substation auxiliary relay control, switchgear interlocking
- Food & Beverage: Hygienic line control with IP20 enclosure integration in control cabinets
Engineering Advantages
- High Channel Density: 32 outputs in a 35 mm wide module minimizes cabinet footprint versus discrete relay alternatives
- Per-Channel Diagnostics: Wire-break and short-circuit detection reported directly to TIA Portal without additional hardware
- Integrated Short-Circuit Protection: Electronic protection per output group eliminates external fusing for most load types
- Hot-Swap Capable: Supports module replacement under power with S7-1500 system redundancy configurations
- TIA Portal Native: Full parameter assignment, online diagnostics, and firmware update via STEP 7 / TIA Portal V13 SP1 and above
- PROFINET Transparency: Diagnostic alarms propagated to SCADA/DCS via standard OPC UA or PROFINET IO controller
System Architecture & Signal Flow
The 6ES7522-1BL01-0AB0 connects to the S7-1500 CPU or interface module via the U-connector backplane bus. Load voltage (24 V DC) is supplied independently through the front connector, isolating field wiring from the backplane logic supply. Each output channel drives field devices through a P-switching transistor with optocoupler isolation. Diagnostic data is cyclically reported to the CPU process image and can trigger OB 82 (diagnostic interrupt) for real-time fault handling in the user program.
Wiring topology: 40-pin front connector (included) supports both single-wire and grouped common return configurations. Shielded cable recommended for cable runs exceeding 30 m in high-EMI environments.
Sourcing & Quality Verification
- Authenticity: All units sourced through verified Siemens-authorized distribution channels; counterfeit-risk screening applied at intake
- Traceability: Batch records, date codes, and factory test certificates available upon request for critical infrastructure projects
- Condition: New-in-box (NIB) stock standard; factory-refurbished (FR) and tested-used (TU) grades available — specify at inquiry
- Packaging: Original Siemens ESD-protective packaging; export carton with desiccant for international shipments
- Inspection: Pre-shipment visual and functional check per Konmask QC-SOP-003
Procurement Process
- Submit RFQ — Email [email protected] with quantity, required delivery date, and project reference
- Receive Quotation — Formal quotation with lead time, unit price, and payment terms within 4 business hours
- Order Confirmation — Purchase order accepted via email; proforma invoice issued for prepayment or net-term accounts
- Shipment — DHL Express / FedEx International Priority standard; EXW Xiamen available for freight-forwarder accounts
- Documentation — Commercial invoice, packing list, COO certificate, and test report included with every shipment
Technical FAQ
Q: Is 6ES7522-1BL01-0AB0 compatible with S7-1500 CPUs running firmware V1.x?
A: Minimum CPU firmware V1.5 required. TIA Portal V13 SP1 or higher recommended for full diagnostic functionality.
Q: Can this module drive 24 V DC relay coils directly?
A: Yes. At 0.5 A per channel, it can drive standard 24 V DC relay coils (typically 50–100 mA) with significant margin. Inductive load suppression (freewheeling diode) is built into the output stage.
Q: What is the maximum cable length for output wiring?
A: Siemens specifies no absolute limit, but shielded cable is recommended beyond 30 m. Voltage drop must be calculated to ensure minimum load voltage at the actuator.
Q: Is ATEX certification available for Zone 1 hazardous areas?
A: The standard 6ES7522-1BL01-0AB0 is rated for Zone 2 (ATEX/IECEx). Zone 1 applications require Siemens ET 200iSP or Ex-certified barrier solutions.
Q: Can I mix this module with S7-300/400 racks?
A: No. The S7-1500 U-connector backplane is not compatible with S7-300 or S7-400 mounting rails. Use 6ES7322-series modules for S7-300 systems.
