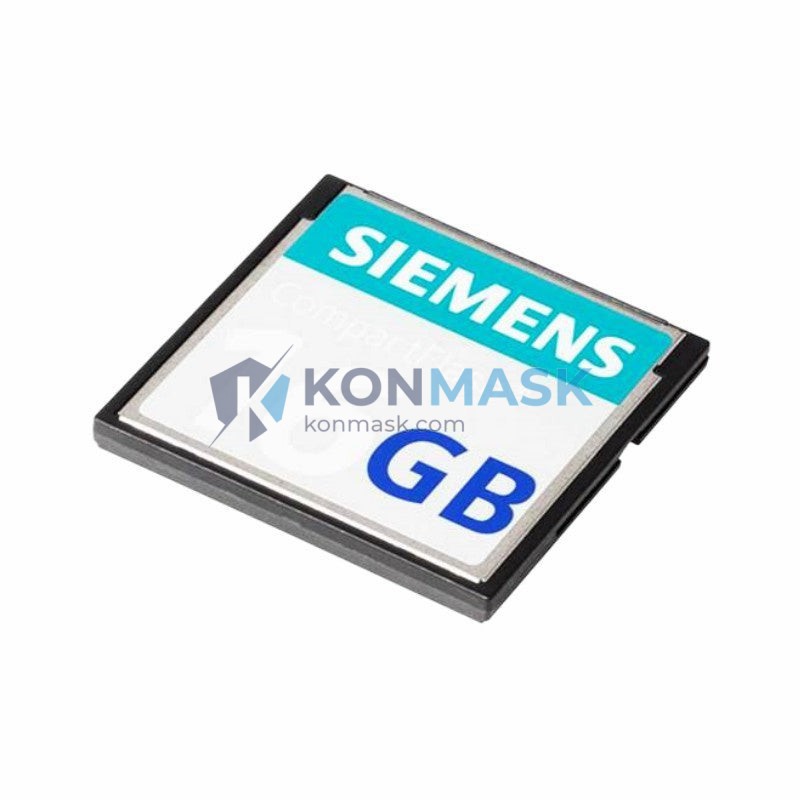

SIEMENS 6ES7648-2BF02-0XG0 – 4 GB Compact Flash Memory Card | SIMATIC S7-400 / WinAC Platform
Engineering Background
The SIMATIC S7-400 series represents Siemens’ flagship high-performance PLC platform, widely deployed in process automation, power generation, automotive manufacturing, and critical infrastructure. As programs and data volumes grow with modern SCADA integration and redundant system architectures, adequate non-volatile storage becomes a mission-critical component. The 6ES7648-2BF02-0XG0 Compact Flash card provides 4 GB of industrial-grade flash memory specifically validated for use with S7-400 CPUs and WinAC software controllers.
Product Positioning
This memory card is the preferred storage solution for engineers who require reliable, high-capacity program and data retention in demanding S7-400 and WinAC environments. It eliminates battery-backed RAM limitations, supports large user programs and data blocks, and ensures data integrity across power cycles — making it indispensable for mission-critical automation projects.
Complete Technical Specifications
| Part Number | 6ES7648-2BF02-0XG0 |
| Manufacturer | Siemens AG |
| Product Family | SIMATIC S7-400 / WinAC |
| Memory Type | Compact Flash (CF) Card |
| Storage Capacity | 4 GB |
| Interface | Compact Flash Type I/II |
| Compatible CPUs | SIMATIC S7-400 CPUs with CF slot; WinAC RTX / WinAC MP |
| Data Retention | Non-volatile; retains data without battery backup |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -20 °C to +70 °C |
| Humidity | 5% to 95% RH (non-condensing) |
| Weight | approx. 30 g |
| Certifications | CE, UL, cULus (per Siemens product documentation) |
| MLFB / Order Number | 6ES7648-2BF02-0XG0 |
Proven Application Environments
- Process Automation: Chemical plants, oil & gas facilities, and water treatment systems using S7-400 as the primary controller — where large data logging and recipe management demand high-capacity storage.
- Automotive Manufacturing: Body-in-white lines and powertrain assembly cells with complex motion sequences stored on CF cards for rapid program restore after maintenance.
- Power Generation & Distribution: Substation automation and turbine control systems requiring non-volatile, battery-free program retention across extended outages.
- WinAC Software Controllers: PC-based control architectures using WinAC RTX or WinAC MP, where the CF card serves as the primary program and data storage medium.
- Redundant S7-400H Systems: High-availability configurations where synchronized CF cards ensure seamless failover without data loss.
Engineering Advantages
- Battery-Free Retention: Flash-based non-volatile storage eliminates the maintenance burden and failure risk of battery-backed SRAM modules.
- 4 GB Headroom: Accommodates large user programs, extensive data blocks (DBs), and long-term data logging — future-proofing installations against program growth.
- Plug-and-Play Compatibility: Validated by Siemens for direct insertion into compatible S7-400 CPU slots and WinAC hardware — no firmware adaptation required.
- Industrial Shock & Vibration Resistance: Solid-state design with no moving parts ensures reliable operation in high-vibration industrial environments.
- Fast Program Load: High read throughput reduces CPU restart and warm-restart times compared to legacy memory modules.
- Standardized Form Factor: CF Type I/II standard ensures interoperability and straightforward replacement logistics.
System Architecture & Signal Flow
In a SIMATIC S7-400 architecture, the Compact Flash card resides in the dedicated memory card slot of the CPU module. Upon power-up or restart, the CPU loads the user program (OB, FB, FC, DB blocks) from the CF card into internal working memory (RAM). During operation, retentive data and data blocks configured for non-volatile storage are written back to the CF card, ensuring persistence across power cycles. In WinAC configurations, the CF card interfaces via the PC’s CF reader, with WinAC treating it as the primary load memory equivalent.
Signal/Data Flow: CF Card (Load Memory) → CPU Internal RAM (Work Memory) → I/O Modules → Field Devices. Retentive data writes back: CPU RAM → CF Card.
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels with full traceability.
- Each card undergoes visual inspection and label verification against Siemens MLFB standards prior to dispatch.
- Packaging integrity checked — original Siemens anti-static packaging preferred; repackaged units clearly disclosed.
- Batch documentation and country-of-origin records available upon request for regulated industries.
- Konmask.com maintains a zero-tolerance policy on counterfeit components — suspicious units are quarantined and not listed.
Procurement Process
- Confirm Compatibility: Verify your S7-400 CPU model or WinAC version supports the 6ES7648-2BF02-0XG0 via Siemens SIOS or your engineering documentation.
- Place Order: Add to cart on Konmask.com or contact [email protected] for bulk/project pricing.
- Lead Time: In-stock units ship within 1–3 business days. Contact us for urgent or large-quantity requirements.
- Documentation: Invoice, packing list, and available traceability documents provided with every shipment.
- After-Sales: Technical support available via email or phone for installation and compatibility queries.
Technical FAQ
Q: Is the 6ES7648-2BF02-0XG0 compatible with all S7-400 CPUs?
A: It is compatible with S7-400 CPUs that feature a Compact Flash memory card slot. Verify your specific CPU model in the Siemens hardware catalog (SIOS) before ordering.
Q: Can this card be used to transfer programs between CPUs?
A: Yes. The CF card can be used to copy programs from one compatible CPU to another by inserting the card into the target CPU — subject to CPU firmware and program protection settings.
Q: Does this card replace the need for a battery in the S7-400 CPU?
A: The CF card provides non-volatile program storage, reducing battery dependency for program retention. However, some CPUs still require a battery for real-time clock and certain retentive data areas — consult your CPU manual.
Q: What happens to data on the card if power is lost during a write operation?
A: Siemens S7-400 CPUs implement write-cycle management to minimize corruption risk. However, best practice is to use an UPS on the control cabinet to ensure clean power-down sequences.
Q: Can I format or reuse this card for other purposes?
A: The card is formatted specifically for SIMATIC use. Reformatting for general-purpose use is possible but will erase all PLC data and may require re-initialization via STEP 7 or TIA Portal before reuse in a PLC.
