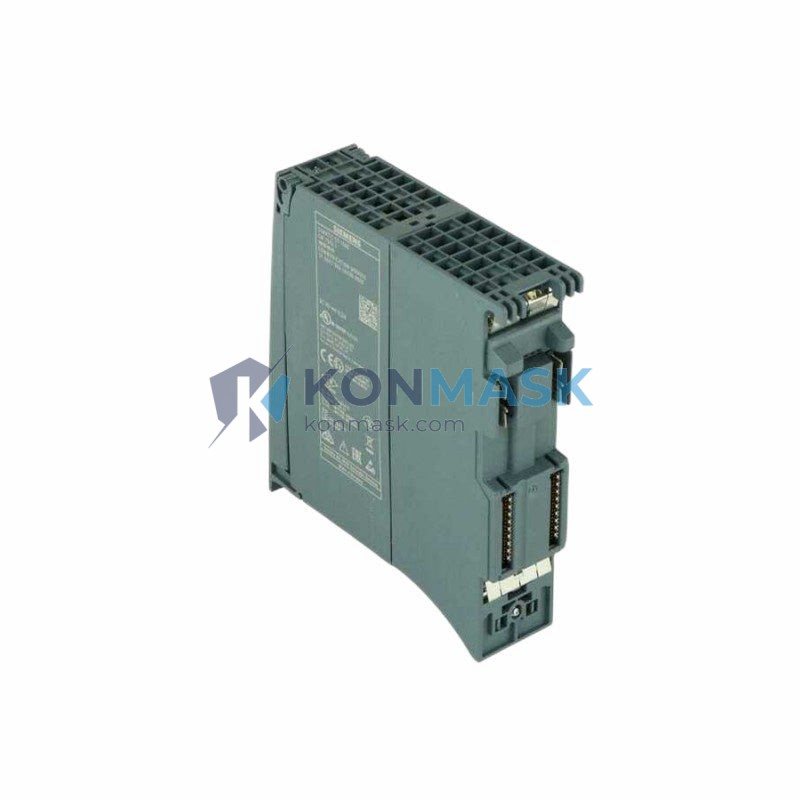

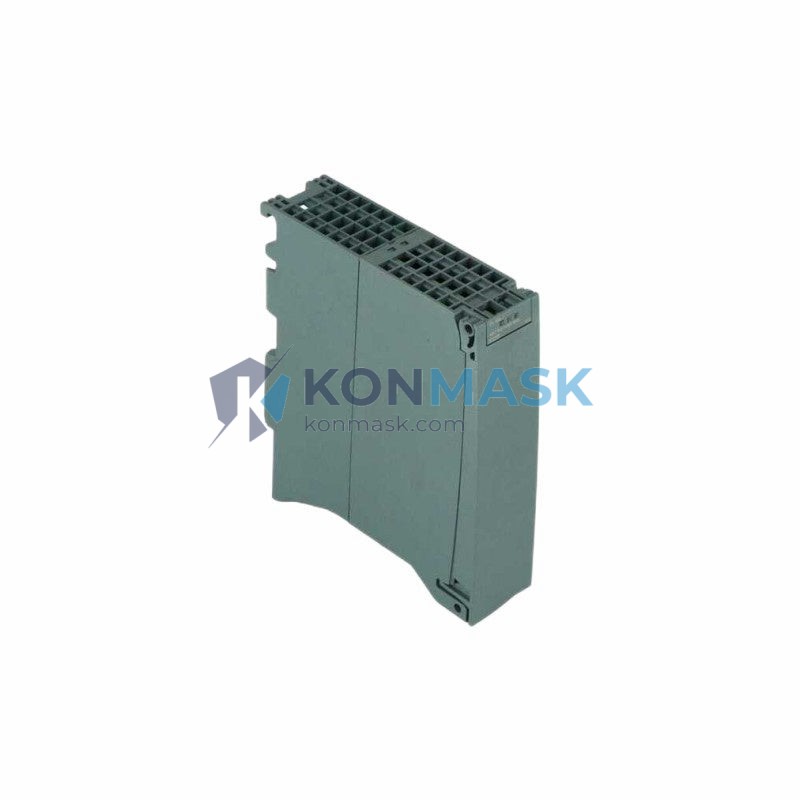

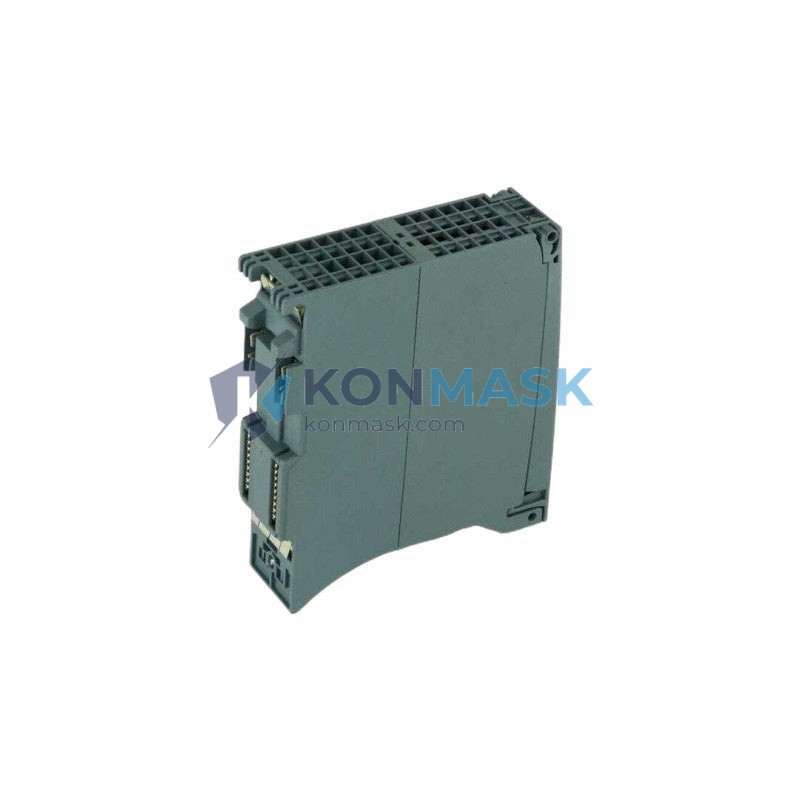

SIEMENS 6GK7542-1AX00-0XE0 – CM 1542-1 PROFINET Communication Module | SIMATIC S7-1500 Platform
Engineering Background
The SIMATIC S7-1500 series represents Siemens’ flagship programmable logic controller platform for high-performance industrial automation. The CM 1542-1 (6GK7542-1AX00-0XE0) is a dedicated PROFINET communication module engineered to extend the S7-1500 CPU’s network connectivity, enabling deterministic real-time Ethernet communication across complex plant topologies. It is the preferred choice for system integrators requiring isolated, high-bandwidth PROFINET IO controller functionality independent of the CPU’s onboard interface.
Product Positioning
Designed for procurement engineers and automation architects who demand certified, traceable components for mission-critical installations. The CM 1542-1 is fully compatible with TIA Portal V14 SP1 and above, supports PROFINET IRT (Isochronous Real-Time), and is compliant with IEC 61158 / IEC 61784 industrial communication standards. Available through Konmask.com with full traceability documentation.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Order Number (MLFB) | 6GK7542-1AX00-0XE0 |
| Product Family | SIMATIC S7-1500 Communication Modules |
| Communication Standard | PROFINET IO (IRT & RT) |
| PROFINET Ports | 2 × RJ45 (10/100/1000 Mbit/s) |
| PROFINET Controller | Yes (independent of CPU onboard PN) |
| PROFINET Device | Yes |
| IRT Support | Yes (Isochronous Real-Time) |
| Integrated Switch | Yes (2-port) |
| Supported IO Devices | Up to 256 PROFINET IO devices |
| Cycle Time (IRT) | Min. 250 µs |
| Supply Voltage | 24 V DC (via S7-1500 backplane bus) |
| Power Consumption | Typ. 4.5 W |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Protection Class | IP20 |
| Dimensions (W×H×D) | 35 mm × 147 mm × 129 mm |
| Weight | Approx. 350 g |
| Mounting | DIN rail (35 mm), S7-1500 rack |
| TIA Portal Compatibility | V14 SP1 and above |
| Firmware Update | Via TIA Portal / STEP 7 |
| Certifications | CE, UL, cULus, ATEX Zone 2, IECEx |
| PROFINET Conformance Class | Class C (IRT) |
Proven Application Environments
- Automotive Manufacturing: Body-in-white welding lines requiring IRT synchronization between robot controllers and S7-1500 CPUs with sub-millisecond jitter tolerance.
- Process Industry: Chemical and pharmaceutical plants where the CM 1542-1 provides an isolated PROFINET segment for safety-instrumented systems (SIS) separate from the main process network.
- Machine Building (OEM): Packaging and printing machinery where the module manages distributed I/O (ET 200SP, ET 200MP) across multi-axis servo drive networks.
- Water & Wastewater: SCADA-integrated pump stations utilizing PROFINET RT for remote I/O communication over fiber-optic media converters.
- Energy & Power Distribution: Substation automation with IEC 61850 gateway integration via PROFINET-to-IEC protocol converters.
- Intralogistics & Conveyor Systems: High-speed sortation lines where IRT ensures deterministic conveyor sequencing with zero packet loss.
Engineering Advantages
- Independent PROFINET Controller: Offloads network management from the CPU, enabling dedicated PROFINET IO controller functionality without consuming CPU processing cycles.
- IRT Precision: Isochronous Real-Time communication with cycle times as low as 250 µs — essential for motion control and synchronized multi-axis applications.
- Dual-Port Integrated Switch: Enables line topology wiring without external switches, reducing panel footprint and BOM cost.
- Seamless TIA Portal Integration: Full hardware configuration, diagnostics, and firmware management within the unified TIA Portal engineering framework.
- Scalable Network Architecture: Supports up to 256 IO devices per controller instance, accommodating large distributed I/O architectures.
- Robust Industrial Design: Conformal coating option available; rated for harsh industrial environments with wide temperature range and vibration resistance per IEC 60068.
System Architecture & Signal Flow
The CM 1542-1 slots directly into the S7-1500 rack and communicates with the CPU via the high-speed backplane bus (up to 400 MB/s). On the field side, the two RJ45 PROFINET ports connect to IO devices (e.g., ET 200SP distributed I/O, SINAMICS drives, HMI panels) in line, star, or ring topology. The module operates as an independent PROFINET IO Controller, meaning it maintains its own AR (Application Relationship) with each IO device, independent of the CPU’s onboard PROFINET interface. This architecture allows the CPU’s PN interface to be reserved for HMI/SCADA communication while the CM 1542-1 handles all field-level IO traffic — a best-practice design for large-scale S7-1500 installations.
Typical Signal Flow: TIA Portal Engineering Station → CPU S7-1500 (backplane bus) → CM 1542-1 → PROFINET Switch/Ring → ET 200SP / SINAMICS / Field Devices
Sourcing & Quality Verification
- Genuine Origin: All units sourced from authorized Siemens distribution channels or verified surplus with full chain-of-custody documentation.
- Inspection Protocol: Each module undergoes visual inspection, label verification (MLFB cross-check), and functional power-on test prior to shipment.
- Traceability: Serial number and firmware version documented per order. Certificates of conformity available upon request.
- Packaging: Original Siemens ESD-safe packaging retained where available; anti-static bags and foam inserts used for surplus stock.
- Warranty: 12-month Konmask operational warranty covering manufacturing defects. Extended warranty options available for volume orders.
Procurement Process
- Confirm Part Number: Verify MLFB 6GK7542-1AX00-0XE0 matches your TIA Portal hardware catalog entry and project BOM.
- Request Quote: Contact [email protected] with quantity, required delivery date, and destination country for freight and duty estimation.
- Order Confirmation: Purchase order accepted via email. Pro-forma invoice issued within 1 business day.
- Lead Time: In-stock units ship within 2–3 business days. ETA for out-of-stock items provided at quotation stage.
- Shipping: DHL Express / FedEx International Priority standard. Sea freight available for bulk orders (>10 units).
- Documentation Package: Commercial invoice, packing list, certificate of origin, and test report included with every shipment.
Technical FAQ
Q: Can the CM 1542-1 operate as both a PROFINET Controller and Device simultaneously?
A: Yes. The module supports simultaneous Controller and Device operation, enabling it to act as a subordinate device to a higher-level controller while managing its own IO devices downstream.
Q: Is the CM 1542-1 compatible with S7-1500 F (Fail-Safe) CPUs?
A: Yes. The module is fully compatible with S7-1500F CPUs and supports PROFIsafe communication over PROFINET for safety-rated IO devices.
Q: What is the maximum cable length between PROFINET devices?
A: For copper (Cat 5e/6 STP): 100 m per segment. For fiber optic (with media converter): up to 26 km per segment depending on fiber type.
Q: Does the CM 1542-1 support PROFINET MRP (Media Redundancy Protocol)?
A: Yes. MRP ring redundancy is supported, providing sub-200 ms network recovery time for ring topologies.
Q: Can I use this module with STEP 7 Classic (non-TIA Portal)?
A: No. The CM 1542-1 requires TIA Portal V14 SP1 or higher for hardware configuration and commissioning.
Q: What happens if the CM 1542-1 loses power while IO devices are active?
A: The CPU detects the module failure via the backplane bus and triggers a configurable diagnostic alarm. IO device behavior depends on the configured substitute value settings in TIA Portal.
