Siemens 6ES7901-3DB30-0XA0 PC/PPI Cable | Replacement, Equivalent & Selection Guide

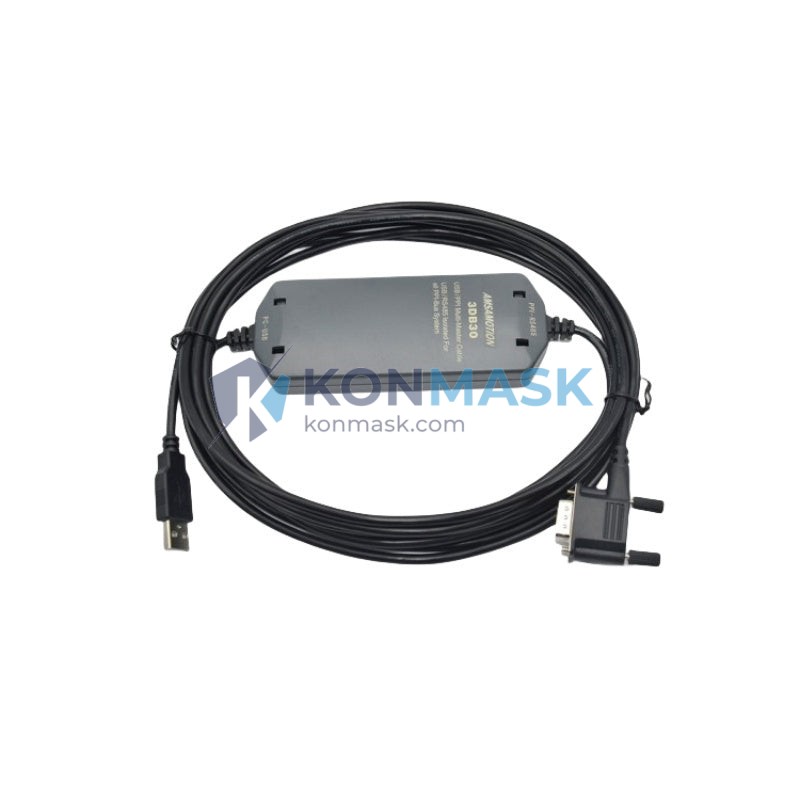

The Siemens 6ES7901-3DB30-0XA0 is an RS-485 PC/PPI multi-master programming cable designed for connecting a PC (RS-232 COM port) to Siemens S7-200 series PLCs via the PPI protocol. It is an essential accessory for programming, commissioning, and diagnostics using STEP 7-Micro/WIN software.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 6ES7901-3DB30-0XA0 |
| Brand | Siemens |
| Series | SIMATIC S7-200 |
| Cable Type | PC/PPI Multi-Master |
| Interface (PC Side) | RS-232 (DB9 Female) |
| Interface (PLC Side) | RS-485 (DB9 Male) |
| Protocol | PPI (Point-to-Point Interface) |
| Baud Rate | 9.6 kbps / 19.2 kbps / 187.5 kbps |
| Multi-Master Support | Yes |
| Cable Length | Approx. 5 m |
| Power Supply | Self-powered via RS-232 |
| Compatible Software | STEP 7-Micro/WIN V4.0+ |
| Weight | ~300 g |
| Country of Origin | Germany / China |
Compatible Replacement & Equivalent Models
The following models are commonly used as replacements or functional equivalents for the 6ES7901-3DB30-0XA0. Always verify protocol and baud rate compatibility before substitution.
| Model | Brand | Interface | Notes |
|---|---|---|---|
| 6ES7901-3CB30-0XA0 | Siemens | RS-232 / RS-485 | Earlier revision; same function |
| 6ES7901-3BF20-0XA0 | Siemens | USB / RS-485 | USB-to-PPI; requires USB driver |
| 6GK1571-0BA00-0AA0 | Siemens | USB / RS-485 | PC Adapter USB A2; broader compatibility |
| USB-PPI+ (3rd Party) | Compatible | USB / RS-485 | Cost-effective; verify driver support |
| CP 5711 | Siemens | USB / MPI/PROFIBUS | For MPI/DP networks; not PPI-only |
Note: Third-party cables may not support all baud rates or multi-master mode. Original Siemens cables are recommended for production environments.
Why Choose the Original Model
- Full Multi-Master Support: Enables simultaneous connection of multiple masters on the PPI network — critical for HMI + PC co-programming scenarios.
- Certified Compatibility: Fully validated with STEP 7-Micro/WIN and all S7-200 CPU variants (CPU 221/222/224/224XP/226).
- Stable Baud Rate Switching: Hardware DIP switches allow reliable baud rate selection without software configuration.
- Industrial-Grade Build: Shielded cable and robust connectors designed for factory floor environments.
- Siemens Warranty & Support: Backed by Siemens global technical support and firmware compatibility guarantees.
Typical Applications
- PLC program upload/download via STEP 7-Micro/WIN
- Online monitoring and diagnostics of S7-200 CPUs
- Commissioning of S7-200-based control panels
- HMI communication setup (TD 200, TP 070, etc.)
- Small-scale SCADA and data acquisition systems
- OEM machine builders using S7-200 as embedded controller
System Compatibility
| Compatible PLC / Device | CPU / Model | Protocol |
|---|---|---|
| SIMATIC S7-200 | CPU 221, 222, 224, 224XP, 226 | PPI |
| SIMATIC S7-200 SMART | CPU SR20, ST30, SR40, ST60 | PPI (limited) |
| TD 200 / TD 400C | Text Display | PPI |
| EM 277 | PROFIBUS-DP Module | Via S7-200 CPU |
Not compatible with S7-300/400/1200/1500 series. For those platforms, use CP 5711 or PC Adapter USB A2.
Selection Guide
Use the decision tree below to select the correct programming cable for your application:
- PC has RS-232 COM port + S7-200 PLC → 6ES7901-3DB30-0XA0 ✓ (this product)
- PC has USB only + S7-200 PLC → 6ES7901-3BF20-0XA0 or USB-PPI+
- Need MPI/PROFIBUS + S7-300/400 → CP 5711 or PC Adapter USB A2 (6GK1571-0BA00-0AA0)
- Need PROFINET + S7-1200/1500 → Standard Ethernet cable (no special adapter required)
- Multi-master PPI network required → Original 6ES7901-3DB30-0XA0 strongly recommended
Quality Assurance & Sourcing
At Konmask.com, all Siemens automation components are sourced through verified industrial supply channels. Each unit undergoes:
- Visual inspection and packaging integrity check
- Part number and label verification against Siemens documentation
- Functional communication test prior to dispatch (on request)
We supply both new original and factory-refurbished units. Please specify your requirement at the time of inquiry.
How to Order
- Add the 6ES7901-3DB30-0XA0 to your cart and proceed to checkout.
- For bulk orders (>5 units) or urgent requirements, contact us directly for lead time and pricing.
- Provide your shipping address and preferred freight method (DHL / FedEx / sea freight).
- A proforma invoice will be issued within 1 business day for B2B orders.
📧 [email protected] | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use 6ES7901-3DB30-0XA0 with S7-200 SMART?
A: Limited compatibility. S7-200 SMART primarily uses Ethernet for programming. PPI via this cable may work for basic tasks but is not officially supported by Siemens for SMART CPUs.
Q: Is the 6ES7901-3CB30-0XA0 a direct replacement?
A: Yes, the -3CB30 is an earlier hardware revision with identical functionality. Both are interchangeable for standard PPI programming tasks.
Q: Can I use a USB-to-RS232 adapter with this cable?
A: Technically possible, but not recommended. Signal timing issues with USB-to-RS232 adapters can cause communication errors. Use the USB-PPI cable (6ES7901-3BF20-0XA0) instead.
Q: Does this cable support PROFIBUS?
A: No. This cable is PPI-only. For PROFIBUS-DP, use CP 5711 or PC Adapter USB A2.
Q: What is the maximum cable length for reliable communication?
A: The standard cable is ~5 m. For longer distances, use an RS-485 repeater module (e.g., EM 277 network extension).
