SIEMENS 6ES7 972-0AA01-0XA0 PROFIBUS Repeater Module | Replacement, Equivalent & Selection Guide

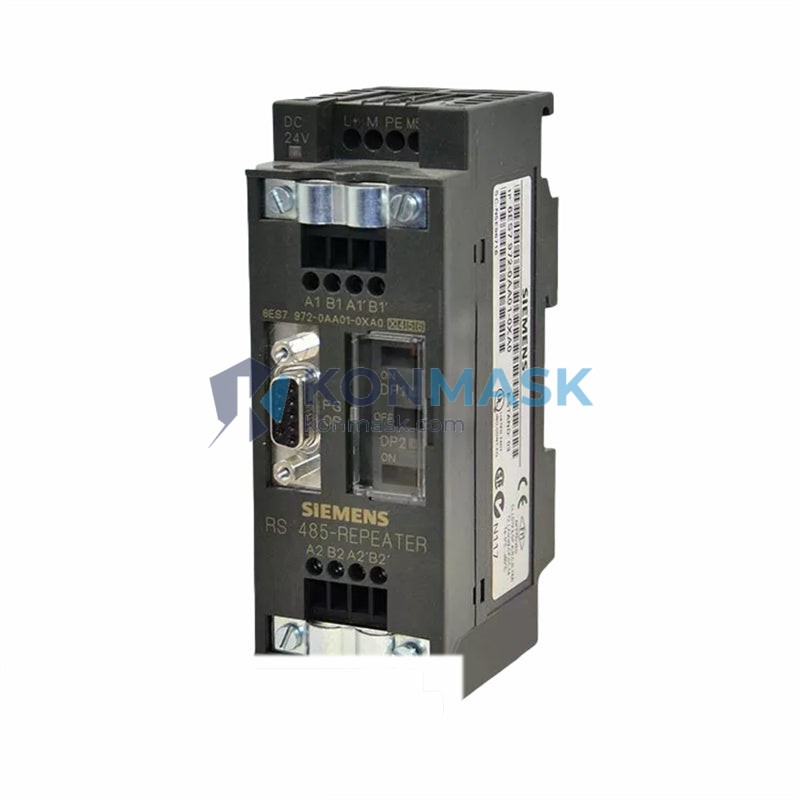

The SIEMENS 6ES7 972-0AA01-0XA0 is a PROFIBUS DP RS-485 Repeater Module designed to extend PROFIBUS network segments, boost signal integrity, and connect multiple bus segments in SIMATIC S7 automation systems. This guide covers technical specifications, compatible replacements, selection criteria, and ordering information to help engineers and procurement teams make confident decisions.
Technical Specifications
| Part Number | 6ES7 972-0AA01-0XA0 |
| Brand | SIEMENS |
| Series | SIMATIC S7 / PROFIBUS DP |
| Function | RS-485 PROFIBUS Repeater / Signal Amplifier |
| Bus Standard | PROFIBUS DP (EN 50170) |
| Transmission Rate | 9.6 kbps – 12 Mbps (auto-detection) |
| Segments Supported | Up to 3 segments (2 bus ports + 1 programming port) |
| Max Nodes per Segment | 32 stations |
| Supply Voltage | 24 V DC |
| Power Consumption | Approx. 3 W |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Protection Class | IP20 |
| Mounting | DIN rail (35 mm) |
| Dimensions (W×H×D) | Approx. 40 × 125 × 117 mm |
| Weight | Approx. 280 g |
| Certifications | CE, UL, cULus |
Compatible Replacement & Equivalent Models
When the original 6ES7 972-0AA01-0XA0 is unavailable or discontinued, the following models are commonly evaluated as replacements. Always verify electrical and firmware compatibility before substitution.
| Model | Brand | Compatibility Notes |
|---|---|---|
| 6ES7 972-0AA02-0XA0 | SIEMENS | Direct successor; same function, updated firmware — recommended drop-in replacement |
| 6ES7 972-0AB01-0XA0 | SIEMENS | OLM (Optical Link Module) variant; use when fiber-optic segment extension is required |
| 6ES7 972-0BA52-0XA0 | SIEMENS | DP/PA coupler; suitable for PROFIBUS PA segment bridging |
| ADAM-4510S | Advantech | Third-party RS-485 repeater; compatible at physical layer, verify baud rate support |
| PFB-R485 | Moxa | Industrial RS-485 repeater; suitable for non-SIMATIC environments |
Note: Third-party replacements may require additional configuration. Konmask.com recommends using genuine SIEMENS parts for critical production environments.
Why Choose the Original Model
- Guaranteed PROFIBUS DP compliance — certified to EN 50170 standard
- Auto baud rate detection — no manual configuration required across 9.6 kbps to 12 Mbps
- Seamless SIMATIC integration — plug-and-play with S7-300, S7-400, and S7-1500 systems
- Robust industrial design — DIN rail mount, IP20, wide temperature range
- Long-term SIEMENS support — spare parts and firmware updates available through official channels
Typical Applications
- Extending PROFIBUS DP network segments beyond 1,200 m cable length limit
- Connecting multiple PROFIBUS segments in large plant automation systems
- Isolating bus segments to prevent fault propagation in S7-300 / S7-400 / S7-1500 networks
- Factory automation, process control, and building management systems
- Automotive, chemical, pharmaceutical, and power generation industries
System Compatibility
| System | Compatible |
|---|---|
| SIMATIC S7-300 | ✔ Yes |
| SIMATIC S7-400 | ✔ Yes |
| SIMATIC S7-1500 (via DP interface) | ✔ Yes |
| SIMATIC ET 200M / ET 200S | ✔ Yes |
| Third-party PROFIBUS DP masters | ✔ Yes (EN 50170 compliant) |
| PROFIBUS PA segments | ✘ Requires DP/PA coupler |
Selection Guide
Use this guide to select the correct repeater or replacement for your application:
- Need to extend a single PROFIBUS segment? → 6ES7 972-0AA01-0XA0 or its successor 6ES7 972-0AA02-0XA0
- Need fiber-optic segment extension? → 6ES7 972-0AB01-0XA0 (OLM)
- Need to bridge PROFIBUS PA instruments? → 6ES7 972-0BA52-0XA0 (DP/PA Coupler)
- Non-SIMATIC environment or budget-sensitive project? → Evaluate Advantech ADAM-4510S or Moxa PFB-R485 with full compatibility testing
- Hazardous area (Ex zone)? → Consult SIEMENS for ATEX-rated variants
Quality Assurance & Sourcing
All SIEMENS modules supplied by Konmask.com are sourced through verified industrial distribution channels. Each unit undergoes:
- Visual and label authenticity inspection
- Functional power-on verification
- Packaging integrity check
- Traceability documentation upon request
We supply both new original and tested refurbished units. Condition is clearly stated on each listing. Warranty terms apply per product condition — contact us for details.
How to Order
- Confirm your required quantity and preferred condition (new / refurbished)
- Add to cart or contact us directly for bulk pricing and lead time
- Provide your shipping address and preferred freight method
- Receive order confirmation with tracking within 1 business day
For urgent requirements or large-volume orders, email support@konmask.com or call +0086 19859288691.
Replacement & Compatibility FAQ
Q: Is 6ES7 972-0AA02-0XA0 a direct replacement for 6ES7 972-0AA01-0XA0?
A: Yes. The -0AA02- version is the updated successor with identical functionality and improved firmware. It is the recommended drop-in replacement.
Q: Can I use a third-party RS-485 repeater instead of the SIEMENS original?
A: Third-party repeaters can work at the physical layer, but PROFIBUS DP protocol compliance, baud rate auto-detection, and SIMATIC diagnostics integration may be limited. For critical systems, original SIEMENS parts are strongly recommended.
Q: What is the maximum cable length per PROFIBUS segment with this repeater?
A: Up to 1,200 m per segment at 93.75 kbps. Cable length decreases as baud rate increases (e.g., 100 m at 12 Mbps). The repeater allows chaining of multiple segments.
Q: Does this module require STEP 7 or TIA Portal configuration?
A: No software configuration is required. The 6ES7 972-0AA01-0XA0 auto-detects baud rate and is transparent to the PROFIBUS master.
Q: Do you provide a certificate of conformity or test report?
A: Yes, documentation is available upon request for new original units. Contact us before ordering if required.
