Genuine SIEMENS 6ES7972-0BA42-0XA0 PROFIBUS DP Bus Connector 90° | SIMATIC S7 Series – Verified Source

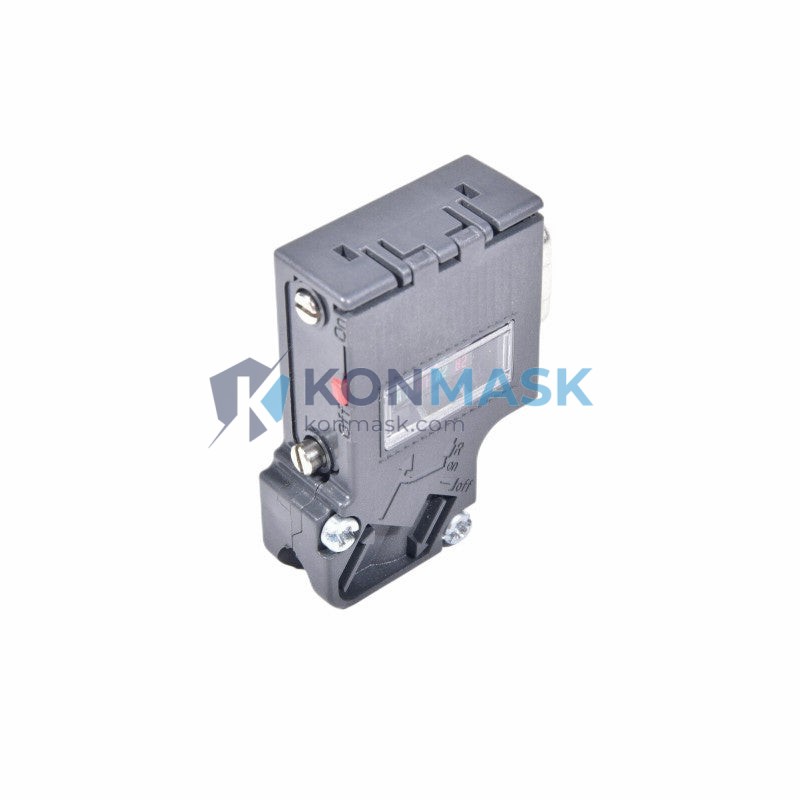

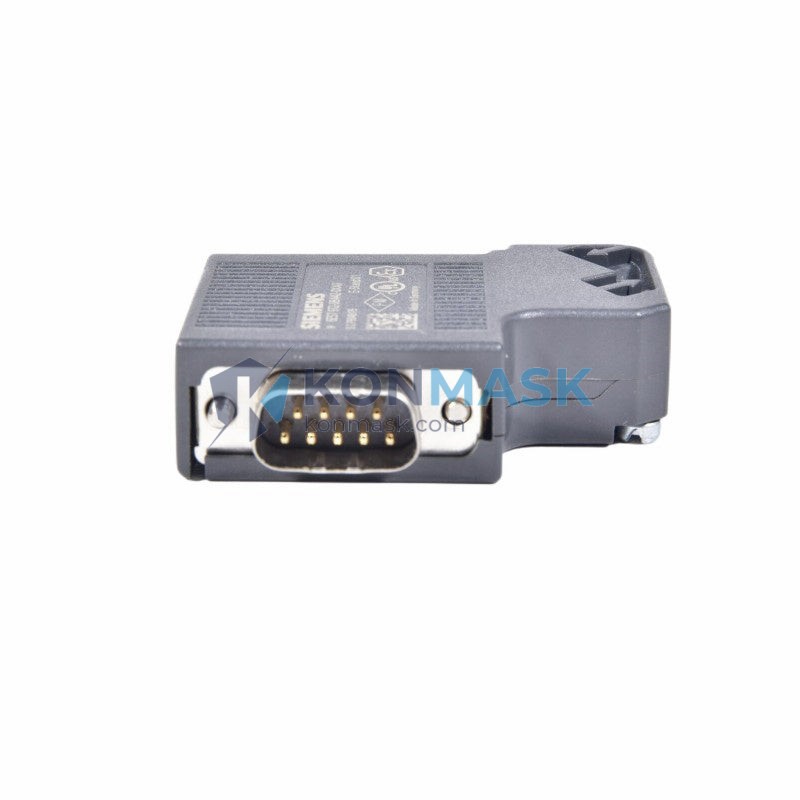

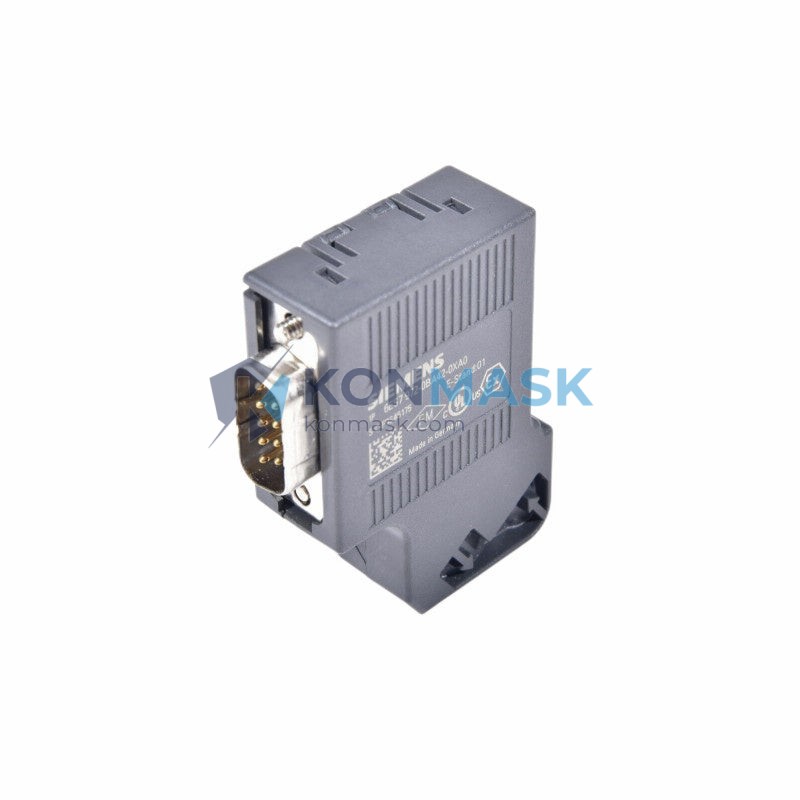

Konmask.com supplies authentic SIEMENS 6ES7972-0BA42-0XA0 PROFIBUS DP bus connectors sourced directly through verified industrial distribution channels. This 90° plug connector is a critical interface component for SIMATIC S7 PLC networks, enabling reliable high-speed PROFIBUS DP communication in demanding industrial environments.
Technical Specifications
- Part Number: 6ES7972-0BA42-0XA0
- Manufacturer: SIEMENS AG
- Product Family: SIMATIC S7 / PROFIBUS Accessories
- Connector Type: PROFIBUS DP Bus Connector, 90° cable outlet
- Transmission Rate: Up to 12 Mbit/s
- Cable Entry Angle: 90°
- Terminating Resistor: Integrated switchable terminating resistor
- Housing Material: Robust thermoplastic
- Protection Rating: IP20
- Weight: Approx. 400 g (packaged)
- Compatibility: SIMATIC S7-300, S7-400, S7-1500, ET 200 series, and all PROFIBUS DP-compliant devices
- Standards: EN 50170, IEC 61158
Our 4-Step Quality Verification Process
- Step 1 — Source Verification: All units are procured exclusively from authorized SIEMENS distributors or certified industrial surplus channels with full traceability documentation.
- Step 2 — Physical Inspection: Each connector is inspected for housing integrity, pin condition, labeling accuracy, and correct part number markings before dispatch.
- Step 3 — Functional Check: Where applicable, units undergo basic continuity and contact resistance testing to confirm electrical integrity.
- Step 4 — Packaging & Documentation: Products are shipped in anti-static protective packaging with original or equivalent documentation, including datasheet and certificate of conformity upon request.
Key Features & Benefits
- ✅ Genuine SIEMENS component — not a third-party clone or counterfeit substitute
- ✅ 90° cable exit — ideal for space-constrained cabinet installations
- ✅ Integrated terminating resistor — simplifies network termination at bus endpoints
- ✅ Supports full PROFIBUS DP baud rate range up to 12 Mbit/s
- ✅ Plug-and-play compatibility with all SIMATIC S7 and PROFIBUS DP devices
- ✅ Durable industrial-grade housing for long service life in harsh environments
- ✅ Fast global dispatch with full export documentation available
Typical Applications
- PROFIBUS DP network construction and expansion in SIMATIC S7 control systems
- Bus termination at the first or last node of a PROFIBUS segment
- Replacement of damaged or aged connectors in existing PLC installations
- Spare parts inventory for MRO (Maintenance, Repair & Operations) programs
- System integrators building new automation panels and control cabinets
- OEM machine builders requiring certified SIEMENS-compatible bus infrastructure
Compatible System Components
- SIMATIC S7-300 CPUs (e.g., CPU 315-2 DP, CPU 317-2 DP)
- SIMATIC S7-400 CPUs with PROFIBUS DP interface
- SIMATIC S7-1500 with CM 1542-5 PROFIBUS module
- ET 200M, ET 200S, ET 200SP distributed I/O systems
- SINAMICS drives with PROFIBUS DP option boards
- SCALANCE X network switches with PROFIBUS ports
- Third-party PROFIBUS DP master/slave devices (IEC 61158 compliant)
Global Sourcing & Shipping Capabilities
Konmask.com operates as a specialist B2B supplier of industrial automation components with global reach. We ship to customers across Asia, Europe, the Middle East, and the Americas.
- Lead Time: In-stock items typically dispatched within 1–3 business days
- Shipping Methods: DHL Express, FedEx International Priority, UPS, sea freight for bulk orders
- Export Documentation: Commercial invoice, packing list, certificate of origin, and SIEMENS datasheet available upon request
- Customs & HS Code: HS 8538.90 — Parts for electrical apparatus for switching/protecting electrical circuits
- Minimum Order: Single unit orders accepted; volume pricing available for 10+ units
- Payment Terms: T/T bank transfer, PayPal, and trade assurance options available
Certifications & Compliance Statement
- CE Marking: Compliant with EU Low Voltage Directive and EMC Directive
- RoHS: SIEMENS confirms RoHS compliance for this product family
- PROFIBUS Certified: Meets EN 50170 / IEC 61158 PROFIBUS DP standard
- Country of Origin: Germany (SIEMENS AG manufacturing)
- Traceability: Batch and date codes available for enterprise procurement compliance
How to Order
- Confirm your requirement — verify the part number 6ES7972-0BA42-0XA0 matches your system’s PROFIBUS DP connector specification.
- Select quantity — add to cart for standard orders, or contact us directly for volume pricing on 10+ units.
- Request a quote — email [email protected] with your PO number, delivery address, and required lead time.
- Confirm payment — we will issue a proforma invoice; dispatch follows upon payment confirmation.
- Track your shipment — tracking number provided within 24 hours of dispatch.
Authenticity & Trust FAQ
Q: How do I know this is a genuine SIEMENS product?
A: All units are sourced from verified distribution channels. We provide original packaging, SIEMENS part number labels, and can supply a certificate of conformity upon request. We do not sell grey-market or counterfeit components.
Q: Can you provide a datasheet or technical documentation?
A: Yes. The official SIEMENS datasheet for 6ES7972-0BA42-0XA0 is available upon request. Contact us at [email protected].
Q: Do you offer a warranty?
A: We offer a 12-month warranty against manufacturing defects on all genuine SIEMENS components sold through Konmask.com. DOA (Dead on Arrival) units are replaced at no cost.
Q: Can I order a single unit?
A: Yes, we accept single-unit orders with no minimum order quantity for standard stock items.
Q: What if I need a different PROFIBUS connector variant?
A: We stock a wide range of SIEMENS PROFIBUS DP connectors. Contact us with your specific part number and we will confirm availability and pricing.
