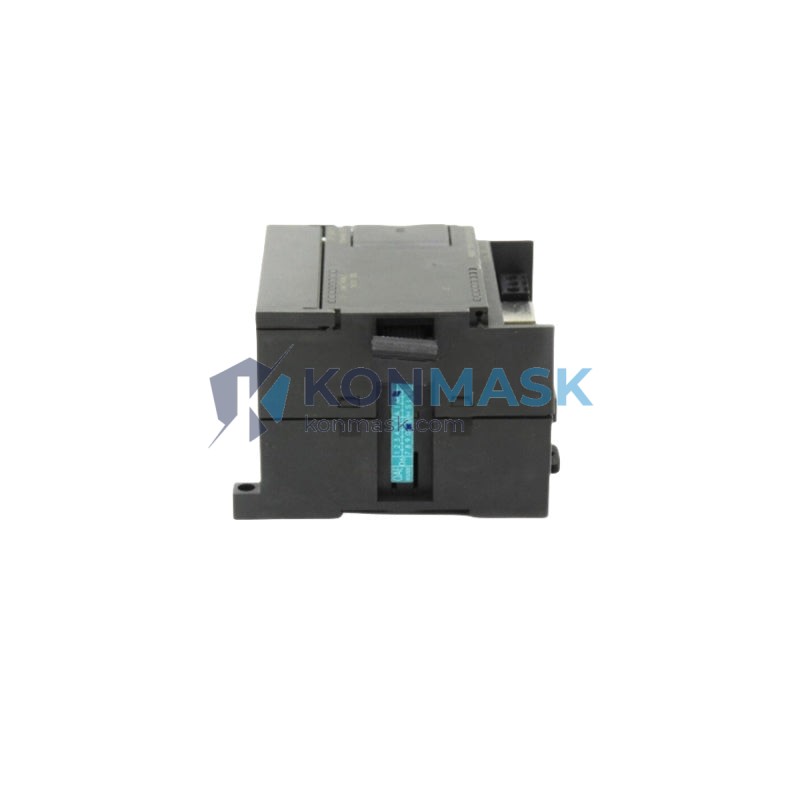

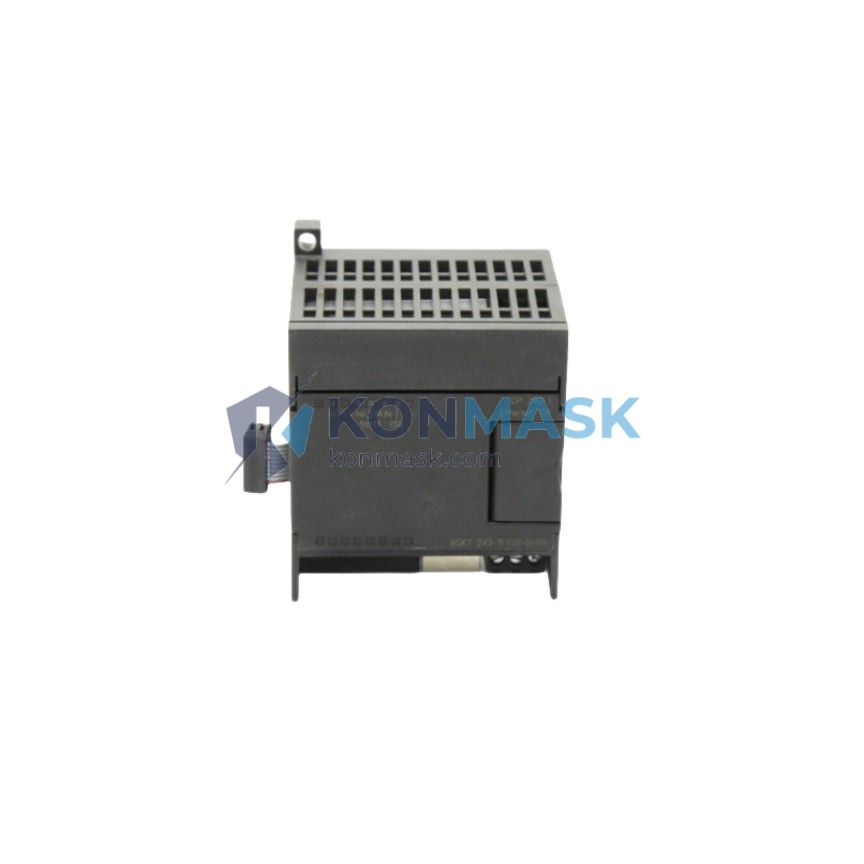

SIEMENS 6GK7243-1EX00-0XE0 Communications Processor – SIMATIC NET CP 1243-1
When a SIMATIC S7-1200 PLC loses its communications link to the SCADA host, the MES layer, or the remote engineering station, the entire production cell goes dark. Operators lose real-time visibility, alarm acknowledgments queue up unprocessed, and maintenance engineers can no longer push firmware updates or diagnostic reads over the network. A single missing or failed communications processor can cascade into unplanned downtime measured in hours — and in process industries, every hour of lost production carries a significant cost. The SIEMENS 6GK7243-1EX00-0XE0 is the component that prevents this scenario from ever occurring.
Within the SIMATIC NET CP 1243-1 product family, the 6GK7243-1EX00-0XE0 represents the standard Industrial Ethernet communications processor purpose-built for the S7-1200 controller platform. It occupies a well-established position in Siemens’ automation portfolio as the primary gateway between S7-1200 CPUs and Ethernet-based industrial networks — including PROFINET, S7 communication, and open TCP/IP protocols. Deployed across automotive assembly lines, water treatment facilities, building automation systems, and food & beverage plants worldwide, this module has become a de-facto standard for S7-1200 connectivity in demanding industrial environments.
Technical Specifications
- Part Number: 6GK7243-1EX00-0XE0
- Product Family: SIMATIC NET CP 1243-1
- Compatible Controller: SIMATIC S7-1200 CPU series
- Network Interface: Industrial Ethernet (RJ45)
- Supported Protocols: PROFINET IO (controller/device), S7 communication, TCP/IP, ISO-on-TCP, UDP, SNMP, NTP
- VPN / Security: Integrated firewall and VPN (IPsec) for secure remote access
- Telecontrol: DNP3 and IEC 60870-5-101/104 telecontrol protocols supported
- Configuration Tool: STEP 7 (TIA Portal) V13 SP1 or higher
- Supply Voltage: 24 V DC (via S7-1200 backplane bus)
- Operating Temperature: 0 °C to +60 °C
- Protection Class: IP20
- Dimensions (W×H×D): 30 mm × 100 mm × 75 mm
- Weight: Approx. 130 g
- Certifications: CE, UL, cULus, ATEX Zone 2 (with appropriate housing)
Note: All specifications are based on publicly available Siemens documentation. Konmask.com does not modify or fabricate technical data. Always verify against the official Siemens datasheet for your specific application.
Key Features & Benefits
- Seamless S7-1200 Integration: Plugs directly into the S7-1200 left-side expansion slot — no additional power supply or mounting rail required, minimizing panel footprint.
- Integrated Security Gateway: Built-in stateful firewall and IPsec VPN tunneling protect the controller from unauthorized network access without requiring a separate security appliance.
- Telecontrol Ready: Native support for DNP3 and IEC 60870-5-104 enables direct integration with SCADA systems in utilities and infrastructure projects without protocol converters.
- PROFINET IO Controller/Device: Operates as both a PROFINET IO controller and device, providing flexible topology options for distributed I/O architectures.
- Open Communication: TCP/IP and ISO-on-TCP support allows communication with third-party HMI, historian, and MES systems using standard socket programming.
- Remote Diagnostics: SNMP and web-based diagnostics enable remote monitoring of network status and module health without on-site visits.
- TIA Portal Native: Fully configured within TIA Portal — no separate configuration software license required, reducing engineering overhead.
Industry & Equipment Applications
- Water & Wastewater: Remote pump station monitoring via IEC 60870-5-104 to central SCADA over cellular or fiber WAN links.
- Automotive Manufacturing: PROFINET IO integration of S7-1200 controllers into body-shop and paint-shop automation cells.
- Food & Beverage: Hygienic-area PLC connectivity to MES and ERP systems for OEE data collection and batch traceability.
- Building Automation: HVAC and access control system integration using open TCP/IP protocols with BMS platforms.
- Energy & Utilities: Substation automation and smart grid edge device communication using DNP3 protocol.
- Oil & Gas: Remote wellhead and pipeline monitoring with VPN-secured communication back to the control room.
System Integration & Compatible Parts
The 6GK7243-1EX00-0XE0 is designed to work within the broader SIMATIC S7-1200 and SIMATIC NET ecosystem. Compatible and commonly paired components include:
- SIMATIC S7-1200 CPUs: 6ES7211-1AE40-0XB0, 6ES7212-1AE40-0XB0, 6ES7214-1AG40-0XB0, 6ES7215-1AG40-0XB0
- SIMATIC NET Industrial Ethernet Switches: SCALANCE X series (e.g., 6GK5005-0BA00-1AB2)
- SIMATIC NET Industrial Security Appliances: SCALANCE S615 (6GK5615-0AA00-2AA2)
- TIA Portal Engineering Software: V15.1 / V16 / V17 / V18 / V19
- SINEMA Remote Connect for cloud-based VPN management
Contact Konmask.com for compatibility verification with your specific S7-1200 CPU firmware version and TIA Portal release.
Our Quality Assurance Process
- Source Verification: All units are sourced from authorized distributors or verified secondary-market suppliers with documented chain of custody.
- Visual & Physical Inspection: Each module undergoes inspection for label authenticity, connector integrity, housing condition, and firmware version consistency.
- Functional Testing: Where applicable, modules are powered and communication-tested prior to dispatch.
- Secure Packaging: Anti-static packaging with moisture barrier and shock-absorbing foam to protect against transit damage.
- Documentation: Certificate of conformity and inspection report available upon request.
How to Order
- Submit an inquiry via the Contact Us page or email [email protected] with your required quantity and delivery timeline.
- Our technical team will confirm stock availability, lead time, and provide a formal quotation within 24 business hours.
- Upon PO confirmation, we arrange shipment with full tracking and export documentation.
- Post-delivery technical support is available for integration and commissioning queries.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, and industrial networking components — not a generalist electronics distributor.
- Global Sourcing Network: Access to both new and refurbished stock from verified suppliers across Asia, Europe, and North America.
- Technical Pre-Sales Support: Our engineers can assist with compatibility checks, system architecture review, and spare parts planning.
- Fast Response: Inquiries answered within 24 hours. Urgent requirements accommodated.
- Competitive Pricing: Volume discounts available for MRO and project procurement.
- Export Compliance: Experienced in international shipping documentation, including commercial invoices, packing lists, and certificates of origin.
Frequently Asked Questions
Q: Is the 6GK7243-1EX00-0XE0 compatible with all S7-1200 CPU versions?
A: The CP 1243-1 is compatible with S7-1200 CPUs from firmware V4.1 onwards. Earlier firmware versions may have limited functionality. Please confirm your CPU firmware version before ordering.
Q: Can this module replace the older 6GK7243-1EX00-0XE0 in an existing installation?
A: Yes, the 6GK7243-1EX00-0XE0 is a direct replacement for earlier CP 1243-1 variants in most applications. A TIA Portal project update may be required to reflect the new firmware version.
Q: Does Konmask.com supply new or refurbished units?
A: We supply both new (factory-sealed) and professionally refurbished units. The condition is clearly stated in the quotation. All units pass our QA inspection process regardless of condition.
Q: What is the typical lead time?
A: In-stock items ship within 3–5 business days. Out-of-stock items typically have a 2–4 week lead time depending on sourcing. Contact us for current availability.
Q: Can you provide a datasheet or technical documentation?
A: Yes. Official Siemens datasheets and manuals are available upon request. We can also provide application notes for common integration scenarios.
