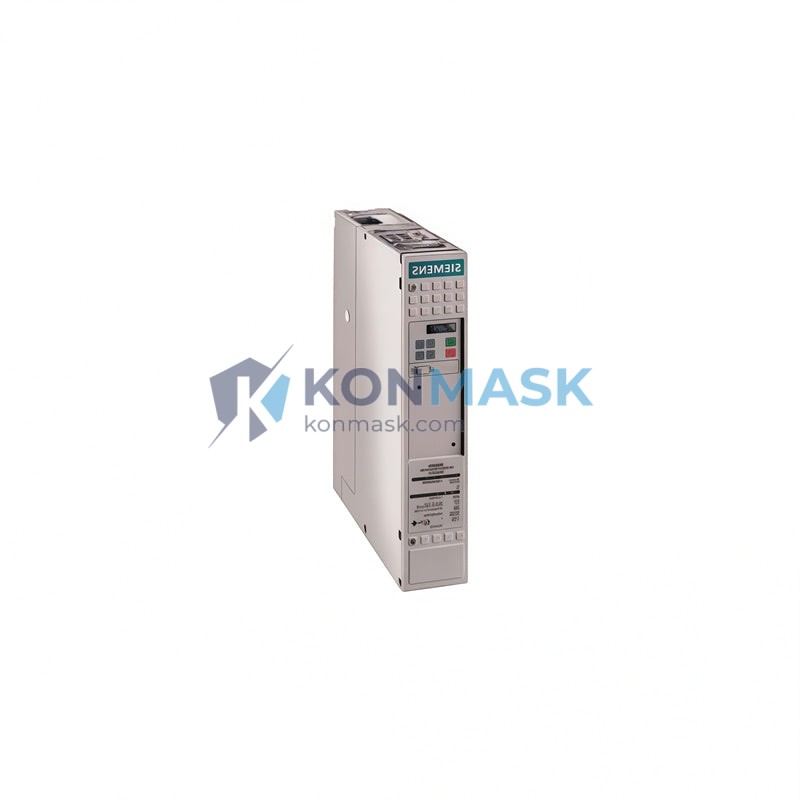

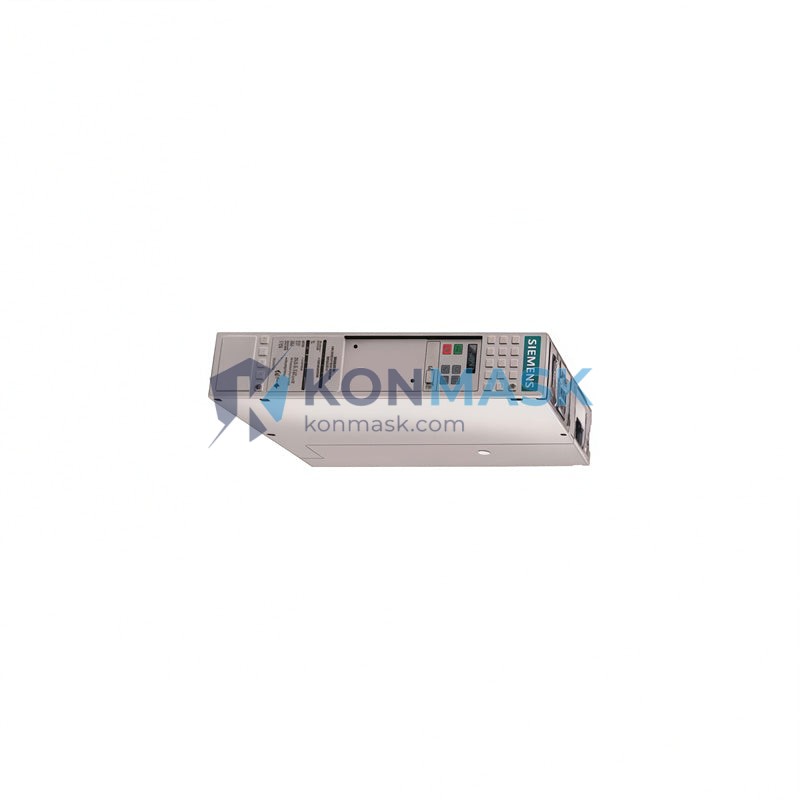

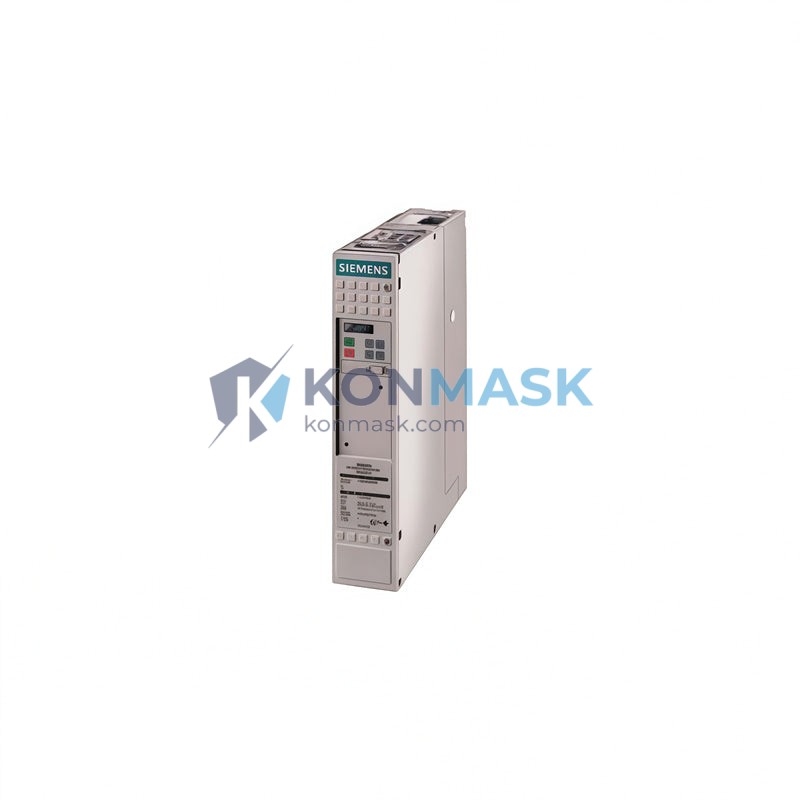

SIEMENS 6SE7031-5EF60-Z G41+G93+K80 – High-Performance Vector Control Converter | SIMOVERT Masterdrives Platform
Engineering Background
The SIMOVERT Masterdrives series represents Siemens’ flagship industrial drive platform, engineered for demanding motion-control and process-drive applications across heavy industry, infrastructure, and advanced manufacturing. The Vector Control (VC) variant delivers closed-loop torque and speed regulation with dynamic response characteristics that meet the most stringent process requirements.
Product Positioning
The 6SE7031-5EF60-Z with option codes G41+G93+K80 is a fully configured, option-equipped AC drive unit targeting procurement engineers who require a verified, drop-in replacement or new-installation drive with factory-integrated communication and braking capability. Sourced and quality-verified by Konmask.com for B2B industrial buyers worldwide.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | SIEMENS AG |
| Series / Platform | SIMOVERT Masterdrives Vector Control (VC) |
| Full Part Number | 6SE7031-5EF60-Z G41+G93+K80 |
| Base Catalog Number | 6SE7031-5EF60-Z |
| Option Code G41 | PROFIBUS-DP communication board (CBP2) |
| Option Code G93 | Braking unit / chopper module integrated |
| Option Code K80 | Additional I/O expansion board |
| Drive Type | AC Variable Frequency Drive – Vector Control |
| Rated Output Power | ~132 kW (refer to nameplate for exact rating) |
| Input Voltage | 3-phase AC, 380–480 V ±10% |
| Output Frequency Range | 0–300 Hz |
| Control Mode | Sensorless Vector Control / Closed-Loop Vector Control (with encoder) |
| Protection Class | IP20 (cabinet installation) |
| Cooling Method | Forced air cooling (internal fan) |
| Communication Interface | PROFIBUS-DP (via G41 option board) |
| Braking | Integrated braking chopper (G93) |
| Weight (approx.) | 16 kg |
| Compliance | CE, UL listed, EN 61800-3 |
Proven Application Environments
- Heavy Industry: Steel rolling mills, mining hoists, cement kilns requiring high dynamic torque response
- Process Industry: Pumps, compressors, fans with variable-speed process control via PROFIBUS-DP integration
- Material Handling: Cranes, conveyors, and hoisting equipment benefiting from integrated braking chopper (G93)
- Water & Wastewater: High-power pump drives with fieldbus-based SCADA integration
- Power Generation: Auxiliary drive systems in power plants requiring precise speed regulation
- OEM Machine Builders: Retrofit and new-build applications requiring a fully configured, option-equipped drive unit
Engineering Advantages
- Factory-Integrated Options: G41 (PROFIBUS-DP), G93 (braking chopper), and K80 (I/O expansion) are factory-fitted, eliminating field integration risk and ensuring full compatibility
- Closed-Loop Vector Control: Delivers ±0.01% speed accuracy with encoder feedback, suitable for tension-control and positioning applications
- PROFIBUS-DP Fieldbus (G41): Native integration with Siemens SIMATIC S7 PLCs and third-party DCS systems; supports PROFIdrive profile for standardized motion control
- Integrated Braking Chopper (G93): Eliminates the need for an external braking unit, reducing panel space and BOM cost
- Proven Platform Longevity: SIMOVERT Masterdrives VC has an extensive installed base with long-term spare-parts availability and Siemens global service network
- Wide Input Voltage Tolerance: ±10% input voltage tolerance ensures stable operation in grid-fluctuation environments
System Architecture & Signal Flow
The 6SE7031-5EF60-Z operates on a standard AC-DC-AC conversion architecture:
- Rectifier Stage: 6-pulse diode rectifier converts 3-phase AC supply to DC bus voltage
- DC Bus: Intermediate DC link with capacitor bank for energy storage and ride-through
- Braking Chopper (G93): Dissipates regenerative energy via external braking resistor during deceleration
- IGBT Inverter Stage: PWM-controlled IGBT bridge generates variable-frequency, variable-voltage output to motor
- Control Board: DSP-based vector control processor with closed-loop speed/torque regulation
- PROFIBUS-DP Interface (G41 / CBP2): Cyclic process data exchange (setpoints, actual values) and acyclic parameter access (PKW) with PLC/DCS master
- I/O Expansion (K80): Additional analog and digital I/O channels for process feedback and auxiliary control signals
Sourcing & Quality Verification
- All units sourced through verified industrial supply channels with full traceability
- Pre-shipment inspection: visual inspection, nameplate verification, and functional power-on test where applicable
- Original Siemens packaging and documentation preserved where available
- Counterfeit-prevention: serial number and date-code verification against Siemens product databases
- Warranty: 12-month Konmask quality guarantee covering manufacturing defects
Procurement Process
- Submit RFQ: Contact [email protected] or call +0086 19859288691 with your required quantity and delivery timeline
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 business hours
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for payment processing
- Quality Inspection: Pre-shipment inspection report provided upon request
- Shipping: DHL / FedEx / sea freight options available; export documentation (commercial invoice, packing list, COO) included
- After-Sales Support: Technical support available for installation, commissioning, and parameter configuration
Technical FAQ
Q: Is this unit compatible with Siemens SIMATIC S7-300/400 PLCs via PROFIBUS-DP?
A: Yes. The G41 option board (CBP2) supports PROFIBUS-DP V1 and is fully compatible with S7-300, S7-400, and S7-1500 PLCs using the PROFIdrive profile.
Q: Does the G93 option include the braking resistor?
A: No. G93 is the integrated braking chopper only. An external braking resistor sized to the application must be connected to the DC bus terminals. Konmask can advise on resistor sizing.
Q: Can this drive operate in sensorless vector control mode without an encoder?
A: Yes. The 6SE7031-5EF60-Z supports both sensorless (open-loop) and closed-loop vector control. Encoder feedback is required only for high-precision speed or torque applications.
Q: What is the lead time for this part number?
A: Typical lead time is 3–7 business days for in-stock units. Contact us for current availability.
Q: Can you provide a test report or inspection certificate?
A: Yes. A pre-shipment inspection report is available upon request at no additional charge.
