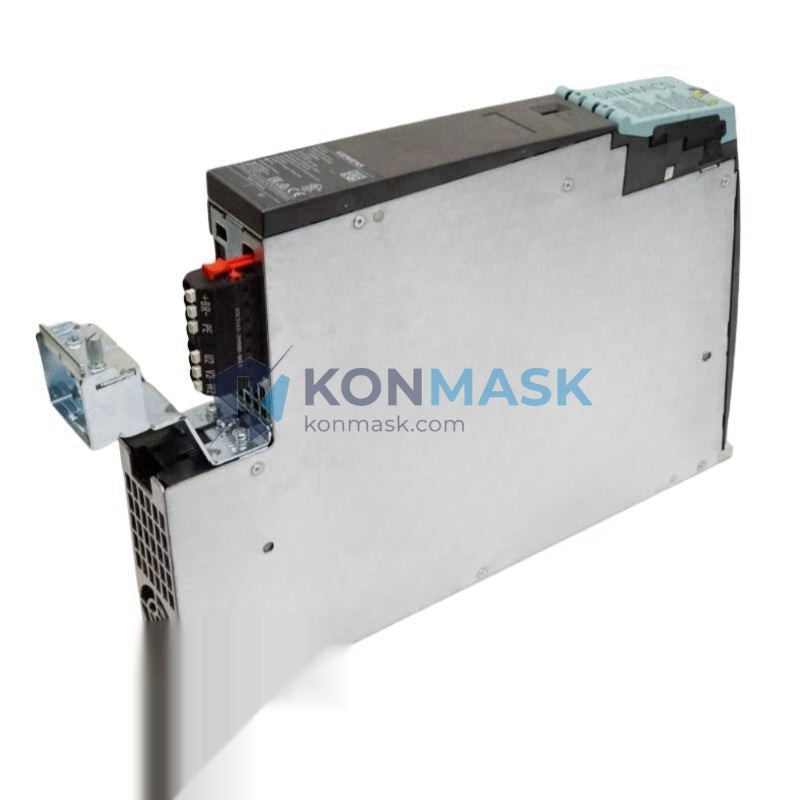

SIEMENS 6SL3120-1TE13-0AD0 – SINAMICS S120 Booksize Single Motor Module | 3A DC-Link
Engineering Background: The SINAMICS S120 drive system is Siemens’ flagship multi-axis servo and vector drive platform, engineered for high-dynamic motion control in demanding industrial automation environments. The Booksize format enables compact, modular cabinet integration with shared DC-bus architecture, reducing wiring complexity and energy consumption through regenerative braking.
Product Positioning: The 6SL3120-1TE13-0AD0 is a Single Motor Module in the SINAMICS S120 Booksize series, rated at 3A DC-link current. It is designed to drive one servo or induction motor axis as part of a coordinated multi-axis S120 drive line-up, paired with a Control Unit (CU320-2 or CU310-2) and a Line Module (ALM/SLM/BLM). Ideal for precision positioning, coordinated motion, and high-cycle applications in machine tools, packaging, printing, and robotics.
Complete Technical Specifications
| Part Number | 6SL3120-1TE13-0AD0 |
| Series / Platform | SINAMICS S120 Booksize |
| Module Type | Single Motor Module (Power Module) |
| DC-Link Current | 3 A |
| DC-Link Voltage | 600 V DC (nominal) |
| Output Phases | 3-phase AC |
| Format | Booksize (shared DC-bus) |
| Cooling Method | Forced air cooling (internal fan) |
| Communication Interface | DRIVE-CLiQ |
| Protection Class | IP20 |
| Ambient Temperature | 0 °C to +40 °C (derated to +55 °C) |
| Storage Temperature | -40 °C to +70 °C |
| Humidity | ≤ 95% RH, non-condensing |
| Altitude | Up to 1000 m without derating |
| Weight | Approx. 1.3 kg |
| Compliance | CE, UL, cUL, RoHS |
| Manufacturer | Siemens AG, Germany |
| SINAMICS Firmware | Compatible with V4.7 and above |
Proven Application Environments
- Machine Tools (CNC): Coordinated axis control for milling, turning, and grinding centers requiring sub-millisecond torque response.
- Packaging Machinery: High-speed, synchronized multi-axis motion for form-fill-seal, cartoning, and labeling lines.
- Printing & Converting: Register control and tension management in web-fed printing and slitting machines.
- Robotics & Handling: Servo axis drives for articulated robots, gantries, and pick-and-place systems.
- Textile Machinery: Precision speed and torque control for winding, drawing, and weaving equipment.
- General Factory Automation: Any application requiring compact, high-performance single-axis servo control within an S120 drive line-up.
Engineering Advantages
- Shared DC-Bus Architecture: Energy from decelerating axes is fed back to the DC bus and consumed by accelerating axes, reducing net energy draw and eliminating braking resistors in most applications.
- DRIVE-CLiQ Integration: Single-cable connection to the Control Unit carries power, encoder signals, and diagnostics, simplifying wiring and enabling automatic parameter identification (SIZER/Starter).
- Compact Booksize Form Factor: Slim profile allows dense cabinet packing; multiple modules share a common bus bar and cooling channel.
- Seamless TIA Portal Integration: Full engineering via Siemens TIA Portal / STARTER / SCOUT for rapid commissioning, diagnostics, and firmware updates.
- Safety Functions (STO/SS1): Integrated Safe Torque Off (STO) and Safe Stop 1 (SS1) per IEC 62061 / ISO 13849, reducing external safety relay requirements.
- Wide Motor Compatibility: Supports 1FK7, 1FT7, 1PH8 servo motors and standard induction motors with encoder feedback.
System Architecture & Signal Flow
In a standard SINAMICS S120 Booksize drive line-up, the 6SL3120-1TE13-0AD0 occupies the following position:
- Supply: 3-phase AC mains → Line Module (ALM / SLM / BLM) → rectified DC bus (600 V DC nominal).
- Control: Control Unit (CU320-2 DP/PN or CU310-2) communicates with the Motor Module via DRIVE-CLiQ at 1 ms cycle time.
- Power: DC bus → 6SL3120-1TE13-0AD0 Motor Module → 3-phase PWM output → servo/induction motor.
- Feedback: Motor encoder (EnDat / SSI / HTL / TTL) → DRIVE-CLiQ back to Control Unit for closed-loop vector or servo control.
- Safety: STO signal path from safety PLC / F-CPU → Motor Module hardware disable, independent of firmware.
Sourcing & Quality Verification
- Authenticity: All units sourced through verified industrial supply channels. Each module is inspected for genuine Siemens labeling, holographic seals, and firmware version consistency before dispatch.
- Condition Options: New-in-box (NIB), factory-refurbished (FR), and tested-used (TU) grades available — specify at inquiry.
- Traceability: Batch records and serial number documentation provided on request for MRO and OEM procurement teams.
- Warranty: 12-month operational warranty on all grades; extended warranty available for NIB units.
- Export Compliance: ECCN classification and export documentation available for international shipments.
Procurement Process
- Submit RFQ: Contact support@konmask.com or call +0086 19859288691 with your required quantity, condition grade, and delivery timeline.
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 business hours.
- Order Confirmation: Issue PO or confirm via email; proforma invoice issued for prepayment or net-terms accounts.
- Inspection & Dispatch: Module tested, photographed, and securely packaged (anti-static + foam-lined carton) before shipment.
- Delivery: DHL / FedEx / UPS express worldwide; sea freight available for bulk orders. Tracking provided upon dispatch.
- After-Sales: Technical support for installation and commissioning queries available via email and WhatsApp.
Technical FAQ
- Q: Can the 6SL3120-1TE13-0AD0 operate as a standalone drive without a CU320-2?
- A: No. As a Booksize Motor Module, it requires a SINAMICS S120 Control Unit (e.g., CU320-2 DP/PN or CU310-2) connected via DRIVE-CLiQ to provide closed-loop control and parameterization.
- Q: What Line Module is compatible with this Motor Module?
- A: Any SINAMICS S120 Booksize Line Module (Active Line Module 6SL312x, Smart Line Module 6SL314x, or Basic Line Module 6SL316x) rated to supply the total DC-bus load of all connected Motor Modules.
- Q: Is this module compatible with TIA Portal?
- A: Yes. Full engineering, diagnostics, and firmware update are supported via TIA Portal V14 and above, as well as STARTER V5.x and SCOUT.
- Q: What encoder types are supported?
- A: EnDat 2.1/2.2, SSI, HTL incremental, TTL incremental, and resolver (with SMC10/SMC20 Sensor Module). Refer to the S120 Function Manual for full encoder compatibility matrix.
- Q: Can I mix this module with Double Motor Modules on the same DC bus?
- A: Yes. Single and Double Motor Modules can coexist on the same Booksize DC bus, provided the Line Module capacity covers the total peak current demand.
