Siemens 6SL3120-1TE15-0AD0 Single Motor Module | Replacement, Equivalent & Selection Guide

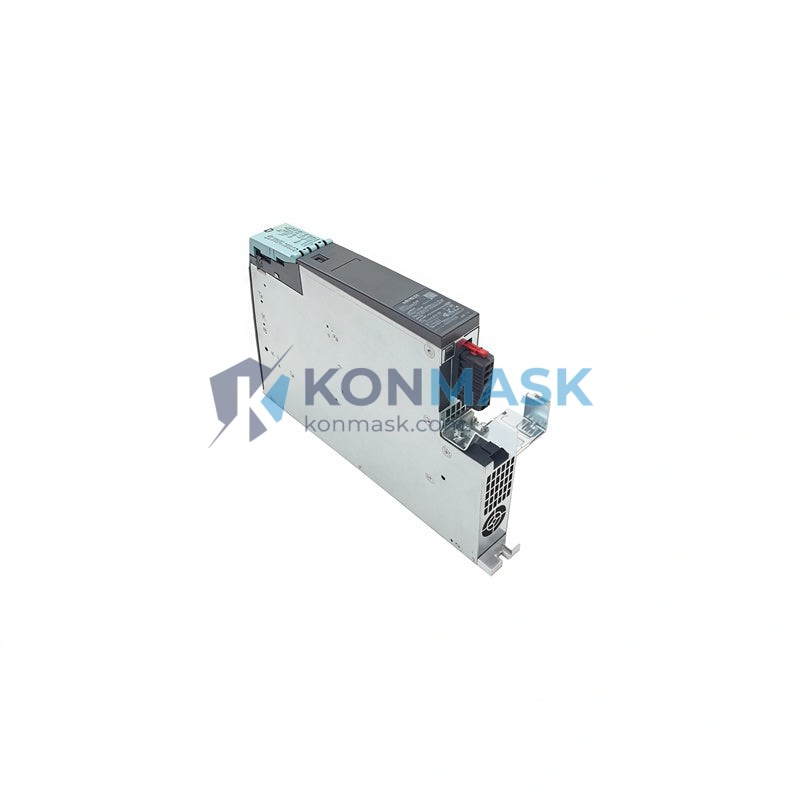

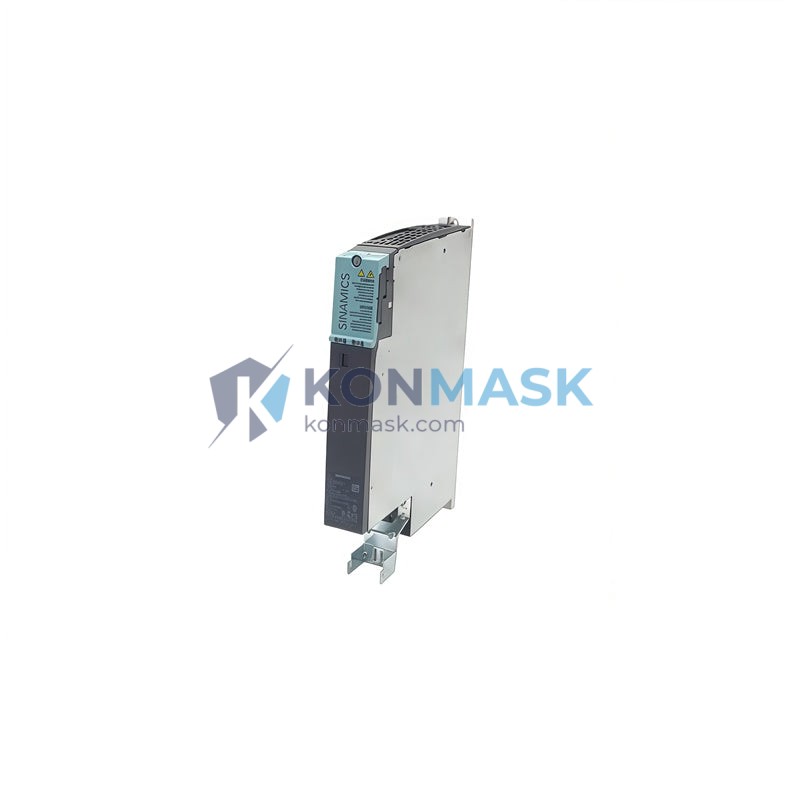

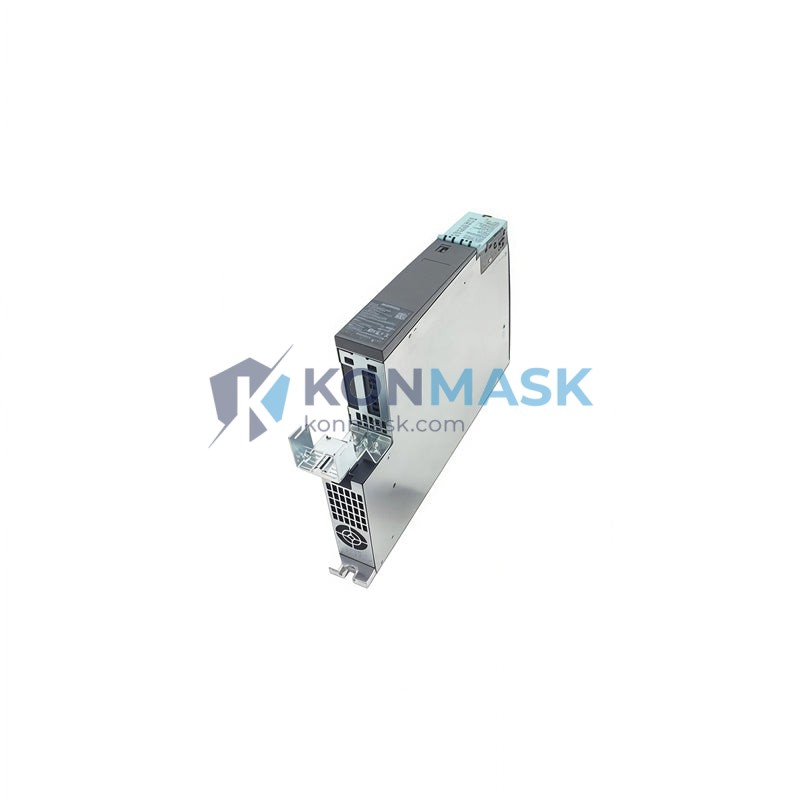

The Siemens 6SL3120-1TE15-0AD0 is a SINAMICS S120 Single Motor Module (booksize format) designed for precise, high-performance axis control in multi-axis drive systems. This module operates as a power output stage, converting DC bus power into controlled AC output to drive a single servo or induction motor. It is a core component in Siemens SINAMICS S120 drive line-ups used across CNC, robotics, and industrial automation applications.
At Konmask.com, we supply genuine, tested, and sourced-from-authorized-channels units — with full traceability and quality inspection before shipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number / SKU | 6SL3120-1TE15-0AD0 |
| Brand | Siemens |
| Series | SINAMICS S120 (Booksize) |
| Module Type | Single Motor Module |
| Output Current (Continuous) | 5 A |
| Output Current (Peak) | 10 A |
| DC Bus Voltage | 600 V DC |
| Output Phases | 3-phase AC |
| Cooling Method | Forced air (internal fan) |
| Communication Interface | DRIVE-CLiQ |
| Protection Class | IP20 |
| Ambient Temperature | 0 °C to +40 °C (up to +55 °C with derating) |
| Weight | Approx. 4.6 kg |
| Mounting | Booksize, DIN rail / panel mount |
| Standards | CE, UL, cUL |
Compatible Replacement & Equivalent Models
The following models are functionally compatible or serve as direct/near-direct replacements for the 6SL3120-1TE15-0AD0. Always verify electrical ratings and firmware compatibility before substitution.
| Model | Brand | Output Current | Notes |
|---|---|---|---|
| 6SL3120-1TE15-0AD0 | Siemens | 5 A / 10 A peak | Original — this unit |
| 6SL3120-1TE21-0AA3 | Siemens | 9 A / 18 A peak | Higher current, same booksize form factor |
| 6SL3120-1TE13-0AA3 | Siemens | 3 A / 6 A peak | Lower current variant, same series |
| 6SL3120-2TE15-0AD0 | Siemens | 5 A / 10 A peak | Double Motor Module — two-axis version |
| 6SL3210-1SE15-0UA0 | Siemens | ~5 A class | SINAMICS S150 equivalent class (chassis format) |
Note: Cross-referencing requires matching DC bus voltage, DRIVE-CLiQ firmware version, and mechanical form factor. Contact Konmask for a verified compatibility check.
Why Choose the Original 6SL3120-1TE15-0AD0
- Exact firmware compatibility — plug-and-play with existing SINAMICS S120 Control Units (CU320-2, CU310-2)
- Guaranteed DRIVE-CLiQ topology — no re-parameterization of the drive line required
- Proven reliability — field-tested in CNC, robotics, and precision motion applications
- OEM spare part — maintains machine warranty and CE/UL compliance
- Siemens support ecosystem — full access to STARTER/TIA Portal commissioning tools
Typical Applications
- CNC machine tool axis drives (milling, turning, grinding)
- Industrial robot joint control
- Packaging and printing machine servo axes
- Textile and winding machine drives
- Conveyor and handling system positioning
- Semiconductor and electronics manufacturing equipment
System Compatibility
The 6SL3120-1TE15-0AD0 is designed to operate within the Siemens SINAMICS S120 booksize drive system. Confirmed compatible components include:
- Control Units: CU320-2 DP, CU320-2 PN, CU310-2 DP, CU310-2 PN
- Line Modules: 6SL3130-series Active/Smart/Basic Line Modules (booksize)
- Motors: Siemens 1FK7, 1FT7, 1PH8 series with DRIVE-CLiQ encoder interface
- Supplementary: Braking Module 6SL3100-1BE21-3AA0, Capacitor Module 6SL3100-1CE21-0AA0
- Software: STARTER V5.x, TIA Portal V14 and above with SINAMICS Startdrive
Selection Guide
Use the following criteria to confirm the 6SL3120-1TE15-0AD0 is the right module for your application, or to identify the correct alternative:
- Motor rated current — must be ≤ 5 A continuous (10 A peak). For higher-current motors, select 6SL3120-1TE21-0AA3 (9 A) or above.
- Number of axes — this is a single motor module (one axis). For two axes on one module, use the Double Motor Module 6SL3120-2TE15-0AD0.
- Form factor — booksize only. For chassis or cabinet format, refer to SINAMICS S150 or S120 chassis variants.
- DC bus voltage — confirm your Line Module outputs 600 V DC bus; do not mix with 400 V DC bus systems.
- Firmware version — match the firmware version of your Control Unit. Konmask can advise on firmware compatibility.
- Cooling — internal fan cooling; ensure adequate airflow clearance (min. 50 mm top/bottom).
Quality Assurance & Sourcing
- ✅ Genuine Siemens product — sourced from authorized distribution channels
- ✅ Pre-shipment inspection — visual, label, and functional checks performed
- ✅ Traceability — batch and serial number records maintained
- ✅ Anti-counterfeit verification — hologram and label authenticity confirmed
- ✅ Packaging — original or equivalent ESD-safe packaging with protective foam
- ✅ Warranty — 12-month warranty against manufacturing defects
How to Order
- Add 6SL3120-1TE15-0AD0 to cart and proceed to checkout, or
- Contact us directly for bulk orders, urgent requirements, or compatibility consultation:
- 📧 Email: support@konmask.com
- 📞 Phone/WhatsApp: +0086 19859288691
- 🌐 Website: https://konmask.com
Lead time: In-stock units ship within 1–3 business days. Ex-stock or special-order units: 5–15 business days. DHL / FedEx / UPS international express available.
Replacement & Compatibility FAQ
Q: Can I replace 6SL3120-1TE15-0AD0 with 6SL3120-1TE21-0AA3?
A: Yes, if your motor’s rated current is between 5 A and 9 A. The 1TE21 is a higher-current variant in the same booksize family and is mechanically and electrically compatible. No hardware changes to the DC bus or DRIVE-CLiQ wiring are needed.
Q: Is the 6SL3120-2TE15-0AD0 a drop-in replacement?
A: No. The 2TE variant is a Double Motor Module (two axes). It occupies more width on the booksize rail and requires two motor connections. It is not a direct drop-in for a single-axis slot.
Q: What happens if I use a module with a different firmware version?
A: The Control Unit may flag a firmware mismatch fault (F01006 or similar). A firmware update via STARTER or TIA Portal Startdrive is required. Konmask can advise on the correct firmware version for your system.
Q: Can this module drive a standard induction motor?
A: Yes, in V/f or vector control mode. However, SINAMICS S120 is optimized for servo motors with DRIVE-CLiQ encoders. For pure induction motor applications, SINAMICS G120 may be more cost-effective.
Q: Do you supply tested/refurbished units?
A: We supply new and surplus-new units. Refurbished units are available on request with full test report. Please contact us for details.
