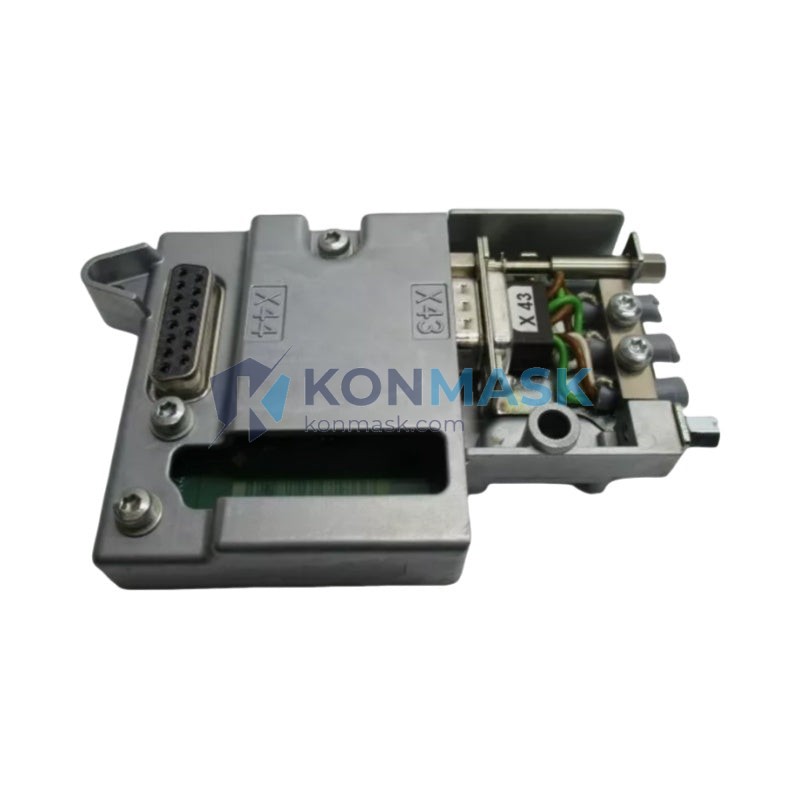

SIEMENS 6SL3200-0SP06-0AA0 CBC10 – CAN Communication Board | SINAMICS S120 Platform
Engineering Background: The SINAMICS S120 drive system is Siemens’ flagship multi-axis servo and vector drive platform, widely deployed in precision manufacturing, robotics, packaging, and process automation. The CBC10 (Communication Board CAN) is the dedicated fieldbus interface module that integrates S120 drive units into CANopen networks, enabling deterministic, real-time torque, speed, and position control via standardized DS402 drive profiles.
Product Positioning: The 6SL3200-0SP06-0AA0 is an OEM-grade plug-in communication option board designed for SINAMICS S120 Control Units (CU310-2, CU320-2 series). It provides a robust, noise-immune CAN interface for machine builders and system integrators who require seamless fieldbus connectivity without external gateway hardware. This module is the authoritative solution for CANopen-based motion control architectures within the S120 ecosystem.
Complete Technical Specifications
| Part Number / SKU | 6SL3200-0SP06-0AA0 |
| Module Designation | CBC10 – Communication Board CAN |
| Manufacturer | Siemens AG |
| Product Family / Series | SINAMICS S120 |
| Fieldbus Protocol | CANopen (CiA DS301, DS402 Drive Profile) |
| Physical Interface | 9-pin D-Sub (DB9) connector, CAN High / CAN Low |
| Baud Rates Supported | 10 kbps – 1 Mbps (auto-detect / configurable) |
| Node Address | 1–127, configurable via STARTER / SINAMICS Startdrive |
| Compatible Control Units | CU310-2 DP/PN, CU320-2 DP/PN, CU250S-2 |
| Installation Type | Plug-in option board (internal slot, no external power required) |
| Supply Voltage | Powered via Control Unit backplane (5 VDC internal) |
| Isolation | Electrically isolated CAN bus interface |
| Operating Temperature | 0 °C to +55 °C (storage: -40 °C to +70 °C) |
| Humidity | 5–95% RH, non-condensing |
| Protection Class | IP20 (module installed inside drive enclosure) |
| Dimensions (W × H × D) | Approx. 30 × 100 × 15 mm (option board form factor) |
| Weight | Approx. 300 g (packaged) |
| Certifications | CE, UL, cUL, RoHS compliant |
| Country of Origin | Germany |
| SINAMICS Firmware Compatibility | V4.5 and above |
Proven Application Environments
- Packaging Machinery: Synchronizing multi-axis servo drives via CANopen for high-speed pick-and-place and form-fill-seal lines.
- Robotics & Handling: Integrating S120 drives into CANopen-based robot controllers for coordinated motion profiles.
- Textile & Printing: Tension control and register synchronization across multiple drive axes on CANopen networks.
- Crane & Hoist Systems: Speed and torque regulation with CANopen safety messaging in overhead crane applications.
- Machine Tool Spindles: Spindle orientation and C-axis control via DS402 position mode over CANopen.
- Conveyor & Sorting Systems: Distributed drive control with low-latency CANopen PDO communication.
Engineering Advantages
- Native Integration: Plug-in design eliminates external CAN gateways, reducing panel space and wiring complexity.
- DS402 Compliance: Full support for CiA DS402 drive profile — velocity mode, position mode, torque mode — enabling interoperability with any DS402-compliant PLC or motion controller.
- Deterministic Communication: CANopen PDO (Process Data Object) mapping provides cycle-synchronous data exchange for real-time motion control.
- Electrical Isolation: Isolated CAN interface protects the drive’s control electronics from fieldbus transients and ground loops.
- Flexible Baud Rate: Supports 10 kbps to 1 Mbps, accommodating both legacy and modern CANopen network topologies.
- SINAMICS Ecosystem: Fully parameterized via STARTER or SINAMICS Startdrive (TIA Portal), with integrated diagnostics and fault logging.
System Architecture & Signal Flow
The 6SL3200-0SP06-0AA0 installs into the dedicated option board slot of the SINAMICS S120 Control Unit. The CAN transceiver interfaces directly to the Control Unit’s internal DRIVE-CLiQ-based parameter server, mapping CANopen PDO/SDO objects to SINAMICS drive parameters (P-numbers) via configurable telegram structures. The master PLC or motion controller sends cyclic PDO setpoints (speed reference, torque limit, control word) over the CAN bus; the CBC10 decodes these and writes them to the drive’s control channel in real time. Status PDOs (actual speed, status word, fault codes) are transmitted back to the master at configurable intervals.
Sourcing & Quality Verification
- All units sourced from authorized Siemens distribution channels or verified OEM surplus with full traceability.
- Each module undergoes incoming inspection: label verification, firmware version check, connector integrity, and functional power-up test.
- Original Siemens packaging, holographic labels, and documentation included where available.
- Counterfeit screening performed per IEC 62239 / AS6081 guidelines.
- Certificate of conformity and test report available upon request for critical procurement.
Procurement Process
- Step 1 – Inquiry: Submit your BOM or part number via the product page or email [email protected].
- Step 2 – Quote: Receive a formal quotation with lead time, quantity availability, and shipping options within 24 hours.
- Step 3 – Order Confirmation: Purchase order accepted; payment via T/T, PayPal, or credit card.
- Step 4 – Shipment: Dispatched via DHL / FedEx / UPS with full tracking. Export documentation (commercial invoice, packing list, COO) provided.
- Step 5 – After-Sales: 12-month warranty on all verified units. Technical support available via email and phone.
Technical FAQ
Q: Is the 6SL3200-0SP06-0AA0 compatible with CU320-2 PN?
A: Yes. The CBC10 is compatible with all SINAMICS S120 Control Units that feature an option board slot, including CU310-2 DP/PN and CU320-2 DP/PN.
Q: Can I use this module with a Siemens S7-300/400 PLC as CANopen master?
A: Yes, provided the S7 PLC is equipped with a CANopen master CP card (e.g., CP 5611 with CANopen master software). The CBC10 operates as a CANopen slave (DS402).
Q: What firmware version is required on the S120 Control Unit?
A: SINAMICS firmware V4.5 or higher is required. Firmware V4.7+ is recommended for full DS402 feature support.
Q: Does the CBC10 support CANopen Safety (CiA 304)?
A: The standard CBC10 (6SL3200-0SP06-0AA0) supports standard CANopen (DS301/DS402). For functional safety over CANopen, consult Siemens for the appropriate safety-rated option.
Q: What is the maximum cable length for the CAN bus?
A: At 1 Mbps, maximum cable length is 25 m. At 125 kbps, up to 500 m is achievable. Termination resistors (120 Ω) must be installed at both ends of the bus.
