SIEMENS 6SL3201-0BE21-8AA0 SINAMICS S120 Booksize Power Module 18A | Replacement, Equivalent & Selection Guide

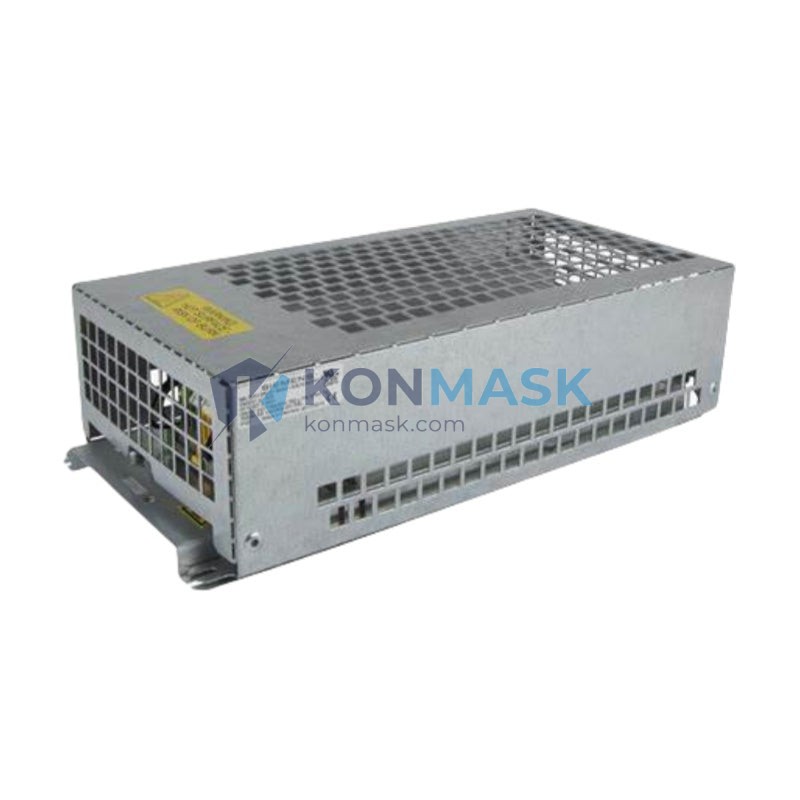

The SIEMENS 6SL3201-0BE21-8AA0 is a SINAMICS S120 Booksize format Smart Line Module (SLM) rated at 18A input current, designed for regenerative energy feedback and clean power supply in multi-axis servo drive systems. As an authorized distributor and sourcing partner, Konmask.com supplies this module new, tested, and ready for integration into your automation architecture.
Technical Specifications
- Part Number: 6SL3201-0BE21-8AA0
- Series: SINAMICS S120 Booksize
- Module Type: Smart Line Module (SLM)
- Rated Input Current: 18 A
- Supply Voltage: 3-phase AC 380–480 V (±10%)
- Output DC Bus Voltage: ~600–750 V DC
- Power Rating: ~11 kW (at 400 V AC)
- Format: Booksize (chassis-mount)
- Communication: DRIVE-CLiQ interface
- Cooling: Forced air (internal fan)
- Protection Class: IP20
- Operating Temperature: 0 °C to +40 °C (derated to 55 °C)
- Standards: CE, UL, cUL
- Weight: approx. 6.5 kg
Compatible Replacement & Equivalent Models
When the 6SL3201-0BE21-8AA0 is unavailable or under evaluation, the following models may serve as functional equivalents or upgrades — subject to system compatibility verification:
- 6SL3210-1SE21-8AA0 — SINAMICS S120 Active Line Module 18A (ALM, active front-end alternative)
- 6SL3130-6AE21-8AA0 — SINAMICS S120 Smart Line Module 18A (earlier revision)
- 6SL3201-0BE23-8AA0 — 36A Smart Line Module (uprated capacity, same Booksize form factor)
- 6SL3201-0BE25-0AA0 — 50A Smart Line Module (for higher power axis groups)
- 6SL3201-0BE28-0AA0 — 80A Smart Line Module (large multi-axis systems)
⚠ Always verify DC bus voltage, rated current, and DRIVE-CLiQ firmware compatibility before substitution. Contact Konmask technical support for a validated replacement recommendation.
Why Choose the Original Model
- Regenerative feedback: The SLM returns braking energy to the supply grid, reducing energy costs in high-cycle applications.
- DRIVE-CLiQ native: Plug-and-play integration with SINAMICS S120 Motor Modules — no additional interface hardware required.
- Compact Booksize form factor: Optimized for cabinet space in multi-axis configurations.
- Siemens firmware ecosystem: Full compatibility with STARTER, SINAMICS Startdrive (TIA Portal), and Safety Integrated functions.
- Proven reliability: Widely deployed in machine tool, packaging, and printing industries globally.
Typical Applications
- CNC machine tool spindle and feed axis drives
- Packaging machinery with regenerative braking cycles
- Printing press multi-axis servo systems
- Textile and winding machine drive groups
- Robotics and gantry systems requiring coordinated motion
- Semiconductor and electronics manufacturing equipment
System Compatibility
- Compatible Motor Modules: SINAMICS S120 Booksize Single-Axis and Double-Axis Motor Modules (6SL321x series)
- Compatible Control Units: CU320-2 DP, CU320-2 PN, CU310-2 DP/PN
- TIA Portal: SINAMICS Startdrive V14 and above
- PROFIBUS / PROFINET: Supported via Control Unit
- Safety Integrated: STO, SS1, SLS (via Control Unit configuration)
- Firmware: SINAMICS S120 firmware V4.7 and above recommended
Selection Guide
Use the table below to select the correct Smart Line Module for your SINAMICS S120 Booksize system:
- ≤ 11 kW total axis power → 6SL3201-0BE21-8AA0 (18A) ✓ This model
- ≤ 22 kW total axis power → 6SL3201-0BE23-8AA0 (36A)
- ≤ 30 kW total axis power → 6SL3201-0BE25-0AA0 (50A)
- ≤ 55 kW total axis power → 6SL3201-0BE28-0AA0 (80A)
- Requires active harmonic filtering → Consider 6SL3210-1SE21-8AA0 (ALM)
Selection based on 400 V AC supply. Derate by ~10% at 480 V AC. Always add 20% headroom to total motor module power demand.
Quality Assurance & Sourcing
- ✅ New & genuine: Sourced from authorized Siemens distribution channels
- ✅ Inspection: Each unit visually inspected and verified against Siemens part number database
- ✅ Packaging: Original Siemens anti-static packaging with serial number label intact
- ✅ Warranty: 12-month Konmask warranty against manufacturing defects
- ✅ Export compliance: HS Code 8504.40 — compliant with CN cross-border export regulations
- ✅ Traceability: Full batch and serial number documentation available on request
How to Order
- Confirm part number: 6SL3201-0BE21-8AA0
- Specify required quantity and delivery timeline
- Request a formal quotation via [email protected] or WhatsApp +0086 19859288691
- Receive proforma invoice with lead time confirmation
- Payment via T/T, PayPal, or other agreed terms
- Shipment via DHL / FedEx / UPS with full tracking
Replacement & Compatibility FAQ
Q: Can I replace 6SL3201-0BE21-8AA0 with a 6SL3130-6AE21-8AA0?
A: Functionally similar, but the 6SL3130 series uses an older hardware revision. Firmware and DRIVE-CLiQ compatibility must be verified with your Control Unit firmware version.
Q: Is the 6SL3201-0BE21-8AA0 compatible with SINAMICS S150?
A: No. The S120 Booksize Smart Line Module is designed exclusively for the S120 Booksize drive system. S150 uses its own integrated line module.
Q: What is the difference between a Smart Line Module (SLM) and an Active Line Module (ALM)?
A: The SLM (this model) provides basic regenerative feedback with lower harmonic distortion than a Basic Line Module. The ALM additionally provides active harmonic compensation and is required for stricter grid compliance (e.g., IEEE 519). The ALM equivalent is the 6SL3210-1SE21-8AA0.
Q: Can Konmask supply a tested used / refurbished unit?
A: Yes. Refurbished units with full test reports are available upon request at reduced lead time. Contact us for availability.
Q: What is the lead time for new stock?
A: Standard stock: 3–7 business days. Ex-factory orders: 4–8 weeks. Contact us for current availability.
