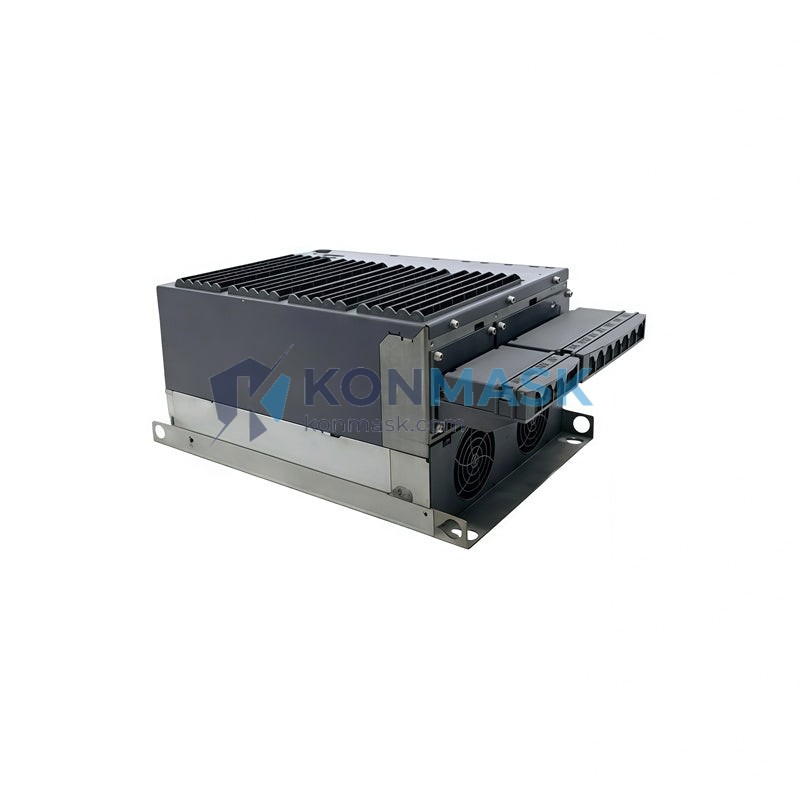

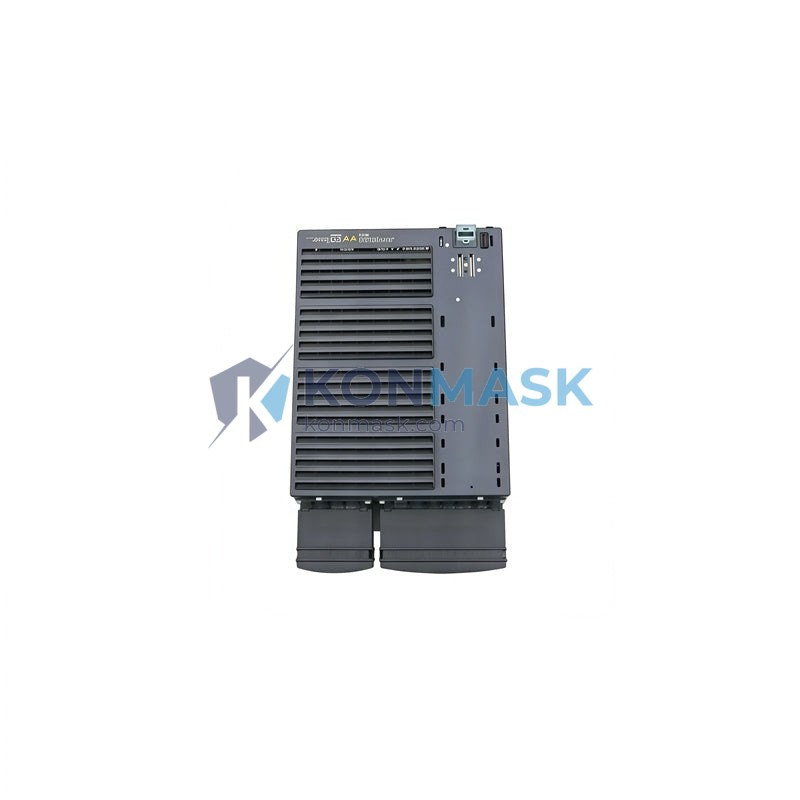

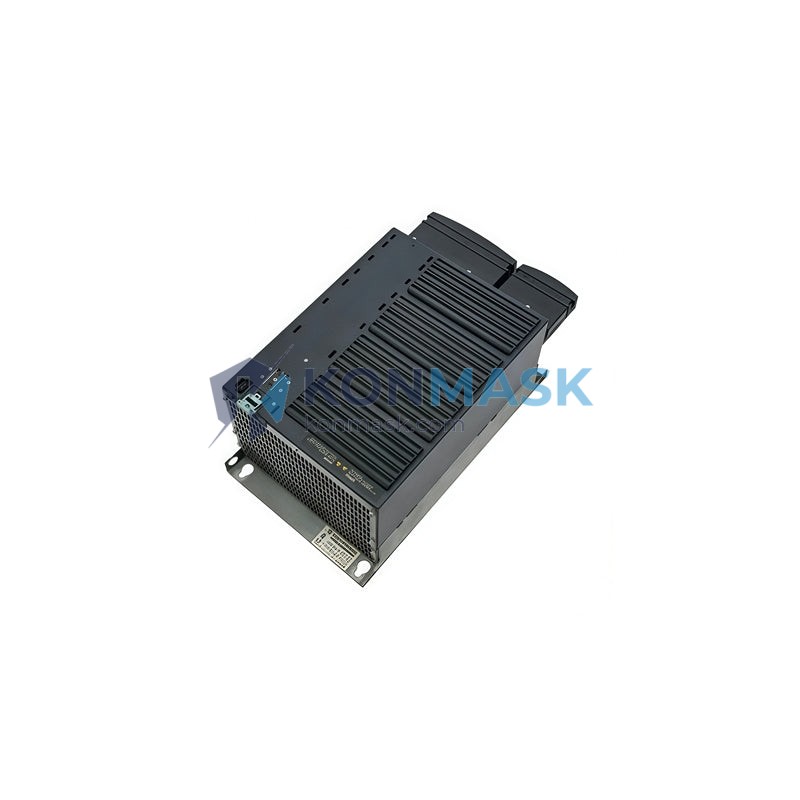

Variable Speed Drive Solution – Siemens 6SL3224-0BE32-2UA0 | SINAMICS G120 PM240 Series
Where This Product Is Used
The Siemens 6SL3224-0BE32-2UA0 SINAMICS G120 PM240 Power Module is engineered for demanding industrial variable-speed drive applications where precise motor control, energy efficiency, and system reliability are non-negotiable. Typical deployment environments include:
- Pump & Fan Systems – Municipal water treatment plants, HVAC air-handling units, and cooling tower fans where quadratic load profiles demand smooth speed ramp-up and energy savings up to 50%.
- Conveyor & Material Handling – Automotive assembly lines, logistics sortation systems, and mining belt conveyors requiring controlled torque at variable speeds.
- Compressor Drives – Oil & gas compression stations and industrial refrigeration compressors where soft-start capability protects mechanical components.
- Mixer & Agitator Drives – Chemical processing reactors and food & beverage blending tanks needing precise speed regulation under varying viscosity loads.
- Machine Tool Spindles – CNC machining centers and grinding machines requiring high dynamic response and constant torque across the speed range.
- Crane & Hoist Applications – Port cranes and overhead hoists where controlled deceleration and regenerative braking are critical for safety.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number (SKU) | 6SL3224-0BE32-2UA0 |
| Product Family | SINAMICS G120 PM240-2 |
| Module Type | Power Module (PM) |
| Rated Output Power | 22 kW (30 HP) |
| Input Voltage | 3 AC 380 – 480 V (±10%) |
| Input Frequency | 47 – 63 Hz |
| Output Current (Rated) | 45 A |
| Output Current (Overload 150%) | 67.5 A for 60 s |
| Degree of Protection | IP20 (chassis) |
| Cooling Method | Forced air cooling (internal fan) |
| Ambient Temperature | -10 °C to +50 °C (derating above 40 °C) |
| Altitude | Up to 1000 m without derating |
| Braking | Dynamic braking via external braking resistor |
| EMC Filter | Integrated Class C2 filter |
| Weight | Approx. 13 kg |
| Dimensions (H × W × D) | 268 × 140 × 195 mm |
| Control Unit Interface | DRIVE-CLiQ + digital I/O |
| Compatible Control Units | CU240B-2, CU240E-2, CU250S-2 series |
Why Engineers Specify This Model
- Modular Architecture – The PM240 separates the power stage from the control unit (CU), enabling independent replacement, firmware upgrades, and application-specific CU selection without disturbing the power wiring.
- Integrated EMC Filter (C2) – Eliminates the need for an external line filter in most industrial environments, reducing panel footprint and BOM cost.
- Safe Torque Off (STO) – SIL 2 / PLd – Built-in functional safety via STO allows motor coast-to-stop without a main contactor, meeting EN 61800-5-2 requirements for machinery safety.
- Energy Recovery Ready – Compatible with Siemens Active Line Modules for regenerative operation, feeding braking energy back to the DC bus or supply grid.
- Wide Ecosystem Compatibility – Pairs with the full SINAMICS G120 control unit range and integrates natively with SIMATIC S7 PLCs via PROFINET, PROFIBUS, or USS protocol.
- Proven Field Reliability – SINAMICS G120 is deployed in millions of drive axes globally across process, discrete, and infrastructure industries.
Complete System Bill of Materials
A fully operational SINAMICS G120 drive system using this power module typically requires:
- Power Module: 6SL3224-0BE32-2UA0 (this item)
- Control Unit: e.g., 6SL3244-0BB12-1PA1 (CU240E-2 PN) – PROFINET variant
- Operator Panel (optional): 6SL3255-0AA00-4CA1 (BOP-2 Basic Operator Panel)
- Braking Resistor (if dynamic braking required): e.g., 6SE6400-4BD22-2CA0
- Line Reactor (recommended for long cable runs): 4EP3800-3US00
- Shield Connection Kit: 6SL3262-1AA00-0BA0
- Mounting Plate / DIN Rail Adapter: Per panel design requirements
Contact Konmask for complete system configuration and compatibility verification.
Compliance & Industry Standards
- CE Marking – EU Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU
- UL 508C – Power Conversion Equipment (North America)
- IEC 61800-5-1 – Electrical safety of adjustable speed drives
- IEC 61800-5-2 – Functional safety (STO: SIL 2 / PLd)
- IEC 61800-3 – EMC requirements for drive systems
- RoHS Compliant
- REACH Compliant
Quality Assurance & Sourcing
Konmask.com specializes in verified industrial automation components for B2B buyers. Every unit of the 6SL3224-0BE32-2UA0 offered through our platform is:
- Sourced from authorized distributors or verified surplus channels with full traceability
- Inspected for authentic Siemens labeling, holographic seals, and serial number integrity
- Tested for power-on functionality prior to dispatch where applicable
- Shipped with original packaging and documentation where available
- Backed by Konmask’s quality guarantee and post-sale technical support
How to Source This Part
Ready to order or need a formal quotation? Here’s how to proceed:
- Add to Cart – For immediate stock availability, proceed directly to checkout.
- Request a Quote – For volume orders (5+ units), OEM projects, or system integration packages, contact our team for preferential pricing.
- Lead Time – In-stock units ship within 1–3 business days. Ex-stock or special-order items: 7–21 business days depending on origin.
- Export & Cross-Border – We support international shipping with full commercial invoice, packing list, and HS code documentation for customs clearance.
- Technical Pre-Sales – Our engineers can verify compatibility with your existing CU, motor, and control architecture before purchase.
Application-Specific FAQ
Q: Can the 6SL3224-0BE32-2UA0 drive a 22 kW motor with a high-inertia load like a centrifuge?
A: Yes. With the appropriate CU (e.g., CU250S-2 for vector control) and a properly sized braking resistor, the PM240 handles high-inertia loads. Ensure the 150% overload current (67.5 A for 60 s) covers your acceleration torque requirement.
Q: Is an external EMC filter required for this module?
A: No. The 6SL3224-0BE32-2UA0 includes an integrated Class C2 EMC filter, suitable for industrial environments. For residential or light commercial installations requiring Class C1, an additional external filter may be needed.
Q: Which control units are compatible with this power module?
A: All SINAMICS G120 CU240B-2, CU240E-2, and CU250S-2 series control units are mechanically and electrically compatible. CU selection depends on your required fieldbus (PROFINET, PROFIBUS, USS/Modbus) and safety function needs.
Q: Can this drive be used in a multi-drive cabinet with a shared DC bus?
A: The PM240 is a standalone drive with its own rectifier and is not designed for shared DC bus operation. For common DC bus topologies, Siemens recommends the PM240-2 with Active Line Module (ALM) or the SINAMICS S120 platform.
Q: What is the warranty on this product?
A: Konmask provides a 12-month warranty on all verified units. Warranty covers manufacturing defects and functional failures under normal operating conditions. Contact support@konmask.com for warranty claims.
