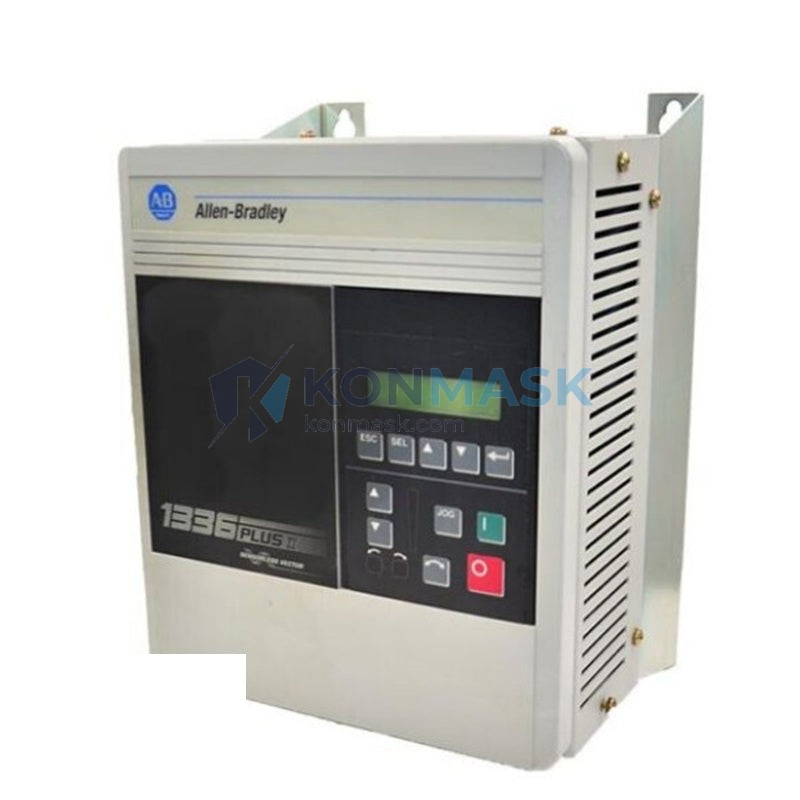

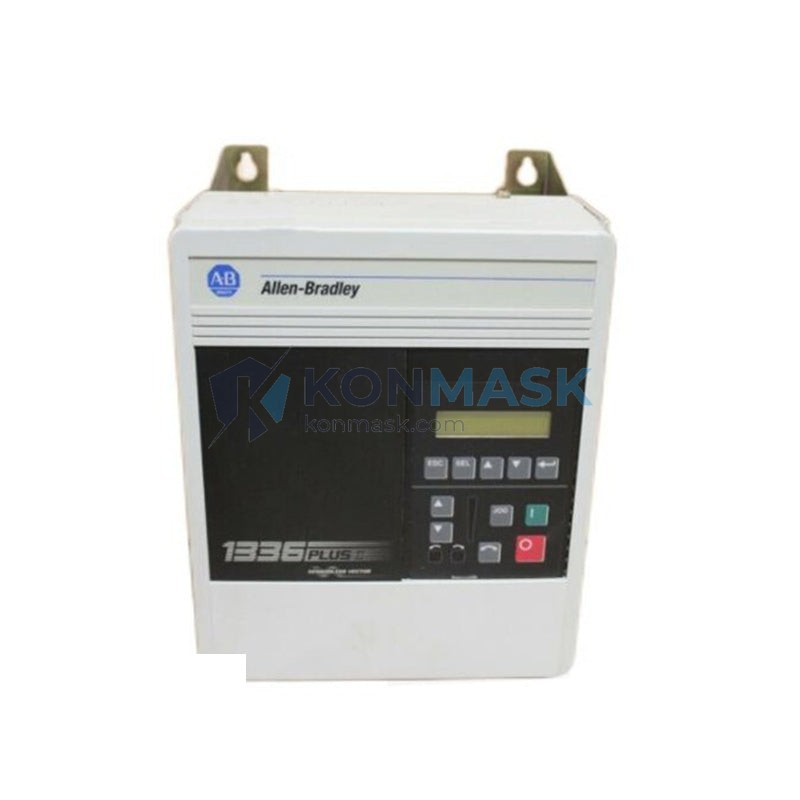

Allen-Bradley 1336F-BRF20-AA-EN 1336 Plus II AC Drive 2HP | Replacement, Equivalent & Selection Guide
The Allen-Bradley 1336F-BRF20-AA-EN is a 2HP (1.5 kW) AC variable frequency drive from Rockwell Automation’s 1336 Plus II series — a proven, widely deployed platform in industrial automation. This page provides full technical specifications, compatible replacement models, application guidance, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Manufacturer: Allen-Bradley / Rockwell Automation
- Part Number: 1336F-BRF20-AA-EN
- Series: 1336 Plus II
- Output Power: 2 HP / 1.5 kW
- Input Voltage: 200–240 V AC, 3-Phase
- Output Frequency: 0–400 Hz
- Control Method: Sensorless Vector / V/Hz
- Communication: EN (Ethernet/IP-ready option)
- Enclosure: IP20 / NEMA Type 1
- Weight: 4.1 kg
- Certifications: UL, CE, CSA
- Status: Mature / Legacy — still widely supported in the field
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as direct or functional replacements for the 1336F-BRF20-AA-EN. Always verify electrical and mechanical compatibility before substitution.
- Allen-Bradley PowerFlex 4M (22F-D2P5N104) — Direct Rockwell replacement; compact footprint, same voltage class, 2HP rating. Recommended first choice for like-for-like swap.
- Allen-Bradley PowerFlex 40 (22B-D2P3N104) — Enhanced feature set with DeviceNet/EtherNet/IP; suitable when network integration is required.
- Allen-Bradley PowerFlex 400 (22C-D2P3N103) — Fan & pump optimized; ideal for HVAC or water treatment replacement scenarios.
- Siemens SINAMICS G120C (6SL3210-1KE11-8UF1) — Cross-brand equivalent at 1.5 kW / 200–240 V; requires parameter re-mapping and wiring adaptation.
- ABB ACS355-03E-04A1-4 — Functional equivalent for general-purpose applications; 1.5 kW, 3-phase input.
- Yaskawa GA700 (CIMR-AC2A0004FAA) — High-performance alternative with advanced vector control; suitable for demanding motion profiles.
Note: Cross-brand replacements require full parameter re-commissioning. Consult your system integrator or contact Konmask for pre-sales support.
Why Choose the Original Model
- Drop-in compatibility: No wiring or parameter changes required when replacing like-for-like in existing 1336 Plus II installations.
- Proven field reliability: The 1336 Plus II platform has decades of deployment history across manufacturing, oil & gas, and utilities.
- Rockwell ecosystem integration: Native compatibility with RSLogix 5000 / Studio 5000, DriveExplorer, and ControlNet/DeviceNet architectures.
- Spare parts availability: Konmask maintains stock of legacy AB drives to support MRO (Maintenance, Repair & Operations) requirements.
- Reduced commissioning risk: Retaining the original model eliminates re-validation effort in regulated industries (pharma, food & beverage, etc.).
Typical Applications
- Conveyor and material handling systems
- Pump and fan speed control (HVAC, water treatment)
- Compressor and blower drives
- Packaging and bottling lines
- Machine tool spindle drives
- Textile and printing machinery
- Oil & gas auxiliary equipment
System Compatibility
- PLC Platforms: Allen-Bradley ControlLogix, CompactLogix, MicroLogix, SLC 500, PLC-5
- Networks: EtherNet/IP (EN suffix), ControlNet, DeviceNet, DH+ (adapter dependent)
- HMI: PanelView series via RSLinx or direct serial
- Programming Software: RSLogix 5000, Studio 5000, DriveExplorer, DriveExecutive
- Motor Types: Standard NEMA B / IEC induction motors; compatible with inverter-duty motors
Selection Guide
Use the following criteria to determine whether the 1336F-BRF20-AA-EN or an alternative is the right choice for your application:
- Exact replacement (MRO): Choose 1336F-BRF20-AA-EN if you need a drop-in spare with zero re-commissioning. Konmask supplies new, surplus, and refurbished units.
- Upgrade path (same brand): Choose PowerFlex 4M or PowerFlex 40 if you want a supported, current-production Rockwell drive with modern firmware and support lifecycle.
- Network upgrade: Choose PowerFlex 40 or PowerFlex 400 if EtherNet/IP integration or remote diagnostics are required.
- Cross-brand substitution: Choose Siemens G120C, ABB ACS355, or Yaskawa GA700 if cost optimization or local service availability is the priority — budget for re-commissioning time.
- High-performance motion: Choose Yaskawa GA700 or Allen-Bradley Kinetix series if closed-loop vector or servo-class performance is needed.
- Power rating check: Confirm motor FLA and service factor before selecting any replacement. 2HP / 1.5 kW at 200–240 V 3-phase is the baseline for this model.
Quality Assurance & Sourcing
- Source: Konmask.com sources from authorized distributors, OEM surplus channels, and vetted secondary market suppliers.
- Inspection: All units undergo visual inspection, label verification, and functional testing where applicable.
- Authenticity: Counterfeit risk mitigation through serial number verification and hologram checks on Allen-Bradley products.
- Warranty: 12-month warranty on new units; 90-day warranty on surplus/refurbished stock (terms apply).
- Documentation: Datasheet, wiring diagram, and user manual available upon request.
How to Order
- Online: Add to cart directly on this page. Bulk pricing available — contact us for a quote.
- Email: support@konmask.com — include part number, quantity, and required delivery date.
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Lead Time: In-stock items ship within 1–3 business days. Special orders: 5–15 business days.
- Payment: T/T (Wire Transfer), PayPal, Trade Assurance (Alibaba), and major credit cards accepted.
- Export: Worldwide shipping available. DDP/DAP Incoterms supported for international buyers.
Replacement & Compatibility FAQ
Q: Is the 1336F-BRF20-AA-EN still in production?
A: The 1336 Plus II series has reached end-of-life (EOL) status with Rockwell Automation. However, Konmask maintains stock of new surplus and refurbished units to support ongoing MRO needs.
Q: What is the direct Rockwell replacement for this drive?
A: Rockwell recommends the PowerFlex 4M or PowerFlex 40 as the migration path. The PowerFlex 4M (22F-D2P5N104) is the closest equivalent in the 200–240 V, 2HP class.
Q: Can I replace the 1336F-BRF20-AA-EN with a PowerFlex 40 without rewiring?
A: Terminal layouts differ. You will need to re-map control wiring and re-enter parameters. Konmask can provide a migration checklist upon request.
Q: Does the -EN suffix indicate EtherNet/IP capability?
A: Yes. The EN suffix denotes an EtherNet/IP communication option card is included or pre-configured. Verify firmware version compatibility with your network infrastructure.
Q: What motor frame sizes are compatible?
A: The drive is rated for 2HP / 1.5 kW motors. Typical compatible frames include NEMA 56C, 143T, and 145T, or IEC 80/90 frame equivalents.
Q: Can Konmask provide a tested/refurbished unit?
A: Yes. Refurbished units are available with a 90-day warranty and include a functional test report. Contact us for availability and pricing.
