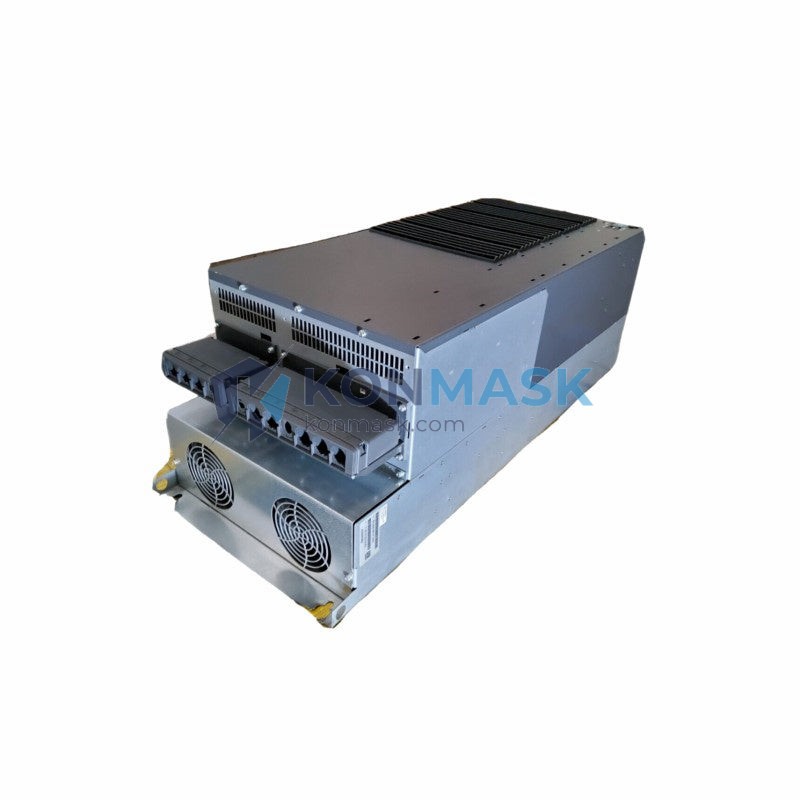

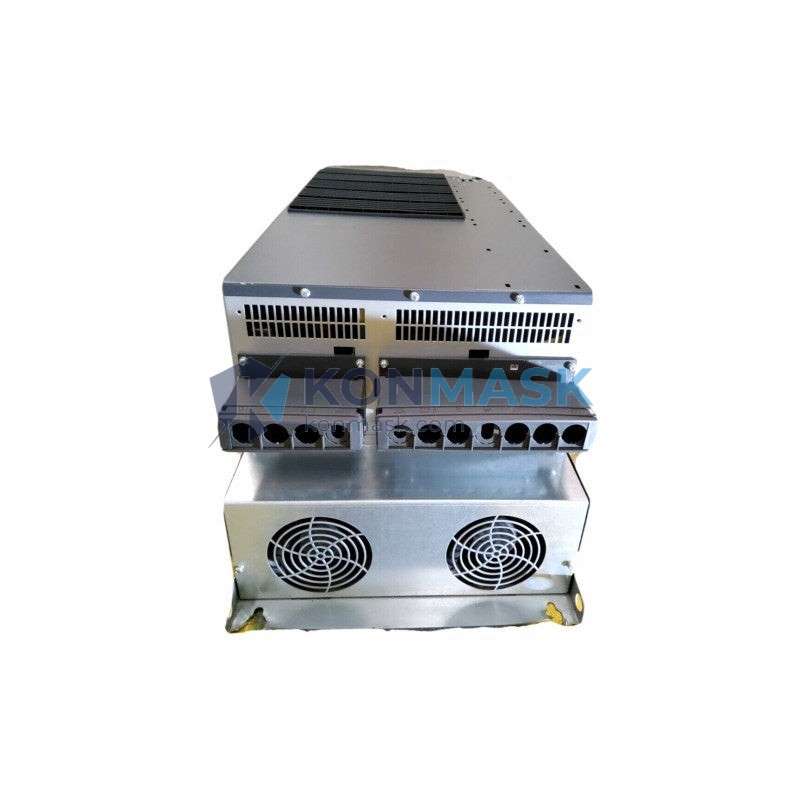

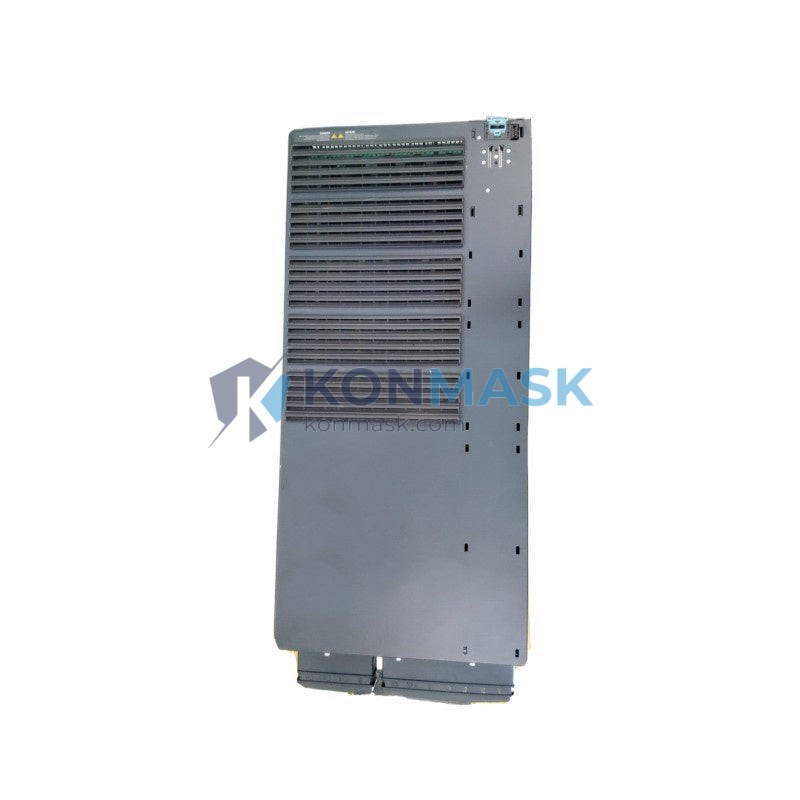

SIEMENS 6SL3224-0BE37-5AA0 — 75kW Booksize Power Module | SINAMICS S120
Engineering Background
The SINAMICS S120 platform is Siemens’ flagship multi-axis drive system, engineered for high-dynamic servo and vector applications across discrete manufacturing, process automation, and heavy industry. The 6SL3224-0BE37-5AA0 is a Booksize format Power Module rated at 75 kW (400 V AC input), designed to operate as the DC-link power supply stage within a coordinated S120 drive line-up. It converts three-phase AC mains into a regulated DC bus, enabling downstream Motor Modules to deliver precise torque and speed control.
Product Positioning
This module targets OEM machine builders, system integrators, and plant engineers who require a proven, high-power drive component with deterministic performance, seamless TIA Portal integration, and long-term Siemens lifecycle support. It is the preferred choice for coordinated multi-axis systems where a single shared DC bus must supply multiple axes simultaneously.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Order Number (MLFB) | 6SL3224-0BE37-5AA0 |
| Product Family | SINAMICS S120 Booksize |
| Module Type | Active Line Module (Power Module) |
| Rated Output Power | 75 kW |
| Input Voltage | 3-phase AC 380–480 V ±10% |
| Input Frequency | 47–63 Hz |
| DC Bus Output Voltage | ~600–750 V DC (regulated) |
| Rated Input Current | ~145 A (at 400 V, 75 kW) |
| Overload Capability | 150% for 60 s / 200% for 3 s |
| Cooling Method | Forced air (integrated fan) |
| Protection Class | IP20 |
| Ambient Temperature | 0 °C to +40 °C (derated to +55 °C) |
| Storage Temperature | -40 °C to +70 °C |
| Humidity | ≤ 95% RH, non-condensing |
| Altitude | Up to 1000 m ASL (derated above) |
| Drive Bus Interface | DRIVE-CLiQ |
| Communication | PROFINET / PROFIBUS (via CU320-2) |
| Dimensions (H × W × D) | Booksize standard format |
| Weight | ~52 kg |
| Certifications | CE, UL, cUL, RoHS |
| Siemens Lifecycle Status | Active |
Proven Application Environments
- CNC Machining Centers — Multi-axis coordinated motion with shared DC bus for spindle and feed drives
- Printing & Packaging Machinery — High-dynamic register control requiring fast torque response
- Winding & Unwinding Lines — Tension-controlled web handling with regenerative braking energy recovery
- Plastics Injection Molding — Servo-hydraulic and all-electric press drives demanding peak overload capacity
- Crane & Hoist Systems — Four-quadrant operation with active front-end regeneration
- Test Benches & Dynamometers — Bidirectional power flow for motor-under-test loading scenarios
- Semiconductor & Electronics Manufacturing — Clean-room compatible (IP20 cabinet-mounted) precision motion
Engineering Advantages
- Active Front End (AFE) Technology — Near-unity power factor (cos φ ≈ 1), minimal harmonic distortion (THDi < 5%), eliminates need for bulky line reactors in most installations
- Regenerative Capability — Returns braking energy to the mains grid, reducing net energy consumption by up to 30% in cyclic applications
- DRIVE-CLiQ Topology — Single-cable digital communication to Motor Modules and sensors; automatic component recognition and parameterization via TIA Portal / STARTER
- Shared DC Bus Architecture — One Power Module feeds multiple Motor Modules; braking energy from decelerating axes is consumed by accelerating axes without resistor dissipation
- Integrated Safety Functions — Supports STO (Safe Torque Off) and SS1 (Safe Stop 1) per IEC 62061 / ISO 13849 when combined with appropriate Safety Modules
- Scalable Firmware — Compatible with SINAMICS S120 firmware V4.x and above; field-upgradeable via SINAMICS SD card
System Architecture & Signal Flow
In a standard S120 Booksize line-up, the 6SL3224-0BE37-5AA0 occupies the leftmost position on the DC bus rail. Mains power enters via the line terminals (U1/V1/W1), passes through an integrated pre-charge circuit, and is converted to a stabilized DC bus voltage. The DRIVE-CLiQ port connects to the Control Unit (CU320-2 DP/PN), which orchestrates all downstream Motor Modules. The DC bus rail distributes power to each Motor Module, which independently controls its assigned motor axis. Braking energy flows back through the Motor Module to the DC bus and is actively returned to the grid via the Power Module’s IGBT front end.
Recommended companion components: CU320-2 PN Control Unit · 6SL3040-1MA01-0AA0 SINAMICS S120 Booksize Motor Modules · SMC/SME Sensor Modules · SINAMICS S120 Line Filter
Sourcing & Quality Verification
- Origin: Sourced from authorized Siemens distribution channels and verified OEM surplus
- Inspection: Each unit undergoes visual inspection, label authenticity check, and functional power-on verification prior to dispatch
- Traceability: Serial number and date code recorded; Siemens SIOS documentation available on request
- Packaging: Original Siemens anti-static packaging retained where available; custom foam-lined export crating for international shipments
- Warranty: 12-month Konmask operational warranty; Siemens factory warranty honored for new-in-box units
Procurement Process
- Inquiry — Submit your order or RFQ via this page, email [email protected], or WhatsApp +86 198 5928 8691
- Quotation — Receive a formal quotation with lead time, unit price, and shipping options within 24 business hours
- Order Confirmation — Confirm PO; proforma invoice issued for payment processing
- Quality Check & Dispatch — Unit inspected, photographed, and packed; tracking number provided within 2 business days of payment clearance
- After-Sales Support — Technical commissioning assistance available via email or video call; warranty claims processed within 5 business days
Technical FAQ
Q: Can this Power Module operate without a Control Unit?
A: No. The 6SL3224-0BE37-5AA0 requires a SINAMICS S120 Control Unit (e.g., CU320-2 PN or CU320-2 DP) connected via DRIVE-CLiQ to initialize, parameterize, and operate.
Q: Is a line reactor required?
A: Due to the Active Front End design, a dedicated line reactor is generally not required. However, a Siemens-recommended line filter (EMC Class C2/C3) is advised for compliance with EN 61800-3.
Q: What is the maximum number of Motor Modules this Power Module can supply?
A: Limited by total DC bus load (sum of all Motor Module output powers ≤ 75 kW continuous). Siemens SIZER or TIA Selection Tool should be used for precise system sizing.
Q: Can it feed back energy to the grid (regenerative)?
A: Yes. The Active Line Module topology supports four-quadrant operation with active energy regeneration to the mains supply.
Q: What firmware version is required?
A: SINAMICS S120 firmware V4.7 SP9 or later is recommended. Firmware is available via Siemens Industry Online Support (SIOS).
Q: Is export to my country supported?
A: Konmask ships globally. Export compliance (EAR/ECCN classification) is verified per destination. Contact us for country-specific documentation requirements.
