SIEMENS 6SL3225-0BE25-5AA1 Power Module 55kW | Replacement, Equivalent & Selection Guide

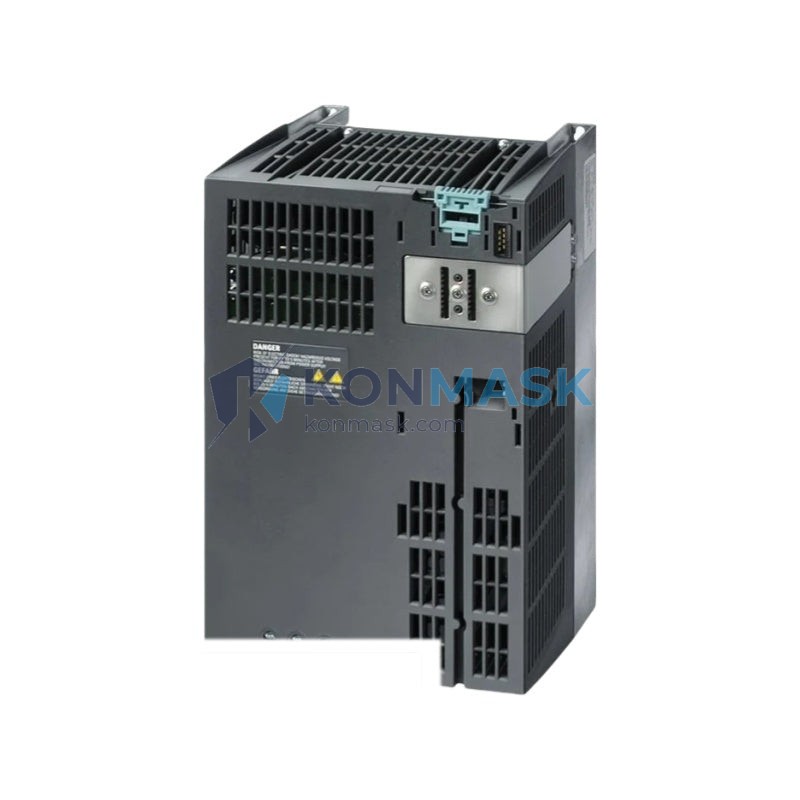

The SIEMENS 6SL3225-0BE25-5AA1 is a SINAMICS S120 Smart Line Module (Power Module) rated at 55kW, designed for demanding industrial drive applications. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | SIEMENS |
| Part Number / SKU | 6SL3225-0BE25-5AA1 |
| Series | SINAMICS S120 |
| Module Type | Smart Line Module (Power Module) |
| Rated Power | 55 kW |
| Input Voltage | 3-phase AC 380–480 V (±10%) |
| Input Frequency | 47–63 Hz |
| DC Bus Voltage | ~600–750 V DC |
| Rated Input Current | ~105 A |
| Cooling Method | Forced air cooling (internal fan) |
| Protection Degree | IP20 |
| Weight | ~6.5 kg |
| Communication Interface | DRIVE-CLiQ |
| Standards | CE, UL, cUL |
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the 6SL3225-0BE25-5AA1. Always verify electrical and mechanical compatibility before substitution.
| Part Number | Brand | Power | Notes |
|---|---|---|---|
| 6SL3225-0BE27-5AA1 | SIEMENS | 75 kW | Next-tier upgrade within S120 Smart Line series |
| 6SL3225-0BE21-1AA0 | SIEMENS | 11 kW | Lower-power S120 Smart Line Module |
| 6SL3130-6AE21-0AB1 | SIEMENS | 55 kW | S120 Active Line Module alternative (active front-end) |
| 6SL3210-1SE27-5UA0 | SIEMENS | 55 kW | SINAMICS S150 equivalent for standalone cabinet drives |
| ACS880-01-105A-3 | ABB | 55 kW | Cross-brand alternative; verify bus topology |
| FR-A840-01800-2-60 | Mitsubishi | 55 kW | Cross-brand; different architecture, consult engineer |
⚠ Note: Cross-brand replacements require full system re-engineering. Contact our technical team for guidance.
Why Choose the Original Model
- Native DRIVE-CLiQ integration — plug-and-play with SINAMICS S120 Motor Modules and CU320-2 Control Units without additional configuration.
- Smart Line regeneration — supports energy feedback to the grid, reducing operating costs in regenerative applications.
- Proven reliability — field-tested in thousands of installations across automotive, packaging, and material handling industries.
- Firmware compatibility — guaranteed compatibility with STARTER / SINAMICS Startdrive commissioning software.
- Warranty & traceability — original Siemens serial number and factory traceability for compliance-sensitive projects.
Typical Applications
- Multi-axis servo drive systems (SINAMICS S120 booksize / chassis)
- CNC machine tool spindle and feed axis drives
- Automotive assembly line conveyors and transfer systems
- Packaging machinery with regenerative braking
- Printing press and paper handling equipment
- Crane and hoist systems requiring energy recovery
- Plastics injection molding and extrusion lines
System Compatibility
| Component | Compatible Models |
|---|---|
| Control Unit | CU320-2 DP, CU320-2 PN, CU310-2 DP/PN |
| Motor Modules (Booksize) | 6SL3120-1TE2x-xxxx series |
| Motor Modules (Chassis) | 6SL3310-1GE3x-xxxx series |
| Line Filter | 6SL3000-0BE25-0AA0 (recommended) |
| Line Reactor | 6SL3000-0CE32-3AA0 (recommended) |
| Commissioning Software | SINAMICS Startdrive V15+, STARTER V5.4+ |
| PLC Integration | SIMATIC S7-300/400/1200/1500 via PROFIBUS/PROFINET |
Selection Guide
Use the checklist below to confirm the 6SL3225-0BE25-5AA1 is the right choice for your application:
- ✅ Power requirement: Motor shaft power ≤ 55 kW at rated load
- ✅ Supply voltage: 3-phase 380–480 V AC grid available
- ✅ Topology: Centralized DC bus architecture (S120 booksize or chassis)
- ✅ Regeneration: Application benefits from grid feedback (cranes, presses, test benches)
- ✅ Control: Using SINAMICS S120 CU320-2 or compatible control unit
- ✅ Environment: Indoor installation, ambient temperature ≤ 40°C, IP20 enclosure acceptable
If your power requirement exceeds 55 kW, consider the 6SL3225-0BE27-5AA1 (75 kW). If regeneration is not required, the 6SL3130-1TE28-0AA1 Basic Line Module may offer a cost advantage.
Quality Assurance & Sourcing
- Source: Authorized distribution channels and verified surplus stock with full traceability
- Inspection: Every unit inspected for physical integrity, label authenticity, and firmware version before shipment
- Anti-counterfeit: Siemens holographic labels and serial number verification available on request
- Warranty: 12-month warranty against manufacturing defects
- Lead time: In-stock units ship within 3–5 business days; contact us for urgent requirements
How to Order
- Confirm part number: 6SL3225-0BE25-5AA1
- Specify quantity and required delivery date
- Submit inquiry via [email protected] or WhatsApp +0086 19859288691
- Receive quotation within 24 hours (business days)
- Confirm order and arrange payment — T/T, PayPal, or trade assurance accepted
- Receive tracking number and shipping documents upon dispatch
Replacement & Compatibility FAQ
Q: Can I replace 6SL3225-0BE25-5AA1 with a Basic Line Module of the same power?
A: Functionally possible, but you will lose grid regeneration capability. Evaluate your application’s braking energy requirements first.
Q: Is the 6SL3225-0BE25-5AA1 compatible with older S120 booksize Motor Modules?
A: Yes, provided firmware versions are aligned. We recommend updating all components to the same firmware baseline during commissioning.
Q: Can this module be used as a standalone drive without a Motor Module?
A: No. The Smart Line Module is a DC bus supply unit only. It must be paired with one or more Motor Modules to drive motors.
Q: Do you supply refurbished units?
A: We supply both new and certified-refurbished units. Refurbished units are clearly labeled and carry a 6-month warranty. Please specify your preference when inquiring.
Q: What is the lead time for out-of-stock units?
A: Typically 4–8 weeks for factory-new units. Expedited sourcing from our global supplier network may reduce this to 2–3 weeks.
