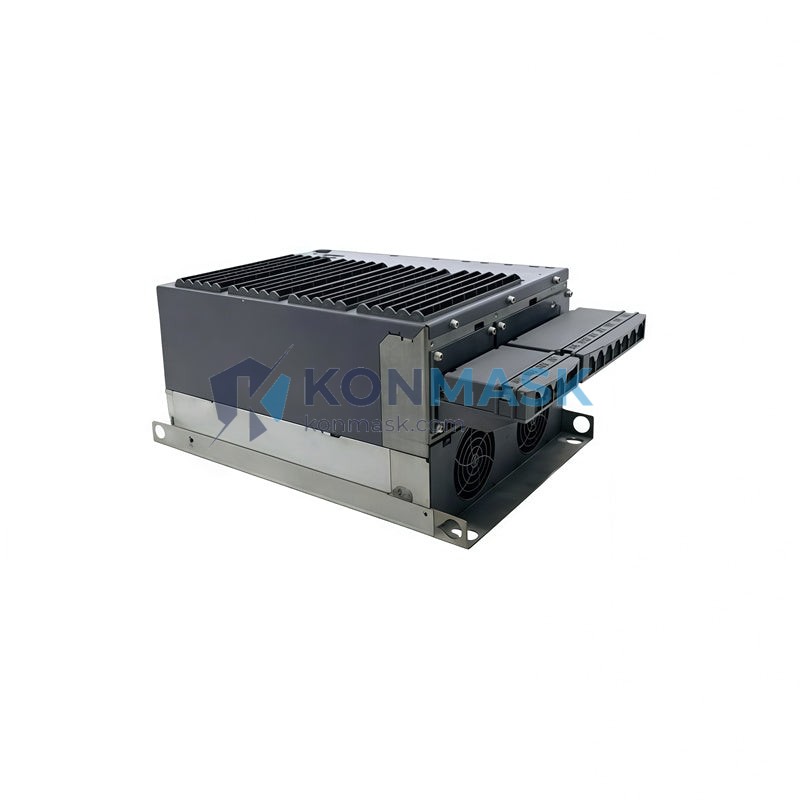

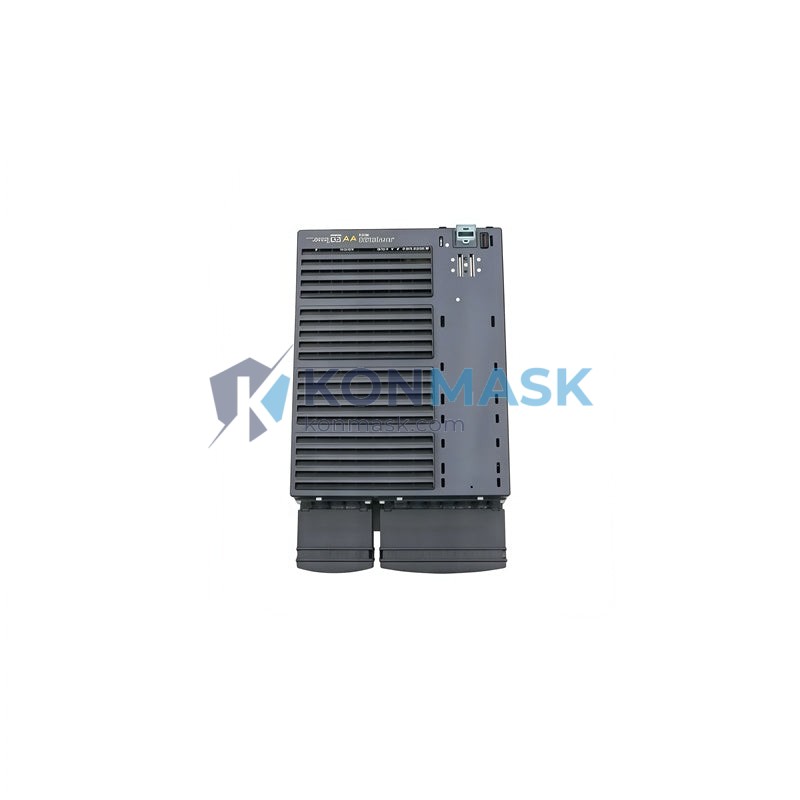

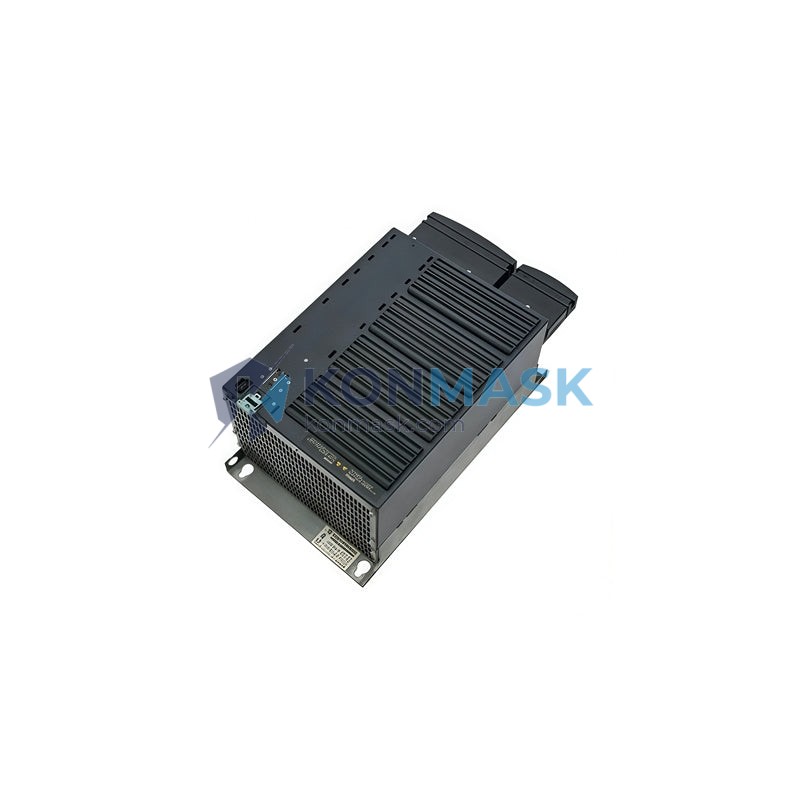

SIEMENS 6SL3525-0DE24-0AA1 – Distributed AC Drive Power Module | SINAMICS G120D Platform
Engineering Background: The SINAMICS G120D series represents Siemens’ purpose-built distributed drive architecture, designed to be mounted directly in the field — on conveyor frames, in cable trays, or adjacent to motor terminals — eliminating the need for a centralized control cabinet. This dramatically reduces wiring complexity and installation footprint in large-scale intralogistics, material handling, and process automation environments.
Product Positioning: The 6SL3525-0DE24-0AA1 is a 4 kW (5.5 HP), 400 V class Power Module within the G120D family. It is engineered for decentralized motor control in demanding industrial settings where IP65 ingress protection, compact form factor, and fieldbus integration are non-negotiable requirements. This unit is the drive hardware component; it pairs with a compatible Control Unit (CU240D-2 or CU250D-2 series) to form a complete drive system.
Complete Technical Specifications
| Order Number (MLFB) | 6SL3525-0DE24-0AA1 |
| Product Family | SINAMICS G120D |
| Component Type | Power Module (PM) |
| Rated Output Power | 4 kW (5.5 HP) |
| Input Voltage | 3-phase AC 380–480 V (±10%) |
| Input Frequency | 47–63 Hz |
| Output Current (Rated) | 10.2 A |
| Output Current (Overload) | 15.3 A (150% for 60 s) |
| DC Link Voltage | 510–720 V DC |
| Degree of Protection | IP65 / UL Type 12 |
| Cooling Method | Natural convection (fanless) |
| Ambient Temperature (Operation) | -10°C to +40°C (derating above 40°C) |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | ≤ 95% RH (non-condensing) |
| Altitude | Up to 1000 m without derating |
| Vibration Resistance | IEC 60068-2-6 (5–200 Hz, 1g) |
| Shock Resistance | IEC 60068-2-27 (15g, 11 ms) |
| EMC Classification | Category C2 (EN 61800-3) |
| Braking | DC braking; external braking resistor optional |
| Motor Connection | Plug-in power connector (MOTION-CONNECT compatible) |
| Weight | Approx. 3.0 kg |
| Dimensions (W × H × D) | ~90 × 270 × 195 mm |
| Certifications | CE, UL, cUL, RoHS |
Proven Application Environments
- Intralogistics & Conveyor Systems: Belt conveyors, roller conveyors, sortation systems — distributed mounting eliminates long motor cable runs.
- Airport Baggage Handling: Meets the high-cycle, high-availability demands of baggage conveyor infrastructure.
- Automotive Assembly Lines: Precise speed control for transfer systems, rotary tables, and assembly carriers.
- Food & Beverage Processing: IP65 rating withstands washdown environments; suitable for hygienic zone periphery.
- Packaging Machinery: Synchronised multi-axis packaging lines with PROFIBUS/CANopen coordination.
- Water & Wastewater: Pump and fan control in outdoor or wet-area installations.
Engineering Advantages
- Decentralized Architecture: Mount directly at the motor — reduces cabinet space, shortens power cables, and simplifies plant layout.
- IP65 Fanless Design: No moving cooling parts means lower maintenance burden and higher MTBF in dusty or humid environments.
- Plug-and-Play Motor Connection: MOTION-CONNECT system connectors enable rapid commissioning and hot-swap replacement without rewiring.
- Scalable Fieldbus Integration: Compatible Control Units support PROFIBUS DP, CANopen, PROFINET, and EtherNet/IP — future-proof for network upgrades.
- Safe Torque Off (STO) Ready: Integrated SIL 2 / PLd safety function via Control Unit — no external safety relay required for basic safety loops.
- Energy Recovery: Supports common DC bus configurations for regenerative energy sharing between drive axes.
System Architecture & Signal Flow
The 6SL3525-0DE24-0AA1 Power Module receives 3-phase AC mains input, rectifies to DC link, and inverts to variable-frequency AC output for the connected motor. The Control Unit (sold separately) attaches directly to the Power Module via a standardized interface, providing:
- Fieldbus communication (PROFIBUS / CANopen / PROFINET depending on CU variant)
- Digital and analog I/O for local signal processing
- Parameter storage and drive intelligence (V/f, vector, or servo control modes)
- Safety function execution (STO, SS1, SLS via CU250D-2)
The modular separation of Power Module and Control Unit allows independent replacement of either component, reducing spare-parts inventory cost and downtime.
Sourcing & Quality Verification
- Origin: Genuine Siemens manufactured product; traceable to authorized distribution channels.
- Inspection: Each unit undergoes visual inspection, label verification (MLFB, date code, serial number), and functional continuity check prior to dispatch.
- Packaging: Ships in original or equivalent ESD-safe packaging with desiccant; suitable for international freight.
- Documentation: CE Declaration of Conformity and product datasheet available upon request.
- Warranty: 12-month warranty against manufacturing defects from date of shipment.
Procurement Process
- Confirm your Control Unit variant (CU240D-2 or CU250D-2) and fieldbus protocol requirement.
- Verify motor nameplate data (kW, voltage, current) matches drive output ratings.
- Submit your order or RFQ via Konmask.com or contact our engineering team directly.
- Receive order confirmation with lead time and shipping details within 1 business day.
- Shipment with tracking; typical delivery 3–7 business days (international freight times vary).
Technical FAQ
Q: Does this unit include a Control Unit?
A: No. The 6SL3525-0DE24-0AA1 is the Power Module only. A compatible Control Unit (e.g., 6SL3544-0FB21-1PA0 CU240D-2) must be ordered separately.
Q: Can it be used with a single-phase supply?
A: No. This model requires a 3-phase 380–480 V AC supply. Single-phase operation is not supported.
Q: What is the maximum cable length to the motor?
A: Siemens recommends a maximum of 25 m for standard shielded motor cable without output filter. Longer runs require a dU/dt filter or sine-wave filter.
Q: Is STO (Safe Torque Off) available on this Power Module?
A: STO is implemented at the Control Unit level. When paired with a CU240D-2 DP or CU250D-2 DP, STO (SIL 2 / PLd) is available via the safety terminals on the Control Unit.
Q: Can multiple units share a common DC bus?
A: Yes, G120D Power Modules support common DC bus operation for energy sharing between motoring and regenerating axes, improving overall system efficiency.
Q: What firmware version is pre-loaded?
A: Firmware version varies by production date. Current stock units carry firmware compatible with STARTER v5.4+ and TIA Portal Startdrive V16+. Confirm with our team if a specific firmware version is required.
