Infineon DD180N16S Diode Module | Replacement, Equivalent & Selection Guide

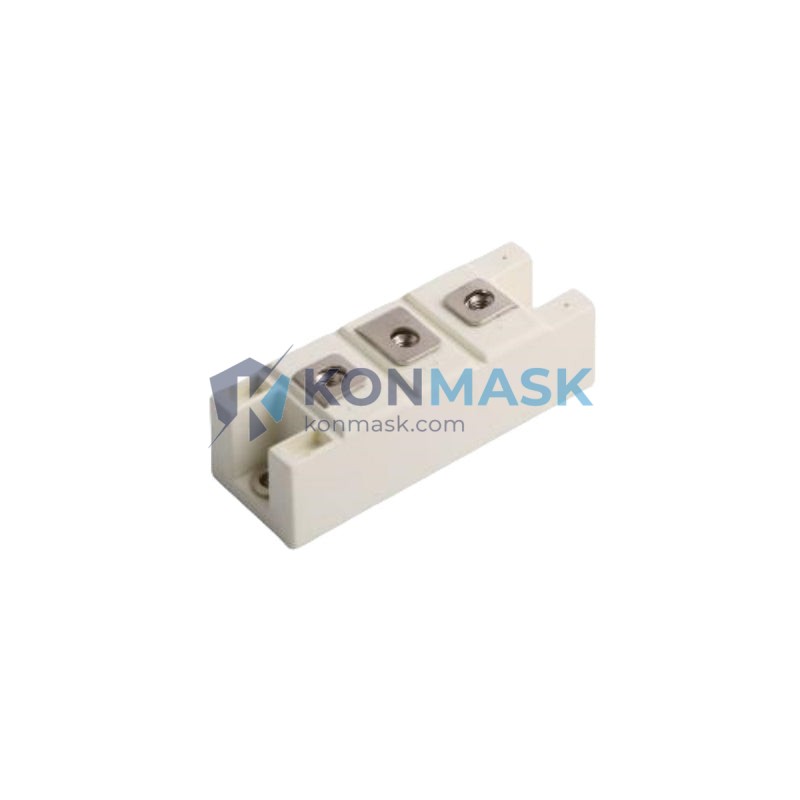

The Infineon DD180N16S is a high-power rectifier diode module rated at 180 A / 1600 V, designed for demanding industrial power conversion, motor drive, and rectifier applications. This page provides full technical specifications, verified compatible replacements, equivalent cross-reference models, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | DD180N16S |
| Manufacturer | Infineon Technologies (formerly Eupec) |
| Module Type | Rectifier Diode Module (Single Phase) |
| Repetitive Peak Reverse Voltage (VRRM) | 1600 V |
| Average Forward Current (IFAV) | 180 A |
| Peak Forward Surge Current (IFSM) | ≥ 3000 A (10 ms) |
| Forward Voltage Drop (VF) | ≈ 1.35 V @ 180 A |
| Thermal Resistance (Rth(j-c)) | ≈ 0.10 K/W |
| Operating Junction Temperature (Tj) | -40°C to +150°C |
| Storage Temperature (Tstg) | -40°C to +125°C |
| Package / Case | DD (Flat Base, Screw Terminal) |
| Weight | 490 g (approx.) |
| Isolation Voltage | 3600 VRMS |
| Mounting | Heatsink with M6 screw |
Compatible Replacement & Equivalent Models
The following models are verified functional equivalents or drop-in replacements for the DD180N16S. Always confirm pinout, package dimensions, and voltage/current ratings before substitution.
| Model | Manufacturer | VRRM | IFAV | Package | Notes |
|---|---|---|---|---|---|
| DD180N16S | Infineon | 1600 V | 180 A | DD | Original — reference model |
| DD200N16K | Infineon | 1600 V | 200 A | DD | Higher current; upward compatible |
| MDD200-16N1 | IXYS / Littelfuse | 1600 V | 200 A | DD | Functional equivalent; verify footprint |
| SKD 160/16 | Semikron | 1600 V | 160 A | SKD | Lower current; confirm thermal derating |
| VUO160-16NO7 | Vishay / Fuji | 1600 V | 160 A | UFO | Different package; requires adapter |
| D180N16T | Eupec (legacy) | 1600 V | 180 A | DD | Direct predecessor; pin-compatible |
⚠ Disclaimer: Cross-reference data is provided for reference only. Konmask.com recommends engineering validation before substitution in safety-critical systems.
Why Choose the Original Model
- Guaranteed OEM Compatibility: Exact fit for existing PCB layouts, busbars, and heatsink assemblies designed around the DD180N16S footprint.
- Traceable Quality: Infineon production-grade silicon with full lot traceability and datasheet-backed performance.
- Regulatory Compliance: Meets CE, RoHS, and relevant IEC standards — critical for CE-marked end equipment.
- Reduced Validation Cost: No re-qualification required when replacing like-for-like in certified systems.
- Long-Term Availability: Sourced from authorized distribution channels with documented supply chain.
Typical Applications
- Three-phase and single-phase AC-DC rectifier bridges in industrial drives
- Uninterruptible Power Supplies (UPS) — front-end rectifier stage
- Welding power supplies and plasma cutting equipment
- Elevator and crane motor drive systems
- Battery chargers for industrial and traction applications
- Soft-starter and bypass rectifier circuits
- DC bus pre-charge circuits in variable frequency drives (VFDs)
System Compatibility
- Drive Systems: Compatible with Siemens SINAMICS, ABB ACS, Schneider Altivar, and Yaskawa A1000 series front-end rectifier stages.
- UPS Platforms: Suitable for Eaton, Emerson (Vertiv), and Huawei UPS rectifier modules requiring 1600 V / 180 A diode blocks.
- Control Voltage: Passive component — no gate drive required; compatible with any rectifier topology.
- Heatsink Interface: Standard flat-base DD package; compatible with Semikron, Fischer Elektronik, and custom aluminum extrusion heatsinks.
Selection Guide
Use the following criteria to confirm the DD180N16S is the right choice — or to identify the best alternative:
| Selection Criterion | Recommendation |
|---|---|
| Required VRRM ≤ 1600 V | DD180N16S is suitable ✔ |
| Required IFAV ≤ 180 A | DD180N16S is suitable ✔ |
| Required IFAV 180–200 A | Consider DD200N16K or MDD200-16N1 |
| Budget-sensitive, lower current (<160 A) | Consider SKD 160/16 with thermal derating |
| Need higher voltage (1800–2200 V) | Contact Konmask for DD180N18S / DD180N22S availability |
| Replacing legacy Eupec part | DD180N16S is the direct Infineon successor to D180N16T |
| Space-constrained / different footprint | Consult Konmask engineering support for package alternatives |
Quality Assurance & Sourcing
- Source: Authorized distributors and verified secondary market with full documentation.
- Inspection: Each unit undergoes visual inspection, date code verification, and packaging integrity check prior to shipment.
- Documentation: Original manufacturer datasheet, test reports, and Certificate of Conformance (CoC) available on request.
- Anti-Counterfeit: Konmask.com maintains a zero-tolerance policy on counterfeit components. Suspicious units are quarantined and reported.
- Warranty: 12-month warranty against manufacturing defects under normal operating conditions.
How to Order
- Confirm your required quantity and delivery timeline.
- Add to cart or contact us directly for bulk / project pricing.
- Provide your application details if you need a compatibility review before purchase.
- Orders are typically processed within 1–2 business days; international shipping available.
- For urgent requirements, contact us via email or phone for expedited sourcing.
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace DD180N16S with DD200N16K directly?
A: In most cases yes — the DD200N16K is electrically upward compatible (higher current rating, same voltage, same package). Verify heatsink thermal capacity is sufficient for the higher rated device.
Q: Is the DD180N16S RoHS compliant?
A: Yes. Infineon’s DD180N16S is manufactured in compliance with RoHS 2 (EU Directive 2011/65/EU).
Q: What is the difference between DD180N16S and D180N16T?
A: The D180N16T is the legacy Eupec designation. After Infineon acquired Eupec, the part was rebranded as DD180N16S with identical electrical characteristics and pin-compatible packaging.
Q: Do you provide test reports or CoC for this module?
A: Yes. Certificate of Conformance and inspection reports are available upon request for all orders.
Q: Can this module be used in a three-phase bridge rectifier?
A: The DD180N16S is a single-phase (dual diode) module. For a three-phase bridge, you would typically use three DD180N16S modules or a dedicated three-phase module such as the SKD series.
