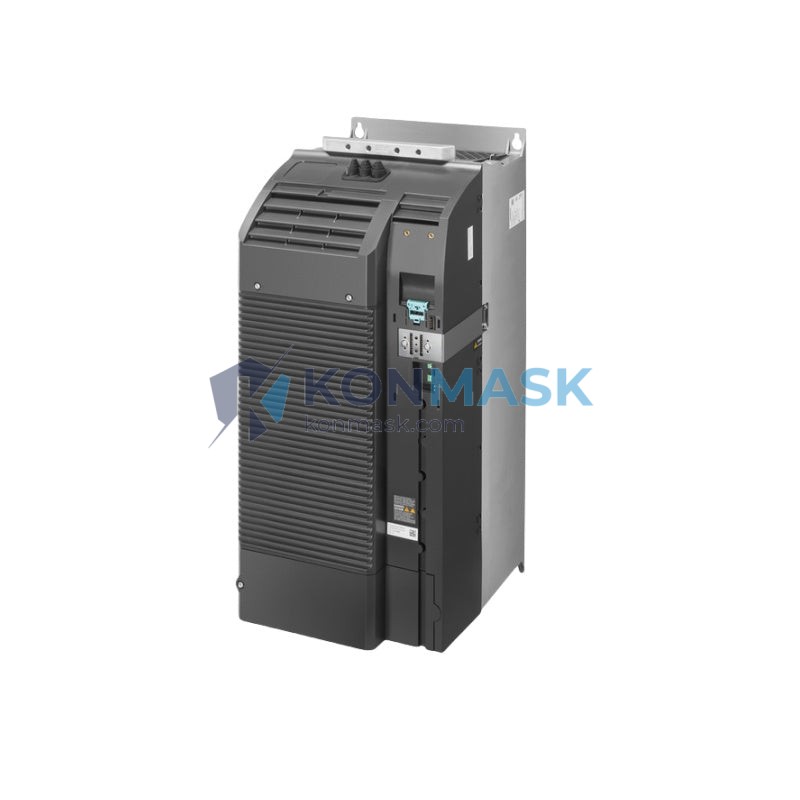

SIEMENS 6SL3210-1PE31-5AL0 Active Line Power Module – SINAMICS S120 Series
Imagine a high-speed production line grinding to a halt — servo axes losing synchronization, drives tripping on undervoltage, and the entire machine control architecture collapsing because the DC bus can no longer sustain regulated power. In modern multi-axis drive systems, the Power Module is not a peripheral component; it is the energy backbone. Without a properly rated, fully functional Active Line Module feeding the DC link, every downstream Motor Module and servo axis is rendered inoperable. Unplanned downtime in automotive stamping, packaging, or paper-making environments can cost tens of thousands of dollars per hour. The SIEMENS 6SL3210-1PE31-5AL0 exists precisely to prevent that scenario.
The 6SL3210-1PE31-5AL0 is a booksize-format Active Line Module within the SINAMICS S120 drive family — Siemens’ flagship multi-axis servo and vector drive platform trusted across global OEM machine builders and end-user plants alike. Within the S120 booksize portfolio, this module occupies the mid-to-high power range, delivering regulated DC bus voltage with active front-end (AFE) technology that enables four-quadrant operation, sinusoidal mains current, and regenerative energy feedback to the grid. It is engineered for demanding continuous-duty cycles in industries where drive reliability is non-negotiable.
Technical Specifications
- Manufacturer: Siemens AG
- Part Number: 6SL3210-1PE31-5AL0
- Product Family: SINAMICS S120
- Module Type: Active Line Module (Power Module), Booksize Format
- Drive Series: SINAMICS S120 Booksize
- Cooling Method: Internal air cooling (fan-cooled)
- Enclosure / Form Factor: Booksize (panel-mount, DIN rail compatible chassis)
- Communication Interface: DRIVE-CLiQ (integrated)
- Control Unit Compatibility: CU320-2 DP / CU320-2 PN and compatible S120 Control Units
- Mains Voltage Range: 3-phase AC (refer to Siemens SINAMICS S120 hardware manual for exact input voltage specification)
- Standards Compliance: CE, UL (refer to product nameplate and Siemens documentation)
- Condition Available: New original, tested refurbished, surplus stock
Note: Konmask.com does not fabricate electrical parameters. For full rated input/output current, power, and DC bus voltage specifications, please refer to the official Siemens SINAMICS S120 hardware installation manual (document A5E03264351) or contact our technical team with your application requirements.
Key Features & Benefits
- Active Front End (AFE) Technology: Sinusoidal mains current draw with near-unity power factor — reduces harmonic distortion and eliminates the need for line reactors in many installations.
- Four-Quadrant Operation: Supports regenerative braking energy feedback to the supply grid, reducing net energy consumption in high-inertia applications such as centrifuges, winders, and test benches.
- DRIVE-CLiQ Integration: Plug-and-play digital communication with S120 Motor Modules and Control Units — enables automatic component recognition, parameter upload, and simplified commissioning via STARTER or TIA Portal.
- Booksize Form Factor: Compact, modular design allows tight mechanical integration with S120 Motor Modules on a shared DC bus rail, minimizing cabinet footprint.
- Robust DC Bus Regulation: Maintains stable DC link voltage under dynamic load transients, protecting downstream Motor Modules and connected servo axes.
- Integrated Diagnostics: Onboard LED status indicators and DRIVE-CLiQ fault reporting enable rapid fault isolation without additional instrumentation.
- Long Service Life: Designed for continuous industrial duty with Siemens-grade component selection and thermal management.
Industry & Equipment Applications
- Machine Tool & CNC: Multi-axis machining centers, turning centers, and grinding machines requiring synchronized servo power.
- Packaging Machinery: High-speed form-fill-seal, cartoning, and palletizing lines with frequent start-stop cycles.
- Printing & Converting: Web tension control systems, rotary printing presses, and slitter-rewinders.
- Automotive Manufacturing: Welding robots, transfer lines, and press automation requiring regenerative drive capability.
- Textile & Fiber: Winding, unwinding, and draw-twisting machines with precise torque control demands.
- Material Handling: Crane hoists, conveyor drives, and automated storage and retrieval systems (AS/RS).
- Test Stands: Motor and gearbox test benches where regenerative energy recovery is economically significant.
System Integration & Compatible Parts
The 6SL3210-1PE31-5AL0 is designed to operate within the SINAMICS S120 booksize drive system. Typical system components include:
- Control Units: CU320-2 DP (PROFIBUS), CU320-2 PN (PROFINET)
- Motor Modules (Booksize): 6SL3120-1TE2x-xxxx series single-axis and double-axis modules
- Braking Modules: 6SL3100-1BE2x-xxxx (if dynamic braking resistor is required alongside AFE)
- Line Filters: 6SL3000-0BE2x-xxxx (for EMC compliance in sensitive environments)
- DRIVE-CLiQ Cables: 6FX2002-1DC00-xxxx series
- Voltage Sensing Module (VSM): 6SL3053-0AA00-3AA1 (for mains monitoring)
- Control Unit Adapter (CUA31/CUA32): For distributed topology configurations
Contact Konmask.com with your full drive system BOM for cross-compatibility verification before ordering.
Our Quality Assurance Process
- Source Verification: All units are sourced from authorized distributors, certified surplus dealers, or directly from decommissioned OEM equipment with traceable provenance.
- Visual & Mechanical Inspection: Each module is inspected for physical damage, connector integrity, label legibility, and firmware version markings.
- Functional Testing (Refurbished Units): Refurbished stock undergoes DC bus energization tests and DRIVE-CLiQ communication verification prior to shipment.
- Secure Packaging: Anti-static packaging with foam cushioning and moisture barrier bags for international freight.
- Documentation: Certificate of conformity and inspection report available upon request.
How to Order
- Submit an inquiry via the Contact / RFQ form on Konmask.com with your required part number, quantity, and delivery timeline.
- Our technical team will confirm stock availability, condition (new/refurbished/surplus), and provide a formal quotation within 24 business hours.
- Upon PO confirmation, we arrange secure packaging and coordinate international freight with your preferred Incoterms (EXW, FOB, CIF, DDP available).
- Tracking information and shipping documents (commercial invoice, packing list, COO) are provided upon dispatch.
For urgent requirements or large-quantity orders, contact us directly at support@konmask.com or +0086 19859288691.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, servo drives, and automation components — not a generalist electronics marketplace.
- Global Sourcing Network: Access to verified surplus, new-original, and refurbished stock across SIEMENS, ABB, Rockwell, Mitsubishi, and other leading brands.
- Technical Pre-Sales Support: Our engineers can assist with compatibility checks, system configuration advice, and cross-reference identification.
- Flexible Trade Terms: EXW, FOB, CIF, DDP — we accommodate your logistics and customs requirements.
- Fast Response: RFQ responses within 24 hours; expedited sourcing for critical downtime situations.
- Trusted by B2B Buyers Worldwide: Serving MRO procurement teams, OEM machine builders, and system integrators across Asia, Europe, and the Americas.
Frequently Asked Questions
Q: Is the 6SL3210-1PE31-5AL0 an Active Line Module or a Basic Line Module?
A: It is an Active Line Module (ALM). It uses IGBT-based active front-end technology to provide sinusoidal mains current, power factor correction, and regenerative energy feedback — distinguishing it from Basic Line Modules which use diode rectifiers.
Q: Can this module operate as a standalone drive, or does it require a Control Unit?
A: The 6SL3210-1PE31-5AL0 requires a SINAMICS S120 Control Unit (e.g., CU320-2 DP/PN) for operation. It is not a standalone drive — it functions as the power supply stage within a multi-axis S120 drive system.
Q: What is the difference between the 6SL3210-1PE31-5AL0 and similar S120 Active Line Modules?
A: The part number encodes the power rating and variant. The “1PE31-5A” segment identifies the specific power class within the S120 booksize ALM range. Contact our team for a comparison table if you are evaluating multiple power ratings for your application.
Q: Do you supply new original units or refurbished stock?
A: Both. Please specify your preference and budget in your RFQ. All refurbished units are tested and documented. New original units come with manufacturer packaging where available.
Q: Can you provide an export-compliant commercial invoice and packing list?
A: Yes. We provide full export documentation including commercial invoice, packing list, and certificate of origin. HS code classification is the buyer’s responsibility per their import country regulations.
Q: What is your lead time for this part number?
A: Lead time depends on stock availability at time of inquiry. In-stock items typically ship within 3–5 business days. Out-of-stock items are sourced within 2–4 weeks depending on global supply conditions. Submit an RFQ for a confirmed timeline.
