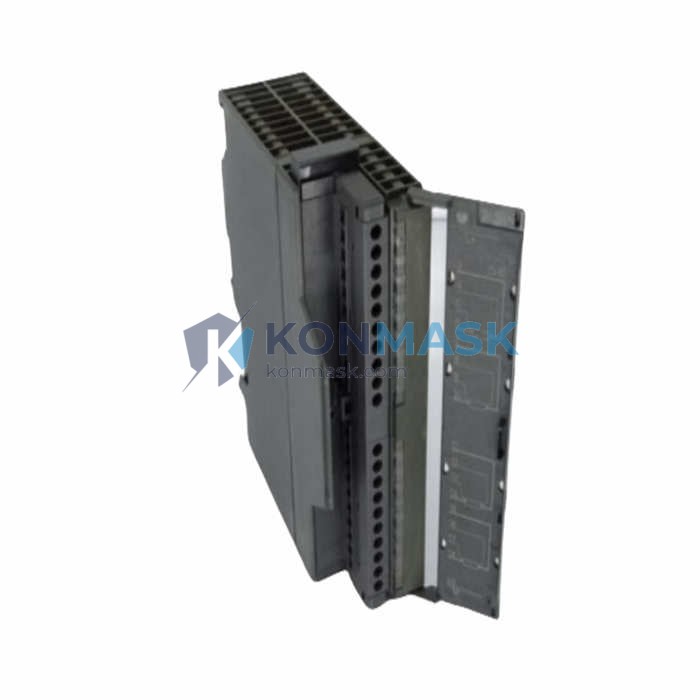

SIEMENS 6ES7332-5HD01-0AB0 Analog Output Module | Replacement, Equivalent & Selection Guide
The SIEMENS 6ES7332-5HD01-0AB0 is an 8-channel analog output module for the SIMATIC S7-300 programmable logic controller (PLC) platform. Designed for precision process control, it delivers 12-bit resolution across voltage and current output ranges, making it a core component in industrial automation, process engineering, and manufacturing systems. This page provides full technical specifications, compatible replacement models, selection guidance, and sourcing information.
Technical Specifications
- Part Number: 6ES7332-5HD01-0AB0
- Series: SIMATIC S7-300
- Module Type: Analog Output (AO)
- Number of Outputs: 8 channels
- Output Resolution: 12-bit
- Output Ranges (Voltage): ±10 V, 0–10 V, 1–5 V
- Output Ranges (Current): 0–20 mA, 4–20 mA, ±20 mA
- Supply Voltage: DC 24 V (via backplane bus)
- Load Impedance (Voltage): ≥ 1 kΩ
- Load Impedance (Current): ≤ 600 Ω
- Isolation: Optocoupler isolation between channels and backplane
- Dimensions (W×H×D): 40 × 125 × 120 mm
- Weight: Approx. 200 g
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Degree of Protection: IP 20
- Certifications: CE, UL, cULus, ATEX (Zone 2)
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the 6ES7332-5HD01-0AB0. Always verify electrical and software compatibility before substitution.
- 6ES7332-5HD00-0AB0 — Earlier hardware revision (HW: 01); functionally equivalent, same channel count and resolution. Direct drop-in replacement in most applications.
- 6ES7332-5HF00-0AB0 — 8-channel AO with HART communication support; suitable upgrade when field device diagnostics are required.
- 6ES7332-8TF01-0AB0 — High-feature 8-channel AO with HART; offers enhanced diagnostics and wire-break detection.
- 6ES7532-5HD00-0AB0 (ET 200SP) — Equivalent function in the ET 200SP distributed I/O platform; requires migration to ET 200SP architecture.
- Third-party equivalents: Certain Wago, Phoenix Contact, and Beckhoff analog output modules offer compatible signal ranges but require gateway or protocol adaptation for S7-300 backplane integration.
Note: Hardware revision (e.g., -0AB0 vs -0AB1) may affect firmware compatibility. Confirm with your STEP 7 or TIA Portal project before ordering.
Why Choose the Original Model
- Guaranteed S7-300 Backplane Compatibility: Native plug-and-play integration — no additional configuration or gateway required.
- Proven Field Reliability: Widely deployed in process industries with documented MTBF performance.
- STEP 7 & TIA Portal Support: Full GSD/HSP file support; recognized automatically by Siemens engineering tools.
- Siemens Spare Parts Availability: Supported under Siemens Industry Online Support (SIOS) with available repair and exchange services.
- Regulatory Compliance: CE, UL, and ATEX Zone 2 certifications reduce compliance risk in regulated industries.
Typical Applications
- Valve positioner control (4–20 mA current loop)
- Variable frequency drive (VFD) speed reference signals
- Process setpoint transmission to field instruments
- Proportional control of heating/cooling elements
- Pressure and flow regulation in chemical and petrochemical plants
- Conveyor speed control in automotive and packaging lines
- Water treatment and HVAC process control
System Compatibility
- PLC Platform: SIMATIC S7-300 (all CPU variants)
- Engineering Software: SIMATIC STEP 7 V5.x, TIA Portal V13 and above
- Communication: MPI, PROFIBUS DP (via CPU), Industrial Ethernet (via CP modules)
- Power Supply: PS 307 / PS 305 series or equivalent 24 VDC rail supply
- Rack: S7-300 standard rail (DIN rail mounting)
- Not Compatible With: S7-400, S7-1200, S7-1500 backplanes (different bus architecture)
Selection Guide
Use the following criteria to determine whether the 6ES7332-5HD01-0AB0 is the right module for your application, or to identify a more suitable alternative:
- Channel Count: Need fewer than 8 channels? Consider 6ES7332-5RB00-0AB0 (2-channel) or 6ES7332-5AC02-0AB0 (2-channel, high accuracy).
- Resolution Requirements: Standard 12-bit is sufficient for most process control. For higher precision, evaluate 6ES7332-8TF01-0AB0 (16-bit equivalent with HART).
- HART Communication: If your field devices require HART diagnostics, select 6ES7332-5HF00-0AB0 or 6ES7332-8TF01-0AB0 instead.
- Distributed I/O: For remote I/O cabinets, consider migrating to ET 200SP (6ES7532-5HD00-0AB0) with PROFINET connectivity.
- Budget vs. OEM: If cost is a primary constraint, contact us to discuss certified refurbished or tested-used options with warranty.
Quality Assurance & Sourcing
- Source: Authorized distributors, Siemens-certified repair centers, and vetted surplus channels.
- Inspection: All units undergo visual inspection, functional power-on test, and output channel verification prior to shipment.
- Authenticity: Holographic labels, firmware version, and serial number verified against Siemens SIOS database where applicable.
- Warranty: 12-month warranty on new units; 90-day warranty on tested-used/refurbished units.
- Packaging: Anti-static ESD packaging with original or equivalent protective foam insert.
- Lead Time: In-stock units ship within 1–3 business days. Out-of-stock items: 5–15 business days depending on sourcing channel.
How to Order
- Online: Add to cart directly on this page. Bulk pricing available — contact us for orders of 5+ units.
- Email: Send your BOM or part number list to support@konmask.com for a formal quotation.
- Phone/WhatsApp: +0086 19859288691 (Monday–Friday, 09:00–18:00 CST)
- Payment: T/T (bank transfer), PayPal, credit card via Shopify Payments, and trade assurance accepted.
- Shipping: DHL, FedEx, UPS express worldwide. Sea freight available for large orders.
- Export Documents: Commercial invoice, packing list, and certificate of origin available upon request.
Replacement & Compatibility FAQ
Q: Is 6ES7332-5HD01-0AB0 compatible with S7-400?
A: No. The S7-300 and S7-400 use different backplane bus architectures. This module is exclusively for S7-300 racks.
Q: Can I replace -0AB0 with a -0AB1 hardware revision?
A: In most cases yes, but verify using the Siemens Product Lifecycle Management (PLM) tool or SIOS to confirm the revision change does not affect your STEP 7 project’s hardware configuration.
Q: What is the difference between 6ES7332-5HD01-0AB0 and 6ES7332-5HD00-0AB0?
A: The -01 suffix denotes a later hardware revision with minor manufacturing improvements. Both are functionally identical and interchangeable in standard applications.
Q: Do you supply tested-used or refurbished units?
A: Yes. All refurbished units are tested to factory output specifications and include a 90-day warranty. Please specify your preference when ordering.
Q: Can this module be used with TIA Portal?
A: Yes. The 6ES7332-5HD01-0AB0 is supported in TIA Portal V13 and later via the S7-300 hardware catalog (HSP if required).
