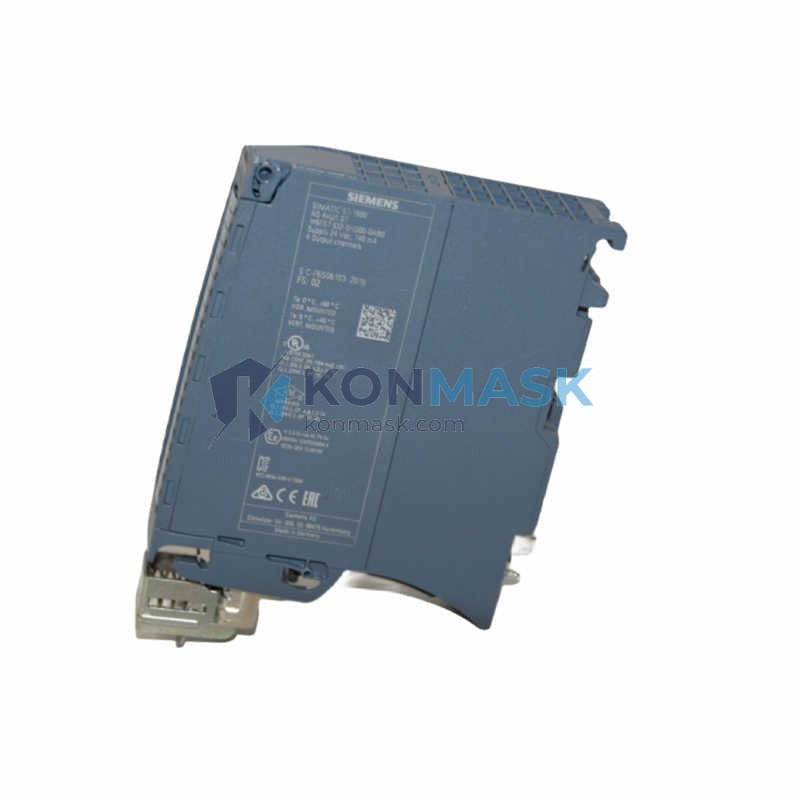

SIEMENS 6ES7532-5HD00-0AB0 Analog Output Module | Replacement, Equivalent & Selection Guide
The SIEMENS 6ES7532-5HD00-0AB0 is a high-precision analog output module (AQ 4×U/I ST) designed for the SIMATIC S7-1500 programmable logic controller family. It delivers 4 channels of configurable voltage or current output, making it a core component in process control, drive systems, and industrial automation applications. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Order Number | 6ES7532-5HD00-0AB0 |
| Product Family | SIMATIC S7-1500 |
| Module Type | Analog Output (AQ) |
| Number of Outputs | 4 channels |
| Output Signal | ±10 V / 0–10 V / 0–20 mA / 4–20 mA (configurable per channel) |
| Resolution | 16-bit (including sign) |
| Accuracy (25°C) | ±0.1% of full scale |
| Supply Voltage | DC 24 V (via backplane bus) |
| Load Impedance (Voltage) | ≥ 1 kΩ |
| Load Impedance (Current) | ≤ 600 Ω |
| Isolation | Channels isolated from backplane bus |
| Diagnostics | Wire break, short circuit, overflow/underflow |
| Dimensions (W×H×D) | 35 mm × 147 mm × 129 mm |
| Weight | Approx. 200 g |
| Operating Temperature | 0°C to +60°C |
| Protection Class | IP20 |
| Certifications | CE, UL, cULus, ATEX (Zone 2) |
Compatible Replacement & Equivalent Models
The following modules are functionally compatible or serve as direct/near-direct replacements for the 6ES7532-5HD00-0AB0 in most S7-1500 applications. Always verify firmware version and system configuration before substitution.
| Model | Brand | Channels | Output Type | Notes |
|---|---|---|---|---|
| 6ES7532-5HF00-0AB0 | SIEMENS | 8 | U/I ST | Upgraded 8-ch version; same form factor |
| 6ES7532-5ND00-0AB0 | SIEMENS | 4 | U/I HF | High-feature variant with HART support |
| 6ES7532-5HD00-0AB0 (refurb) | SIEMENS | 4 | U/I ST | Certified refurbished; same P/N |
| 1756-OF4 | Allen-Bradley | 4 | U/I | Cross-brand; requires gateway/adapter |
| NX-D3224 | OMRON | 4 | U/I | Cross-brand; protocol conversion needed |
Note: Cross-brand replacements require protocol adapters and are not plug-and-play substitutes. Contact Konmask for integration support.
Why Choose the Original Model
- Native S7-1500 Integration: Plug-and-play on the S7-1500 backplane — no gateway, no configuration overhead.
- 16-bit Resolution: Superior output precision for PID loops, valve positioners, and variable-speed drives.
- Per-Channel Configurability: Each of the 4 channels can be independently set to voltage or current mode via TIA Portal.
- Comprehensive Diagnostics: Wire-break and short-circuit detection reduce unplanned downtime.
- ATEX Zone 2 Certification: Suitable for use in potentially explosive atmospheres without additional barriers.
- Long-term Availability: Active product in SIEMENS catalog with guaranteed spare parts support.
Typical Applications
- Process control: flow, pressure, temperature setpoint output to field instruments
- Variable-speed drive (VFD) speed reference signals (0–10 V / 4–20 mA)
- Valve positioner control in water treatment and chemical plants
- Conveyor and material handling automation
- Building automation and HVAC control systems
- Pharmaceutical and food & beverage batch processing
- Power generation and energy management systems
System Compatibility
- PLC Platform: SIMATIC S7-1500 (all CPU variants including standard, F-CPU, T-CPU)
- Engineering Software: TIA Portal V13 SP1 and above
- Backplane: S7-1500 standard mounting rail (35 mm DIN rail)
- Communication: PROFINET (via CPU); no standalone fieldbus interface
- Power Supply: Powered via S7-1500 backplane bus (no separate 24 V wiring required for module logic)
- Not Compatible With: S7-300, S7-400, S7-1200 (different backplane and bus architecture)
Selection Guide
Use the criteria below to confirm the 6ES7532-5HD00-0AB0 is the right module for your application, or to identify a more suitable alternative:
| Requirement | Recommended Model |
|---|---|
| 4-ch AO, standard accuracy, S7-1500 | 6ES7532-5HD00-0AB0 ✓ (this product) |
| 8-ch AO, same form factor | 6ES7532-5HF00-0AB0 |
| 4-ch AO with HART communication | 6ES7532-5ND00-0AB0 |
| High-speed AO for motion control | 6ES7532-5HF00-0AB0 or ET 200SP AO variant |
| Intrinsically safe (Zone 0/1) | Requires SIEMENS Ex-i barriers + this module |
| Budget-constrained, refurbished acceptable | Certified refurb 6ES7532-5HD00-0AB0 (contact us) |
Quality Assurance & Sourcing
- Authenticity Guaranteed: All units sourced from authorized SIEMENS distributors or verified surplus channels with full traceability.
- Pre-shipment Testing: Each module undergoes functional verification before dispatch.
- Packaging: Original SIEMENS anti-static packaging or equivalent ESD-safe packaging.
- Warranty: 12-month warranty against manufacturing defects.
- Counterfeit Prevention: Serial number and firmware version verified against SIEMENS product database.
- Documentation: Certificate of conformity and test report available on request.
How to Order
- Confirm your S7-1500 CPU model and TIA Portal version.
- Verify the number of analog output channels required.
- Select quantity and add to cart, or contact us for bulk/project pricing.
- Provide your project PO number for B2B invoicing.
- Typical lead time: 3–7 business days (in-stock); expedited shipping available.
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use the 6ES7532-5HD00-0AB0 on an S7-1200 system?
A: No. The S7-1200 uses a different backplane and signal bus. This module is exclusively compatible with the S7-1500 platform.
Q: Is the 6ES7532-5HF00-0AB0 a drop-in replacement?
A: Yes, physically and electrically. The 8-channel variant fits the same slot and is recognized automatically by TIA Portal — you only need to update the hardware configuration.
Q: Can I mix voltage and current outputs on the same module?
A: Yes. Each of the 4 channels is independently configurable in TIA Portal for either voltage (±10 V / 0–10 V) or current (0–20 mA / 4–20 mA) output.
Q: Does this module support HART protocol?
A: No. For HART support, select the 6ES7532-5ND00-0AB0 (HF variant).
Q: What is the difference between ST (Standard) and HF (High Feature) variants?
A: The HF variant adds HART communication, isochronous mode, and higher diagnostic depth. The ST variant (this module) covers the majority of standard process control applications at a lower cost.
Q: Do you supply refurbished units?
A: Yes. Certified refurbished units are available with the same 12-month warranty. Contact us for pricing.
