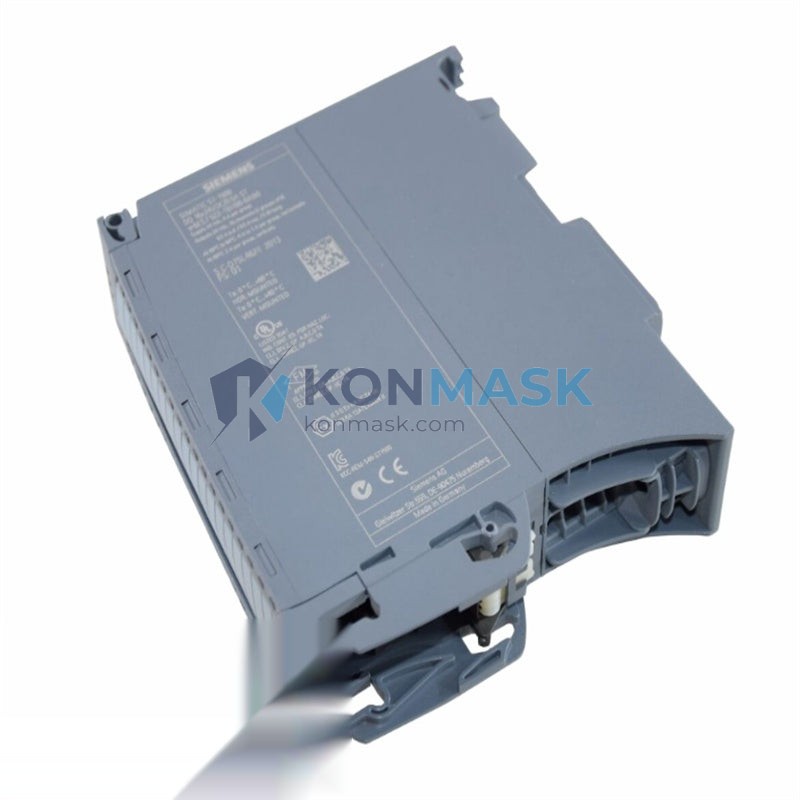

Genuine SIEMENS 6ES7522-1BH00-0AB0 Digital Output Module | S7-1500 Series – Verified Source
The SIEMENS 6ES7522-1BH00-0AB0 is a 16-channel digital output module designed for the SIMATIC S7-1500 programmable logic controller platform. At Konmask.com, every unit is sourced through verified supply channels and undergoes a documented 4-step quality inspection before shipment — giving industrial buyers the confidence they need when sourcing critical automation components.
Technical Specifications
- Part Number: 6ES7522-1BH00-0AB0
- Product Family: SIMATIC S7-1500
- Module Type: Digital Output (DQ)
- Number of Outputs: 16 channels
- Output Voltage: 24 V DC
- Output Current per Channel: 0.5 A
- Total Current (all channels): 4 A
- Output Type: Transistor (source output, P-switching)
- Short-Circuit Protection: Yes, electronic
- Diagnostic Functions: Wire-break detection, short-circuit detection
- Backplane Bus Interface: SIMATIC S7-1500 backplane bus
- Dimensions (W × H × D): 35 mm × 147 mm × 129 mm
- Weight: Approx. 291 g
- Operating Temperature: 0 °C to +60 °C
- Degree of Protection: IP20
- Certifications: CE, UL, cULus, ATEX (Zone 2)
Our 4-Step Quality Verification Process
Every 6ES7522-1BH00-0AB0 unit shipped from Konmask.com passes through the following verification steps:
- Step 1 – Source Authentication: Units are procured exclusively from authorized distributors or verified OEM surplus channels. Supplier documentation is retained on file.
- Step 2 – Physical Inspection: Each module is visually inspected for label integrity, housing condition, connector pin alignment, and absence of counterfeit indicators (e.g., misprinted logos, incorrect font weight, tampered seals).
- Step 3 – Functional Bench Test: Where applicable, modules are powered up and output channel continuity is verified using calibrated test equipment.
- Step 4 – Packaging & Documentation Check: Units are repackaged in anti-static ESD-safe materials. Original documentation, firmware version labels, and serial numbers are recorded and matched to the shipment.
Key Features & Benefits
- 16 individually addressable digital output channels — maximizes I/O density per rack slot
- Transistor (P-switching) outputs — fast switching, suitable for high-cycle actuator control
- Integrated diagnostics — wire-break and short-circuit detection reduce unplanned downtime
- Hot-swap capable within S7-1500 system — supports maintenance without full system shutdown
- Compact 35 mm width — optimizes cabinet space in dense control panel installations
- Wide operating temperature range — reliable performance in industrial environments
- Fully compatible with TIA Portal engineering software — seamless configuration and commissioning
Typical Applications
- Discrete manufacturing automation (conveyor control, actuator switching, solenoid valve control)
- Automotive assembly line control systems
- Packaging machinery and bottling lines
- Water treatment and utility plant automation
- Building automation and HVAC control panels
- Oil & gas process control (Zone 2 ATEX-rated environments)
- Food & beverage processing lines requiring hygienic automation
Compatible System Components
- CPU Modules: SIMATIC S7-1500 CPU 1511, 1513, 1515, 1516, 1517, 1518 series
- Power Supply: PM 70W 120/230VAC (6EP1333-4BA00) or PM 190W (6EP1334-4BA00)
- Front Connector: 6ES7592-1BM00-0XB0 (40-pin, screw type) or 6ES7592-1AM00-0XB0 (40-pin, push-in type)
- Rack / Mounting Rail: Standard S7-1500 mounting rail (various lengths available)
- Engineering Software: TIA Portal V13 SP1 or higher
- Related I/O Modules: 6ES7521-1BH00-0AB0 (DI 16×24VDC), 6ES7532-5HF00-0AB0 (AQ 8×U/I)
Global Sourcing & Shipping Capabilities
- Stock Location: China (Mainland) — with regional consolidation partners in EU and Southeast Asia
- Lead Time: In-stock units typically ship within 1–3 business days of order confirmation
- Shipping Methods: DHL Express, FedEx International Priority, UPS Worldwide, sea freight (LCL/FCL) for bulk orders
- Export Documentation: Commercial invoice, packing list, certificate of origin, and SIEMENS product datasheet provided upon request
- Customs & HS Code: HS 8537.10 — Boards, panels, consoles, desks, cabinets and other bases for electric control
- Minimum Order Quantity: 1 unit (bulk pricing available for 5+ units — contact us for a quote)
Certifications & Compliance Statement
The SIEMENS 6ES7522-1BH00-0AB0 carries the following certifications as issued by the original manufacturer:
- CE – Conformité Européenne (EU Machinery Directive, EMC Directive)
- UL / cULus – Underwriters Laboratories (North American market)
- ATEX – Zone 2 (II 3 G Ex nA IIC T4 Gc) for use in potentially explosive atmospheres
- RoHS – Restriction of Hazardous Substances compliant
Konmask.com does not modify, re-label, or alter any manufacturer certifications. All compliance documentation reflects the original SIEMENS factory specification.
