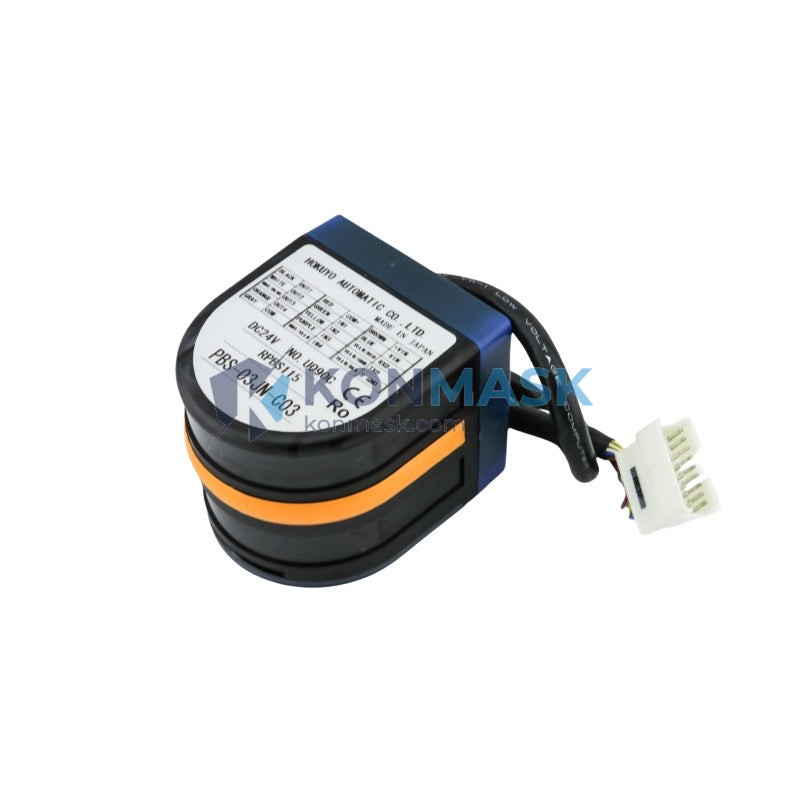

HOKUYO PBS-03JN (772-016855-002) Obstacle Detection Sensor | Replacement, Equivalent & Selection Guide
The HOKUYO PBS-03JN (Part No. 772-016855-002, System Code SS5YJ3-DUI00249) is a compact, high-precision obstacle detection sensor designed for industrial automation environments. With a detection range of 2–12 mm and IP-rated water resistance (H₂O), it is widely deployed in conveyor systems, robotic arms, and precision assembly lines. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make informed sourcing decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | PBS-03JN |
| Part Number | 772-016855-002 |
| System Code | SS5YJ3-DUI00249 |
| Internal Reference | 1270-01608 |
| Manufacturer | HOKUYO |
| Type | Obstacle Detection Sensor (Photoelectric) |
| Detection Range | 2 – 12 mm |
| Protection Rating | H₂O (Water Resistant) |
| Weight | Approx. 700 g (packaged) |
| Application Series | PBS Series |
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as functional replacements or equivalents for the PBS-03JN. Always verify electrical and mechanical compatibility before substitution:
- HOKUYO PBS-03JN-V – Voltage-output variant; same detection range, verify output signal type
- HOKUYO URG-04LX-UG01 – Laser range sensor for wider-range applications (>12 mm)
- KEYENCE PZ-G series – Comparable photoelectric sensors with similar short-range detection
- OMRON E3Z-D series – Industry-standard diffuse-reflective sensors for 2–15 mm range
- SICK WL4-3 series – Miniature photoelectric sensors with comparable IP ratings
Note: Konmask.com supplies genuine OEM HOKUYO PBS-03JN units. Third-party equivalents are listed for reference only.
Why Choose the Original HOKUYO PBS-03JN
- OEM Precision: Factory-calibrated detection range ensures consistent 2–12 mm accuracy without field adjustment
- System Integration: Designed to match SS5YJ3-DUI00249 system codes, ensuring plug-and-play compatibility with existing HOKUYO installations
- Proven Reliability: HOKUYO sensors are trusted in automotive, semiconductor, and food & beverage automation lines globally
- Water Resistance: H₂O-rated housing suitable for wash-down or humid industrial environments
- Reduced Downtime: Direct OEM replacement eliminates recalibration and re-wiring risks associated with third-party substitutes
Typical Applications
- Conveyor belt object detection and jam prevention
- Robotic arm end-of-travel sensing
- Precision assembly line part presence verification
- Semiconductor wafer handling equipment
- Packaging machinery position feedback
- AGV (Automated Guided Vehicle) proximity sensing
System Compatibility
The PBS-03JN is engineered for integration within HOKUYO PBS-series sensor networks and is compatible with the following system environments:
- HOKUYO SS5YJ3 series control systems
- Standard 24 VDC industrial sensor buses
- PLC I/O modules from Siemens, Mitsubishi, Omron, and Allen-Bradley (verify input card specifications)
- Industrial Ethernet and fieldbus architectures (via appropriate signal converters)
Selection Guide
Use the following criteria to confirm the PBS-03JN is the correct model for your application:
- Detection Range: Required sensing distance must fall within 2–12 mm
- Environment: Application involves moisture, wash-down, or high-humidity conditions → PBS-03JN H₂O rating is suitable
- System Code Match: Existing system references SS5YJ3-DUI00249 → direct OEM replacement confirmed
- Output Type: Verify NPN/PNP output requirement against your PLC input card specification
- Mounting: Confirm M-thread or bracket mounting compatibility with your machine frame
If your detection range exceeds 12 mm or your environment requires laser-based sensing, consider the HOKUYO URG-04LX-UG01 or contact our team for a custom selection recommendation.
Quality Assurance & Sourcing
- Genuine OEM Parts: All HOKUYO PBS-03JN units sourced through authorized industrial distribution channels
- Inspection: Each unit undergoes visual and functional pre-shipment inspection
- Traceability: Part numbers, batch codes, and system codes documented for full supply chain traceability
- Packaging: Anti-static, shock-resistant packaging to protect sensor optics during transit
- Warranty: Covered under Konmask.com standard warranty policy — contact support for details
How to Order
- Confirm your part number: PBS-03JN / 772-016855-002
- Specify quantity and required delivery timeline
- Contact us via email or phone for bulk pricing and lead time confirmation
- Submit your purchase order — we accept T/T, PayPal, and major credit cards
- Receive tracking information within 1–2 business days of order confirmation
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use a KEYENCE PZ-G sensor as a direct replacement for the PBS-03JN?
A: Functionally similar in detection range, but connector pinout, mounting dimensions, and output signal levels may differ. Full mechanical and electrical verification is required before substitution.
Q: Is the PBS-03JN still in production?
A: HOKUYO continues to support the PBS series. Konmask.com maintains stock of both new and refurbished units — contact us for current availability.
Q: What is the difference between PBS-03JN and PBS-03JN-V?
A: The “-V” suffix typically denotes a voltage-output variant. Confirm your PLC input card accepts the corresponding signal type before ordering.
Q: Do you provide a certificate of conformance (CoC)?
A: Yes. CoC documentation is available upon request for all OEM units.
Q: Can Konmask.com source other HOKUYO models not listed on the website?
A: Yes. Contact our team with your part number and we will provide availability and pricing within 24 hours.
