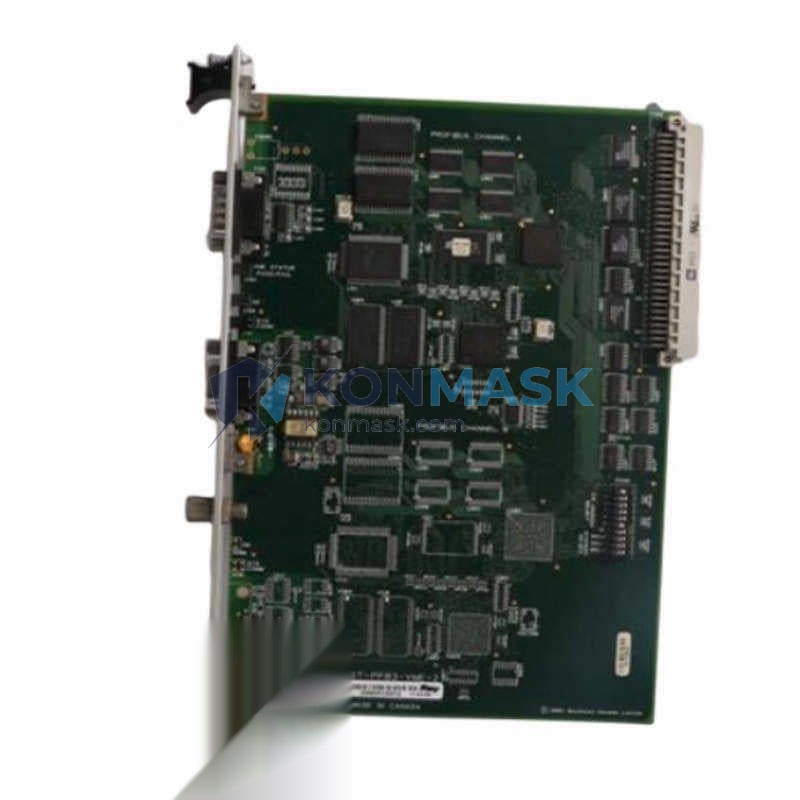

SST 5136-PFB-PCI — PROFIBUS-DP Master Communication Card | 5136-PFB Series
Engineering Background
The SST 5136-PFB-PCI is a high-performance PROFIBUS-DP Master communication card designed for PCI bus architectures. Developed by SST (Woodhead / Molex), the 5136-PFB series has been a trusted fieldbus interface solution in industrial automation for over two decades. It enables PC-based control systems, SCADA hosts, and DCS workstations to communicate natively with PROFIBUS-DP slave devices at up to 12 Mbps — without requiring a dedicated PLC CPU.
Product Positioning
Targeted at automation engineers who need a reliable, software-configurable PROFIBUS-DP master interface for Windows-based industrial PCs, the 5136-PFB-PCI bridges legacy fieldbus infrastructure with modern PC-based control architectures. It is widely deployed in automotive, process, and discrete manufacturing environments where PROFIBUS-DP remains the dominant fieldbus standard.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 5136-PFB-PCI |
| Manufacturer | SST (Woodhead / Molex) |
| Bus Interface | PCI (32-bit, 33 MHz, 5V/3.3V universal) |
| Fieldbus Protocol | PROFIBUS-DP (EN 50170 / IEC 61158) |
| Node Role | DP Master (Class 1) |
| Baud Rates | 9.6 kbps – 12 Mbps (auto-detect) |
| Max DP Slaves | 125 per segment |
| Onboard Memory | Dual-port RAM for host data exchange |
| Processor | Dedicated onboard microcontroller (protocol offload) |
| Connector | DB-9 female (PROFIBUS standard pinout) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Power Consumption | ≤ 5W (from PCI slot) |
| Weight | 140 g |
| OS Support | Windows XP / 7 / 10 / Server; Linux (driver dependent) |
| Software / API | SST PROFIBUS Configurator; DLL / ActiveX API |
| Certifications | CE, FCC Class A, PROFIBUS certified |
| Form Factor | Half-length PCI card |
Proven Application Environments
- Automotive Assembly Lines — Master controller for PROFIBUS-DP robot cells and servo drives
- Process Plants — PC-based SCADA host communicating with distributed I/O (Siemens ET 200, Phoenix Contact Inline)
- Discrete Manufacturing — Integration of third-party PROFIBUS slaves into PC-based MES/SCADA systems
- OEM Machine Builders — Embedded in industrial PCs as the primary fieldbus master
- Test & Measurement — PROFIBUS network analysis and diagnostics from a PC workstation
- Legacy System Migration — Bridging existing PROFIBUS-DP networks to modern PC control platforms
Engineering Advantages
- Protocol Offload Architecture — Onboard microcontroller handles all PROFIBUS-DP timing and token management, freeing the host CPU for application logic
- Dual-Port RAM Interface — Low-latency, deterministic data exchange between host application and fieldbus network
- Auto Baud Rate Detection — Simplifies commissioning on existing networks without manual configuration
- Full DP Master Class 1 Compliance — Supports cyclic data exchange, acyclic services (DPV1), and diagnostic reads
- Mature SDK Ecosystem — Well-documented DLL/API with sample code for C, C++, VB, and LabVIEW
- Universal PCI Slot — 5V/3.3V signaling compatibility ensures broad industrial PC motherboard support
System Architecture & Signal Flow
The 5136-PFB-PCI installs into any available PCI slot on the host industrial PC. The onboard microcontroller autonomously manages the PROFIBUS-DP token ring and cyclic I/O exchange with up to 125 slave nodes. Process data is written to and read from the dual-port RAM by the host application via the SST DLL API — achieving deterministic cycle times independent of Windows OS scheduling jitter. The DB-9 connector interfaces directly to the PROFIBUS cable (termination resistors must be enabled at network endpoints per EN 50170).
Signal path: Host Application → DLL API → Dual-Port RAM → Onboard MCU → PROFIBUS-DP Network → Slave Devices
Sourcing & Quality Verification
- All units sourced from authorized industrial distributors or verified OEM surplus channels
- Each card inspected for physical integrity, connector condition, and firmware version prior to shipment
- Original SST part number label and revision markings verified against manufacturer documentation
- Functional test available on request for high-volume orders
- Traceability documentation provided upon request
Procurement Process
- Submit your inquiry via support@konmask.com or the product page RFQ form
- Receive stock confirmation and lead time within 1 business day
- Proforma invoice issued; payment via T/T, PayPal, or credit card
- Shipment via DHL / FedEx / UPS with full tracking; export documentation included
- Post-delivery technical support available via email
Technical FAQ
Q: Is the 5136-PFB-PCI compatible with Windows 10 64-bit?
A: Yes. SST provides 64-bit drivers for Windows 7, 8, and 10. Confirm the driver version matches your OS build before installation.
Q: Can this card operate as a PROFIBUS-DP slave?
A: No. The 5136-PFB-PCI is a DP Master (Class 1) only. For slave functionality, refer to the SST 5136-PFB-PCI-SLAVE variant.
Q: What is the maximum cable length at 12 Mbps?
A: Per EN 50170, maximum segment length at 12 Mbps is 100 m. Use PROFIBUS-certified cable (Type A) and proper termination.
Q: Does it support PROFIBUS-PA?
A: No. This card supports PROFIBUS-DP only. PA requires a DP/PA coupler/link device.
Q: Is GSD file configuration required?
A: Yes. Import slave GSD files into the SST PROFIBUS Configurator to define the I/O map before going online.
