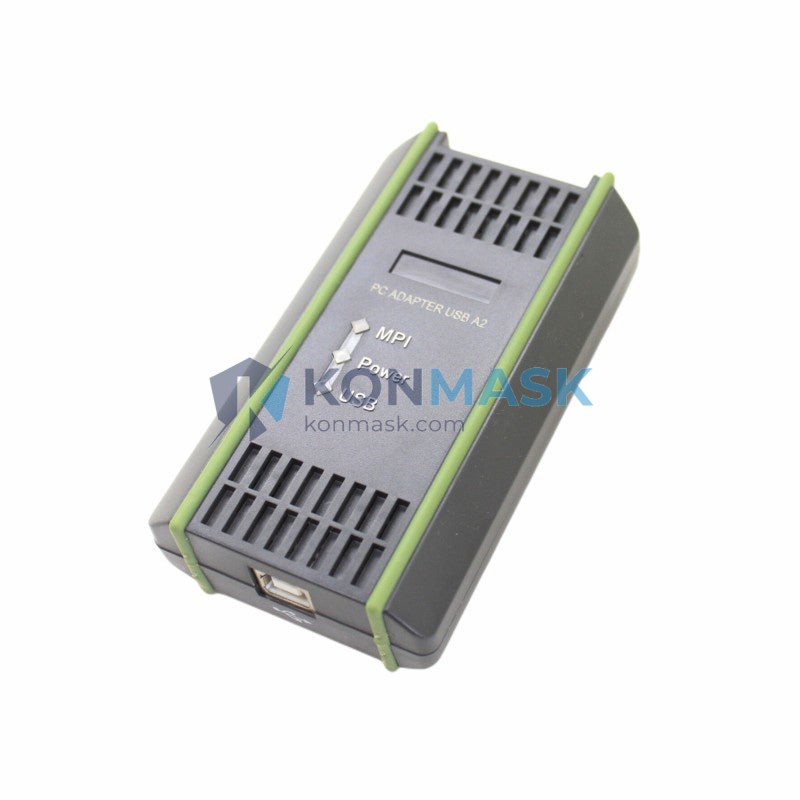

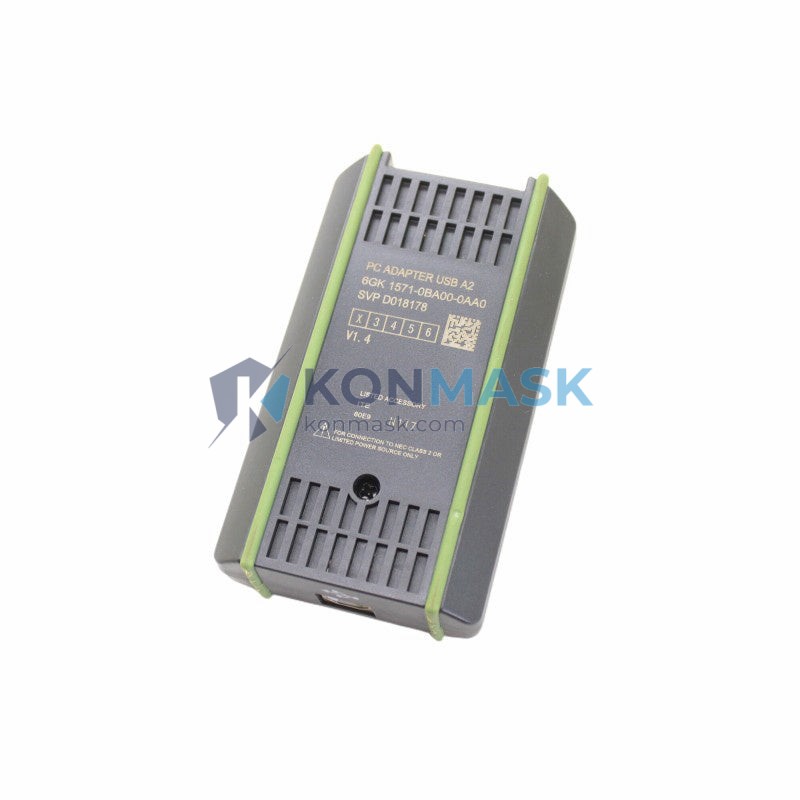

SIEMENS 6GK1571-0BA00-0AA0 – USB PC Adapter for PROFIBUS DP | SIMATIC NET Series
Engineering Background
The SIEMENS 6GK1571-0BA00-0AA0 is a USB-based PC Adapter designed to connect a standard engineering workstation directly to a PROFIBUS DP network. As part of the SIMATIC NET communication portfolio, this adapter eliminates the need for a dedicated CP card, enabling cost-effective and portable access to PROFIBUS segments for commissioning, diagnostics, and programming tasks.
Product Positioning
Targeted at automation engineers, system integrators, and maintenance teams working with SIMATIC S7-300/400/1500 PLCs, ET 200 distributed I/O, and third-party PROFIBUS DP slaves. The 6GK1571-0BA00-0AA0 is the standard tool for field-level access without requiring a PCI/PCIe slot, making it ideal for laptop-based engineering environments and on-site commissioning.
Complete Technical Specifications
- Order Number: 6GK1571-0BA00-0AA0
- Product Family: SIMATIC NET PC Adapter USB
- Interface (PC Side): USB 1.1 / USB 2.0 compatible

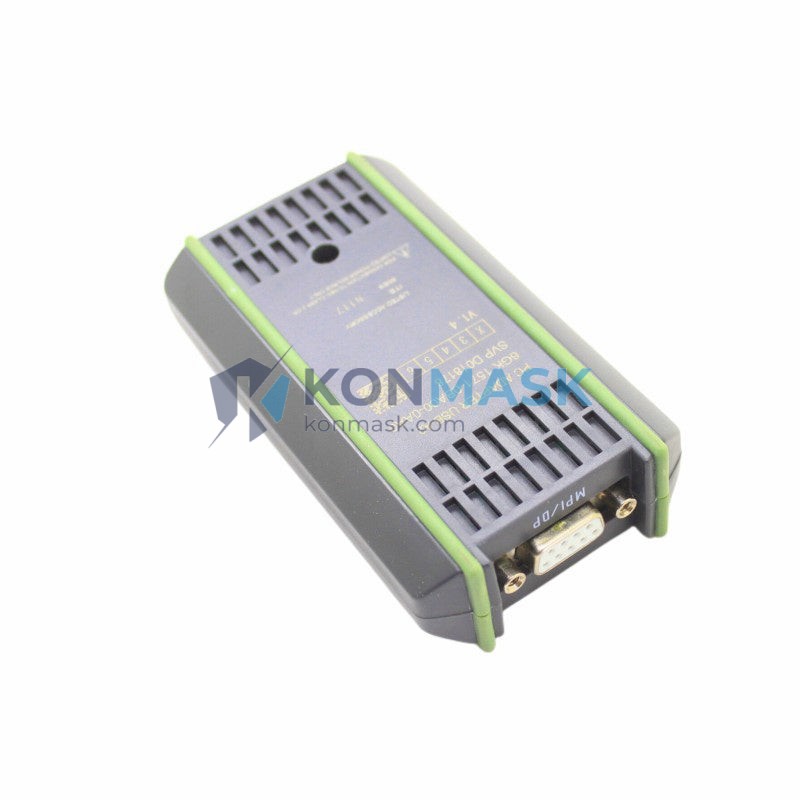

- Interface (Field Side): PROFIBUS DP (RS-485), 9-pin Sub-D female connector
- Transmission Rate (PROFIBUS): 9.6 kbps to 12 Mbps (auto-detection)
- Bus Protocol: PROFIBUS DP (EN 50170 / IEC 61158)
- Power Supply: Powered via USB bus (no external power required)
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Relative Humidity: 5% to 95% (non-condensing)
- Degree of Protection: IP20
- Dimensions (W × H × D): Approx. 30 × 62 × 15 mm (adapter body)
- Weight: Approx. 500 g (including cable and packaging)
- Cable Length: USB cable approx. 5 m
- Supported OS: Windows XP / Vista / 7 / 10 (32/64-bit); Windows Server editions
- Driver / Software: SIMATIC NET PC Software (STEP 7 / TIA Portal compatible)
- Certifications: CE, UL, cUL, FM (Class I, Div. 2)
- Country of Origin: Germany
Proven Application Environments
- SIMATIC S7-300 / S7-400 / S7-1500 PLC programming and diagnostics via PROFIBUS DP
- ET 200M / ET 200S / ET 200SP distributed I/O commissioning
- SINAMICS / MICROMASTER drive parameter configuration over PROFIBUS
- Third-party PROFIBUS DP slave device integration and testing
- On-site maintenance and firmware updates without a dedicated CP card
- Factory acceptance testing (FAT) and site acceptance testing (SAT) environments
- Process automation panels (HMI) connected via PROFIBUS MPI/DP
Engineering Advantages
- No PCI Slot Required: USB connectivity enables use on any modern laptop or desktop without hardware modification.
- Auto Baud Rate Detection: Automatically adapts to network baud rates from 9.6 kbps to 12 Mbps — no manual configuration needed.
- Plug-and-Play Driver: Fully supported by SIMATIC NET software stack; recognized automatically by STEP 7 and TIA Portal.
- Bus-Powered: Draws power from USB — no external PSU or battery required in the field.
- Galvanic Isolation: Integrated isolation between USB and PROFIBUS sides protects both the PC and the field network.
- Compact & Portable: Lightweight form factor fits in a tool bag; ideal for mobile commissioning engineers.
- Backward Compatible: Works with legacy S7-300/400 installations as well as current S7-1500 systems.
System Architecture & Signal Flow
The 6GK1571-0BA00-0AA0 operates as a transparent protocol bridge between the USB host (engineering PC) and the PROFIBUS DP segment:
- USB Host Interface: The adapter enumerates as a virtual COM / HID device on the PC. SIMATIC NET drivers abstract this into a standard S7ONLINE / DP interface accessible by STEP 7 and TIA Portal.
- Internal Protocol Conversion: An embedded microcontroller handles PROFIBUS DP framing, token passing, and baud rate negotiation autonomously.
- RS-485 Physical Layer: The 9-pin Sub-D connector interfaces directly to the PROFIBUS DP bus cable (shielded twisted pair, 150 Ω termination).
- Galvanic Isolation Stage: Optical isolation between USB and RS-485 domains prevents ground loops and protects the PC from field-side transients.
- Bus Termination: The adapter includes a switchable bus terminator; activate when the adapter is at either physical end of the PROFIBUS segment.
Sourcing & Quality Verification
- Origin: Sourced from authorized SIEMENS distribution channels and verified surplus stock with full traceability.
- Inspection: Each unit undergoes visual inspection, label verification (order number, date code, firmware version sticker), and functional USB enumeration test prior to dispatch.
- Authenticity: Holographic SIEMENS labels, correct Sub-D connector finish, and OEM packaging are verified against known-good reference units.
- Warranty: 12-month Konmask warranty covering manufacturing defects. RMA process initiated within 48 hours of confirmed fault report.
- Documentation: Original SIEMENS datasheet, CE declaration of conformity, and installation guide available upon request.
Procurement Process
- Inquiry: Submit your BOM or part number to support@konmask.com or via the product page quote form.
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 1 business day.
- Order Confirmation: Purchase order accepted via email, Alibaba Trade Assurance, or direct Shopify checkout.
- Inspection & Dispatch: Unit inspected, photographed, and dispatched within 1–3 business days. Tracking number provided automatically.
- Delivery: DHL Express / FedEx International Priority standard. EXW Xiamen available for freight forwarder arrangements.
- After-Sales: Technical support available via email and WhatsApp (+0086 19859288691) for installation and driver configuration queries.
Technical FAQ
Q: Is the 6GK1571-0BA00-0AA0 compatible with TIA Portal V16/V17/V18?
A: Yes. The adapter is supported by SIMATIC NET PC Software V14 and above, which is compatible with TIA Portal V13 through V18. Ensure the SIMATIC NET software version matches your TIA Portal version.
Q: Can this adapter be used for MPI communication as well as PROFIBUS DP?
A: The 6GK1571-0BA00-0AA0 supports PROFIBUS DP and MPI protocols. MPI access to S7-300/400 CPUs is fully supported via STEP 7 and TIA Portal when using the PROFIBUS/MPI physical interface.
Q: What is the maximum cable length for the USB connection?
A: The supplied USB cable is approximately 5 m. USB 2.0 specification allows up to 5 m per segment; USB hubs or active extension cables can extend this if required.
Q: Does the adapter require external power in the field?
A: No. The adapter is fully bus-powered via USB. No external power supply or batteries are required.
Q: Is Windows 10 64-bit supported?
A: Yes, with SIMATIC NET PC Software V14 SP1 or later. Ensure the correct driver package is installed from the SIEMENS Industry Online Support portal.
Q: What is the difference between 6GK1571-0BA00-0AA0 and 6GK1571-1AA00?
A: The 6GK1571-0BA00-0AA0 is the USB variant (PC Adapter USB). The 6GK1571-1AA00 is the RS-232 serial variant (PC Adapter). The USB version is recommended for all modern engineering workstations.
