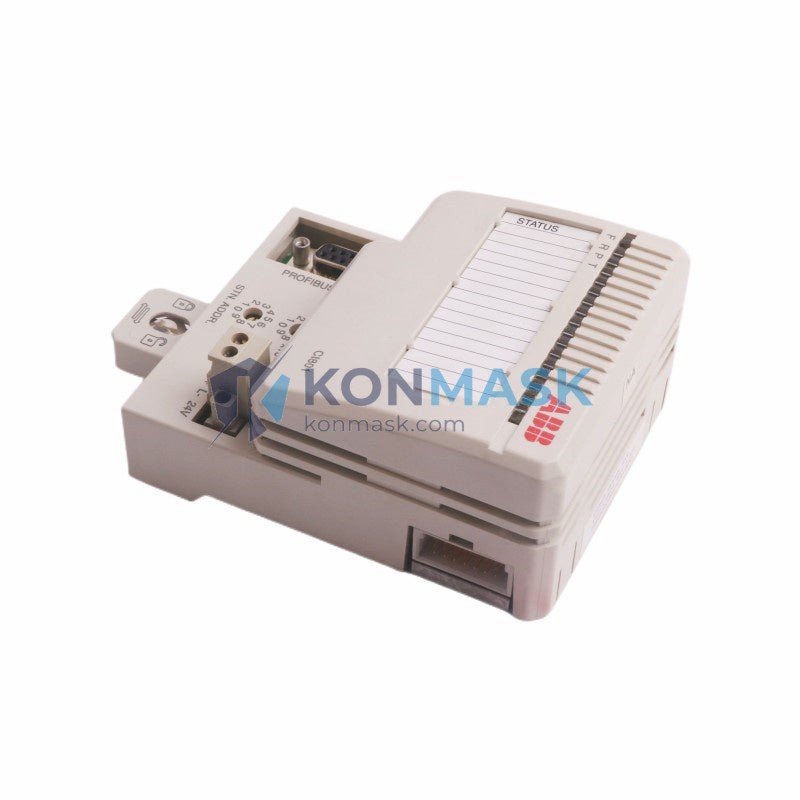

ABB CI801 3BSE022366R1 – PROFIBUS DP Interface Module | AC800M Series
Engineering Background
The ABB CI801 (Part No. 3BSE022366R1) is a dedicated PROFIBUS DP communication interface module designed for integration within ABB’s AC800M Modular Controller platform — the backbone of ABB’s System 800xA Distributed Control System (DCS). Engineered for deterministic fieldbus communication in process-critical environments, the CI801 bridges the AC800M controller with PROFIBUS DP slave devices including remote I/O, drives, positioners, and intelligent field instruments.
Product Positioning
Targeted at process automation engineers and system integrators operating in oil & gas, power generation, chemical processing, and pulp & paper industries, the CI801 delivers reliable, high-speed PROFIBUS DP master functionality directly within the AC800M backplane — eliminating the need for external gateways and reducing system complexity. Konmask.com supplies this module as a genuine, tested component with full traceability documentation available upon request.
Complete Technical Specifications
| Part Number | 3BSE022366R1 |
| Module Type | PROFIBUS DP Master Interface Module |
| Platform | ABB AC800M Modular Controller |
| Communication Protocol | PROFIBUS DP (EN 50170 / IEC 61158) |
| PROFIBUS Role | Class 1 DP Master (DPM1) |
| Max. Slave Devices | Up to 125 DP slaves per segment |
| Baud Rate | 9.6 kbps – 12 Mbps (auto-detect) |
| Backplane Interface | AC800M internal module bus |
| Redundancy Support | Supported via AC800M redundancy architecture |
| Power Supply | Supplied via AC800M backplane (no external PSU required) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Protection Class | IP20 |
| Weight | Approx. 300 g |
| Certifications | CE, UL, cUL |
| Firmware | Configurable via ABB Control Builder M |
| Dimensions | Standard AC800M module form factor |
Proven Application Environments
- Oil & Gas: Upstream wellhead control, downstream refinery DCS integration with PROFIBUS-enabled field instruments (pressure transmitters, control valves)
- Power Generation: Turbine control systems, boiler management, and generator protection relay integration via PROFIBUS DP
- Chemical & Petrochemical: Reactor control loops with distributed I/O racks and variable frequency drives on PROFIBUS networks
- Pulp & Paper: Process line automation with AC800M as the central controller communicating to remote I/O via CI801
- Water & Wastewater: SCADA-integrated pump station control with PROFIBUS DP slave instrumentation
- Pharmaceutical: GMP-compliant batch process control with validated AC800M / System 800xA configurations
Engineering Advantages
- Native Backplane Integration: Plugs directly into the AC800M module rack — no external cabling or gateway hardware required, minimizing latency and failure points
- Full DP Master Class 1 Compliance: Supports cyclic data exchange with all standard PROFIBUS DP slaves; compatible with GSD file-based device configuration
- High Baud Rate Flexibility: Auto-negotiates from 9.6 kbps to 12 Mbps, accommodating both legacy and modern PROFIBUS networks on the same segment
- Redundancy-Ready: Supports AC800M controller redundancy configurations for SIL-rated and high-availability process applications
- Seamless 800xA Integration: Fully supported within ABB System 800xA engineering environment — device objects, faceplates, and diagnostics available natively
- Compact Form Factor: Standard AC800M module width preserves rack space in congested control cabinets
System Architecture & Signal Flow
The CI801 occupies a module slot in the AC800M controller unit (CEX bus). The AC800M CPU communicates with the CI801 via the internal module bus. The CI801 then acts as PROFIBUS DP Master on the external fieldbus segment, cyclically polling configured slave devices. Process data (I/O values, status, diagnostics) is mapped directly into the AC800M application data space and accessible to Control Builder M function blocks in real time.
Typical topology: AC800M CPU → [CEX Backplane] → CI801 → [PROFIBUS DP cable, 9-pin D-Sub] → DP Slaves (Remote I/O, Drives, Transmitters)
Termination resistors must be enabled at both physical ends of the PROFIBUS segment. Cable specification: shielded twisted pair, Type A (IEC 61158-2).
Sourcing & Quality Verification
- Genuine ABB Origin: All CI801 modules supplied by Konmask.com are sourced from authorized ABB distribution channels or verified industrial surplus with full part traceability
- Pre-shipment Inspection: Each unit undergoes visual inspection, label verification (3BSE022366R1 part number, ABB hologram), and firmware version check prior to dispatch
- Packaging: Shipped in anti-static ESD packaging with foam cushioning; original ABB packaging preserved where available
- Documentation: Certificate of conformity, test report, and datasheet available upon request for project documentation requirements
- Warranty: 12-month operational warranty against manufacturing defects; DOA replacement within 7 business days
Procurement Process
- Inquiry: Submit your RFQ via support@konmask.com with required quantity, delivery timeline, and project details
- Quotation: Receive itemized quotation with unit price (HKD/USD), lead time, and shipping options within 24 business hours
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for payment processing
- Quality Check: Pre-shipment inspection completed; photos and test report shared with buyer upon request
- Shipping: DHL Express / FedEx International Priority standard; EXW, FOB, CIF Incoterms available for bulk orders
- After-Sales: Technical support available for installation commissioning questions; replacement RMA process initiated within 48 hours of DOA claim
Technical FAQ
Q: Is the CI801 compatible with AC800M PM851, PM856, and PM860 CPUs?
A: Yes. The CI801 is compatible with all AC800M CPU variants that support the CEX module bus, including PM851, PM856, PM860, and PM861 processors.
Q: Can the CI801 operate as a PROFIBUS DP slave?
A: No. The CI801 functions exclusively as a Class 1 DP Master. For slave functionality within AC800M, refer to the CI840A module.
Q: How many CI801 modules can be installed per AC800M controller unit?
A: Up to 8 communication interface modules (CI-type) can be installed per AC800M controller unit, subject to backplane slot availability and CPU load constraints.
Q: What software is required to configure the CI801?
A: Configuration is performed using ABB Control Builder M (CBM) Professional or Standard edition. GSD files for connected slave devices must be imported into the CBM hardware library.
Q: Does the CI801 support PROFIBUS PA?
A: No. The CI801 supports PROFIBUS DP only. PROFIBUS PA segments require a DP/PA coupler (e.g., ABB IMFP12) connected downstream of the CI801 DP port.
Q: What is the maximum cable length per PROFIBUS segment?
A: At 12 Mbps: 100 m; at 1.5 Mbps: 200 m; at 500 kbps: 400 m; at 187.5 kbps: 1000 m; at 9.6–93.75 kbps: 1200 m. Repeaters can extend total network length.
