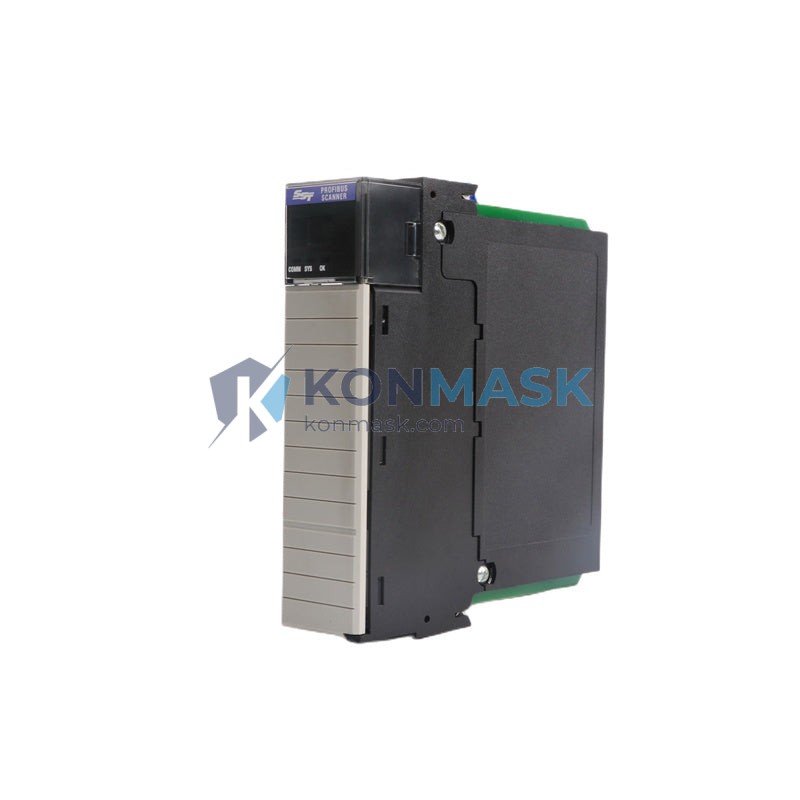

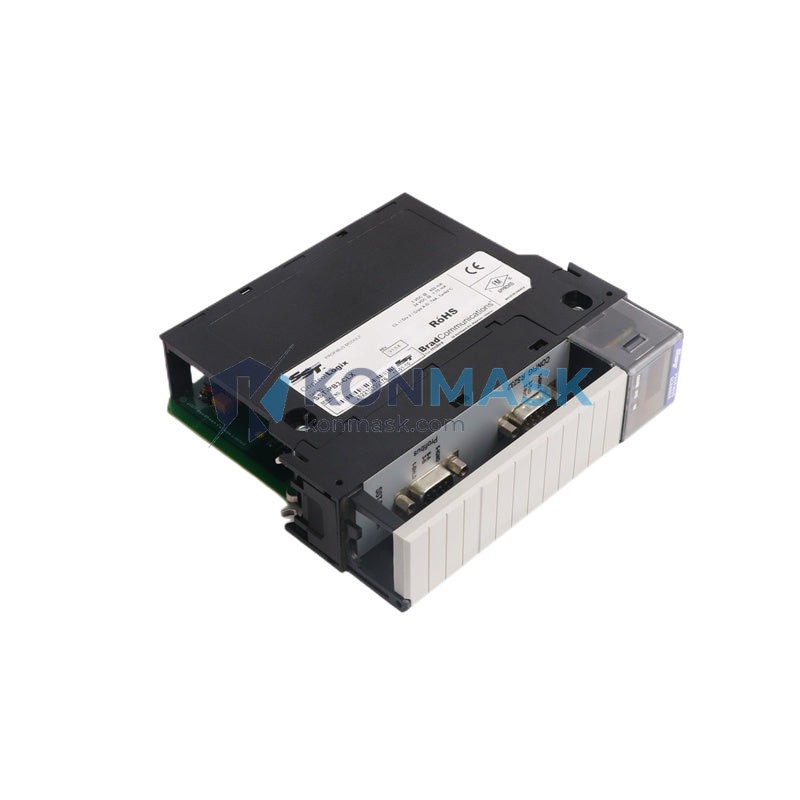

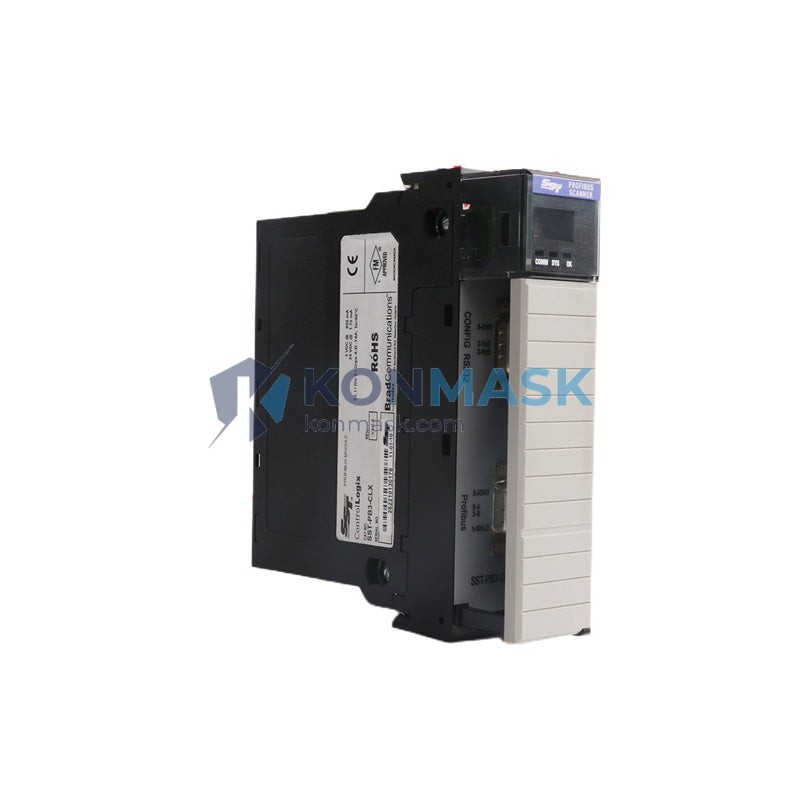

SST SST-PB3-CLX — PROFIBUS DP Master/Slave Scanner | ControlLogix Platform
工程背景:PROFIBUS DP(Decentralized Periphery)是全球工厂自动化领域部署最广泛的现场总线协议之一,广泛应用于过程控制、离散制造及基础设施行业。SST-PB3-CLX 作为 Allen-Bradley ControlLogix 背板的原生通信扫描模块,为工程师提供了将 ControlLogix PLC 无缝接入 PROFIBUS DP 网络的标准化解决方案。
产品定位:SST-PB3-CLX 专为需要在 ControlLogix 平台上实现高可靠性 PROFIBUS DP 主站或从站通信的系统集成商与 OEM 设计。该模块支持 Class 1 & Class 2 主站功能,适用于驱动器、I/O 分布站、传感器及仪表的集中管理,是 ControlLogix 系统向 PROFIBUS 网络扩展的首选接口卡。
Complete Technical Specifications
| Part Number | SST-PB3-CLX |
| Manufacturer | SST (Woodhead / Molex) |
| Platform Compatibility | Allen-Bradley ControlLogix (1756 backplane) |
| Protocol | PROFIBUS DP (EN 50170 / IEC 61158) |
| Master Class | Class 1 Master (DPM1) & Class 2 Master (DPM2) |
| Slave Mode | Supported |
| Max Slaves | Up to 125 slave nodes per network |
| Baud Rates | 9.6 kbps – 12 Mbps (auto-detect) |
| I/O Data Size | Up to 244 bytes input / 244 bytes output per slave |
| Backplane Interface | ControlLogix 1756 backplane (standard slot) |
| Physical Interface | DB9 female PROFIBUS connector |
| Termination | External bus termination required at cable ends |
| Power Consumption | Supplied via ControlLogix backplane |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Weight | 240 g |
| Certifications | CE, UL |
| Configuration Software | SST PROFIBUS Configuration Tool / RSLogix 5000 / Studio 5000 |
Proven Application Environments
- Automotive Manufacturing: Body-in-white welding lines, paint shop conveyor control, and press automation with distributed PROFIBUS I/O.
- Oil & Gas / Petrochemical: Integration of PROFIBUS-enabled field instruments (pressure transmitters, control valves) into ControlLogix-based DCS/PLC hybrid architectures.
- Water & Wastewater Treatment: Pump station control with remote PROFIBUS I/O panels and variable frequency drives.
- Food & Beverage: Hygienic process lines requiring deterministic scan cycles and reliable slave diagnostics.
- Power Generation & Utilities: Substation automation and turbine control systems with PROFIBUS PA/DP gateway integration.
- Material Handling: Conveyor systems, sortation equipment, and AGV coordination via PROFIBUS DP master scanning.
Engineering Advantages
- Native ControlLogix Integration: Occupies a standard 1756 backplane slot; data mapped directly to controller tags via produced/consumed tag model — no external gateway required.
- Dual Master Class Support: Operates as both DPM1 (cyclic I/O exchange) and DPM2 (acyclic parameter access), enabling full PROFIBUS DP-V1 functionality for advanced device parameterization.
- High-Speed Determinism: Supports up to 12 Mbps baud rate with deterministic scan cycles, critical for motion-adjacent and high-throughput applications.
- Comprehensive Diagnostics: Per-slave diagnostic data accessible via controller tags, enabling predictive maintenance and rapid fault isolation.
- GSD File Compatibility: Accepts standard GSD/GSDML device description files for plug-and-play slave configuration.
- Redundancy Ready: Compatible with ControlLogix redundancy chassis configurations for high-availability system designs.
System Architecture & Signal Flow
The SST-PB3-CLX resides in the ControlLogix 1756 chassis and communicates with the Logix controller via the backplane. The module acts as the PROFIBUS DP master on the field network, cyclically exchanging I/O data with up to 125 slave devices. Configuration is performed using the SST PROFIBUS Configuration Tool, which generates the network configuration file loaded into the module. I/O data is mapped to controller tags and accessed in ladder logic, function block, or structured text programs within Studio 5000 / RSLogix 5000.
Signal Flow: Studio 5000 Controller Tags ↔ 1756 Backplane ↔ SST-PB3-CLX ↔ PROFIBUS DP Cable (DB9) ↔ Field Slave Devices (Drives, I/O, Instruments)
Sourcing & Quality Verification
- All units sourced from authorized distributors or verified surplus channels with documented chain of custody.
- Pre-shipment inspection includes visual examination, label verification (part number, revision, date code), and functional power-on check where applicable.
- Original manufacturer packaging preserved where available; anti-static packaging applied for all shipments.
- Counterfeit-risk mitigation: part markings cross-referenced against SST/Molex authentic product databases.
- Certificate of conformance (CoC) available upon request for qualified orders.
Procurement Process
- Step 1 — Inquiry: Submit your requirement via the product page or email [email protected] with quantity, required delivery date, and destination.
- Step 2 — Quote & Lead Time: Our team responds within 1 business day with pricing, availability, and estimated lead time.
- Step 3 — Order Confirmation: Purchase order or online checkout accepted. Proforma invoice issued for wire transfer payments.
- Step 4 — Inspection & Dispatch: Unit inspected, packed, and dispatched with tracking. Export documentation (commercial invoice, packing list) provided for international orders.
- Step 5 — After-Sales Support: Technical support available post-delivery for installation and commissioning queries.
Technical FAQ
Q: Is the SST-PB3-CLX compatible with all ControlLogix chassis sizes?
A: Yes. It is compatible with all standard 1756 ControlLogix chassis (4, 7, 10, 13, 17-slot) and does not require a specific slot position.
Q: Can this module operate as a PROFIBUS slave?
A: Yes. The SST-PB3-CLX supports both master and slave modes, configurable via the SST configuration tool.
Q: What is the maximum cable length for PROFIBUS DP at 12 Mbps?
A: At 12 Mbps, the maximum segment length is 100 meters. Longer distances require repeaters or operation at lower baud rates (e.g., 1.5 Mbps = 200 m, 93.75 kbps = 1200 m).
Q: Does the module support PROFIBUS DP-V1 acyclic services?
A: Yes, as a Class 2 master (DPM2), the SST-PB3-CLX supports DP-V1 acyclic read/write services for device parameterization and diagnostics.
Q: Is firmware upgrade available in the field?
A: Firmware updates are supported via the SST configuration utility. Contact Konmask support for the latest firmware version applicable to your hardware revision.
Q: What Studio 5000 / RSLogix 5000 versions are supported?
A: The module is compatible with RSLogix 5000 v16 and above, and Studio 5000 Logix Designer v21 and above. Refer to the SST release notes for version-specific compatibility.
