PROFIBUS VME Integration Solution – SST SST-PB3-VME-2 | PB3-VME Series
Where This Product Is Used

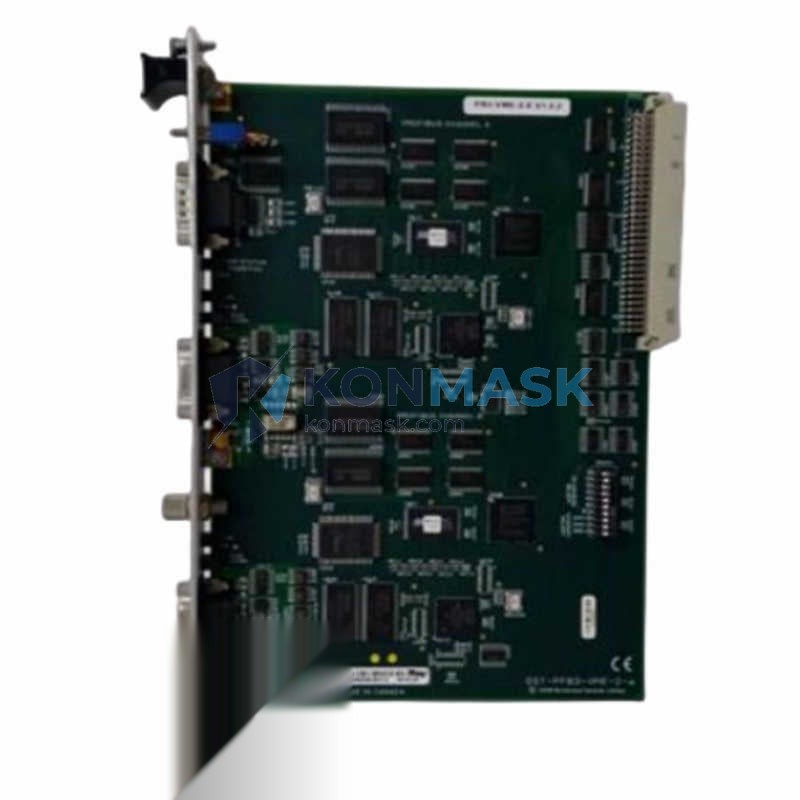

The SST SST-PB3-VME-2 is a PROFIBUS DP network interface card designed for VME bus-based control architectures. It is widely deployed in the following industrial environments:
- Distributed Control Systems (DCS): Integrates VME-based controllers into PROFIBUS DP field networks, enabling communication with remote I/O racks, drives, and instrumentation.
- Automotive Manufacturing: Used in body-shop and paint-line automation where VME platforms coordinate PROFIBUS-connected robots and PLCs.
- Oil & Gas Processing: Deployed in safety-instrumented and process-control panels requiring deterministic PROFIBUS communication over VME backplanes.
- Power Generation & Utilities: Supports turbine control and substation automation systems built on VME hardware with PROFIBUS field device networks.
- Semiconductor Fabrication: Enables VME-based equipment controllers to communicate with PROFIBUS-connected process modules and sensors.
- Water & Wastewater Treatment: Connects VME supervisory controllers to PROFIBUS field instruments including flow meters, valves, and analyzers.
Technical Specifications
| Part Number | SST-PB3-VME-2 |
| Manufacturer | SST (Woodhead / Molex SST) |
| Form Factor | VME Bus (6U) |
| Protocol | PROFIBUS DP (EN 50170 / IEC 61158) |
| PROFIBUS Ports | 2 × independent PROFIBUS DP channels |
| Baud Rate | 9.6 kbps – 12 Mbps (auto-detect) |
| Max Slaves per Channel | Up to 125 slave devices |
| Bus Interface | VMEbus (IEEE 1014-1987) |
| Connector | DB-9 female (per PROFIBUS standard) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Weight | 1,500 g (approx.) |
| Power Supply | Via VME backplane (+5 V) |
| Operating System Support | VxWorks, LynxOS, Windows NT (legacy), QNX |
Why Engineers Specify This Model
- Dual-Channel Architecture: Two independent PROFIBUS DP ports allow a single card to manage separate field networks or provide redundant communication paths — reducing slot count and system complexity.
- Full DP Master/Slave Flexibility: Configurable as Class 1 or Class 2 DP Master, or as a DP Slave, making it adaptable across diverse system topologies without hardware changes.
- High-Speed Determinism: Supports baud rates up to 12 Mbps with deterministic cycle times critical for motion control and process synchronization applications.
- VME Ecosystem Compatibility: Designed for seamless integration into existing VME chassis without requiring backplane modifications or additional interface hardware.
- Proven Field Reliability: Widely deployed in mission-critical industrial environments with a long service history, reducing qualification risk for brownfield upgrades.
- Software Driver Ecosystem: Supported by SST’s established driver libraries for major RTOS platforms, shortening integration timelines for engineering teams.
Complete System Bill of Materials
A typical VME PROFIBUS integration system using the SST-PB3-VME-2 includes the following components:
- SST SST-PB3-VME-2 — PROFIBUS VME interface card (this item)
- VME 6U chassis with compatible backplane (e.g., Elma, Schroff, or Pixus)
- VME single-board computer (SBC) running VxWorks or equivalent RTOS
- PROFIBUS DP cable (shielded, twisted-pair, per EN 50170 Type A)
- DB-9 PROFIBUS connectors with integrated termination resistors (e.g., Phoenix Contact or Siemens)
- PROFIBUS repeater (if network segment exceeds 32 nodes or 1,200 m)
- SST driver software package and GSD configuration files
- PROFIBUS DP slave devices (remote I/O, drives, instruments) as required by application
Compliance & Industry Standards
- PROFIBUS: EN 50170 / IEC 61158 / IEC 61784 — PROFIBUS DP protocol compliance
- VMEbus: IEEE 1014-1987 standard
- EMC: Designed for industrial electromagnetic compatibility requirements
- RoHS: Consult current product documentation for RoHS revision status
- CE Marking: Applicable per SST product certification records
Buyers requiring specific compliance certificates (CE Declaration of Conformity, RoHS statement) should contact Konmask.com prior to order placement.
Quality Assurance & Sourcing
Konmask.com sources the SST-PB3-VME-2 through verified industrial distribution channels. Every unit offered is subject to the following quality controls:
- Visual Inspection: Board-level inspection for physical damage, component integrity, and label authenticity prior to dispatch.
- Traceability: Lot and date codes are recorded and available upon request for regulated industries.
- Packaging: Anti-static ESD packaging with moisture barrier where applicable, consistent with IPC/JEDEC J-STD-033 handling guidelines.
- Warranty: Standard Konmask.com warranty applies. Extended warranty and acceptance testing (ATP) available on request.
- Counterfeit Mitigation: Sourced exclusively from authorized or traceable secondary-market channels; counterfeit-risk screening applied to all VME and PROFIBUS communication hardware.
How to Source This Part
- Add to Cart directly from this product page for standard lead times.
- Request a Quote for volume orders (3+ units), project-based procurement, or ATP testing requirements — email support@konmask.com.
- Expedite Requests: Contact us via WhatsApp or phone at +0086 19859288691 for urgent project timelines.
- Export & Cross-Border Orders: Konmask.com supports international shipping with commercial invoice and packing list documentation for customs clearance.
- Lead Time: In-stock units ship within 1–3 business days. Out-of-stock units subject to sourcing lead time — contact us for current availability.
Application-Specific FAQ
Q: Can the SST-PB3-VME-2 operate as both a PROFIBUS Master and Slave simultaneously on its two channels?
A: Yes. Each channel is independently configurable. One channel can be set as a DP Master while the second operates as a DP Slave, enabling gateway or bridge topologies within a single card.
Q: Is this card compatible with modern VME chassis, or only legacy systems?
A: The SST-PB3-VME-2 conforms to the IEEE 1014-1987 VMEbus standard and is compatible with any compliant 6U VME chassis, including modern chassis from Elma, Pixus, and Schroff.
Q: What software is required to configure and operate this card?
A: SST provides driver libraries and configuration utilities for VxWorks, QNX, and LynxOS. GSD files are available for integration with PROFIBUS configuration tools such as Siemens STEP 7 or TIA Portal in mixed-network environments.
Q: Can this card replace an SST-PB3-VME-1 (single-channel version) in an existing system?
A: In most cases, yes — the dual-channel SST-PB3-VME-2 is backward-compatible with single-channel applications. Verify slot dimensions and driver version compatibility before substitution.
Q: Do you provide acceptance test reports (ATR) or functional test certificates?
A: Acceptance testing is available as a value-added service. Contact support@konmask.com to discuss test scope and pricing prior to order.
Q: What is the typical application in an oil & gas DCS upgrade project?
A: In brownfield DCS upgrades, the SST-PB3-VME-2 is commonly used to retain existing VME-based controller hardware while migrating field devices to PROFIBUS DP, avoiding full controller replacement and reducing project cost and risk.
