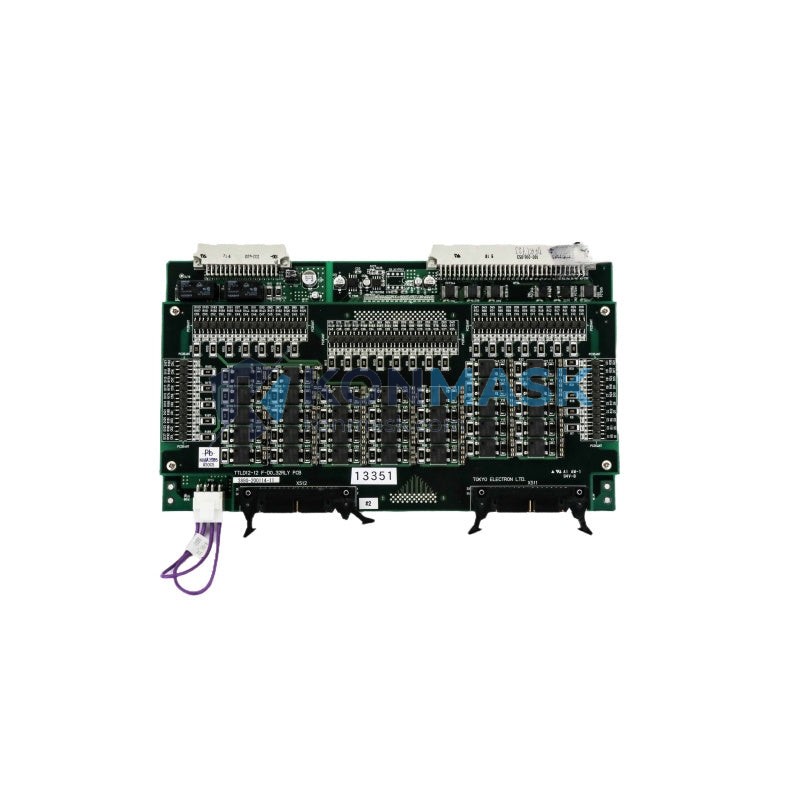

TEL SRX-4 0190-09475 Multi-Axis Motion Controller PCB – SRX-4 Series
When a multi-axis motion controller fails inside a Tokyo Electron semiconductor processing system, the entire production line comes to a halt. Wafer throughput drops to zero, cleanroom time is wasted, and every hour of unplanned downtime translates directly into lost yield and escalating maintenance costs. The TEL SRX-4 motion controller PCB (P/N: 0190-09475, Assembly: 3880-200114-11) is the precision-engineered heart of coordinated axis control in TEL’s advanced equipment platforms — and there is no generic substitute.
Within the SRX-4 control architecture, the 0190-09475 board occupies the top tier of motion management, orchestrating synchronized multi-axis trajectories while interfacing directly with the TTLD11-12 F-DO_32 and TTLD12-12 F-DO_32RLY digital output relay modules. This configuration is widely deployed across TEL Lithius, Clean Track, and related wafer-handling platforms, making it one of the most mission-critical spare parts in the global semiconductor equipment aftermarket.
Technical Specifications
- Manufacturer: TEL (Tokyo Electron Limited)
- Part Number: 0190-09475
- Assembly Number: 3880-200114-11
- Series: SRX-4
- Board Type: Multi-Axis Motion Controller PCB
- Included Modules: TTLD11-12 F-DO_32 (Digital Output Module) × 1, TTLD12-12 F-DO_32RLY (Digital Output Relay Module) × 1
- Form Factor: Industrial PCB Assembly
- Weight: 2,600 g (approx.)
- Condition: New / Refurbished / Used — specify at inquiry
Key Features & Benefits
- Synchronized Multi-Axis Control: Manages coordinated motion across multiple servo axes simultaneously, ensuring precise wafer positioning and transfer accuracy.
- Integrated Digital Output Relay: The TTLD12-12 F-DO_32RLY module provides relay-isolated digital outputs for safe interfacing with high-current actuators and safety interlocks.
- High-Density I/O: 32-channel digital output capacity per TTLD module enables dense signal routing within compact equipment enclosures.
- OEM-Grade Reliability: Manufactured to TEL’s stringent quality standards for use in cleanroom and semiconductor fab environments.
- Drop-In Replacement: Direct form-fit-function replacement for failed or end-of-life SRX-4 controller boards — no firmware re-engineering required.
Industry & Equipment Applications
- Semiconductor wafer processing and lithography track systems
- TEL Clean Track coater/developer platforms
- TEL Lithius and Lithius Pro series equipment
- Automated wafer handling and robotic transfer modules
- Flat panel display (FPD) manufacturing equipment
- Advanced packaging and back-end semiconductor processes
System Integration & Compatible Parts
The SRX-4 0190-09475 controller is designed to operate within TEL’s modular SRX control backplane. Compatible and commonly co-ordered parts include:
- TTLD11-12 F-DO_32 — Digital Output Module (included)
- TTLD12-12 F-DO_32RLY — Digital Output Relay Module (included)
- SRX-4 series power supply boards
- TEL SRX-4 communication interface cards
- Associated servo amplifier and encoder feedback modules
Contact our technical team to confirm compatibility with your specific equipment serial number and software revision.
Our Quality Assurance Process
- Visual Inspection: All boards are inspected for physical damage, corrosion, and component integrity before listing.
- Functional Verification: Where applicable, boards undergo bench-level power-on and I/O signal testing.
- ESD-Safe Handling: All PCBs are stored and shipped in anti-static packaging to prevent electrostatic damage.
- Traceability: Part numbers, assembly numbers, and revision codes are verified against OEM documentation.
- Warranty: Warranty terms provided per condition grade — contact us for details.
How to Order
- Submit an inquiry via the Contact Us form or email [email protected].
- Provide your equipment model, serial number, and required part number (0190-09475).
- Our team will confirm availability, condition grade, lead time, and pricing within 24 hours.
- Upon agreement, we issue a proforma invoice and arrange secure international shipping.
Why Choose Konmask.com?
- Specialized Inventory: We focus exclusively on industrial automation and semiconductor equipment spare parts — not a generalist marketplace.
- Global Sourcing Network: Access to verified surplus, refurbished, and new-old-stock (NOS) components from trusted international suppliers.
- Technical Expertise: Our team includes engineers with hands-on experience in TEL, AMAT, Lam Research, and other major OEM platforms.
- Fast Response: Inquiries answered within 24 business hours; emergency sourcing support available.
- Secure Shipping: ESD-safe, export-compliant packaging with full tracking for international orders.
Frequently Asked Questions
Q: Is this the complete assembly including TTLD11-12 and TTLD12-12 modules?
A: Yes. The listing covers the full assembly as described: SRX-4 main controller board (0190-09475 / 3880-200114-11) together with one TTLD11-12 F-DO_32 and one TTLD12-12 F-DO_32RLY module.
Q: What condition is this board in?
A: Condition (new, refurbished, or used-tested) varies by available stock. Please submit an inquiry and we will confirm the exact condition and any test reports available.
Q: Can you ship internationally?
A: Yes. We ship worldwide with ESD-safe, export-compliant packaging. Lead times and freight options are confirmed at the time of inquiry.
Q: Do you offer a warranty?
A: Warranty coverage depends on the condition grade of the unit supplied. Details are provided in the proforma invoice prior to purchase.
Q: How do I confirm this part is compatible with my TEL equipment?
A: Please provide your equipment model and serial number when submitting your inquiry. Our technical team will cross-reference against known configurations.
