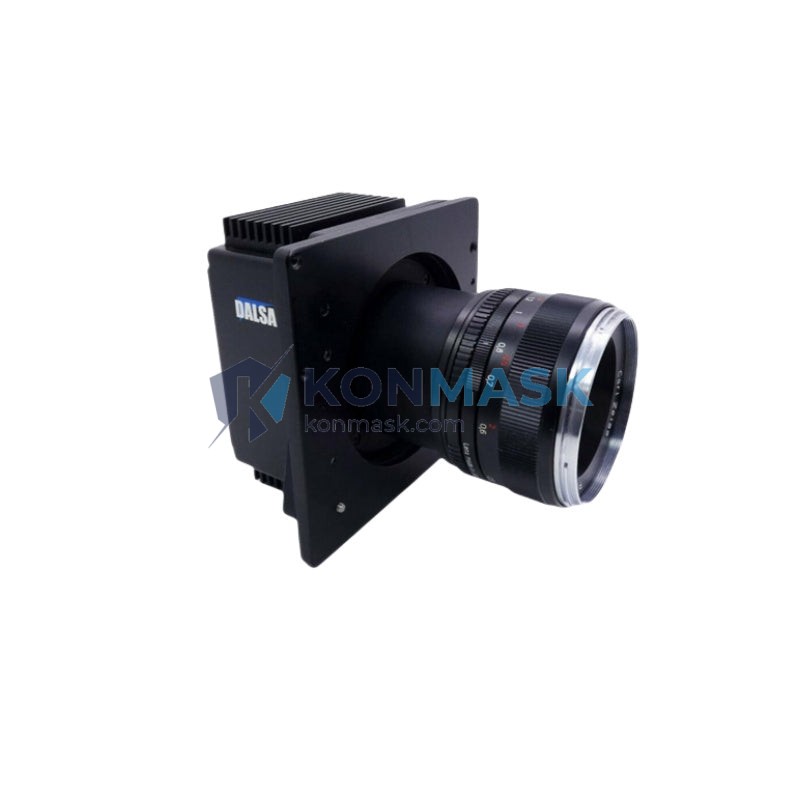

Genuine Teledyne Dalsa PC-30-04K80-00 4K Line Scan Camera | Piranha Series – Verified Source
The Teledyne Dalsa PC-30-04K80-00 is a high-performance 4096-pixel (4K) CCD line scan camera from the renowned Piranha series, engineered for demanding industrial machine vision applications. Sourced directly through verified distribution channels, every unit sold by Konmask.com undergoes rigorous authenticity and functional verification before shipment.
Technical Specifications
- Model: PC-30-04K80-00
- Manufacturer: Teledyne Dalsa
- Series: Piranha
- Sensor Type: CCD Line Scan
- Resolution: 4096 pixels (4K)
- Line Rate: Up to 80,000 lines/second
- Pixel Size: 10 µm × 10 µm

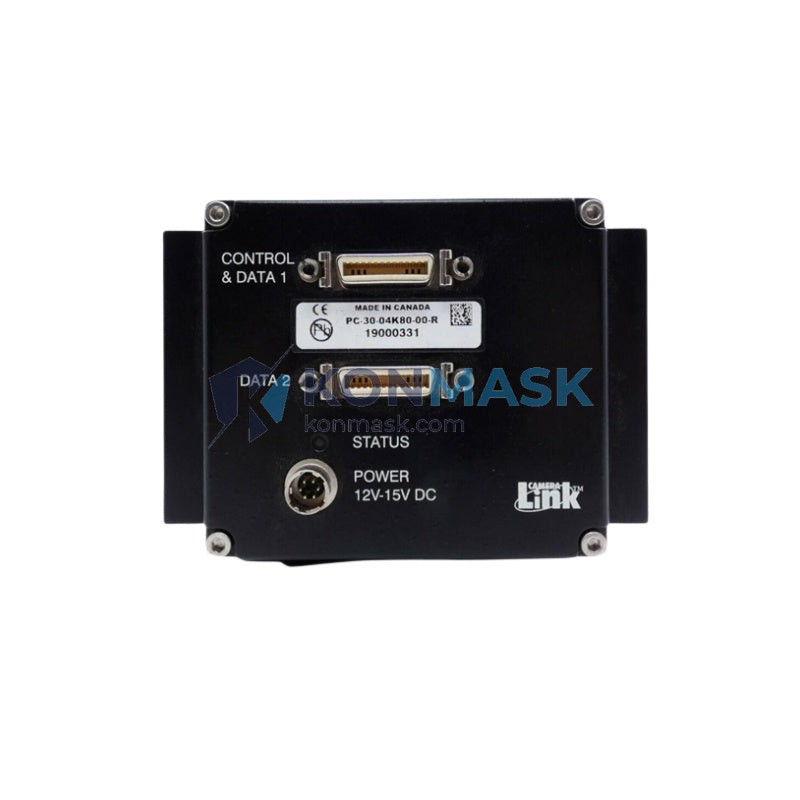

- Interface: Camera Link (Base/Medium/Full)
- Output: 8-bit / 10-bit / 12-bit selectable
- Power Supply: +12 V DC (via Camera Link connector)
- Operating Temperature: 0°C to +50°C
- Dimensions: 60 mm × 60 mm × 80 mm (approx.)
- Weight: ~100 g
- Compliance: CE, RoHS
Specifications are based on manufacturer datasheets. Contact us to confirm the latest revision details.
Our 4-Step Quality Verification Process
Every PC-30-04K80-00 unit shipped from Konmask.com passes through our standardized 4-step QC protocol:
- Step 1 — Source Authentication: We verify the supply chain origin and cross-reference serial numbers against manufacturer records to confirm genuine Teledyne Dalsa provenance.
- Step 2 — Physical Inspection: Each unit is inspected for label integrity, connector condition, housing markings, and packaging authenticity.
- Step 3 — Functional Power-On Test: The camera is powered and initialized to confirm firmware response, interface communication, and basic imaging output.
- Step 4 — Documentation Review: We confirm that the unit ships with all applicable documentation, including datasheet references and warranty information.
A QC Pass Certificate is included with every shipment upon request.
Key Features & Benefits
- ✅ 4096-pixel resolution for ultra-fine defect detection across wide web materials
- ✅ 80 kHz line rate enables high-throughput inspection without sacrificing image quality
- ✅ Camera Link interface ensures deterministic, low-latency data transfer to frame grabbers
- ✅ Selectable bit depth (8/10/12-bit) adapts to downstream processing requirements
- ✅ Compact, robust housing designed for integration into tight machine vision enclosures
- ✅ Proven Piranha platform with extensive ecosystem support from Teledyne Dalsa
Typical Applications
- Flat panel display (FPD) surface inspection
- Printed circuit board (PCB) automated optical inspection (AOI)
- Web and sheet material defect detection (paper, film, metal foil)
- Pharmaceutical blister pack and label verification
- Solar cell and semiconductor wafer inspection
- Document scanning and archiving systems
- Textile and fabric quality control
Compatible System Components
- Frame Grabbers: Teledyne Dalsa Xcelera-CL series; Matrox Solios; Euresys Grablink
- Lenses: Schneider Xenoplan, Rodenstock, or equivalent C-mount line scan lenses
- Lighting: High-frequency LED line lights (red, white, or IR) with strobe controller
- Software: Teledyne Dalsa Sapera LT SDK; Halcon; VisionPro; OpenCV
- Cables: Camera Link MDR-to-MDR cables (1 m – 10 m); power breakout cables
Contact us if you need assistance selecting compatible components for your system build.
Global Sourcing & Shipping Capabilities
- Stock Status: In-stock units typically ship within 1–3 business days; lead-time orders accepted for volume procurement
- Shipping Regions: Worldwide — Asia-Pacific, Europe, North America, Middle East, and beyond
- Export Compliance: We handle export documentation, commercial invoices, and HS code classification (HS 8525.89)
- Packaging: ESD-safe anti-static packaging with foam-lined outer carton for safe international transit
- Customs Support: We provide accurate product descriptions and valuation documentation to facilitate smooth customs clearance
Certifications & Compliance Statement
- CE Marking: Compliant with EU EMC and Low Voltage Directives
- RoHS: Restriction of Hazardous Substances compliant
- FCC: Meets applicable FCC Part 15 Class A requirements
- ISO 9001: Konmask.com operates under quality management principles aligned with ISO 9001 standards for procurement and distribution
Compliance documentation available upon request for regulatory submissions.
How to Order
- Online: Add to cart and complete checkout — we accept T/T bank transfer, PayPal, and major credit cards
- Email RFQ: Send your purchase order or RFQ to support@konmask.com for volume pricing and lead-time confirmation
- Phone / WhatsApp: +0086 19859288691 — available Monday–Friday, 09:00–18:00 CST
- Lead Time: In-stock: 1–3 business days | Special order: 2–6 weeks depending on manufacturer availability
- Minimum Order: 1 unit (no MOQ for standard orders)
Authenticity & Trust FAQ
- Q: Are these units genuine Teledyne Dalsa products?
- A: Yes. All units are sourced through verified supply channels. We do not sell counterfeit, refurbished-as-new, or grey-market products without disclosure.
- Q: Can I get a warranty?
- A: We offer a 90-day functional warranty on all units. Extended warranty options are available — contact us for details.
- Q: Do you provide a datasheet or test report?
- A: Yes. The official Teledyne Dalsa datasheet and our QC pass certificate are available upon request at no charge.
- Q: What if the unit is DOA (Dead on Arrival)?
- A: We offer a full replacement or refund for DOA units reported within 7 days of receipt. Please retain original packaging for return shipment.
- Q: Can you source other Teledyne Dalsa or machine vision products?
- A: Absolutely. We specialize in industrial automation and machine vision components. Submit an RFQ for any model not listed in our store.
