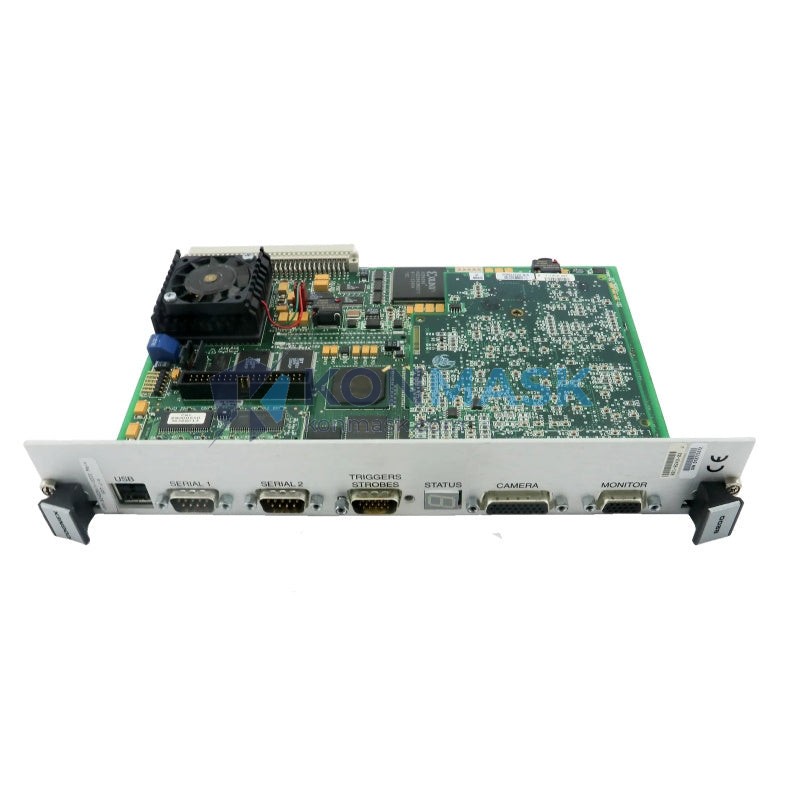

COGNEX 8200-VM27A PCB Board 203-0112-RB | Replacement, Equivalent & Selection Guide
The COGNEX 8200-VM27A (Part Numbers: 203-0112-RB / 801-8243-02 / VPM-82403X / V-5000 / 0200-06509) is a Portable Calibrator PCB Board designed for use within the COGNEX 8200 series machine vision platform. This page provides a comprehensive selection guide, compatible replacements, and equivalent models to help engineers and procurement teams make informed sourcing decisions.
Technical Specifications
- Brand: COGNEX
- Model: 8200-VM27A
- Part Numbers: 203-0112-RB | 801-8243-02 | VPM-82403X | V-5000 | 0200-06509
- Series: COGNEX 8200 / VPM-8000 Series
- Type: Portable Calibrator PCB Board
- Assembly: 2422 PCB Board
- Application: Machine Vision Calibration & Image Processing
- Weight: Approx. 800 g
- Condition: New / Refurbished Available
- Origin: USA
Compatible Replacement & Equivalent Models
The following models are known compatible replacements or functional equivalents for the COGNEX 8200-VM27A PCB Board. Always verify firmware version and connector pinout before substitution:
- COGNEX 8200-VM27A (203-0112-RB) — Direct OEM replacement
- COGNEX VPM-82403X — Functional equivalent, same 8200 platform
- COGNEX 801-8243-02 — Alternate part number, same assembly
- COGNEX 0200-06509 — Revision variant, confirm firmware compatibility
- COGNEX V-5000 Series boards — Cross-series, verify I/O mapping
Note: Cross-reference with your system’s BOM before ordering. Contact support@konmask.com for compatibility verification.
Why Choose the Original Model
- OEM Guaranteed Compatibility: Designed and tested specifically for COGNEX 8200 series systems — zero integration risk.
- Calibration Accuracy: Factory-calibrated to COGNEX tolerances; aftermarket boards may require recalibration.
- Firmware Support: Eligible for COGNEX firmware updates and technical support.
- Warranty Coverage: Original parts maintain system warranty; third-party substitutes may void coverage.
- Long-Term Reliability: Proven MTBF in industrial 24/7 environments.
Typical Applications
- Machine vision system calibration in automotive assembly lines
- PCB inspection and quality control in electronics manufacturing
- Semiconductor wafer alignment and optical measurement
- Pharmaceutical packaging verification and label inspection
- Food & beverage date code and barcode reading systems
- Logistics and warehouse automated sorting & identification
System Compatibility
- Platform: COGNEX 8200 Series Machine Vision System
- Sub-system: VPM-8000 / VPM-82403X Vision Processing Module
- Interface: Compatible with COGNEX In-Sight and VisionPro software environments
- Power: Refer to host system PSU specifications
- Operating Temperature: 0°C to 50°C (standard industrial range)
- Certifications: CE / UL (verify with original datasheet)
Selection Guide
Use the following decision matrix to select the correct board for your application:
- Direct drop-in replacement needed? → Order 203-0112-RB (exact OEM match)
- Refurbished / cost-optimized option? → Request 801-8243-02 refurb — tested & certified
- Cross-series upgrade path? → Evaluate VPM-82403X with firmware update
- Unsure of revision? → Provide your system serial number to support@konmask.com for a free compatibility check
- Bulk / OEM procurement? → Contact us for volume pricing and lead time
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified industrial surplus channels
- 100% functional testing prior to shipment
- Anti-static packaging with full traceability documentation
- Certificate of Conformance (CoC) available on request
- RoHS compliance documentation available
- Konmask.com is an independent supplier — not affiliated with COGNEX Corporation
How to Order
- Online: Add to cart directly on this page
- Email: support@konmask.com with your PO or inquiry
- Phone/WhatsApp: +0086 19859288691
- Lead Time: In-stock items ship within 1–3 business days; special orders 5–15 business days
- Payment: T/T, PayPal, credit card, and trade assurance accepted
- Shipping: DHL / FedEx / UPS worldwide; sea freight available for bulk orders
Replacement & Compatibility FAQ
Q: Can the 801-8243-02 directly replace the 203-0112-RB?
A: Yes, in most 8200 series configurations these are alternate part numbers for the same assembly. Confirm with your system revision sheet.
Q: Is the VPM-82403X a drop-in replacement?
A: Functionally equivalent on the same platform, but a firmware update may be required. Contact us for guidance.
Q: Do you offer refurbished units?
A: Yes. All refurbished units undergo full functional testing and are supplied with a test report.
Q: What warranty do you provide?
A: 90-day warranty on all units. Extended warranty available on request.
Q: Can I return a part if it’s incompatible?
A: Yes, within 30 days of receipt, subject to our returns policy. Contact support before returning.
