Industrial HMI & CNC Solution – TOSHIBA LTM09C016K | LCD Display Series

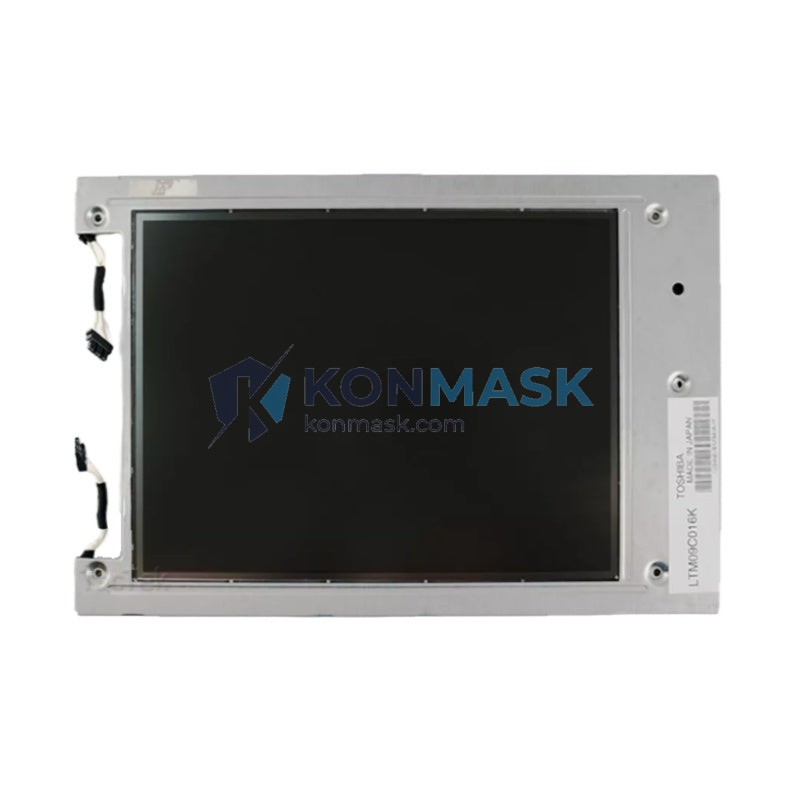

The TOSHIBA LTM09C016K is a 9-inch TFT LCD display module engineered for demanding industrial environments. Widely deployed in CNC machine tool panels, HMI operator interfaces, and process control terminals, this module delivers stable, high-contrast visuals where reliability is non-negotiable.
Where This Product Is Used
- CNC Machine Tool Panels – Fanuc, Mitsubishi, and Siemens CNC controllers use 9-inch LCD panels as primary operator displays. The LTM09C016K is a direct-fit replacement for aging CRT and early LCD units in these systems.
- Industrial HMI Terminals – Factory-floor operator panels in automotive, food & beverage, and semiconductor manufacturing lines rely on this form factor for process visualization.
- Medical Imaging Equipment – Diagnostic workstations and portable ultrasound units requiring compact, high-brightness displays.
- Power Generation & Substation SCADA – Control room displays in energy management systems where long service life and stable supply are critical.
- Printing & Packaging Machinery – Operator interface screens on web-fed presses and form-fill-seal machines.
- Railway & Transportation Control – Cab display units and trackside monitoring terminals requiring vibration-resistant display solutions.
Technical Specifications
- Part Number: LTM09C016K
- Manufacturer: TOSHIBA Matsushita Display Technology
- Display Type: TFT Active Matrix LCD
- Screen Size: 9.0 inches (diagonal)
- Interface: LVDS / TTL (verify with datasheet for exact revision)
- Backlight Type: CCFL (Cold Cathode Fluorescent Lamp)
- Operating Temperature: 0°C to +50°C (storage: -20°C to +60°C)
- Weight: Approx. 400 g
- RoHS Compliance: Consult datasheet for revision-specific status
Why Engineers Specify This Model
- Proven Field Reliability – The LTM09C016K has accumulated millions of operating hours across global industrial installations, making it a trusted choice for maintenance engineers sourcing replacements.
- Drop-in Compatibility – Mechanical and electrical footprint matches legacy OEM specifications, minimizing retrofit engineering effort.
- Stable Supply via Authorized Distributors – Konmask.com maintains verified stock to support MRO (Maintenance, Repair & Operations) procurement cycles.
- Broad System Compatibility – Supported by a wide range of industrial controller platforms without custom driver development.
Complete System Bill of Materials
When replacing or upgrading a display assembly, engineers typically source the following alongside the LTM09C016K:
- CCFL Backlight Inverter Board (matched to panel voltage spec)
- LVDS/TTL Signal Cable Assembly
- Display Mounting Bracket / Bezel Frame
- LCD Controller Board (if signal conversion is required)
- Protective Front Glass or Anti-Glare Film
Contact support@konmask.com for BOM assistance and compatible accessory sourcing.
Compliance & Industry Standards
- Manufactured under ISO 9001-certified production processes
- Suitable for integration into CE-marked and UL-listed end equipment
- Meets IEC 60068 environmental test requirements (vibration, thermal cycling) when installed per OEM guidelines
- REACH / RoHS: Consult revision-specific datasheet; Konmask provides documentation upon request
Quality Assurance & Sourcing
Every TOSHIBA LTM09C016K unit shipped by Konmask.com undergoes the following verification process:
- Visual inspection for cosmetic defects, pixel anomalies, and backlight uniformity
- Electrical continuity check on connector pins
- Cross-referenced against manufacturer part markings to confirm authenticity
- Packaged in anti-static ESD bags with foam cushioning for safe transit
We source exclusively from traceable supply chains. Counterfeit or refurbished units are not accepted into our inventory.
How to Source This Part
- Add to Cart – Click the purchase button above to place an order directly.
- Request a Quote – For volume orders (5+ units), email support@konmask.com with your required quantity and delivery timeline.
- Lead Time – In-stock units ship within 1–3 business days. Out-of-stock lead times vary; contact us for current availability.
- Export & Customs – We support international shipments with full commercial invoice and HS code documentation for customs clearance.
Application-Specific FAQ
Q: Is the LTM09C016K compatible with Fanuc Series 0i CNC controllers?
A: The LTM09C016K is commonly used as a replacement display in Fanuc 0i-series panels. Verify the connector pinout and signal type against your specific controller revision before installation.
Q: Can I replace just the LCD panel without replacing the backlight inverter?
A: In most cases, yes — if the existing inverter is functional and its output voltage matches the LTM09C016K CCFL specification. We recommend testing the inverter output before reuse.
Q: Do you provide a datasheet or technical drawing?
A: Yes. Email support@konmask.com with your order number or inquiry, and we will provide the manufacturer datasheet and dimensional drawing.
Q: What is the warranty on this module?
A: Konmask.com provides a 90-day warranty against manufacturing defects on all LCD modules. Damage caused by improper installation or ESD mishandling is excluded.
Q: Can you supply multiple units for a production line retrofit?
A: Yes. We support project-based procurement. Contact us for volume pricing and scheduled delivery arrangements.
