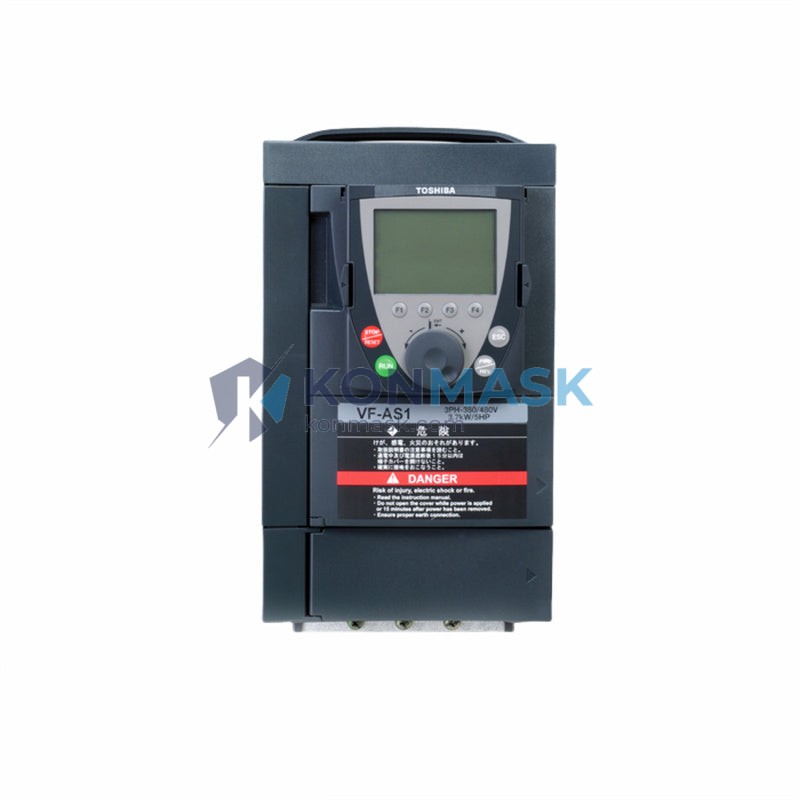

Variable Speed Drive Solution – TOSHIBA VFAS1P0001 | VF-AS1 Series
The TOSHIBA VFAS1P0001 is a compact, high-performance variable frequency drive (VFD) from the VF-AS1 Series, rated at 0.1 kW (1/8 HP) for single-phase input applications. Engineered for precision motor speed control in demanding industrial environments, this drive delivers reliable, energy-efficient performance across a wide range of automation tasks.
Where This Product Is Used
- HVAC Systems: Fan and blower speed regulation in commercial buildings and cleanrooms
- Water Treatment Plants: Pump flow control for dosing and circulation systems
- Conveyor & Material Handling: Smooth start/stop and variable speed on light-duty belt conveyors
- Textile & Packaging Machinery: Precise tension and feed-rate control
- Food & Beverage Processing: Hygienic motor control for mixers and filling lines
- Laboratory & Test Equipment: Controlled motor actuation in R&D environments
Technical Specifications
- Model: VFAS1P0001
- Series: VF-AS1
- Brand: TOSHIBA
- Rated Output Power: 0.1 kW (0.13 HP)
- Input Voltage: Single-Phase 200–240 V AC (±10%)
- Output Voltage: 3-Phase 200–240 V AC
- Output Frequency Range: 0.1–400 Hz
- Control Method: V/f Control, Sensorless Vector Control
- Enclosure Rating: IP20
- Ambient Operating Temperature: -10°C to +50°C
- Weight: 3.1 kg
- Communication: RS-485 (Modbus RTU compatible)
- Braking: Built-in dynamic braking circuit
Why Engineers Specify This Model
- Compact Footprint: Space-saving design ideal for panel-mount installations with limited DIN rail space
- Advanced Vector Control: Sensorless vector algorithm delivers high torque at low speeds without encoder feedback
- Energy Savings: Automatic energy-saving mode reduces power consumption during light-load operation
- Built-in PID Controller: Eliminates need for external process controllers in closed-loop applications
- Wide Frequency Range (0.1–400 Hz): Supports both standard and high-speed spindle applications
- Modbus RTU Support: Seamless integration with SCADA, PLC, and BMS systems
Complete System Bill of Materials
- TOSHIBA VFAS1P0001 – Variable Frequency Drive (this unit)
- Compatible AC Motor: 0.1 kW, 3-Phase, 200–240 V
- Input Line Reactor (recommended for EMC compliance)
- Output Filter / dV/dt Filter (for long cable runs >20 m)
- Braking Resistor (for high-inertia load applications)
- RS-485 Communication Cable (for Modbus RTU integration)
- DIN Rail Mounting Kit or Panel Mounting Bracket
- 24 VDC Control Power Supply (if isolated control circuit required)
Compliance & Industry Standards
- CE Marking: Compliant with EU Low Voltage Directive (LVD) and EMC Directive
- UL Listed: Recognized for North American markets
- RoHS Compliant: Restriction of Hazardous Substances
- IEC 61800-3: Adjustable speed electrical power drive systems – EMC requirements
- IEC 61800-5-1: Safety requirements for adjustable speed drive systems
Quality Assurance & Sourcing
All TOSHIBA drives supplied by Konmask.com are sourced through verified industrial distribution channels. Each unit undergoes incoming inspection including:
- Visual inspection for physical damage and label authenticity
- Firmware version verification against TOSHIBA official release notes
- Functional power-on test prior to dispatch
- Original manufacturer packaging with intact warranty seals
We maintain traceability records for every unit shipped.
How to Source This Part
The TOSHIBA VFAS1P0001 is available for immediate inquiry at Konmask.com. We support:
- Single-unit orders for MRO and replacement needs
- Project-quantity orders with lead-time commitment and documentation
- OEM/System Integrator pricing for recurring procurement programs
- Export documentation including commercial invoice, packing list, and COO certificate
Contact our technical sales team to confirm availability, request a datasheet, or obtain a formal quotation.
Application-Specific FAQ
Q: Can the VFAS1P0001 drive a 3-phase motor from a single-phase supply?
A: Yes. The VF-AS1 series accepts single-phase 200–240 V input and outputs 3-phase power to the motor, making it ideal for facilities without 3-phase mains.
Q: Is an external braking resistor required?
A: The drive includes a built-in braking transistor. An external resistor is only needed for high-inertia loads requiring rapid deceleration. Konmask can advise on resistor sizing.
Q: What PLC brands can communicate with this drive via Modbus RTU?
A: The VFAS1P0001 is compatible with Siemens S7, Mitsubishi FX/Q series, Omron CP/CJ series, and any PLC supporting standard Modbus RTU over RS-485.
Q: What is the warranty on this unit?
A: Konmask provides a 12-month warranty against manufacturing defects from the date of shipment, with RMA support and technical assistance.
Q: Can I get a test report or factory certificate?
A: Yes. Original TOSHIBA factory test certificates and CE declarations of conformity are available upon request for project documentation.
