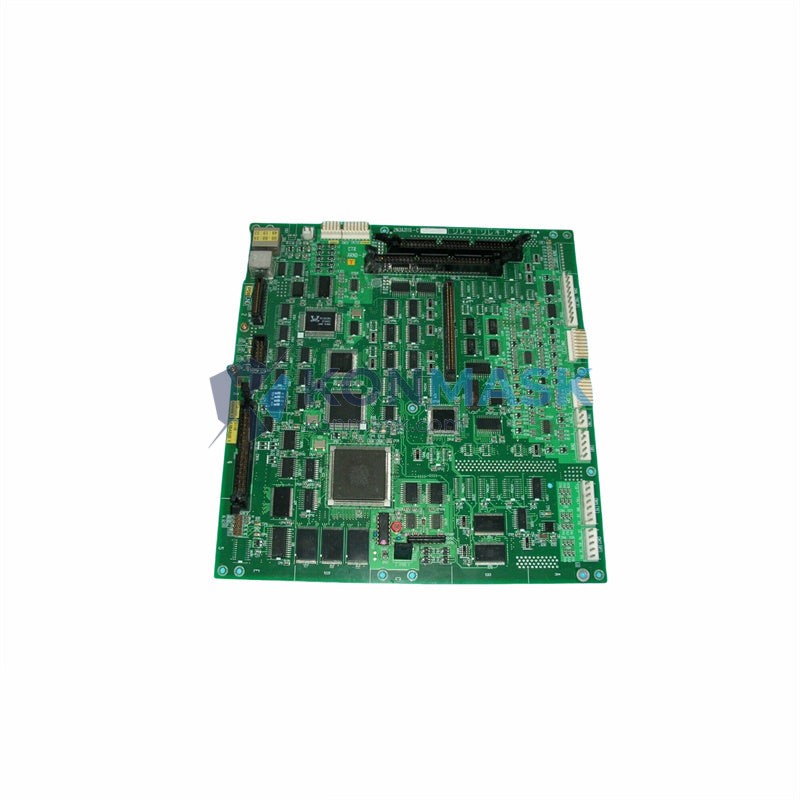

TOSHIBA 2N3A-3110-C CTR ARND-3110 – Assembly Controller Board | ARND-3110 Inverter Platform
Engineering Background: The TOSHIBA ARND-3110 series represents Toshiba’s industrial-grade variable frequency drive (VFD) platform, widely deployed across manufacturing, HVAC, and process automation sectors. The 2N3A-3110-C CTR is the dedicated assembly controller board responsible for coordinating gate drive signals, feedback processing, and system-level fault management within the ARND-3110 inverter chassis.
Product Positioning: This PCB is a direct OEM replacement component for maintenance engineers and system integrators managing Toshiba ARND-3110 inverter installations. It eliminates the need for full drive replacement, reducing downtime and total cost of ownership. Konmask.com supplies this board with full traceability and pre-shipment functional verification.
Complete Technical Specifications
- Manufacturer: TOSHIBA
- Part Number: 2N3A-3110-C CTR ARND-3110
- Board Type: Assembly Controller Board (PCB)
- Platform / Series: ARND-3110 Inverter Series
- Function: Inverter control signal coordination, gate drive interface, fault detection
- Form Factor: Plug-in PCB assembly
- Operating Environment: Industrial (IEC 61800 compliant drive systems)
- Weight: Approx. 400 g
- Condition: New / Refurbished OEM (specify at inquiry)
- Origin: Japan / OEM Supply Chain
Proven Application Environments
- Toshiba ARND-3110 series variable frequency drives (VFDs)
- Industrial motor speed control systems
- HVAC fan and pump drive applications
- Conveyor and material handling automation
- Process manufacturing lines requiring precise motor control
- Retrofit and MRO (Maintenance, Repair & Operations) projects
Engineering Advantages
- OEM-Identical Replacement: Direct drop-in for failed or degraded controller boards — no firmware reconfiguration required
- Reduced Downtime: Board-level replacement vs. full drive swap saves hours of commissioning time
- Verified Functionality: Each unit undergoes visual inspection and electrical continuity checks prior to dispatch
- Traceability: Full supply chain documentation available upon request
- Cost Efficiency: Fraction of the cost of a complete ARND-3110 drive replacement
System Architecture & Signal Flow
Within the ARND-3110 inverter, the 2N3A-3110-C CTR board interfaces between the main control CPU and the power stage gate driver circuits. It receives speed reference and torque commands from the main controller, processes feedback signals (current, voltage, temperature), and generates PWM gate signals for the IGBT power modules. Fault conditions (overcurrent, overvoltage, thermal trip) are detected at this board level and communicated upstream via the drive’s internal bus.
Signal path: Main CPU → 2N3A-3110-C CTR → Gate Driver Board → IGBT Power Module → Motor Output
Sourcing & Quality Verification
- Source: Authorized distributor channels and verified OEM surplus stock
- Inspection: Visual PCB inspection, component-level checks, connector integrity verification
- Documentation: Certificate of conformance and test report available on request
- Warranty: 90-day replacement warranty against manufacturing defects
- Anti-Counterfeit: All boards verified against known-good reference units; counterfeit screening applied
Procurement Process
- Inquiry: Submit your part number and required quantity via [email protected] or WhatsApp +0086 19859288691
- Quote: Receive a formal quotation within 24 business hours including lead time and shipping options
- Order Confirmation: Purchase order or online checkout accepted; proforma invoice issued
- Inspection & Dispatch: Unit inspected, packed with ESD protection, and shipped with tracking
- After-Sales: Technical support available for installation guidance and compatibility verification
Technical FAQ
Q: Is the 2N3A-3110-C CTR compatible with all ARND-3110 variants?
A: This board is designed for the ARND-3110 platform. Please confirm your exact drive model and firmware revision before ordering to ensure full compatibility.
Q: Can this board be used in a different Toshiba inverter series?
A: No. This is a platform-specific assembly. Cross-series installation is not supported and may cause drive damage.
Q: Do you provide installation support?
A: Yes. Our technical team can provide wiring diagrams, connector pinouts, and step-by-step installation guidance via email or video call.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. Out-of-stock items typically have a 7–21 day lead time depending on sourcing.
Q: Is a datasheet available?
A: OEM datasheets and service manuals are available upon request for qualified buyers. Contact us with your company details.
