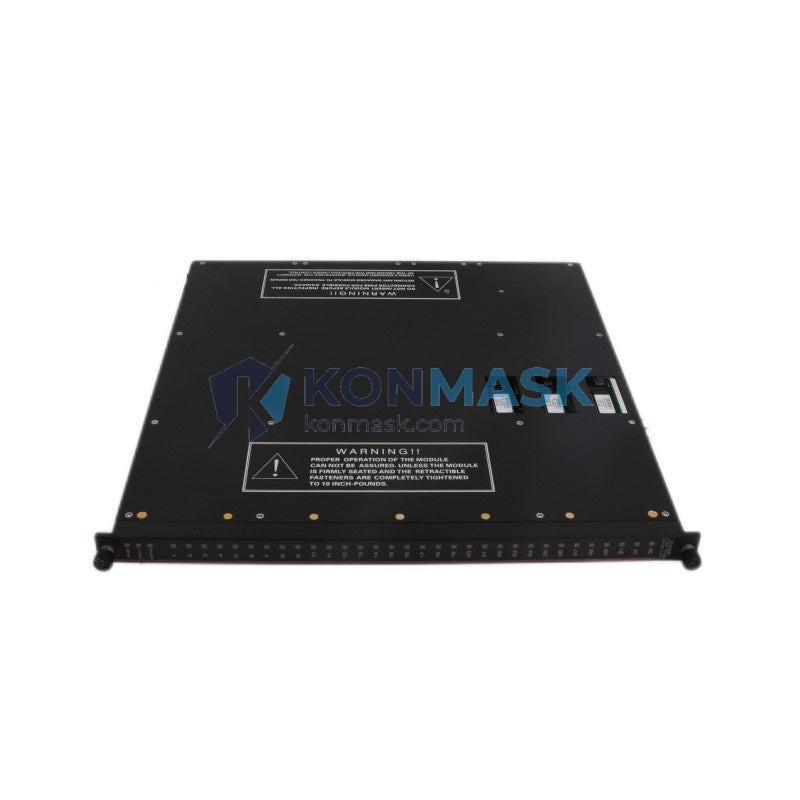

TRICONEX 3503E – Digital Input Module | Tricon TMR Safety Platform
The TRICONEX 3503E is a 32-channel digital input module engineered for the Tricon Triple Modular Redundant (TMR) safety system — one of the most trusted safety instrumented system (SIS) platforms in high-hazard process industries. Designed to IEC 61511 and IEC 61508 standards, the 3503E delivers SIL 3-capable field signal acquisition with hardware fault tolerance (HFT=2), making it the preferred choice for emergency shutdown (ESD), fire and gas (F&G), and burner management systems (BMS) worldwide.
At Konmask.com, we supply the 3503E as a verified, tested spare module — ready for immediate deployment in both new installations and critical maintenance scenarios.
Complete Technical Specifications
- Part Number: 3503E
- Manufacturer: TRICONEX (Schneider Electric)
- Platform: Tricon TMR Safety System
- Module Type: Digital Input (DI)
- Channel Count: 32 channels
- Input Voltage: 24 VDC nominal (field-side)
- Input Logic: Discrete ON/OFF, dry contact or wet contact compatible
- Redundancy Architecture: Triple Modular Redundant (TMR) — 3 independent input paths per channel
- Safety Integrity Level: SIL 3 (IEC 61508 / IEC 61511)
- Hardware Fault Tolerance: HFT = 2
- Diagnostic Coverage: >99% (high DC per IEC 61508)
- Communication: Tricon backplane bus (proprietary)
- Operating Temperature: 0°C to +60°C
- Humidity: 5% to 95% RH, non-condensing
- Weight: ~2,050 g
- Country of Origin: USA
- Certifications: TÜV, FM, CSA, ATEX (zone 2 barrier compatible)
Proven Application Environments
- Oil & Gas — Upstream: Wellhead ESD and high-integrity pressure protection systems (HIPPS) where SIL 3 field input integrity is mandatory.
- LNG & Petrochemical: Compressor and turbine protection systems requiring continuous self-diagnostics and fault-tolerant DI acquisition.
- Refinery Operations: Fired heater BMS and reactor ESD loops where spurious trip avoidance and demand-mode reliability are both critical.
- Power Generation: Turbine overspeed protection and boiler safety systems integrating with Tricon main chassis.
- Chemical & Specialty Gas: Toxic gas detection interlock systems requiring certified SIL 3 input paths.
- Offshore Platforms: F&G detection panels and deluge system triggers in classified hazardous areas.
Engineering Advantages
- TMR Architecture: Three independent input voters per channel eliminate single-point failures — the module continues operating correctly with one failed voter, satisfying HFT=2 requirements without external redundancy hardware.
- Online Replacement: Hot-swap capable within the Tricon chassis — module can be replaced under power without process shutdown, minimizing plant downtime.
- Continuous Self-Diagnostics: Built-in BIST (Built-In Self-Test) runs every scan cycle, detecting open-circuit, short-circuit, and internal logic faults before they affect the safety function.
- Deterministic Scan Time: Fixed-cycle TMR voting ensures predictable response times — critical for time-critical ESD applications with defined process safety time (PST) budgets.
- Backward Compatibility: Electrically and mechanically compatible with Tricon 3503 and 3503T predecessors, simplifying legacy system upgrades.
- Certified for Functional Safety: TÜV-certified SIL 3 capability with documented PFD (Probability of Failure on Demand) data for SIL verification calculations.
System Architecture & Signal Flow
Field devices (limit switches, pressure switches, valve position feedback) connect to the 3503E terminal assembly via field wiring. Each of the 32 channels is read independently by three separate input circuits (Leg A, Leg B, Leg C). The TMR voter logic compares all three readings every scan cycle — a 2-out-of-3 (2oo3) voting scheme determines the logical state passed to the Tricon main processor. Disagreements between legs trigger diagnostic alarms without causing spurious trips, while confirmed faults initiate the appropriate safety action. The module communicates over the Tricon backplane bus to the MP (Main Processor) module, which executes the safety application logic programmed in TriStation 1131.
Sourcing & Quality Verification
- All 3503E modules sourced from authorized distributors or directly decommissioned from certified plant environments.
- Each unit undergoes functional power-on testing and visual inspection prior to dispatch.
- Serialized traceability records maintained — firmware revision and manufacturing date available on request.
- Modules shipped in anti-static ESD packaging with desiccant to prevent moisture ingress during transit.
- Certificate of conformance (CoC) available for quality-critical procurement requirements.
Procurement Process
- Confirm Compatibility: Verify your Tricon chassis revision and TriStation software version — contact our technical team if unsure.
- Request a Quote: Email [email protected] with quantity and required delivery timeline.
- Order Confirmation: Purchase order accepted via email; proforma invoice issued within 24 hours.
- Dispatch: In-stock units ship within 1–3 business days via DHL Express or FedEx International Priority.
- Documentation: Packing list, CoC, and commercial invoice included with every shipment.
Technical FAQ
Q: Is the 3503E compatible with the Tricon v9 and v10 chassis?
A: Yes. The 3503E is compatible with Tricon v9.x and v10.x main chassis. Confirm your chassis slot configuration with TriStation 1131 before installation.
Q: Can the 3503E be used in a Triconex Trident system?
A: No. The 3503E is designed exclusively for the Tricon TMR platform. Trident uses a different module form factor and backplane protocol.
Q: What is the typical PFD value for SIL verification?
A: Refer to the TRICONEX 3503E Safety Manual (document number available on request) for certified PFDavg and λDU values for use in your SIL verification tool (e.g., exSILentia, SISTEMA).
Q: Do you supply the terminal assembly (field wiring board) separately?
A: Yes. Compatible terminal assemblies can be quoted alongside the 3503E module. Please specify your wiring configuration when enquiring.
Q: What warranty is provided?
A: All modules carry a 90-day functional warranty from date of dispatch. Extended warranty options available — contact us for details.
