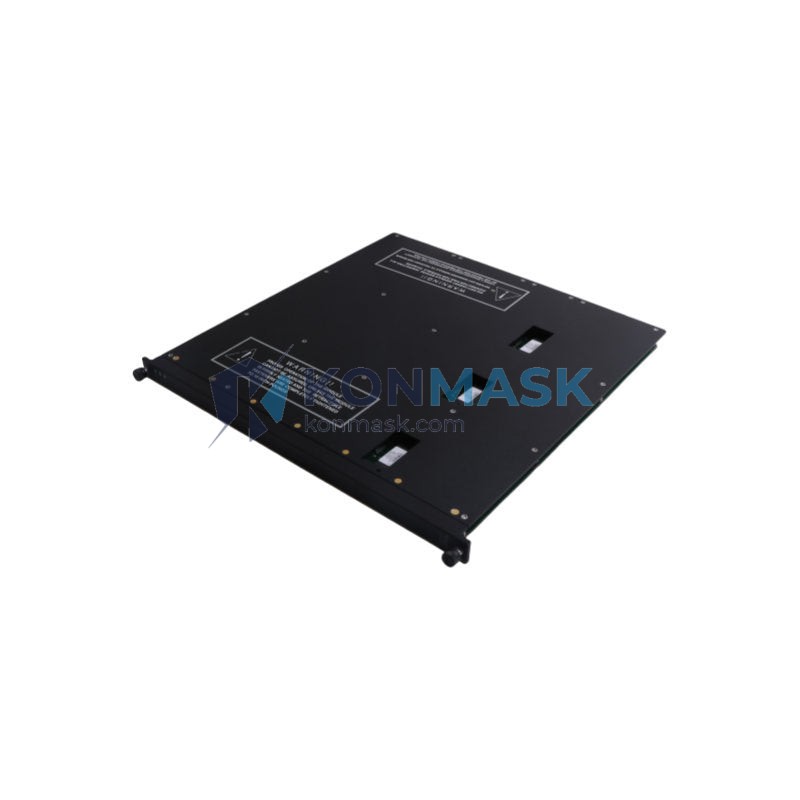

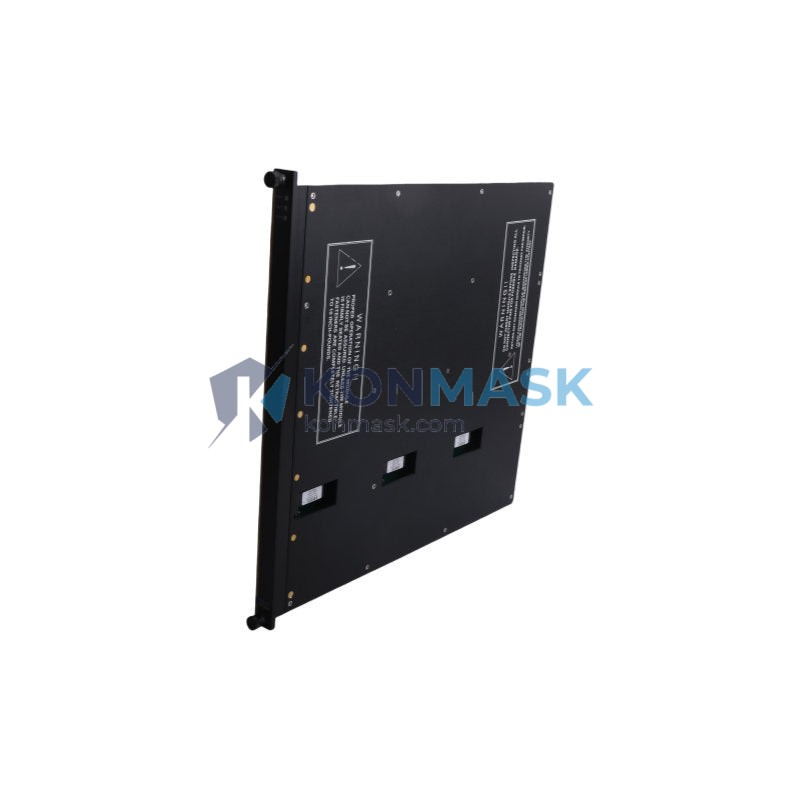

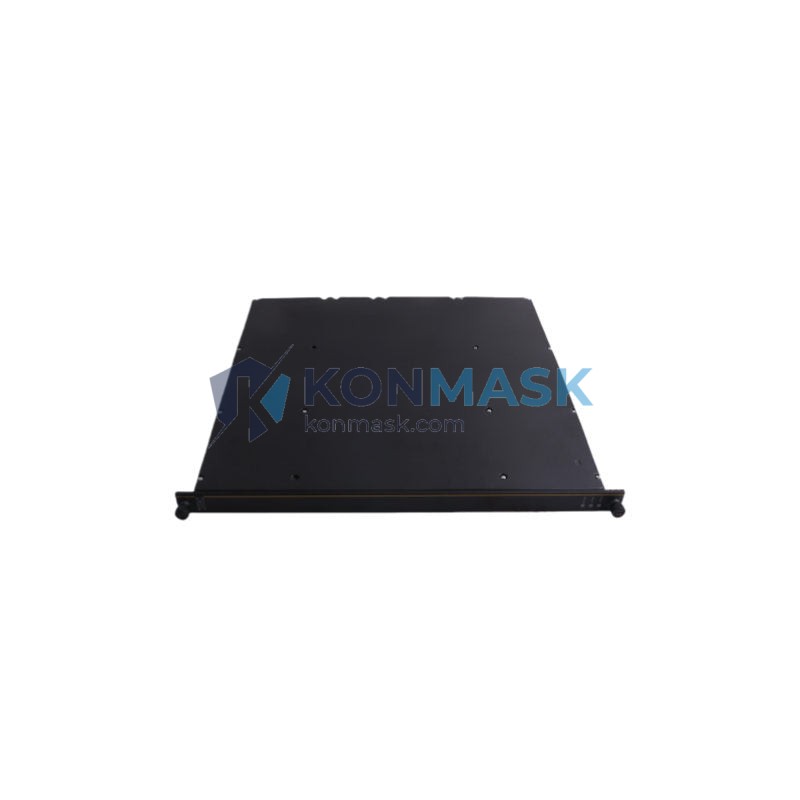

Triconex 3700A Enhanced Intelligent Module | Triple Modular Redundancy Safety Platform
Engineering Background
The Triconex 3700A is a core processing module within Schneider Electric’s Triconex Triple Modular Redundancy (TMR) safety architecture — the industry benchmark for SIL 3 / IEC 61511 compliant safety instrumented systems. Designed for continuous operation in mission-critical environments, the 3700A delivers fault-tolerant intelligence across oil & gas, petrochemical, nuclear, and power generation facilities worldwide.
Product Positioning
As an Enhanced Intelligent Module, the 3700A serves as the computational backbone of the Triconex Tricon safety controller chassis. It executes the TMR voting logic — simultaneously running three independent processing paths and comparing outputs in real time to detect and isolate faults without process interruption. For procurement engineers sourcing replacement or expansion modules, the 3700A represents a direct, OEM-compatible solution for installed Tricon base systems.
Complete Technical Specifications
| Part Number / SKU | 3700A |
| Manufacturer | Triconex (Schneider Electric) |
| Module Type | Enhanced Intelligent Module (EIM) |
| Platform | Tricon TMR Safety System |
| Architecture | Triple Modular Redundancy (TMR) — 3 independent processing legs |
| Safety Integrity Level | SIL 3 (IEC 61508 / IEC 61511) |
| Processor | Enhanced RISC-based CPU (3 redundant processors per module) |
| Memory | Program & data memory with battery-backed retention |
| Communication | Tribus backplane bus; compatible with Triconex TriStation 1131 programming environment |
| Chassis Compatibility | Tricon 8-slot and 16-slot main chassis |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Power Consumption | Refer to Tricon chassis power budget specifications |
| Weight | Approx. 1.9 kg |
| Certifications | TÜV, FM, CE, ATEX (zone-dependent configuration) |
| Firmware | Compatible with Tricon firmware v9.x and v10.x series |
| Hot-Swap | Supported — online replacement without process shutdown |
Proven Application Environments
- Oil & Gas: Emergency Shutdown Systems (ESD), High Integrity Pressure Protection Systems (HIPPS), Burner Management Systems (BMS)
- Petrochemical & Refining: Reactor safety interlocks, compressor protection, fired heater control
- Power Generation: Turbine protection, boiler safety, nuclear plant safety instrumented functions
- Offshore Platforms: Fire & Gas detection integration, process shutdown logic
- Pipeline Infrastructure: Station ESD, leak detection system integration
Engineering Advantages
- True TMR Fault Tolerance: Any single-leg failure is automatically isolated and voted out — zero process interruption, zero spurious trips
- Online Diagnostics: Continuous self-test across all three processing legs with real-time fault annunciation to the TriStation console
- Hot-Swap Capability: Module replacement under live process conditions — critical for facilities with zero-downtime requirements
- Deterministic Scan Time: Guaranteed cycle execution regardless of I/O load — essential for time-critical safety functions
- Long Service Life: Designed for 20+ year operational lifecycle; backward-compatible across Tricon chassis generations
- Proven Global Install Base: Deployed in 10,000+ safety systems across 80+ countries
System Architecture & Signal Flow
Within the Tricon chassis, the 3700A Enhanced Intelligent Module occupies the main processor slot and interfaces directly with the Tribus backplane. Each of the three internal processing legs independently reads I/O module data, executes the safety application program compiled in TriStation 1131, and outputs its result to the TMR voter circuit. The voter compares all three outputs on every scan cycle — a 2-out-of-3 (2oo3) voting scheme ensures that a single-leg discrepancy triggers fault logging and isolation without affecting the process output. Communication to the supervisory network is handled via the Triconex communication modules (e.g., 4351B, 4352) installed in the same chassis.
Sourcing & Quality Verification
- Source: Sourced from decommissioned plant upgrades, authorized distributors, and verified surplus channels — never counterfeit or refurbished without disclosure
- Inspection Protocol: Each unit undergoes visual inspection, label verification (part number, revision, date code), and functional power-on test prior to shipment
- Packaging: Anti-static bag + foam-lined export carton; humidity indicator card included
- Documentation: Certificate of conformance available on request; original Schneider Electric/Triconex documentation supplied where available
- Warranty: 12-month operational warranty against manufacturing defects
Procurement Process
- Confirm Compatibility: Verify your Tricon chassis model, firmware version, and slot assignment with your site engineer or TriStation configuration file
- Request Quote: Contact [email protected] with your PO requirements, required delivery date, and any certification documentation needs
- Order Confirmation: Receive proforma invoice with unit inspection report and lead time confirmation within 24 business hours
- Shipment: DHL / FedEx express worldwide; export documentation (commercial invoice, packing list, COO) provided as standard
- Incoming Inspection: Recommended: verify part number label, revision code, and perform power-on test in a bench chassis before installation
Technical FAQ
Q: Is the 3700A compatible with both Tricon v9 and v10 firmware?
A: Yes. The 3700A Enhanced Intelligent Module is compatible with Tricon firmware versions 9.x and 10.x. Always verify the firmware revision of your installed chassis before module swap.
Q: Can the 3700A be replaced online without shutting down the process?
A: Yes. The Tricon TMR architecture supports hot-swap replacement of the 3700A while the system remains in service, provided the replacement module is pre-configured and the chassis is in a healthy 3-leg state.
Q: What is the difference between the 3700A and the earlier 3700 module?
A: The 3700A is the enhanced revision featuring improved processor speed, expanded diagnostic coverage, and extended firmware compatibility compared to the original 3700. The 3700A is the recommended replacement for both 3700 and 3700A slots.
Q: Do you provide a test report with each unit?
A: Yes. A functional test record is available for each unit upon request. Contact us before order placement if this is a procurement requirement.
Q: What export documentation is provided?
A: Standard export package includes commercial invoice, packing list, country of origin certificate, and HS code declaration. ECCN classification and end-user statements available on request for controlled-destination shipments.
