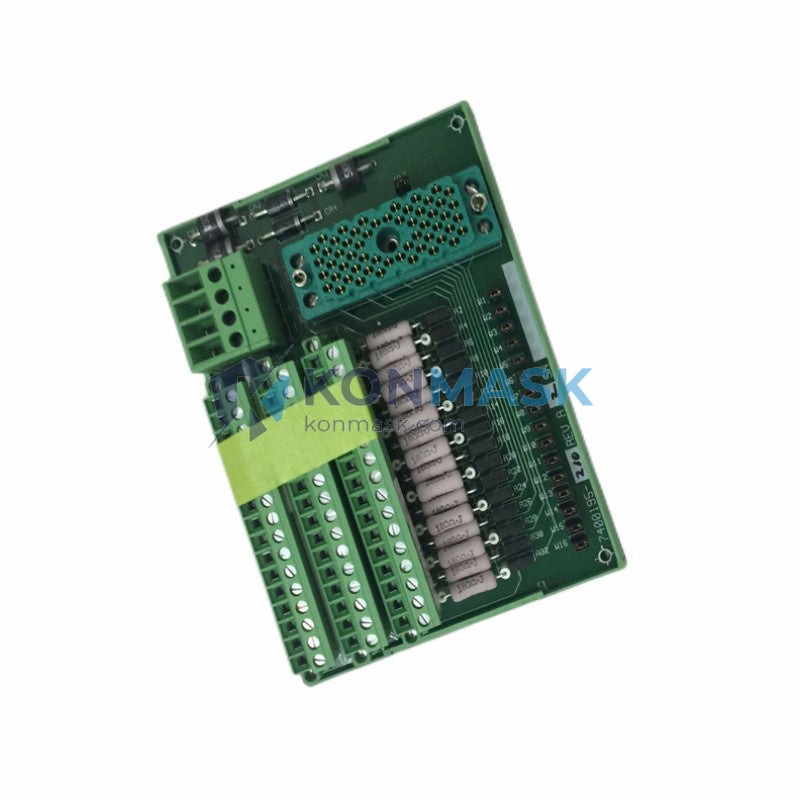

TRICONEX 7400169-310 / 9662-1XX – Field Wiring Termination Panel | Tricon Safety PLC Platform
Engineering Background
The Triconex Tricon platform is the industry benchmark for Safety Instrumented Systems (SIS), deployed across oil & gas, petrochemical, power generation, and nuclear facilities worldwide. The termination panel is the critical field-wiring interface that bridges field instruments and actuators to the Tricon I/O modules — ensuring signal integrity, loop isolation, and safe-state compliance under IEC 61511 / IEC 61508 SIL 2/3 requirements.
Product Positioning
The 7400169-310 / 9662-1XX Termination Panel is a factory-engineered passive wiring assembly designed for direct mating with Triconex Tricon I/O modules. It provides a structured, labeled terminal block layout that eliminates field-wiring errors, accelerates commissioning, and simplifies maintenance turnarounds. Konmask.com supplies this panel as a genuine OEM component with full traceability documentation available on request.
Complete Technical Specifications
| Manufacturer | Triconex (Schneider Electric) |
| Part Number | 7400169-310 |
| Alternate / Revision Code | 9662-1XX |
| Component Type | Field Wiring Termination Panel |
| Compatible Platform | Tricon Safety PLC (Tricon v9 / v10 / v11 chassis) |
| Mounting | DIN rail / panel-mount (chassis-integrated) |
| Terminal Block Type | Screw-clamp, labeled, color-coded per channel |
| Weight | 2,320 g (2.32 kg) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5 % to 95 % RH, non-condensing |
| Safety Standard Compliance | IEC 61508 SIL 2/3, IEC 61511, TÜV-certified platform |
| Condition Available | New (OEM) / Refurbished / Tested surplus |
| Lead Time | In-stock items ship within 3–5 business days |
Proven Application Environments
- Oil & Gas: Emergency Shutdown (ESD) and High-Integrity Pressure Protection Systems (HIPPS) in upstream and downstream facilities
- Petrochemical & Refining: Burner Management Systems (BMS) and process safety interlocks
- Power Generation: Turbine protection and boiler safety shutdown systems
- Nuclear: Reactor protection and safety-critical I&C upgrades
- Pipeline & LNG: Compressor station ESD and leak detection systems
- Offshore Platforms: Fire & Gas (F&G) and process shutdown integration
Engineering Advantages
- Zero-error field wiring: Pre-labeled, channel-mapped terminal layout eliminates cross-wiring during installation and maintenance
- Hot-swap compatible: Supports Tricon’s Triple Modular Redundancy (TMR) architecture — panel can be serviced without process shutdown
- Signal isolation: Passive design preserves loop integrity and prevents ground loops across field instruments
- Reduced commissioning time: Plug-and-play mating with Tricon I/O modules; no custom cabling harness required
- Long service life: Industrial-grade materials rated for continuous operation in Class I, Division 2 / Zone 2 environments
- Full OEM traceability: Serial number, revision code, and factory test records available upon request
System Architecture & Signal Flow
In a Tricon TMR architecture, each I/O module operates three independent processing legs (Leg 1, 2, 3). The termination panel provides the physical wiring interface between field devices and the I/O module backplane connector. Signal flow is:
Field Device → Termination Panel Terminal Block → I/O Module Backplane → Tricon Main Processor (MP) → Safety Logic Execution
The panel’s passive design ensures that no active components introduce failure modes into the safety loop, maintaining the SIL integrity of the overall SIS architecture. Grounding and shielding provisions on the panel comply with Triconex installation guidelines (Document: TCM-INST-001).
Sourcing & Quality Verification
- Source: Authorized surplus channels, OEM overstock, and decommissioned plant assets — all units inspected prior to listing
- Inspection Protocol: Visual inspection, connector integrity check, label legibility verification, and revision code confirmation
- Documentation: Certificate of conformance, original packing slip (where available), and Konmask inspection report provided on request
- Anti-counterfeit: All units verified against Triconex part number databases; counterfeit-risk screening applied to every batch
- Warranty: 12-month Konmask operational warranty on tested surplus units; OEM warranty terms apply to new stock
Procurement Process
- Submit RFQ: Contact support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline
- Quotation: Receive a formal quotation with unit price, lead time, and available condition (new / refurbished / surplus) within 24 hours
- Order Confirmation: Issue PO against quotation; payment terms: T/T, L/C, or credit card via Shopify checkout
- Quality Hold: Final inspection and documentation package prepared before dispatch
- Shipping: DHL / FedEx / UPS express worldwide; EXW Xiamen or CIF destination available; export documentation (commercial invoice, packing list, CO) included
- After-Sales: Technical support available post-delivery for installation verification and compatibility confirmation
Technical FAQ
Q: Is the 7400169-310 compatible with both Tricon v9 and v10/v11 chassis?
A: Compatibility depends on the specific I/O module revision. Please provide your chassis model and I/O module part number when submitting your RFQ so we can confirm fit before shipment.
Q: Can this panel be used in a SIL 3 loop?
A: The termination panel is a passive component; SIL rating of the overall loop is determined by the active I/O module and safety logic. The panel does not introduce additional PFD. Consult your SIS engineer for loop SIL verification.
Q: Do you supply the mating I/O module (e.g., 3501E, 3601E)?
A: Yes. Konmask stocks a broad range of Triconex I/O modules. Contact us with your full BOM for a consolidated quotation.
Q: What is the lead time for new OEM stock?
A: New OEM stock is subject to Schneider Electric / Triconex factory lead times (typically 12–20 weeks). Tested surplus units ship within 3–5 business days from our warehouse.
Q: Can you provide an IEC 61508 functional safety data sheet?
A: Triconex publishes SIL data sheets for active modules. For passive termination panels, we can provide the Triconex installation manual excerpt and our inspection report. Contact support for details.
