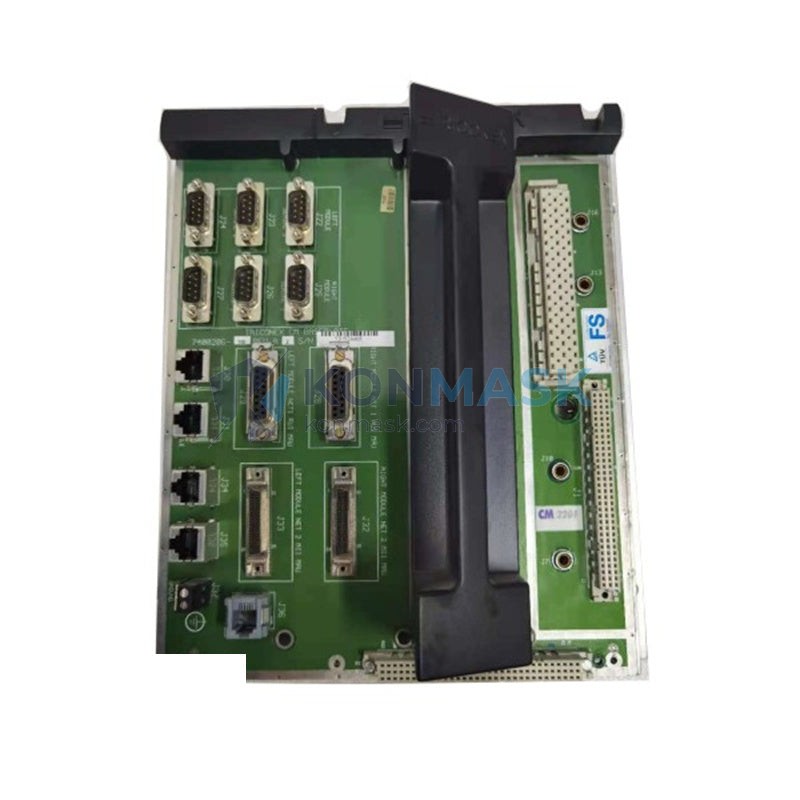

TRICONEX 7400206-100 Digital Output | Replacement, Equivalent & Selection Guide
The TRICONEX 7400206-100 is a Digital Output module designed for use in Triconex Triple Modular Redundant (TMR) safety instrumented systems. It provides reliable discrete output control for critical process automation environments where functional safety (SIL 2/3) is mandatory. This page serves as a comprehensive selection, replacement, and compatibility reference for procurement engineers, system integrators, and maintenance teams.
Technical Specifications
- Part Number: 7400206-100
- Manufacturer: TRICONEX (Schneider Electric)
- Module Type: Digital Output (DO)
- Architecture: Triple Modular Redundant (TMR)
- Safety Rating: SIL 2 / SIL 3 capable
- Output Channels: 32 channels (typical for this series)
- Output Type: Solid-state discrete output
- Operating Voltage: 24 VDC (nominal)
- Communication: Triconex proprietary backplane bus
- Operating Temperature: 0°C to 60°C
- Certifications: TÜV, IEC 61511, IEC 61508
- Form Factor: Standard Triconex chassis-mount module
- Weight: Approx. 1.7 kg
Compatible Replacement & Equivalent Models
The following modules are commonly evaluated as functional replacements or equivalents for the TRICONEX 7400206-100. Always verify firmware compatibility and chassis slot requirements before substitution:
- TRICONEX 7400206-110 — Revised hardware revision; direct functional equivalent in most TMR chassis configurations
- TRICONEX 7400206-200 — Enhanced output version; check output current ratings before substitution
- TRICONEX 3805E — Digital Output module for Tricon v10/v11 systems; verify chassis compatibility
- TRICONEX 3664 — 32-channel DO module; suitable for Tricon CX platforms
- HIMA F3 DO 8/8 01 — Third-party SIL 3 digital output; requires engineering review for cross-brand substitution
Note: Cross-brand replacements require full HAZOP/SIL validation. Consult your system integrator before installation.
Why Choose the Original Model
- Proven TMR Architecture: Triple redundancy eliminates single points of failure in safety-critical loops
- OEM Firmware Compatibility: Guaranteed compatibility with Triconex TriStation 1131 programming environment
- Regulatory Compliance: Pre-certified to IEC 61508 / IEC 61511 — no additional SIL validation required
- Long Field Track Record: Deployed in oil & gas, petrochemical, and nuclear facilities globally
- Minimized Downtime Risk: Drop-in replacement within the same Triconex chassis family
Typical Applications
- Emergency Shutdown Systems (ESD) in oil & gas upstream/downstream facilities
- Burner Management Systems (BMS) in power generation plants
- High Integrity Pressure Protection Systems (HIPPS)
- Compressor and turbine control safety loops
- Chemical and petrochemical process safety instrumented functions (SIF)
- Nuclear auxiliary system safety controls
System Compatibility
- Compatible Chassis: Triconex Tricon v9, v10, v11 main chassis and expansion chassis
- Programming Software: TriStation 1131 v4.x and above
- Communication Modules: Compatible with TCM 4351A, TCM 4352A Triconex communication modules
- Power Supply: Requires Triconex-compatible 24 VDC redundant power supply
- Not Compatible With: Tricon CX (8000 series) chassis without hardware adaptation
Selection Guide
Use the following criteria to confirm the 7400206-100 is the correct module for your application:
- ✅ Your system uses a Triconex Tricon v9/v10/v11 chassis
- ✅ You require discrete (digital) output — not analog output
- ✅ Your application demands SIL 2 or SIL 3 functional safety rating
- ✅ Output field devices operate at 24 VDC
- ✅ You need 32 output channels per module slot
If your chassis is Tricon CX (8000 series), consider the TRICONEX 3664 or 3805E series instead. Contact our team for a free selection consultation.
Quality Assurance & Sourcing
- Source: Sourced from authorized distributors and verified surplus channels
- Inspection: Each unit undergoes visual inspection, functional verification, and firmware version check prior to shipment
- Condition: New, refurbished, and tested-used options available — clearly labeled on each listing
- Warranty: 12-month replacement warranty on all units shipped from Konmask.com
- Traceability: Full documentation package available upon request (test reports, photos, CoC)
- Anti-Counterfeit: All modules verified against known OEM markings and serial number formats
How to Order
- Confirm your chassis model and firmware version (TriStation 1131 project file recommended)
- Specify required condition: New / Refurbished / Tested-Used
- Contact us via email or phone with your PO or RFQ
- Receive quotation within 1 business day; lead time typically 3–7 business days
- Shipment via DHL / FedEx with full tracking and export documentation
📧 [email protected] | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use the 7400206-110 as a direct replacement for the 7400206-100?
A: In most cases, yes. The -110 is a hardware revision of the -100 and is functionally equivalent in standard Tricon v9/v10/v11 chassis. Verify with your TriStation project before swapping.
Q: Is the 7400206-100 compatible with Tricon CX (8000 series)?
A: No. The 8000 series uses a different backplane architecture. You will need the 3664 or 3805E series for Tricon CX systems.
Q: Do you provide SIL certification documentation?
A: We can provide the OEM TÜV certificate and IEC 61508 SIL assessment report upon request. Custom SIL validation for your specific SIF loop is the responsibility of your SIS engineer.
Q: What is the lead time for a new unit?
A: Typically 3–7 business days for in-stock units. For new OEM orders, lead time may extend to 8–16 weeks. Refurbished units are usually available for immediate shipment.
Q: Can you supply multiple units for a plant turnaround?
A: Yes. We support bulk procurement with volume pricing. Contact us with your full BOM for a consolidated quotation.
