Safety System Field Termination Solution – TRICONEX 9662-110 | Tricon TMR Series
Where This Product Is Used

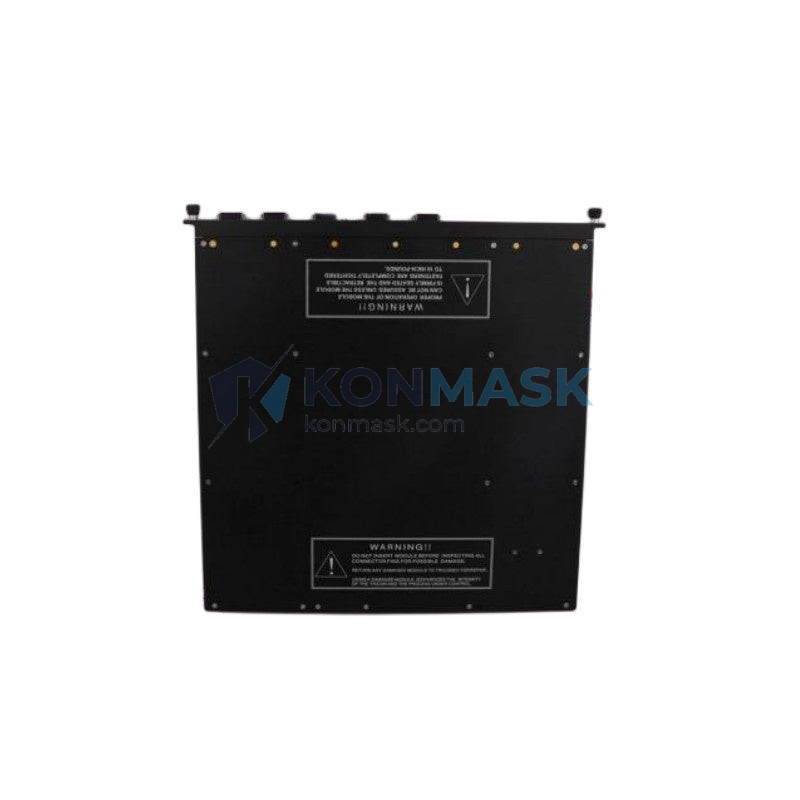

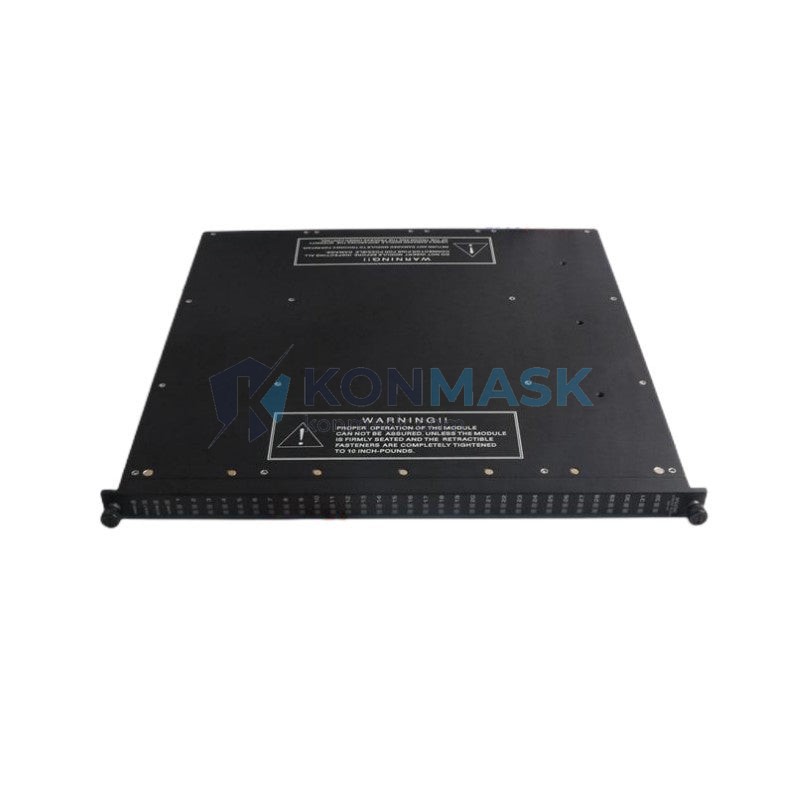

The TRICONEX 9662-110 Panel Field Termination module is a critical interface component deployed in high-integrity safety instrumented systems (SIS) across demanding industrial environments. Engineers specify this module in:
- Oil & Gas Processing Plants — Emergency Shutdown (ESD) systems, High Integrity Pressure Protection Systems (HIPPS), and compressor/turbine control panels where SIL 2/3 compliance is mandatory.
- Petrochemical & Refinery Facilities — Field wiring termination panels for process safety systems managing reactors, distillation columns, and storage tank farms.
- Power Generation (Thermal & Nuclear) — Turbine protection and boiler management systems requiring fault-tolerant Triple Modular Redundancy (TMR) architecture.
- Chemical & Specialty Manufacturing — Batch process safety interlocks and burner management systems (BMS) where field signal integrity is non-negotiable.
- LNG Terminals & Pipeline Infrastructure — Remote terminal units and safety shutdown panels in hazardous area control rooms.
- Offshore Platforms — Topside safety systems requiring compact, reliable field termination in space-constrained enclosures.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 9662-110 |
| Manufacturer | TRICONEX (Schneider Electric) |
| Series | Tricon TMR Safety System |
| Module Type | Panel Field Termination Assembly |
| Architecture | Triple Modular Redundancy (TMR) |
| Weight | 2,700 g (approx.) |
| Mounting | Panel / Chassis Mount |
| Communication | Compatible with Tricon Main Chassis I/O bus |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Certifications | TÜV, IEC 61508, SIL 2/3 capable |
Note: Always verify specifications against the official TRICONEX datasheet for your revision level before engineering design.
Why Engineers Specify This Model
- TMR Fault Tolerance — The 9662-110 supports the Tricon’s 2-out-of-3 voting logic, ensuring no single point of failure can cause a spurious trip or missed shutdown.
- Simplified Field Wiring — Dedicated termination panel design eliminates the need for external marshalling cabinets, reducing wiring complexity and commissioning time.
- Direct I/O Module Compatibility — Engineered to interface directly with Tricon I/O modules, maintaining signal integrity across the full TMR channel path.
- Proven Field Reliability — Widely deployed in SIL-certified installations globally; a trusted choice for brownfield upgrades and greenfield SIS projects alike.
- Reduced Lifecycle Cost — Modular termination design allows field replacement without disturbing live wiring, minimizing maintenance downtime.
Complete System Bill of Materials
The 9662-110 is typically specified alongside the following Tricon system components:
- Tricon Main Chassis (e.g., 8310, 8312)
- Tricon Power Supply Modules (e.g., 8312)
- Tricon I/O Modules — Digital Input (e.g., 3501E), Digital Output (e.g., 3603E), Analog Input (e.g., 3700A)
- Tricon Communication Module (e.g., 4351B, 4119A)
- Tricon Field Termination Assemblies (FTAs) — compatible series
- TriStation 1131 Engineering Workstation Software
- Redundant Power Distribution Units (PDUs)
Contact support@konmask.com for complete BOM assistance and cross-reference support.
Compliance & Industry Standards
- IEC 61508 — Functional Safety of E/E/PE Safety-related Systems (SIL 2 / SIL 3 capable)
- IEC 61511 — Functional Safety for the Process Industry Sector
- TÜV Rheinland Certified — Independent third-party safety certification
- ATEX / IECEx — Compatible with hazardous area installations when used with certified barriers
- ISA-84 — Safety Instrumented Systems for the Process Industries
- RoHS Compliant — Restriction of Hazardous Substances
Quality Assurance & Sourcing
At Konmask.com, every TRICONEX module undergoes a structured quality verification process before dispatch:
- Visual Inspection — Boards, connectors, and housings checked for physical damage, corrosion, or counterfeit indicators.
- Label & Revision Verification — Part number, revision code, and date code confirmed against manufacturer records.
- Functional Test (where applicable) — Bench-level power-on and communication checks performed on select units.
- Traceable Packaging — Each unit ships with inspection records, anti-static packaging, and a certificate of conformance upon request.
- Authorized & Surplus Channel Sourcing — We source from verified industrial surplus channels and authorized distributors to ensure authenticity.
How to Source This Part
- In-Stock Orders — Add to cart and complete checkout. Most orders ship within 1–3 business days from our warehouse.
- Bulk / Project Quantities — Contact us for volume pricing, lead time confirmation, and project BOM support.
- Urgent Requirements — Email support@konmask.com or call +0086 19859288691 for expedited sourcing.
- Cross-Reference Requests — Not sure if this is the right part? Send us your existing part number or system configuration and our engineers will confirm compatibility.
- International Shipping — We ship globally. Export documentation, commercial invoices, and HS code declarations provided upon request.
Application-Specific FAQ
Q: Is the 9662-110 compatible with all Tricon chassis revisions?
A: The 9662-110 is designed for the Tricon TMR platform. Compatibility depends on your chassis revision and I/O module configuration. Contact us with your system details for confirmation.
Q: Can this module be used in a SIL 3 application?
A: The Tricon TMR architecture is SIL 3 capable when the full system is configured and validated per IEC 61508/61511 requirements. The 9662-110 as a field termination component must be assessed within the full safety loop design.
Q: Do you supply a certificate of conformance (CoC)?
A: Yes. A CoC is available upon request for all units. Please specify this requirement at the time of order.
Q: What is the lead time for this part?
A: In-stock units typically ship within 1–3 business days. For out-of-stock situations, lead times vary by sourcing channel — contact us for a real-time availability check.
Q: Can Konmask provide installation or commissioning support?
A: We provide technical documentation and pre-sales engineering support. For on-site commissioning, we can refer you to certified TRICONEX system integrators in your region.
