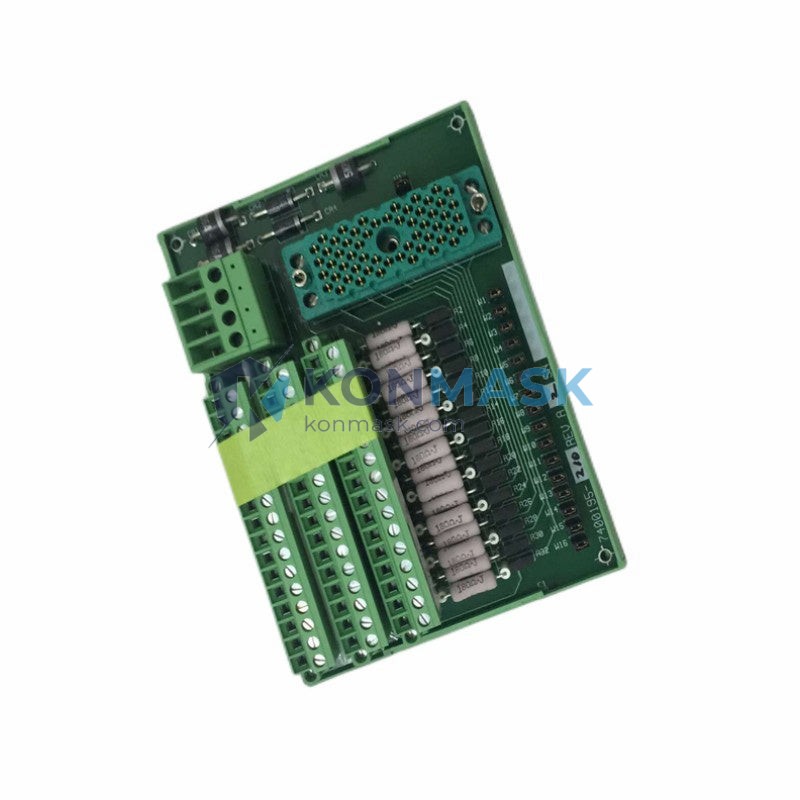

TRICONEX 9771-210 – Termination Panel | Tricon Safety System Platform
Engineering Background
The TRICONEX 9771-210 Termination Panel is a field-wiring interface component designed for use within the Tricon Triple Modular Redundant (TMR) safety system architecture. TRICONEX, a Schneider Electric brand, is globally recognized as a leader in Safety Instrumented Systems (SIS) compliant with IEC 61511 and IEC 61508 standards. The 9771-210 serves as the critical junction between field instrumentation and the Tricon I/O modules, enabling clean, organized, and reliable signal termination in high-integrity process environments.
Product Positioning
Engineered for process industries where functional safety is non-negotiable, the 9771-210 Termination Panel is the preferred choice for EPC contractors, system integrators, and plant maintenance teams managing Tricon-based SIS installations. Its robust mechanical design and compatibility with standard Tricon I/O modules make it an essential spare and replacement component for brownfield upgrades and greenfield SIS projects alike.
Complete Technical Specifications
- Part Number: 9771-210
- Manufacturer: TRICONEX (Schneider Electric)
- Product Family: Tricon Safety System
- Module Type: Termination Panel / Field Wiring Interface
- Compatible Platform: Tricon v9 / v10 / v11 TMR Safety PLC
- Mounting: DIN rail or panel-mount (per Tricon chassis configuration)
- Weight: 2,320 g (approx.)
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Compliance: IEC 61508 SIL 3, IEC 61511, CE Marking
- Connector Type: Screw-terminal field wiring interface
- Signal Isolation: Galvanic isolation per Tricon I/O module specification
- Condition Available: New (factory sealed) / Refurbished / Tested surplus
Proven Application Environments
- Oil & Gas: Emergency Shutdown (ESD) systems, High Integrity Pressure Protection Systems (HIPPS), compressor and turbine control
- Petrochemical & Refining: Burner Management Systems (BMS), reactor safety interlocks, fired heater protection
- Power Generation: Turbine trip systems, boiler protection, nuclear auxiliary safety systems
- Chemical Processing: Toxic gas detection interlocks, pressure relief automation, batch reactor safety
- LNG & Pipeline: Station ESD, leak detection, compressor protection panels
- Offshore Platforms: Fire & Gas (F&G) integration, wellhead control, platform ESD
Engineering Advantages
- TMR Architecture Integrity: Maintains the triple-redundant signal path inherent to Tricon system design, ensuring no single point of failure at the field wiring interface.
- Plug-and-Play Compatibility: Direct replacement for existing 9771-210 panels in installed Tricon systems — no firmware changes or re-engineering required.
- Reduced Commissioning Time: Pre-labeled terminal blocks and standardized wiring layout accelerate field installation and loop checking.
- Long Service Life: Industrial-grade materials rated for continuous operation in harsh process environments.
- Simplified Maintenance: Modular design allows panel replacement without disturbing adjacent I/O modules or field cabling.
- Traceability: Each unit supplied by Konmask.com includes documentation supporting full component traceability for SIS lifecycle management per IEC 61511 Clause 11.
System Architecture & Signal Flow
Within the Tricon TMR architecture, the 9771-210 Termination Panel interfaces directly with the corresponding Tricon I/O module installed in the main chassis. Field instrument signals (4–20 mA, discrete contact, NAMUR, or voltage) are landed on the termination panel’s screw terminals. The panel routes these signals through the Tricon cable assembly to the I/O module, where triple-redundant voting logic processes each signal across three independent microprocessors (MP1, MP2, MP3). The 2-out-of-3 (2oo3) voting mechanism ensures that a single channel fault does not cause a spurious trip or a failure to trip, maintaining both process availability and safety integrity.
Sourcing & Quality Verification
Konmask.com sources the TRICONEX 9771-210 through established industrial automation supply channels with documented provenance. Our quality verification process includes:
- Visual inspection against OEM reference standards (no counterfeit indicators, label integrity, connector condition)
- Functional bench test where applicable (power-on, communication handshake, I/O channel verification)
- Packaging inspection and serialization cross-check
- Documentation package: datasheet, test record, and certificate of conformance available on request
All surplus and refurbished units are clearly identified with condition grade. New factory-sealed units are supplied in original OEM packaging.
Procurement Process
- Inquiry: Submit your part number, required quantity, and delivery timeline via the contact form or email support@konmask.com.
- Quotation: Receive a formal quotation within 1 business day, including unit price, lead time, and shipping options (DHL / FedEx / sea freight).
- Order Confirmation: Approve the quotation and complete payment via T/T bank transfer, PayPal, or credit card.
- Quality Check & Dispatch: Unit undergoes final inspection and is dispatched with full shipping documentation (commercial invoice, packing list, COO).
- Delivery & Support: Typical international delivery 3–7 business days. Post-delivery technical support available via email or phone.
Technical FAQ
Q: Is the 9771-210 compatible with all Tricon chassis versions?
A: The 9771-210 is designed for use with Tricon v9, v10, and v11 systems. Please confirm your chassis version and I/O module type before ordering to ensure cable and connector compatibility.
Q: Can this termination panel be used with Triconex Trident or Trident systems?
A: No. The 9771-210 is specific to the Tricon platform. Trident and other TRICONEX platforms use different termination panel part numbers. Contact us for cross-reference assistance.
Q: Do you supply the Tricon cable assembly required to connect the termination panel to the I/O module?
A: Yes. Konmask.com can supply the associated Tricon cable assemblies. Please specify your I/O module part number when inquiring.
Q: What is the lead time for the 9771-210?
A: Stock availability varies. In-stock units ship within 2–3 business days. For non-stock items, lead time is typically 2–4 weeks. Contact us for real-time availability.
Q: Can you provide a Certificate of Conformance (CoC) or test report?
A: Yes. Documentation packages including CoC, inspection records, and datasheet are available upon request for all orders.
