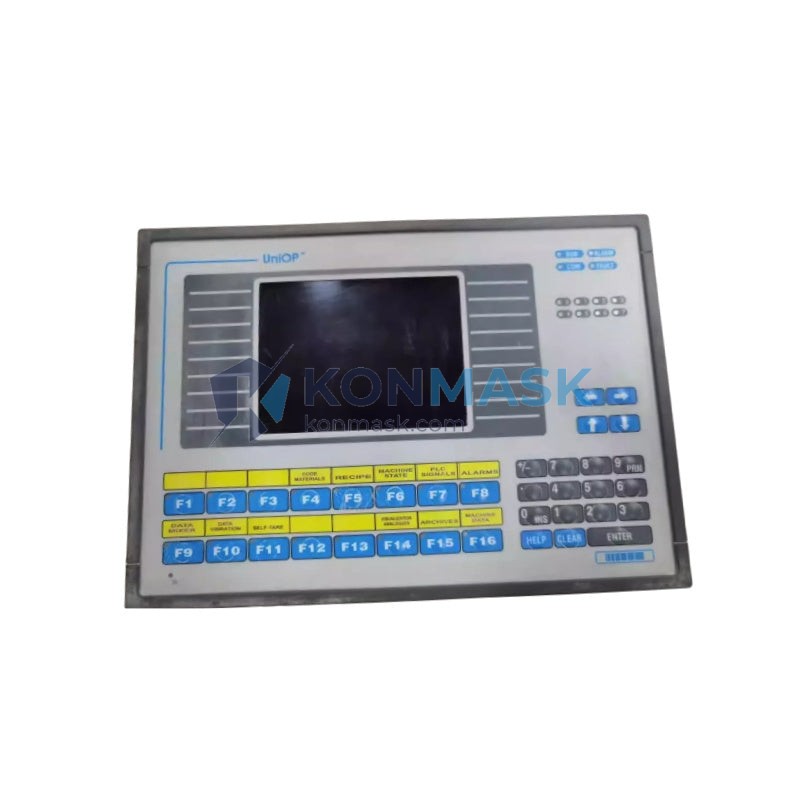

UNIOP EK-16N – Industrial Touch Screen HMI Operator Panel | EK Series Platform
Engineering Background
The UNIOP EK-16N is part of UNIOP’s EK Series of compact operator interface terminals, engineered for demanding industrial environments where reliable human-machine interaction is critical. UNIOP (a brand under Exor International) has decades of heritage in industrial HMI design, delivering rugged, field-proven panels trusted by OEMs and system integrators worldwide.
Product Positioning
The EK-16N is positioned as a cost-effective yet robust HMI solution for machine-level control applications. It bridges the gap between simple text displays and full-featured graphical panels, offering touch-based interaction in a compact form factor suitable for panel-mount installations across manufacturing, packaging, and process automation sectors.
Complete Technical Specifications
- Model: EK-16N
- Brand / Manufacturer: UNIOP (Exor International)
- Series: EK Series Operator Interface Terminals
- Display Type: Touch Screen (resistive/membrane touch)
- Form Factor: Compact panel-mount HMI
- Communication Interfaces: Serial (RS-232 / RS-485), compatible with major PLC protocols
- Power Supply: 24 VDC (nominal)
- Operating Temperature: 0°C to +50°C
- Protection Rating: IP65 front panel (panel-mount)
- Programming Software: UNIOP DesignerPRO / NetDesigner
- Weight: Approx. 1,000 g
- Condition: New / Surplus / Refurbished (specify on inquiry)
Note: Full datasheet available upon request. Specifications subject to revision per manufacturer updates.
Proven Application Environments
- Machine tool control panels and CNC operator stations
- Packaging line HMI interfaces (filling, labeling, wrapping machines)
- Water treatment and HVAC monitoring stations
- Conveyor and material handling system control
- Injection molding and press machine operator terminals
- Food & beverage processing lines requiring IP65 front protection
- OEM equipment integration requiring compact panel-mount HMI
Engineering Advantages
- Compact & Panel-Mount Ready: Designed for space-constrained control cabinets with standard cutout dimensions.
- Wide PLC Compatibility: Supports serial communication with Siemens, Mitsubishi, Omron, Allen-Bradley, and other major PLC brands via configurable drivers.
- Rugged Construction: IP65-rated front panel resists dust and water ingress in harsh shop-floor environments.
- Intuitive Programming: UNIOP DesignerPRO software enables rapid screen development with tag-based configuration and no proprietary scripting required.
- Proven Field Reliability: EK Series panels have accumulated millions of operating hours across global industrial installations.
- Low Total Cost of Ownership: Straightforward replacement for legacy UNIOP panels with minimal re-engineering effort.
System Architecture & Signal Flow
The EK-16N operates as a standalone HMI terminal communicating with a host PLC or controller via serial link (RS-232 or RS-485). The operator interacts with pre-configured screens on the touch panel; the HMI reads and writes data tags directly to the PLC memory registers. Screen projects are developed offline using UNIOP DesignerPRO, then downloaded to the panel via serial or USB interface. The panel requires 24 VDC power and is mounted flush into a control cabinet door or enclosure front plate.
Typical Signal Flow: PLC ↔ Serial Link (RS-232/RS-485) ↔ EK-16N HMI ↔ Operator Touch Input
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels.
- New-in-box units include original manufacturer packaging where available.
- Surplus and refurbished units undergo functional inspection and cleaning prior to shipment.
- Authenticity verification available: serial number traceability provided on request.
- Konmask.com specializes in genuine, traceable industrial automation components — no counterfeit risk.
Procurement Process
- Confirm Requirement: Verify model number EK-16N matches your existing installation or BOM specification.
- Request Quote: Contact support@konmask.com with quantity, required condition (new/surplus/refurbished), and delivery timeline.
- Order Confirmation: Receive proforma invoice with lead time and shipping options (DHL / FedEx / sea freight).
- Payment & Dispatch: Payment via T/T, PayPal, or credit card. Units dispatched within agreed lead time with tracking provided.
- After-Sales Support: Technical documentation, wiring diagrams, and programming software links provided post-purchase.
Technical FAQ
Q: Is the EK-16N compatible with Siemens S7-300/S7-400 PLCs?
A: Yes. UNIOP DesignerPRO includes Siemens S7 MPI/PPI drivers. Confirm the exact communication protocol with your PLC configuration before ordering.
Q: Can the EK-16N replace an older UNIOP panel with a different model number?
A: In many cases yes, provided the communication interface and power supply match. Screen projects may require adaptation in DesignerPRO. Contact us for a compatibility assessment.
Q: What is the warranty on surplus units?
A: Surplus units carry a 90-day functional warranty. New-in-box units follow the manufacturer’s standard warranty terms. Full details provided at time of quotation.
Q: Do you provide the UNIOP DesignerPRO programming software?
A: We can provide links to the official UNIOP software download and assist with version compatibility. Software licensing is governed by UNIOP/Exor International terms.
Q: What are the shipping options to China and internationally?
A: We ship worldwide via DHL Express, FedEx International, and sea freight for bulk orders. Typical transit to mainland China: 3–7 business days (express). Contact us for a freight quote.
