Vacon PC00459G – IGBT Gate Drive Trigger Board | Vacon NX Series VFD Platform
Engineering Background: The Vacon NX Series is one of the most widely deployed variable frequency drive platforms in heavy process industries globally. Its modular architecture relies on precision PCB sub-assemblies — none more critical than the IGBT gate drive trigger board, which governs the switching integrity of the entire power stage. A failed or degraded trigger board directly causes drive faults, output distortion, and unplanned downtime.

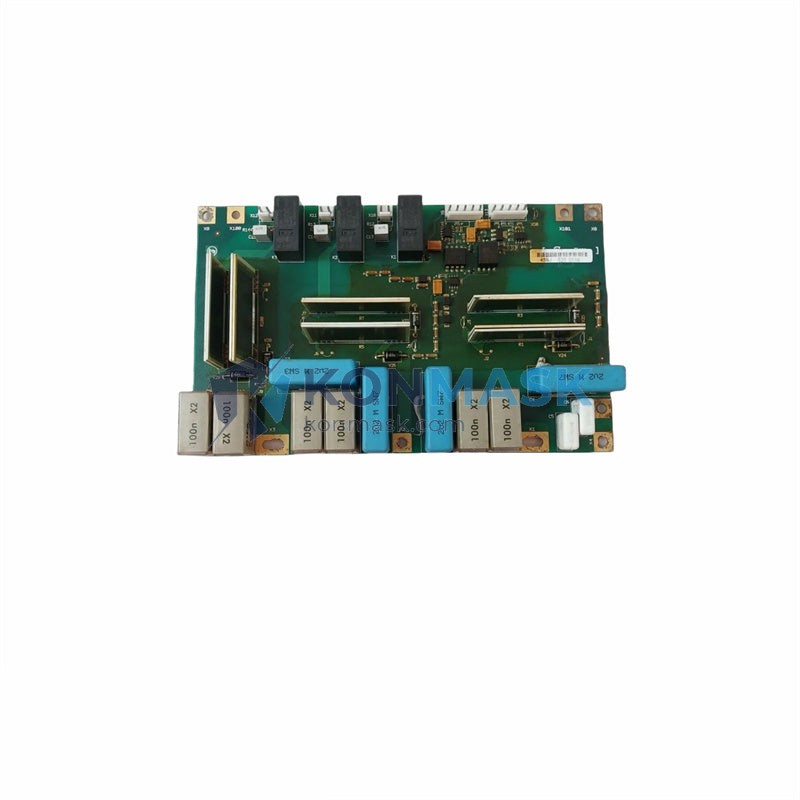

Product Positioning: The Vacon PC00459G is an OEM-grade IGBT Gate Drive Trigger Board engineered exclusively for the Vacon NX Series platform. Manufactured in Finland to Vacon/Danfoss exacting industrial standards, it is the authoritative direct-replacement spare part for field maintenance, depot repair, and OEM production lines. Procurement engineers requiring a verified, traceable component that restores full drive performance without compromising system reliability or safety margins will find no equivalent substitute.
Complete Technical Specifications
- Part Number: PC00459G
- Manufacturer: Vacon (Danfoss Vacon Oy)
- Country of Origin: Finland (FI)
- Board Function: IGBT Gate Drive Trigger Board
- Compatible Platform: Vacon NX Series Variable Frequency Drives
- Board Type: PCB Sub-assembly – Power Stage Interface
- Operating Temperature: −10°C to +50°C (ambient, per NX drive specification)
- Storage Temperature: −40°C to +70°C
- Humidity: 5–95% RH, non-condensing
- Isolation: Galvanic isolation between control and power circuits
- Compliance: CE, RoHS; manufactured to IEC 61800-series drive standards
- HS Code: 8538.90.00 (Parts for electrical apparatus)
- Weight: Approx. 500 g (board + ESD-safe packaging)
- Condition: New / Refurbished / Tested (specify at order)
Proven Application Environments
- Process Industry: Pump and fan drives in water treatment, HVAC, and chemical processing plants
- Marine & Offshore: Vacon NX drives in vessel propulsion auxiliaries and offshore platform utilities
- Oil & Gas: Compressor and blower drive systems requiring high-MTBF spare parts
- Pulp & Paper / Mining: High-cycle conveyor and mill drive applications
- Power Generation: Auxiliary drive systems in power plants and substations
- OEM Machine Builders: Production-line integration requiring certified, traceable PCB sub-assemblies
Engineering Advantages
- OEM Authenticity: Sourced from Vacon/Danfoss-authorized supply chains — not aftermarket clones
- Gate Pulse Precision: Maintains switching timing accuracy critical for IGBT longevity and THD performance
- Fault Isolation Architecture: Integrated desaturation detection and short-circuit protection logic
- Drop-in Replacement: Plug-compatible with existing NX Series drive chassis — no firmware changes required
- Full Traceability: Each unit carries manufacturer date codes and batch traceability for quality audit compliance
- Reduced Downtime: Ready-to-install board eliminates field-level component repair delays
System Architecture & Signal Flow
Within the Vacon NX drive architecture, the PC00459G sits between the ASIC/DSP control board and the IGBT power module stack. It receives PWM switching commands from the control layer, amplifies and conditions gate drive signals, and delivers isolated gate pulses to each IGBT in the three-phase inverter bridge. Simultaneously, it monitors collector-emitter voltage for desaturation events and feeds fault signals back to the control board within microseconds — enabling the drive’s protective shutdown sequence before thermal or electrical damage propagates.
- Control Board PWM Output → PC00459G Input Optocoupler Stage
- Gate Drive Amplifier → IGBT Gate/Emitter Terminals
- Desaturation Monitor → Fault Latch → Control Board Fault Input
Sourcing & Quality Verification
- Supply Chain: Authorized distributor and surplus OEM stock channels
- Inspection Protocol: Visual inspection, functional bench test, and ESD-safe packaging prior to shipment
- Documentation: Certificate of conformity and test report available upon request
- Warranty: 90-day replacement warranty against manufacturing defects
- Anti-Counterfeit: All units verified against Vacon part marking standards; counterfeit units are rejected and destroyed
Procurement Process
- Confirm Compatibility: Verify your Vacon NX drive model and existing board part number against PC00459G
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and availability
- Place Order: Purchase directly via Konmask.com with secure checkout; HKD, USD, EUR accepted
- Shipping: DHL / FedEx express worldwide; EXW Shenzhen or CIF destination available for B2B orders
- Receive & Install: ESD-safe packaging; installation guide and Vacon NX service manual reference provided on request
Technical FAQ
Q: Is the PC00459G compatible with all Vacon NX drive power ratings?
A: The PC00459G is designed for specific NX Series power frame sizes. Please confirm your drive’s frame size and power rating with our technical team before ordering to ensure exact compatibility.
Q: Can this board be used in Vacon 100 or Vacon 20 series drives?
A: No. The PC00459G is specific to the Vacon NX platform. Vacon 100 and Vacon 20 series use different trigger board assemblies.
Q: Do you offer exchange/repair service for failed PC00459G boards?
A: Yes. Konmask.com offers board exchange and depot repair services. Contact us with your failed unit’s condition and we will provide a repair quotation.
Q: What is the lead time for in-stock units?
A: In-stock units ship within 1–3 business days. For out-of-stock items, typical lead time is 2–4 weeks depending on supply chain availability.
Q: Is RoHS compliance documentation available?
A: Yes. RoHS compliance declarations are available upon request for all units sourced from authorized channels.
