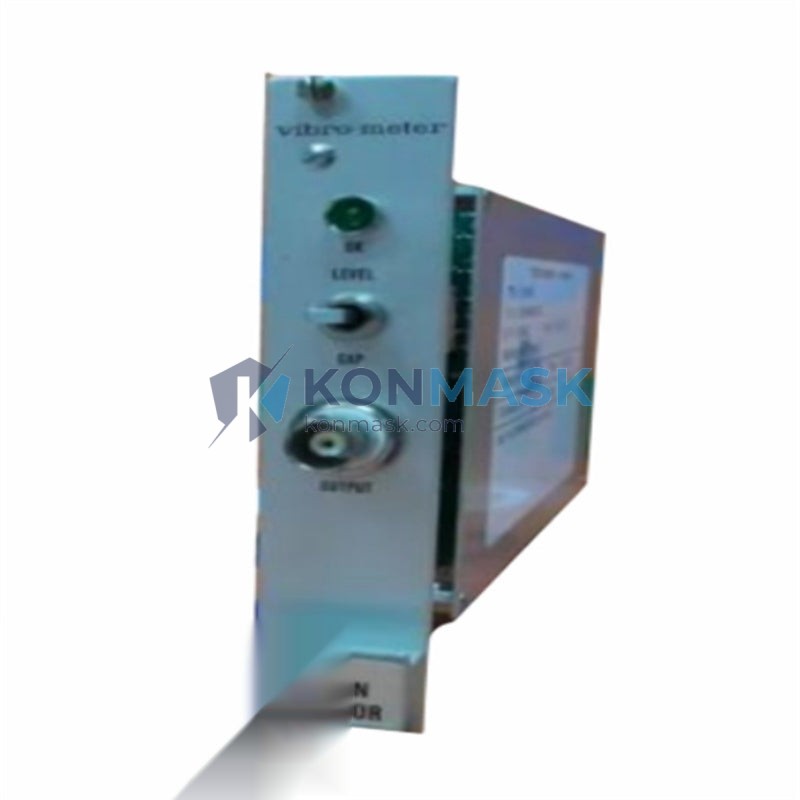

VIBRO METER UVV694 204-694-000-023 — Vibration Signal Processor | VIBRO METER Condition Monitoring Platform
Engineering Background
VIBRO METER (a Meggitt brand) is a globally recognized authority in precision vibration measurement and machinery protection systems. The UVV694 series is engineered for continuous, high-reliability vibration signal conditioning in rotating machinery applications — turbines, compressors, pumps, and motors — where signal integrity and measurement accuracy are mission-critical.
Product Positioning
The UVV694 (P/N 204-694-000-023) is a dedicated vibration processor module designed to interface with velocity or acceleration transducers, condition raw vibration signals, and deliver clean analog outputs to DCS, PLC, or machinery protection systems. It is the preferred choice for procurement engineers specifying condition monitoring upgrades or OEM replacements in heavy industrial environments.
Complete Technical Specifications
| Manufacturer | VIBRO METER (Meggitt Group) |
| Model / Part Number | UVV694 / 204-694-000-023 |
| Product Type | Vibration Signal Processor |
| Input Signal | Velocity / Acceleration transducer (IEPE / charge compatible) |
| Output Signal | Analog (4–20 mA / 0–10 V, configuration-dependent) |
| Measurement Parameter | Vibration velocity (mm/s RMS), displacement (µm pk-pk) |
| Frequency Range | Refer to OEM datasheet for certified bandwidth |
| Power Supply | 24 VDC (nominal), refer to OEM spec for tolerance range |
| Enclosure / Form Factor | DIN-rail mountable module |
| Operating Temperature | –20 °C to +70 °C (typical industrial grade) |
| Weight | ~500 g |
| Compliance | CE, designed to IEC 61000 EMC standards |
| Country of Origin | Switzerland (VIBRO METER headquarters) |
Note: Always cross-reference with the official VIBRO METER UVV694 datasheet for certified electrical parameters before installation.
Proven Application Environments
- Gas & Steam Turbines — continuous shaft vibration monitoring per API 670
- Centrifugal Compressors — bearing housing velocity measurement
- Pumps & Fans — imbalance and misalignment detection
- Electric Motors — vibration trending for predictive maintenance programs
- Power Generation — integration with plant DCS/SCADA via analog loop
- Petrochemical & Refining — SIL-rated machinery protection architectures
Engineering Advantages
- Signal Fidelity — precision analog conditioning minimizes noise and drift in long cable runs
- Direct OEM Replacement — P/N 204-694-000-023 ensures drop-in compatibility with existing VIBRO METER installations
- Universal DCS Integration — standard 4–20 mA output interfaces with ABB, Siemens, Honeywell, Emerson, and Yokogawa systems
- Compact DIN-Rail Form Factor — minimizes panel space; suitable for retrofit and greenfield projects
- Proven Reliability — VIBRO METER modules are field-proven in continuous 24/7 industrial operation globally
System Architecture & Signal Flow
The UVV694 sits between the field transducer and the control/protection layer:
Transducer (velocity/accelerometer) → UVV694 Signal Processor → Analog Output (4–20 mA) → DCS / PLC / Machinery Protection System → Alarm / Trip Logic
The module performs signal amplification, filtering, RMS or peak-to-peak conversion, and galvanic isolation where specified, delivering a clean, standardized process variable to the control layer without requiring additional signal conditioning hardware.
Sourcing & Quality Verification
- All units sourced through verified industrial supply channels with full traceability
- Pre-shipment inspection: visual, label verification (P/N 204-694-000-023), and packaging integrity check
- Original OEM packaging preserved where available
- Certificate of conformance (CoC) available upon request for regulated industries
- Konmask.com maintains a curated inventory of VIBRO METER / Meggitt components for rapid procurement support
Procurement Process
- Confirm P/N — verify 204-694-000-023 against your BOM or existing installation tag
- Request Quote — contact support@konmask.com with quantity and required delivery date
- Order Placement — purchase order accepted via website checkout or direct PO (B2B accounts)
- Lead Time — in-stock units ship within 1–3 business days; ETA confirmed at order
- Documentation — packing list, commercial invoice, and CoC dispatched with shipment
- After-Sales — technical support available at support@konmask.com
Technical FAQ
Q: Is the UVV694 204-694-000-023 a direct replacement for older VIBRO METER vibration processors?
A: Yes, provided the P/N matches your existing installation. Always verify wiring pinout and output configuration against the original datasheet before commissioning.
Q: Can this unit interface with Bently Nevada or other third-party protection systems?
A: The standard 4–20 mA analog output is universally compatible. Confirm input impedance requirements of the receiving system.
Q: What is the warranty?
A: Konmask.com provides a 90-day functional warranty on all stocked industrial modules. Extended warranty and service contracts available on request.
Q: Do you provide expedited shipping for shutdown/turnaround situations?
A: Yes. Contact support@konmask.com with your urgency timeline and we will prioritize accordingly.
Q: Is a calibration certificate available?
A: Factory calibration data is retained by VIBRO METER. Third-party calibration services can be arranged upon request.
